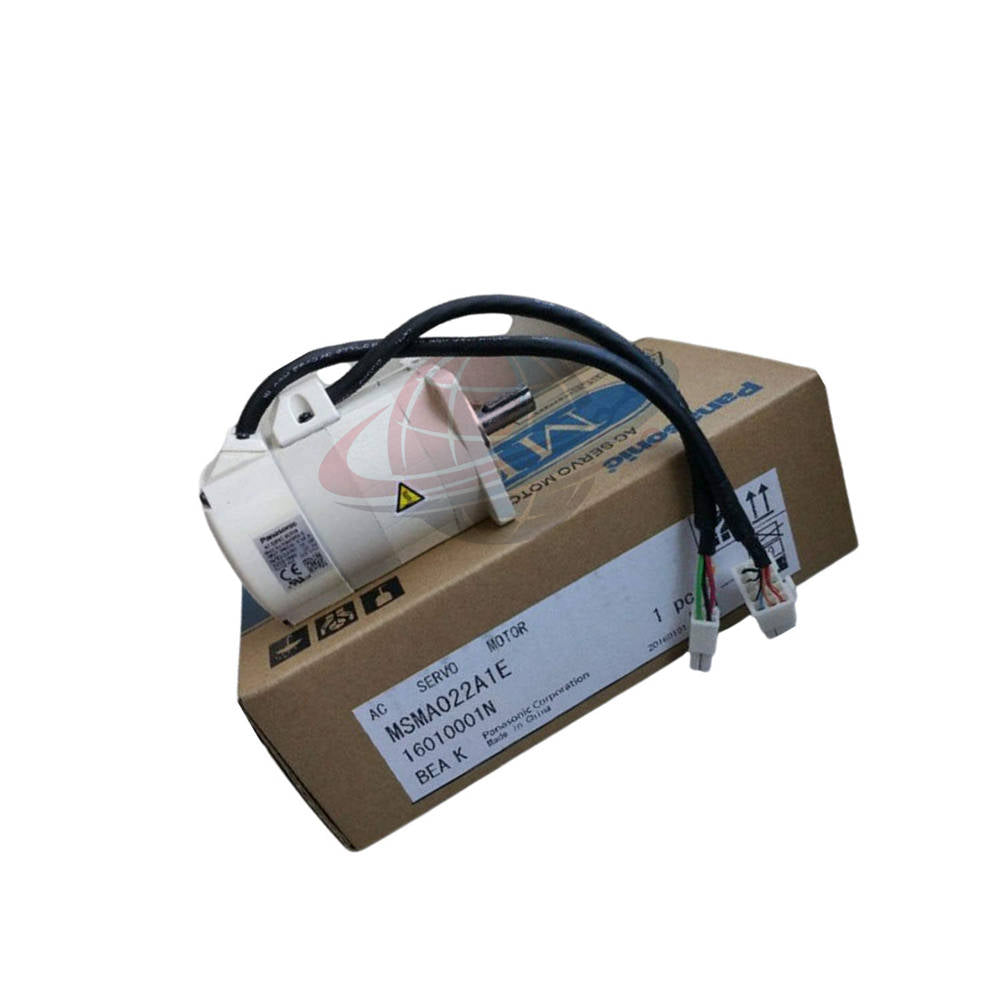

MSMA022A1E Panasonic MSMA Servo Motor 0.2kW Low Inertia

Engineering Overview

MSMA022A1E is a precision servo motor engineered by Panasonic. It belongs to the MSMA Series. The design prioritizes low inertia and fast dynamic response. It supports accurate positioning in compact automation systems.

The motor delivers stable torque output at rated speed. Its compact housing simplifies integration into limited spaces. It is suitable for high-cycle motion applications.

Key Engineering Advantages

• Low inertia rotor enables rapid acceleration and deceleration.
• Consistent speed control at 3000 RPM.
• Compact footprint reduces machine design constraints.
• Keyway shaft ensures reliable torque transmission.
• IP65 enclosure improves durability in industrial environments.

Technical Parameters

• Brand: Panasonic
• Model: MSMA022A1E
• Series: MSMA
• Motor Type: Low inertia AC servo motor
• Rated Output: 0.2 kW
• Rated Voltage: 200 V
• Rated Current: 1.6 A
• Rated Speed: 3000 RPM
• Speed Stability: High precision closed-loop control
• Shaft Configuration: Keyway shaft
• Mounting Style: Standard flange
• Insulation Class: Class B
• Protection Rating: IP65
• Operating Temperature: -10°C to 40°C
• Weight: 0.594 kg
• Brake Option: No holding brake

Installation Considerations

• Align shaft accurately to prevent mechanical stress.
• Use appropriate couplings for torque transmission.
• Ensure proper grounding and shielding of cables.
• Install within recommended temperature limits.
• Secure mounting to reduce vibration effects.

Commissioning and Maintenance

• Pair with compatible Panasonic servo drive.
• Tune parameters for optimal motion response.
• Monitor temperature during continuous operation.
• Inspect shaft coupling and alignment periodically.
• Keep housing clean to maintain cooling efficiency.

Application Scope

• Precision assembly equipment
• Packaging machinery with fast cycles
• Semiconductor handling systems
• CNC positioning units
• Automated inspection devices

Diagnostics Capability

• Supports encoder feedback for precise position tracking
• Enables real-time speed and torque monitoring
• Detects overload and abnormal operating conditions
• Integrates with drive-level fault diagnostics
• Facilitates predictive maintenance through performance data

Global PLC Spare HUB’s Insight

The MSMA022A1E is optimized for compact motion systems. It delivers fast response and stable operation. Engineers prefer it for space-constrained automation equipment.

It performs well in systems requiring high repeatability and dynamic control. Suitable for integration with Panasonic motion platforms and precision machines.

Warranty and Logistics

• 12-month warranty for operational assurance
• Ships within 24 to 48 hours
• Delivery via FedEx, UPS, or DHL
• Secure packaging for international transport

FAQ

• How does low inertia benefit system performance?
• It improves acceleration and reduces settling time.
• What should be checked before installation?
• Verify alignment, voltage compatibility, and mounting stability.
• How to select a matching servo drive?
• Choose based on voltage rating and control interface compatibility.
• Can this motor handle continuous duty cycles?
• Yes, within specified thermal and load limits.
• What factors influence motor lifespan?
• Proper cooling, load control, and regular inspection are critical.
