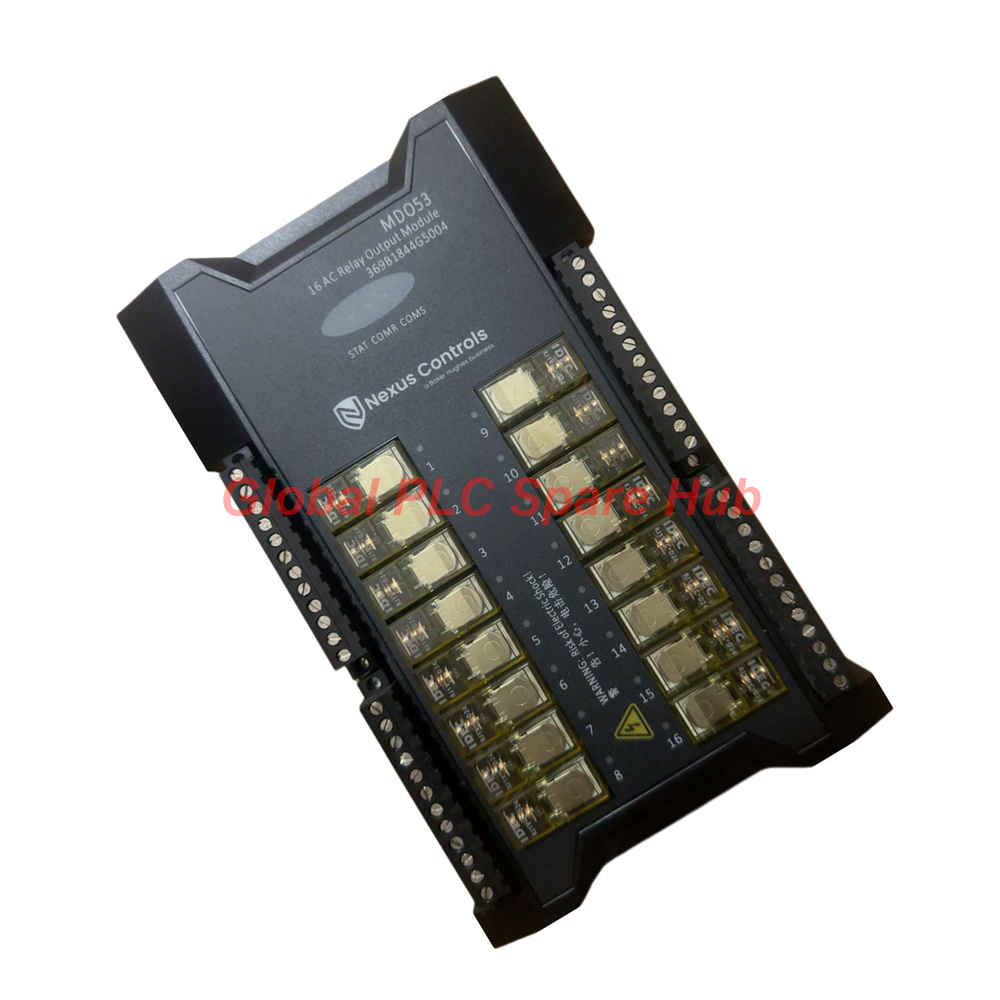

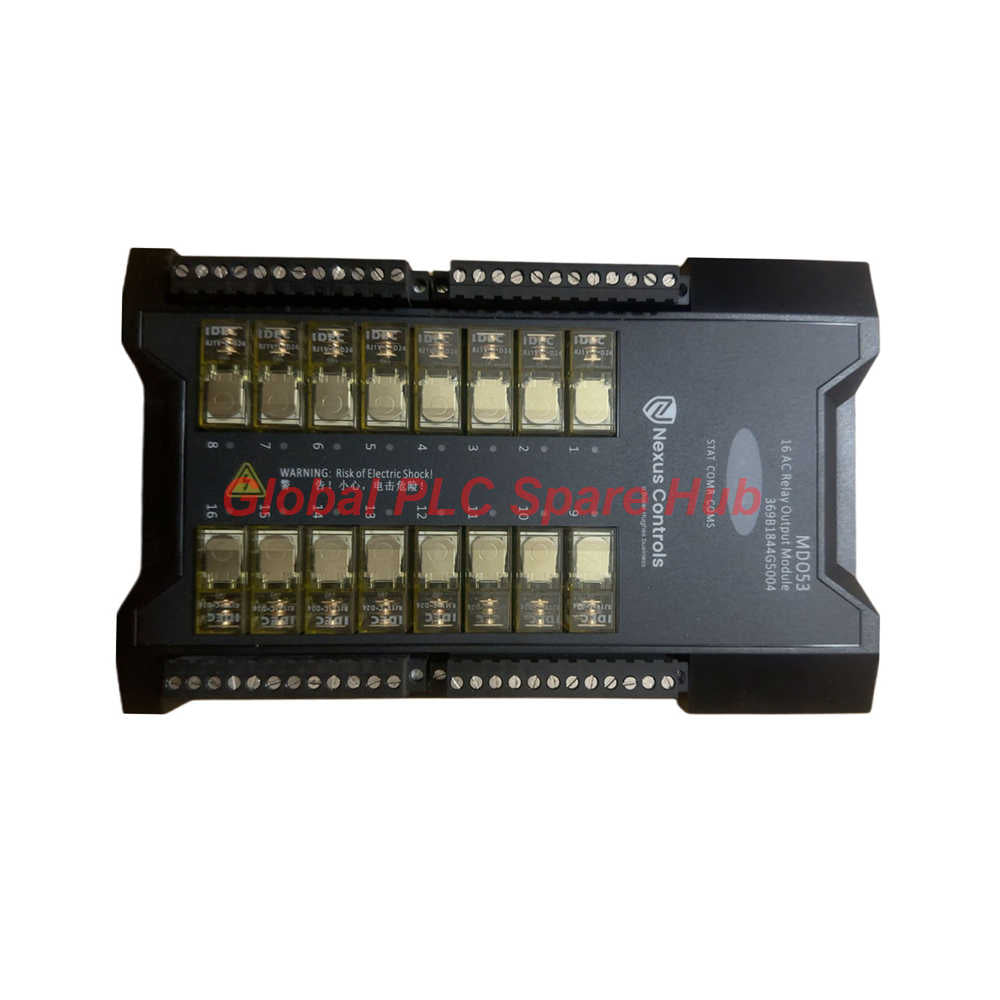

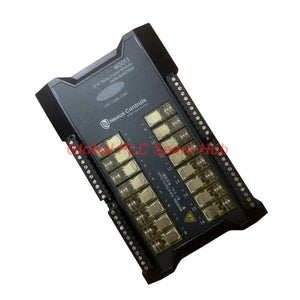

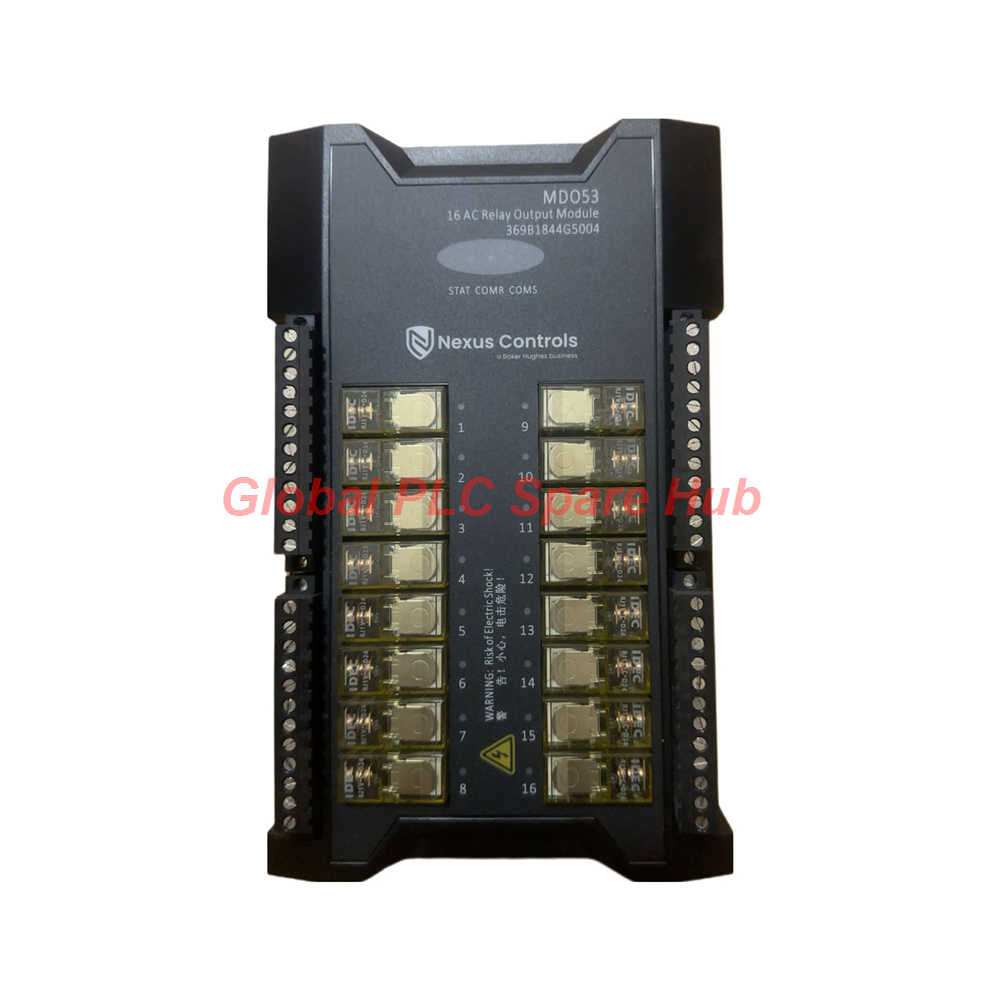

MDO53 369B1844G5004 GE Nexus Digital Output Module

Engineering Overview & Global PLC Spare HUB's Insight

Industrial automation control panels requiring robust high-capacity relay switching depend on tightly integrated output architectures. The MDO53 369B1844G5004 digital output module by GE Nexus delivers 16 distinct AC relay output channels engineered to manage heavy electrical loads with precision. Built within a slim physical footprint measuring 49 by 14 by 2.7 centimeters and weighing 0.4 kg, this unit interfaces directly with demanding industrial loads.

Global PLC Spare HUB's Insight: During field diagnostic checks, automation engineers frequently utilize the channel-specific LED status indicators on the MDO53 369B1844G5004 to instantly verify output switching states without needing multimeters at the terminal block level.

Technical Specification Blueprint

Hardware Installation & Operating Guidelines

• Mounting Space Verification: Ensure the 49x14x2.7 cm enclosure clearance allows proper ventilation and physical clearance for field wiring blocks.
• Power Isolation Protocol: Disconnect all primary rack power before mounting or removing the MDO53 369B1844G5004 to prevent arc faults.
• Terminal Torque Inspection: Verify that high-voltage inductive and resistive load lines are securely torqued to prevent contact degradation under continuous thermal cycling.

Target Equipment & Application Scenarios

• Industrial Switchgear Panels: Direct control of medium-voltage circuit breakers and auxiliary contactors.
• Heavy Manufacturing Machinery: High-cycle motor starter actuation and solenoid valve bank management.
• Power Generation Balance of Plant: Automated utility distribution networks requiring strict channel isolation and CE compliance.

Advanced Diagnostics & Fault Tracking

• Comprehensive LED Monitoring: Real-time status reporting covers module operational health, system communication status, and fault alarm triggers.
• Galvanic Isolation Protection: High dielectric isolation thresholds (up to 3000V AC) prevent transient ground loops from corrupting control logic.
• Power Draw Auditing: Dynamic tracking of power consumption limits (ranging from 1.3W baseline to 11W peak) prevents system power rail starvation.

Fulfillment, Logistics & Warranty

• Global Courier Dispatch: Premium expedited shipping via FedEx, UPS, and DHL.
• Fulfillment Window: Securely packaged and dispatched within 24 to 48 hours.
• Assurance Coverage: Backed by a full 12-month replacement warranty from Global PLC Spare HUB.

Professional Frequently Asked Questions (FAQ)

Q: What is the primary difference between resistive and inductive contact ratings on the MDO53 369B1844G5004?

A: Resistive loads handle up to 12A at 250V AC / 30V DC, whereas inductive loads must be derated (7.5A at 250V AC and 6A at 30V DC) to account for voltage spikes generated by magnetic coils during switching.

Q: How does channel-to-system isolation protect the controller architecture?

A: The 3000V AC channel-to-system isolation barrier blocks high-voltage transients from field wiring, protecting sensitive backplane processors from electrical surges.

Q: What should I check if the module status LED indicates a fault alarm?

A: First inspect the 24V DC logic supply stability and check if power consumption exceeds the typical 1.3W baseline due to shorted field output channels.

Q: What buying guidance should I follow when replacing legacy relay cards with this model?

A: Verify that your cabinet layout can accommodate the 49 cm length and ensure your external power supplies can support the 11W maximum power draw ceiling.

Q: Why are channel LED indicators critical for daily maintenance?

A: They offer visual verification of command execution, allowing technicians to isolate whether a failure originates from the PLC logic output or the downstream field actuator.
