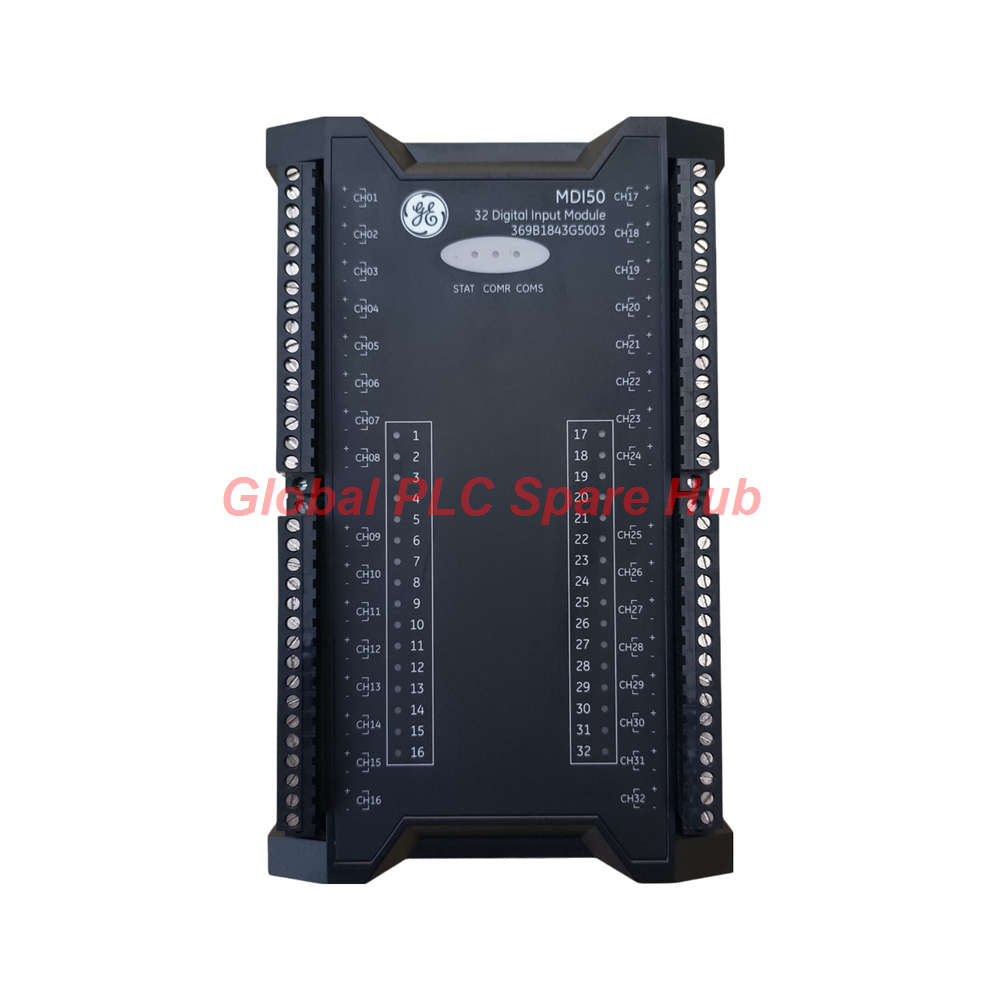

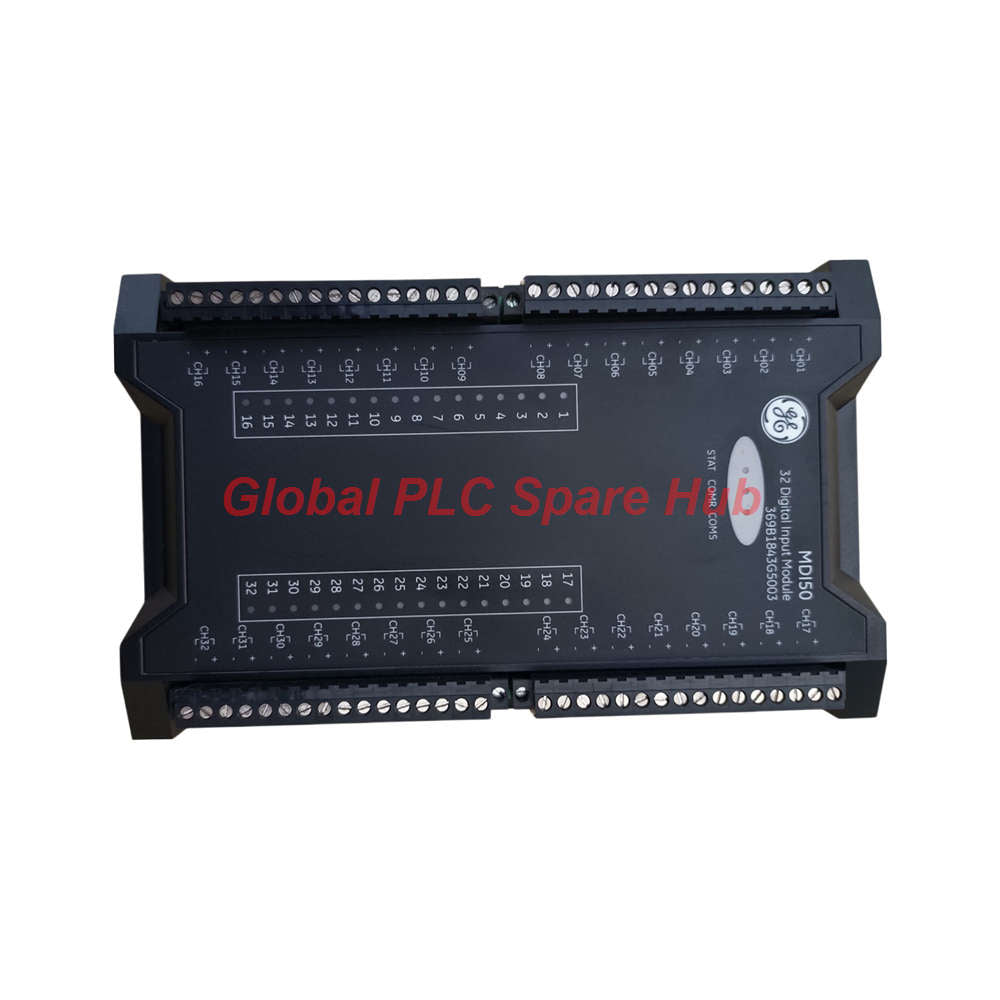

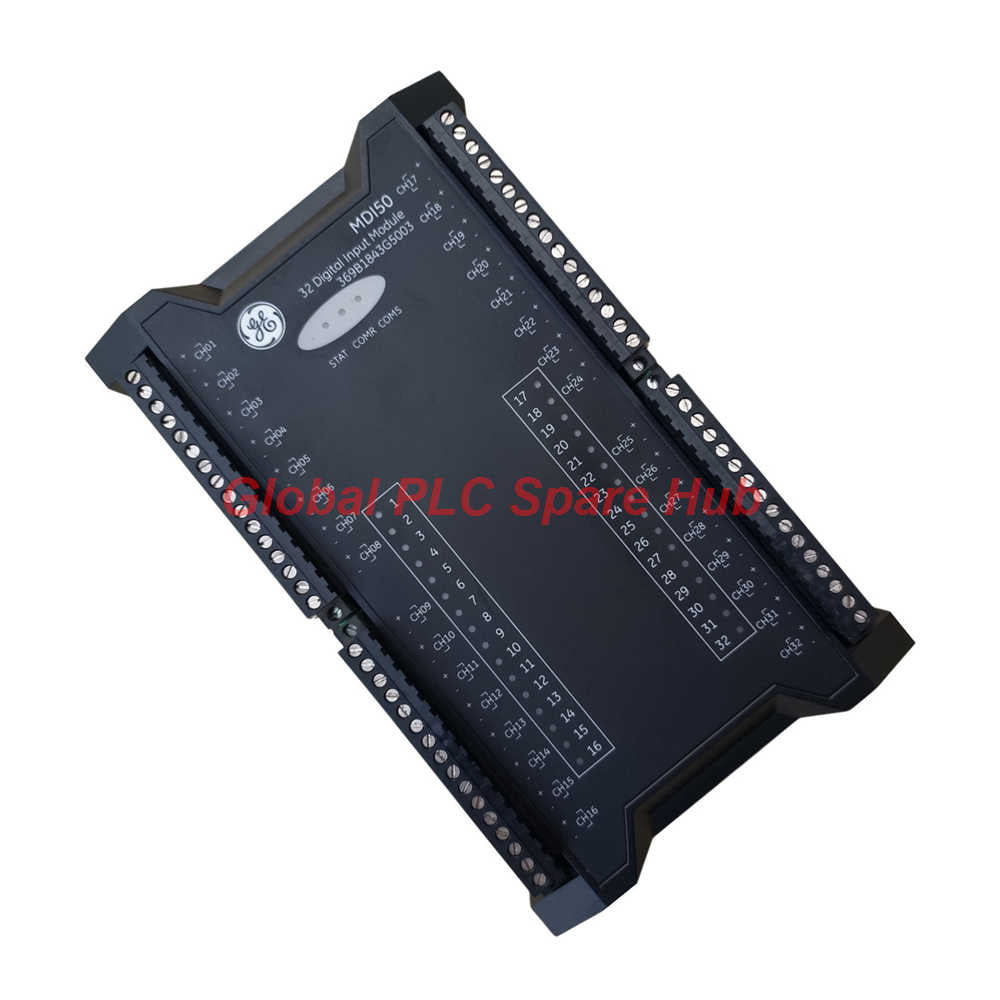

MDI50 GE Nexus 369B1843G5003 Digital Input Module | 32-Channel

Engineered for High-Speed Digital Signal Acquisition

MDI50 is a high-density GE Nexus Digital Input Module designed for fast, reliable field signal acquisition.

With 32 digital input channels, integrated SOE (Sequence of Events), and pulse counting capability, the module delivers precise event recording for demanding industrial automation systems.

369B1843G5003 MDI50 supports dry contacts and sinking current input signals. It provides dependable monitoring for distributed control and protection systems.

Designed for Critical Industrial Signals

Engineering Feature	Operational Benefit
32 Digital Inputs	High-density monitoring reduces cabinet space.
1 ms SOE Resolution	Captures fast switching events with accurate timestamps.
Pulse Input Capability	Supports frequency measurement up to 1.5 kHz.
Adjustable Digital Filtering	Improves signal stability in noisy environments.
Dual Isolation Design	Protects the controller from field electrical disturbances.

Technical Specifications

Brand	GE
Model	MDI50
Part Number	369B1843G5003
Series	GE Nexus
Module Type	Digital Input Module
Input Channels	32
Supported Input Signals	Dry Contact or Sinking Current
Input Detection Voltage	48 VDC
SOE Function	Supported
SOE Resolution	1 ms
Pulse Input	Last 4 channels support 0–1.5 kHz
Signal Filter	Firmware adjustable, 3–50 ms
Default Filter	24 ms
Channel Indicators	Individual input status
Status LEDs	Run, Communication, Alarm
Channel-to-Ground Isolation	500 VAC
Channel-to-System Isolation	1500 VAC
Typical Power Consumption	1.2 W
Maximum Power Consumption	8.5 W
Certification	CE Certified with System Integration

Application Engineering

The MDI50 is optimized for high-speed digital monitoring where event accuracy directly affects system reliability.

• Substation automation systems
• Power generation monitoring
• Process control cabinets
• Protection relay signal acquisition
• Turbine auxiliary control systems
• Water treatment automation
• Oil and gas process monitoring
• Factory digital I/O collection

Global PLC Spare HUB's Insight

Projects requiring precise event analysis usually benefit from the 1 ms SOE recording capability. Engineers can reconstruct switching sequences after unexpected shutdowns.

During one commissioning project, intermittent breaker trips could not be reproduced. The recorded SOE history identified the exact signal order. The maintenance team isolated the faulty auxiliary contact within minutes.

For applications involving vibration protection or electrical interlocking, the adjustable firmware filter significantly reduces false triggering caused by electrical noise.

Diagnostic Features

Diagnostic Item	Engineering Value
Channel LEDs	Verify field input status instantly.
Communication LED	Confirms controller communication.
Alarm LED	Indicates abnormal operating conditions.
SOE Records	Supports post-event fault investigation.
Pulse Monitoring	Checks high-speed signal integrity.

Field Installation Recommendations

• Verify input signal type before wiring.
• Separate signal cables from power cables.
• Configure filter time according to field conditions.
• Reserve pulse channels for high-speed inputs.
• Confirm grounding before system startup.

Compatibility Overview

• Compatible with GE Nexus automation systems.
• Supports distributed industrial monitoring architecture.
• Suitable for dry contact signal acquisition.
• Supports sinking current field inputs.
• Integrates with SOE-enabled control systems.

Packaging, Delivery & Warranty

Package Contents	1 × MDI50 Digital Input Module
Packaging	Industrial anti-static packaging with protective cushioning
Warranty	12-Month Warranty
Shipping Services	FedEx, UPS, DHL
Processing Time	Ships within 24–48 hours after order confirmation

Professional FAQ

How should the signal filter be configured for noisy industrial environments?

Engineers generally increase the filter time to suppress electrical interference. Applications with clean signals often benefit from shorter filter settings for faster response.

When should the pulse input channels be selected instead of standard digital inputs?

The final four channels should handle frequency or pulse signals up to 1.5 kHz. Standard switching signals can use any remaining input channel.

What factors should be reviewed before selecting this module for a new project?

Verify signal voltage, required event recording accuracy, channel quantity, pulse input demand, and system compatibility before procurement.

How does SOE improve maintenance efficiency after unexpected shutdowns?

SOE records the exact order of switching events. Maintenance personnel can quickly determine which device changed state first during a fault.

Which installations achieve the greatest benefit from MDI50?

Power plants, substations, compressor stations, turbine control systems, and safety interlocking applications typically gain the highest value from fast event recording and reliable digital signal acquisition.

Engineering Selection Guide

• Select MDI50 when precise digital event recording is required.
• Choose this module for applications needing 32 high-density digital inputs.
• Reserve the final four channels for pulse measurement applications.
• Configure firmware filtering according to field electrical conditions.
• Verify system compatibility before installation to maximize long-term reliability.
