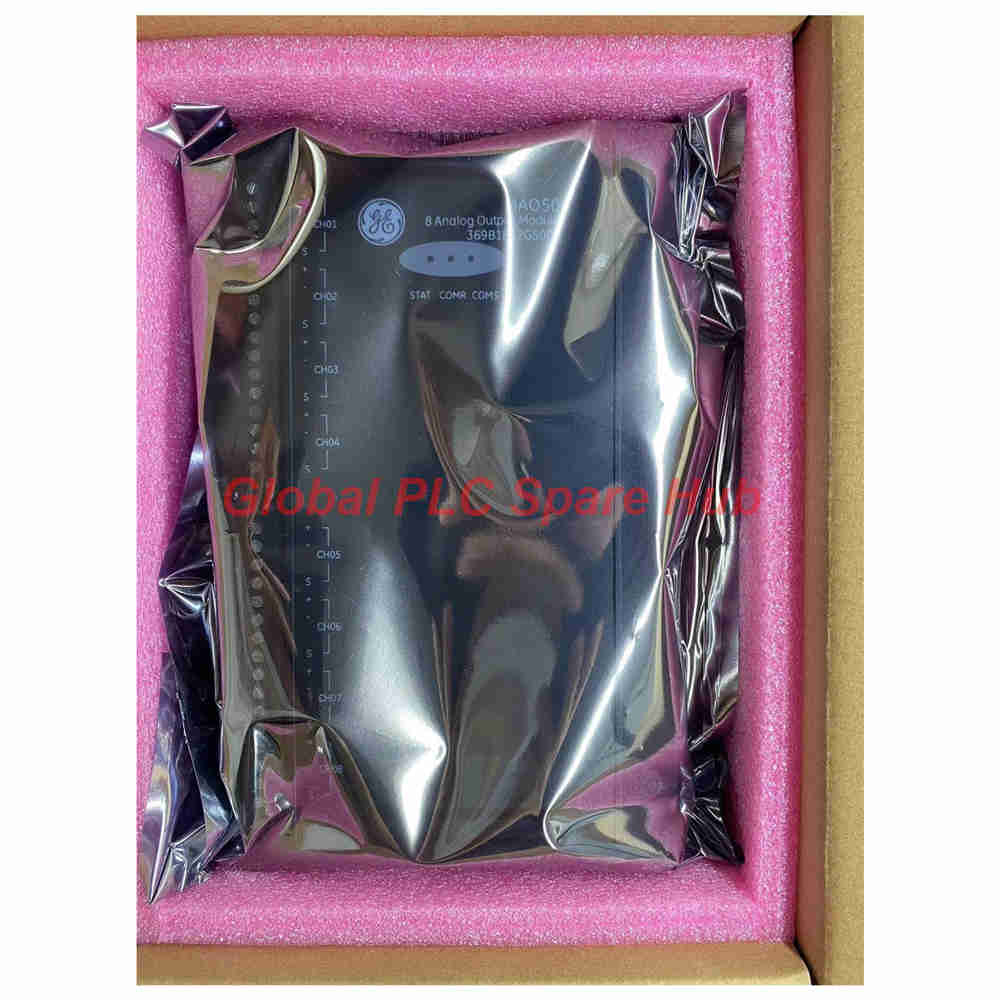

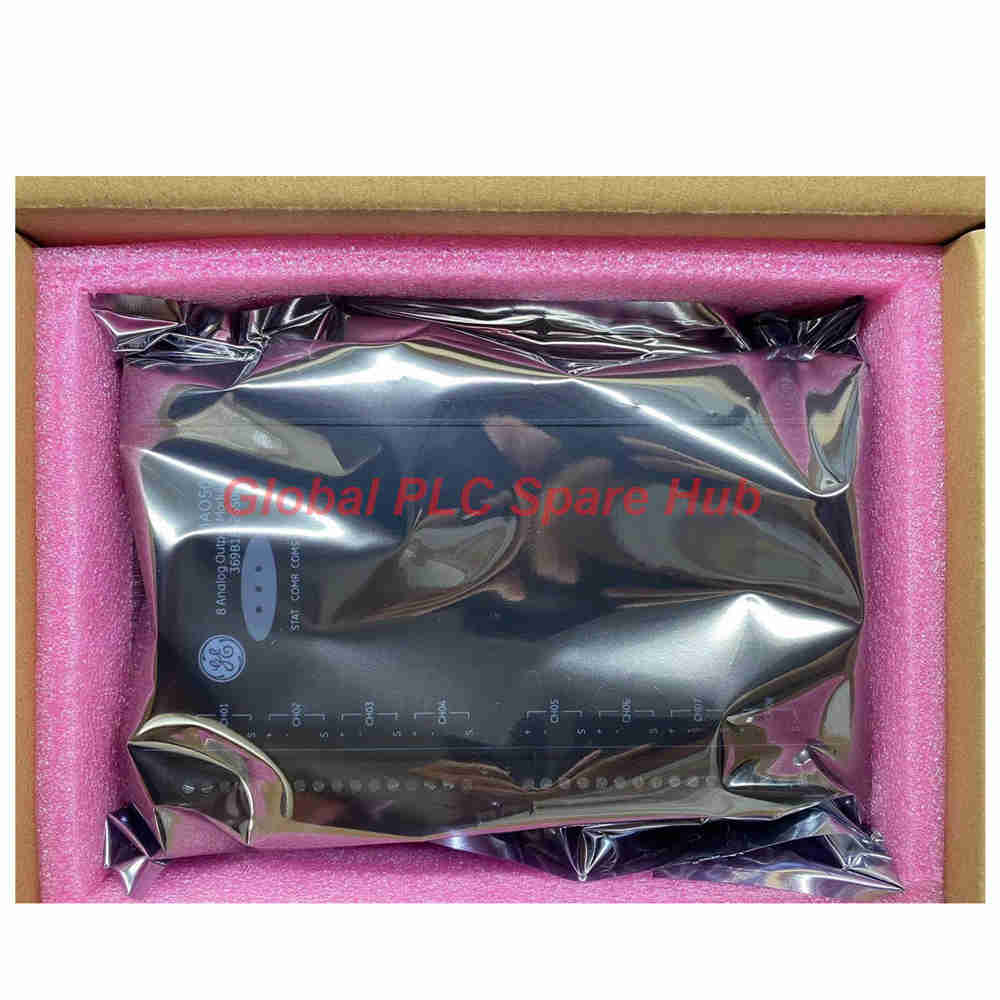

MAO50 GE Nexus 369B1842G5005 Analog Output Module | 8-Channel

High-Precision Analog Output for Mission-Critical Control

MAO50 is a high-performance GE Nexus Analog Output Module engineered for stable process control and precision analog signal transmission.

The module integrates high-speed processing, isolated analog outputs, and industrial-grade EMC protection into one compact hardware platform.

369B1842G5005 MAO50 is ideal for applications requiring highly accurate current or voltage output with long-term operational reliability.

Core Engineering Advantages

Feature	Engineering Benefit
Independent DAC Architecture	Each channel performs independent digital-to-analog conversion.
High Output Accuracy	Maximum error remains within 0.1%.
Strong Isolation Design	Reduces electrical interference between channels.
Industrial EMC Compliance	Reliable operation in electrically noisy environments.
Dual Power Input	Improves controller availability through redundant 24 VDC supply.

Technical Specifications

Brand	GE
Model	MAO50
Part Number	369B1842G5005
Series	GE Nexus
Module Type	Analog Output Module
Output Channels	8
Current Output Range	0(4)-20 mA
Voltage Output Range	Selected channels support 0(1)-5 V
Current Load Capacity	Maximum 1000 Ω
Voltage Load Requirement	Minimum 500 kΩ
Output Accuracy	Maximum ±0.1%
D/A Conversion	12-bit independent DAC per channel
Processor	32-bit High-Performance Embedded Processor
I/O Communication	Redundant Intelligent Serial Bus, 1 Mbps
Power Input	Dual Redundant 24 VDC (±10%)
Connector	DB-9 Female
Terminal Type	Removable European Screw Terminal
Wire Size	2.5 mm² Dual Wire
LED Indicators	Run, Communication, Alarm
Channel Isolation	250 VAC Channel-to-Channel
Ground Isolation	500 VAC
System Isolation	1500 VAC
Common Mode Rejection	>120 dB
Power Consumption	Less than 6.5 W
Operating Temperature	0°C to 60°C
Humidity	10%–90% RH, Non-condensing
Dimensions (H × W × D)	209 × 129.5 × 51 mm
Compliance	CE, FCC Part 15, ANSI C63.4, EN61326-1, IEC 61000 EMC Standards

Typical Process Control Applications

MAO50 is designed for applications requiring highly stable analog output signals with fast response and excellent immunity to electrical interference.

• Steam turbine governor systems
• Boiler combustion control
• DCS analog output stations
• Variable speed drive reference control
• Valve positioning systems
• Chemical dosing equipment
• Power plant process automation
• Oil and gas process control

Global PLC Spare HUB's Insight

Stable analog output quality directly influences final control element performance. Valve oscillation and unstable actuator movement often originate from poor analog signal quality rather than controller logic.

In one combined-cycle power project, engineers observed continuous valve hunting during startup. Output signal verification confirmed unstable field wiring instead of controller failure. After cable optimization and grounding improvements, analog stability returned immediately.

The independent DAC architecture provides an additional advantage. Calibration or loading changes on one output channel do not influence neighboring outputs.

Diagnostic Intelligence

Diagnostic Item	Engineering Benefit
Run Indicator	Verifies normal controller execution.
Communication Indicator	Confirms I/O network connectivity.
Alarm Indicator	Highlights abnormal operating conditions.
Output Verification	Supports rapid loop commissioning.
Isolation Protection	Improves fault localization during maintenance.

Installation Recommendations

• Use shielded analog signal cables whenever possible.
• Separate analog wiring from motor power cables.
• Verify output type before field wiring.
• Confirm load impedance matches module specifications.
• Connect redundant 24 VDC supplies for maximum availability.

Compatibility Overview

• Designed for GE Nexus distributed control architecture.
• Supports current and voltage output applications.
• Compatible with industrial transmitters and final control elements.
• Suitable for redundant communication systems.
• Works with Nexus intelligent I/O infrastructure.

Packaging, Shipping & Warranty

Package Contents	1 × MAO50 Analog Output Module
Packaging Method	Professional anti-static packaging with reinforced protective cushioning
Warranty	12-Month Warranty
Shipping Options	FedEx, UPS, DHL
Dispatch Time	Usually ships within 24–48 hours after order confirmation

Engineering FAQ

How should the appropriate output mode be selected for a control project?

Current output is generally preferred for long-distance transmission and stronger noise immunity. Voltage output is suitable for short-distance precision control devices.

What should be checked before connecting field actuators?

Confirm output type, maximum load impedance, field wiring polarity, and actuator input specifications before energizing the system.

Why does independent DAC architecture improve process stability?

Each channel performs its own conversion. Signal accuracy remains consistent even when adjacent channels experience different loading conditions.

Which environments benefit most from the module's isolation capability?

Power plants, petrochemical facilities, mining operations, and heavy manufacturing sites with high electromagnetic interference gain the greatest advantage.

What should engineers evaluate before selecting MAO50?

Review output signal type, required channel count, control accuracy, communication architecture, isolation requirements, and future system expansion plans.

Engineering Selection Recommendations

• Select MAO50 for precision analog control applications.
• Choose this module when stable multi-channel analog output is required.
• Verify field device input characteristics before configuration.
• Reserve redundant power connections for critical installations.
• Consider electromagnetic compatibility during cabinet layout design.
