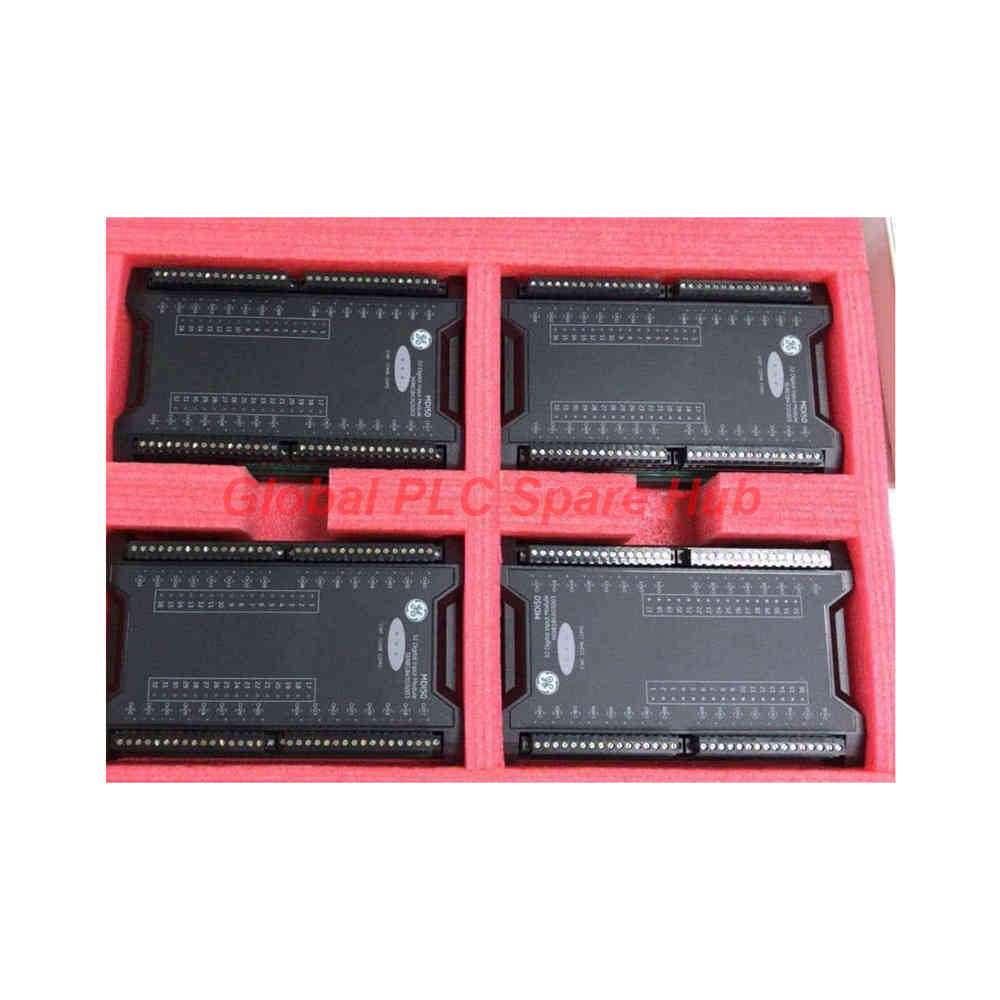

MAI50 GE Nexus 369B1841G5006 Analog Input Module | 16-Channel

Advanced Analog Signal Acquisition for Industrial Process Control

MAI50 is a high-performance GE Nexus Analog Input Module engineered for precision process measurement and dependable industrial automation.

The module combines high-speed data acquisition, intelligent diagnostics, industrial isolation, and redundant communication into one integrated platform.

369B1841G5006 MAI50 captures analog signals with excellent accuracy while maintaining stable performance in electrically demanding environments.

Performance Highlights

Capability	Engineering Advantage
16 Analog Inputs	Supports high-density process monitoring.
16-bit ADC	Improves measurement precision for critical variables.
±0.1% Accuracy	Provides stable and repeatable measurement results.
Dual 24 VDC Power	Enhances controller availability through redundant supply.
Industrial Isolation	Reduces electrical interference between field devices.

Technical Specifications

Brand	GE
Model	MAI50
Part Number	369B1841G5006
Series	GE Nexus
Module Type	Analog Input Module
Input Channels	16
Supported Signal Types	±10 V, ±5 V, 0(4)-20 mA
Input Power	21.6–26.4 VDC, Dual Redundant 24 VDC (±10%)
Measurement Accuracy	Maximum ±0.1%
A/D Conversion	16-bit, 8 channels per conversion group
Overrange Alarm	±10% software alarm (Not applicable for ±10 V inputs)
Processor	32-bit High-Performance Embedded Processor
Communication	Redundant Intelligent Serial Bus, 1 Mbps
Connector	DB-9 Female
Terminal Type	Removable European Screw Terminal
Wire Size	2.5 mm² Dual Wire
LED Indicators	Run, Communication, Alarm
Channel Isolation	250 VAC Channel-to-Channel
Ground Isolation	500 VAC
System Isolation	1500 VAC
Common Mode Rejection	>120 dB
Differential Mode Rejection	>60 dB
Typical Power Consumption	3 W
Maximum Power Consumption	5 W
Operating Temperature	0°C to 60°C
Humidity	10%–90% RH, Non-condensing
Dimensions (H × W × D)	209 × 129.5 × 51 mm
Compliance	CE, FCC Part 15, ANSI C63.4, EN61326-1, IEC 61000 EMC Standards

Ideal Equipment and Industrial Applications

MAI50 is designed for applications requiring continuous acquisition of high-accuracy analog process variables.

• Distributed Control Systems (DCS)
• Power plant instrumentation
• Steam turbine monitoring systems
• Boiler combustion control
• Chemical process automation
• Water treatment facilities
• Oil and gas production platforms
• Industrial compressor control systems
• Plant-wide process monitoring

Global PLC Spare HUB's Insight

Accurate analog acquisition begins with proper signal quality rather than controller configuration alone. Poor grounding and incorrect transmitter scaling often create measurement instability before the controller receives the signal.

During one refinery modernization project, fluctuating flow readings initially appeared to be controller faults. After engineers compared channel diagnostics with field calibration records, the actual issue proved to be a deteriorated transmitter power supply. Replacing the transmitter immediately restored stable measurements.

The high common-mode rejection capability provides significant advantages for long-distance signal transmission in electrically noisy production environments.

Integrated Diagnostic Capability

Diagnostic Function	Maintenance Value
Input Status Monitoring	Verifies channel operating conditions.
Alarm LED	Provides rapid fault indication.
Communication Status	Confirms network connectivity.
Overrange Detection	Identifies abnormal field signal levels.
High Noise Rejection	Improves troubleshooting efficiency for unstable measurements.

Recommended Installation Practices

• Use shielded twisted-pair analog signal cables.
• Separate instrument wiring from high-power electrical circuits.
• Configure the correct signal type before commissioning.
• Verify transmitter scaling before downloading the control strategy.
• Enable redundant 24 VDC supplies for critical applications.

System Compatibility

• Designed for GE Nexus distributed automation platforms.
• Supports industrial transmitters using current or voltage outputs.
• Compatible with intelligent Nexus I/O communication architecture.
• Suitable for process control and condition monitoring systems.
• Integrates with redundant industrial control networks.

Packaging, Logistics & Warranty

Package Contents	1 × MAI50 Analog Input Module
Packaging	Industrial anti-static packaging with reinforced protective materials
Warranty	12-Month Warranty
Shipping Methods	FedEx, UPS, DHL
Dispatch Time	Orders are typically shipped within 24–48 hours

Technical FAQ

Which input type provides the best noise immunity in industrial installations?

The 4–20 mA signal is generally preferred for long cable runs because it offers superior resistance to electrical interference and signal loss.

Why are the 16 channels divided into two ADC conversion groups?

Grouping channels improves conversion efficiency while maintaining high measurement accuracy and stable acquisition timing across multiple inputs.

What should engineers verify before connecting field transmitters?

Confirm signal type, transmitter power requirements, measurement range, wiring polarity, and channel configuration before system energization.

How can unstable analog readings be diagnosed effectively?

Review grounding quality, shield termination, transmitter calibration, and channel diagnostics before suspecting controller hardware. Field experience shows wiring issues are the most common source of measurement fluctuations.

Which project factors should influence the selection of MAI50?

Evaluate required channel density, signal types, accuracy targets, electromagnetic environment, redundancy requirements, and future expansion plans before final system design.

Engineering Selection Recommendations

• Select MAI50 for applications requiring high-density analog signal acquisition.
• Choose this module when process accuracy and long-term measurement stability are critical.
• Use 4–20 mA transmitters for improved signal integrity over long distances.
• Take advantage of redundant power inputs for continuous industrial operation.
• Verify isolation and EMC requirements during project planning to maximize system reliability.
