IS200TPROH1BBB GE Mark VI | Turbine Overspeed Termination Module

General Electric IS200TPROH1BBB Technical Profile

The General Electric IS200TPROH1BBB is a high-reliability protective termination board designed for the Mark VI Speedtronic control system. This module serves as a critical hardware-level protection interface for heavy-duty industrial gas and steam turbines.

This board acquires and conditions critical field signals—including magnetic speed pickup outputs, generator voltages, bus voltages, and temperature inputs. It routes these vital process variables directly to the triple-redundant VPRO protection emergency controllers, establishing a localized, hardware-voted emergency overspeed and synchronization safety loop.

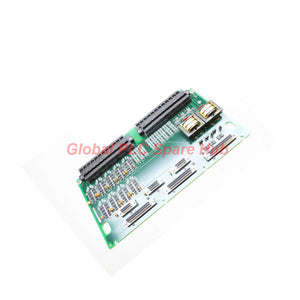

Built on a robust, rectangular printed circuit board (PCB), the IS200TPROH1BBB features two heavy-duty black terminal blocks accommodating 48 silver metallic contacts. The board incorporates two red safety relays, solid-state metal oxide varistors (MOVs) for transient voltage clamping, and multiple blocking diodes to prevent signal back-feeding in redundant power circuits.

Global PLC Spare HUB's Insight

The General Electric IS200TPROH1BBB is a foundational safety block in Mark VI turbine automation. Its design separates emergency trip logic from the main controller cores, ensuring that turbine overspeed or generator out-of-sync events trigger a hardware trip even if the primary control system suffers a complete processor lockup.

The hardware layout uses separate, individual diodes and capacitors rather than consolidated surface-mount arrays. This design choice makes it highly resistant to the thermal stresses and vibrations found near turbine decks.

By routing signals to three independent VPRO channels simultaneously, this board supports a 2-out-of-three (2oo3) voting architecture. This setup prevents false trips from single-point sensor failures while ensuring the safety system trips reliably when real hazards occur.

Configuration Breakdown (Part Number Structural Tree)

The functional assembly classification of the IS200TPROH1BBB protective termination board is structured below:

• IS200 — General Electric Internal Product Family Series Code (Mark VI System Component)
  • TPRO — Turbine Protection Terminal Board with dedicated speed and synchronization signal routing
  • H1 — Group 1 hardware revision level, standard layout configuration
  • BBB [This Model] — Minor board assembly revision level, signifying updated component footprints and specific trace changes
• On-Board Functional Architecture:
  • Input Interface: Dual heavy-duty terminal blocks (96 terminals, labeled 1 to 48 on each block)
  • Clamping & Suppression: High-energy metal oxide varistors (MOVs) paired with precision potentiometers (R-labeled)
  • Safety Output: Red square containment relays with high-visibility mechanical status indicators

Target Equipment & Plant Applications

• Utility Gas Turbines: Serving as the physical interface for emergency overspeed trips on large power-generation units.
• Industrial Steam Turbines: Handling generator synchronization loops and monitoring steam inlet valve trip solenoids.
• Mechanical Drive Turbines: Protecting high-speed compressors from sudden load drops and subsequent overspeed conditions.
• Emergency Trip Systems: Driving positive-side control lines on TREG, TRES, or TRES terminal boards connected to 125 Vdc trip solenoids.

Diagnostic Capabilities & Signal Routing

• Redundant Signal Split-Out: Splits single-point speed inputs into three identical isolated loops to supply VPRO boards (X, Y, and Z).
• Overvoltage Clamping: Integrated metal oxide varistors (MOVs) clamp transient spikes from solenoid inductive kickback or field wiring surges.
• Coordinated Relay Verification: Visually monitors relay states with on-board indicators to ensure correct signal routing during automated test sequences.

Technical Specifications Table

Global Logistics, Delivery & Warranty Terms

• Priority Shipping: Direct global dispatch via express carriers DHL, FedEx, and UPS loops.
• Dispatch SLA: In-stock hardware is packaged and shipped within 24 to 48 hours of verification.
• Warranty Terms: Covered by a comprehensive 12-month replacement warranty from Global PLC Spare HUB.

Strategic Procurement & Selection Guide

• Revision Matching: Verify the three-letter suffix on your existing board. While the IS200TPROH1BBB is backwards-compatible with older TPROH1AAA versions, check your system's documentation for any field wiring changes before replacement.
• Redundant Cabling Validation: Ensure your J-connectors and terminal board cables are fully shielded. Any electromagnetic noise on the speed or generator voltage lines can cause false VPRO voting and lead to unexpected turbine trips.
• Confirm Solenoid Voltages: This termination board manages positive-side loops for 125 Vdc trip solenoids. Verify that your TREG, TREL, or TRES boards are properly set up for this voltage level.

Industrial Frequently Asked Questions (FAQ)

Q: What is the functional division of labor between the TPRO board and the VPRO board?

A: The TPRO acts as the physical terminal card that gathers, filters, and distributes field inputs like speed and voltage. The VPRO contains the processors that evaluate this data, run the trip logic, and open the safety relays.

Q: How do the physical, red-cased MOVs on the TPRO board protect the system?

A: These metal oxide varistors clamp high-voltage spikes caused by switching inductive loads (like solenoids or large relays). This protects the board's solid-state electronics from damage.

Q: What are the three potentiometers in the upper right corner of the board used for?

A: These variable resistors are factory-calibrated to tune the impedance and signal levels of the speed pickup circuits, ensuring clean signal detection without false trigger points.

Q: Can the turbine run if one of the three VPRO signal loops connected to the TPRO fails?

A: Yes. The Mark VI protection loop uses 2-out-of-3 (2oo3) logic. If one channel loses its signal from the TPRO, the remaining two healthy channels can still protect the machine without causing a nuisance trip.

Q: Why does the TPRO feature a high-density terminal layout with 96 connection points?

A: The 96 points accommodate all redundant sensor wiring, including dual magnetic speed pickups, multiple thermocouple lines, and generator/bus voltage feedback. This allows all emergency protection wiring to terminate on a single, easy-to-manage card.
