IS200EDCFG1A General Electric EX2100 Series DC Feedback Module

Product Overview & Architecture

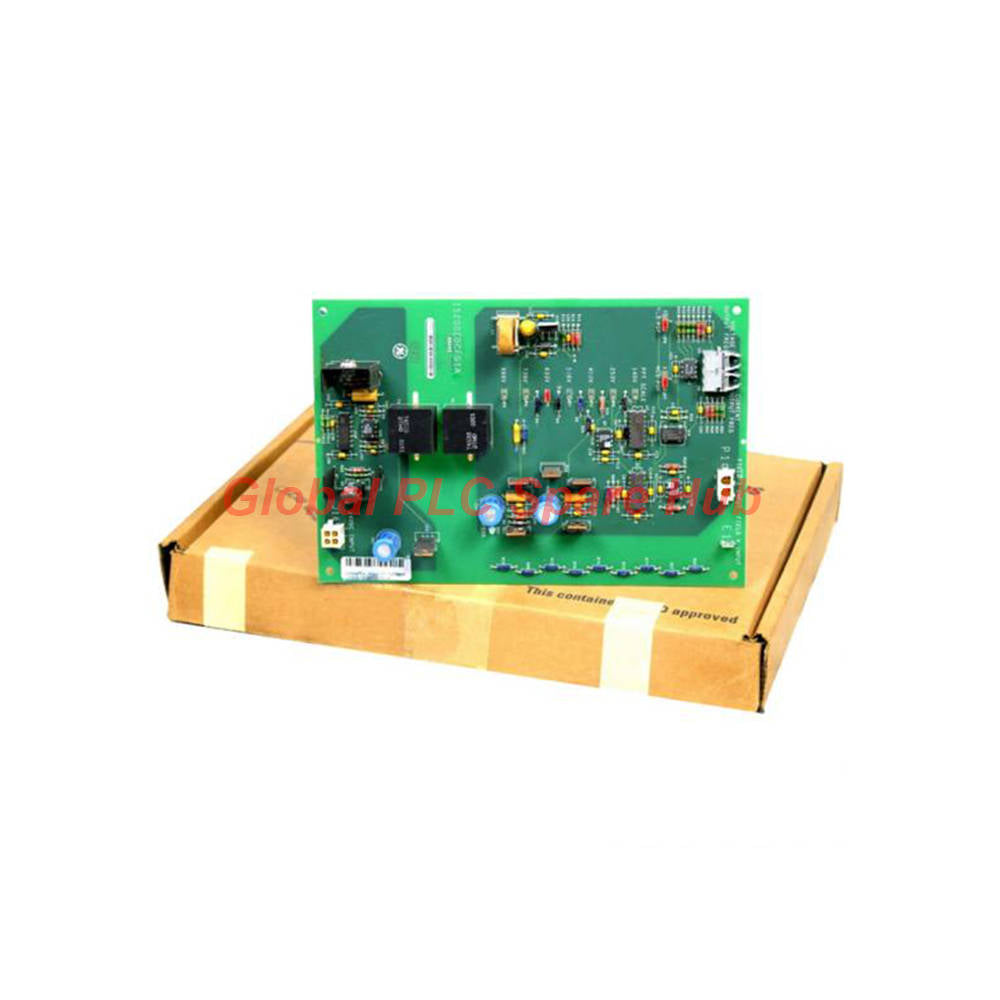

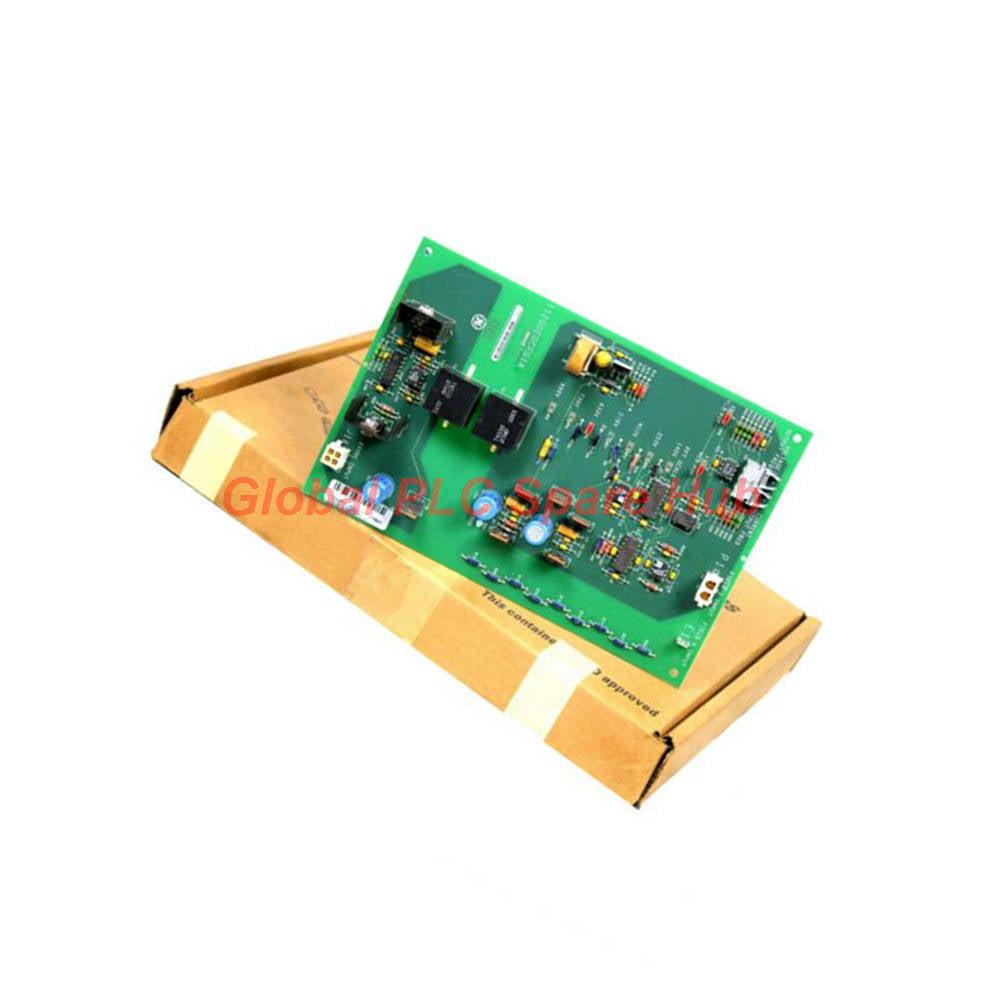

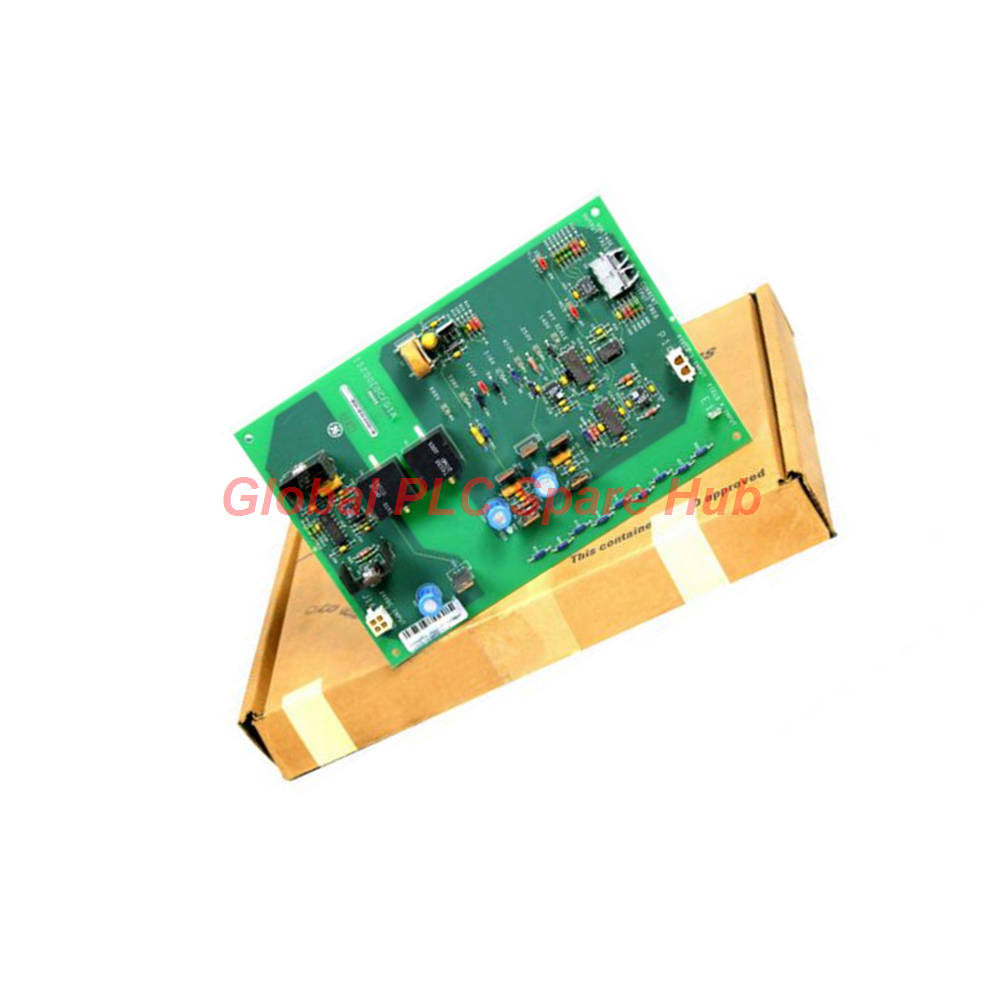

The **IS200EDCFG1A** is an advanced Exciter DC Feedback (EDCF) terminal board engineered by **General Electric** as a vital subassembly within the **EX2100 Series** excitation control platform. This board is deployed directly at the SCR bridge to precisely monitor, condition, and scale critical field current and field voltage parameters, providing galvanic noise isolation via high-speed fiber-optic communication links to the companion EISB board.

Global PLC Spare HUB's Insight & Technical Review

In high-power excitation systems, electromagnetic interference and ground potential shifts near SCR bridges frequently disrupt low-level feedback signals. During recent performance audits of **EX2100 Series** turbine controllers, engineering teams noted that improper fiber optic bending radii or unshielded external power inputs can induce communication latency. Based on our practical evaluation of **IS200EDCFG1A** installations, adhering strictly to the 1.5-inch minimum bend radius for hard-clad silica fibers (supporting runs up to 90 meters) completely eliminates packet jitter.

Technicians monitoring field voltage across the negative bridge terminal and positive shunt terminal should verify that jumpered resistor scaling accurately feeds the differential amplifier and voltage-controlled oscillator (VCO). The onboard PSOK green LED, driven by regulated ±15V dc and +5V dc rails from an external 24 V dc source, serves as an instant visual health check for power distribution integrity.

Technical Specifications Breakdown

Hardware Configuration & Installation Guidelines

• **Power Interfacing:** Connect the external 24 V dc source directly to connector J16, ensuring stable voltage delivery to the internal linear regulators.
• **Signal Terminations:** Route field voltage input via the stab-on connector (E1) and field current shunt feedback through connector P1.
• **Fiber-Optic Routing:** Maintain a minimum bending radius of 1.5 inches for all fiber-optic cables connecting the EDCF to the control rack to prevent optical signal attenuation.

Diagnostics & Troubleshooting Capabilities

• **Power Health Indicator:** The single green PSOK LED illuminates continuously when internal ±15V dc and +5V dc power rails are operating within tolerance.
• **Isolation Verification:** Fiber-optic transmission paths provide superior noise immunity and high-voltage dielectric isolation between the SCR bridge and control enclosure.
• **Signal Conditioning Tracing:** Differential amplifiers isolate low-level shunt signals (up to 500 mV) before VCO conversion to prevent common-mode measurement drift.

Compatible Hardware & Typical Application Scenarios

• **Compatible Systems:** **GE EX2100 Excitation Control Systems** utilizing EISB control panel interfaces.
• **Target Applications:** Synchronous generator excitation bridge monitoring, heavy industrial gas and steam turbine generator controls, and utility-scale power plant excitation regulation.

Logistics, Warranty & Fulfillment

• **Package Contents:** 1 x **IS200EDCFG1A** Exciter DC Feedback Board in anti-static shielding packaging.
• **Global Shipping:** Rapid 24-48 hour order dispatch shipped worldwide via trusted couriers including FedEx, UPS, and DHL.
• **Warranty Assurance:** Fully backed by a comprehensive 12-month operational warranty.

Frequently Asked Questions (FAQ)

What is the primary diagnostic purpose of the green PSOK LED on the **IS200EDCFG1A** board?

The PSOK LED indicates that the internal voltage regulators are successfully converting the external 24 V dc supply into stable +15V dc, -15V dc, and +5V dc operating rails.

Can I use standard plastic fiber-optic cables for a 45-meter run between the EDCF and EISB boards?

No; plastic-type fibers are strictly limited to distances up to 10 meters. For a 45-meter run, you must use hard-clad silica type fiber-optic cables while respecting the 1.5-inch minimum bending radius.

How does the board process low-level signals originating from the DC current shunt?

The shunt produces a low-level signal with a maximum value of 500 mV, which is fed into an internal differential amplifier that outputs a -5V to +5V signal to drive the voltage-controlled oscillator.

What buying and revision checks should be performed before replacing this module?

Verify that your replacement unit matches the exact Form A hardware revision (**IS200EDCFG1A**), as it is not backward compatible with older non-EX2100 excitation feedback architectures.

What precautions are necessary when securing the field voltage and current connections?

Ensure that the field voltage stab-on connection (E1) and connector P1 (shunt resistance input) are torqued and seated securely to prevent intermittent feedback drops that could trigger excitation trip faults.
