IS200ECTBG2A GE EX2100 Exciter Contact Terminal Board In Stock

Overview

The General Electric IS200ECTBG2A is an Exciter Contact Terminal Board (ECTB) designed for EX2100 static excitation systems operating exclusively in Simplex Mode. It interfaces field contact inputs and relay outputs directly to the system control architecture via the EMIO board. Engineered for generator protection and status monitoring, the IS200ECTBG2A provides isolated 70 VDC wetting voltage for dry contact inputs, controls dual customer lockout trip relays, and drives four Form-C general-purpose relay outputs.

Circuit Architecture & Relay Control Distribution

• Dedicated Trip Relay Outputs:
  • Features two high-speed trip relay outputs (K1M1 and K2M1) designed for customer lockout circuit actuation.
  • Relay coils operate on 24 VDC control power sourced directly from the M1 master controller.
  • Each lockout circuit utilizes two parallel normally closed (NC) contacts for high-reliability breaker trip execution.
• Form-C General-Purpose Relay Outputs:
  • Includes four auxiliary Form-C relays (K1GP, K2GP, K3GP, K4GP) with isolated NO, NC, and Common terminals.
  • Wired to switch customer field control circuits carrying nominal voltages up to 125 VDC.
  • Relay Break Rating: 28 VDC inductive arc suppression capability across switching contacts.
• Wetted Contact Input Interface:
  • Supports six auxiliary customer dry contact inputs wetted with an isolated 70 VDC (range 63 to 84 VDC) power rail from EPSM plugs J13M1/J13M2.
  • Dedicated status monitoring for generator breaker 52G and master lockout relay 86G contact inputs.
  • Resistor-isolated input channels feature red status LEDs on the board for immediate visual state indication.

Technical Specifications Parameter Matrix

Target Applications & System Integration

• Generator Excitation Control:
  • Deploys as the primary field I/O interface board in single-channel (Simplex) EX2100 static exciter cabinets.
  • Interlinks with the EMIO master module, passing digitized gate pulse and contact status logic over the EBKP backplane to the ESEL board.
• Power Generation Infrastructure:
  • Ideal for utility thermal, combined-cycle gas, and hydroelectric plants utilizing Simplex excitation topologies.
  • Directly monitors generator circuit breaker 52G auxiliary contacts and emergency trip lockout 86G flags.

Diagnostic Capabilities & Status Monitoring

• Onboard Visual Status Tracking:
  • Equipped with individual red status LEDs alongside each of the six auxiliary contact input channels for quick optical inspection.
  • Provides real-time visual confirmation when field dry contacts close and complete the 70 VDC wetting loop.
• Controller Logic Feedback:
  • Contact input state changes drive digital feedback signals routed to the M1 controller for system alarm logging and sequence-of-events recording.
  • Form-C relay coil status is continuously cross-checked by EMIO driver feedback logic to detect open-coil or drive transistor failures.

Supply Chain & Warranty Guarantees

• Package Contents:
  • One factory-inspected GE IS200ECTBG2A Exciter Contact Terminal Board.
  • Two removable screw-down terminal blocks (TB1 and TB2).

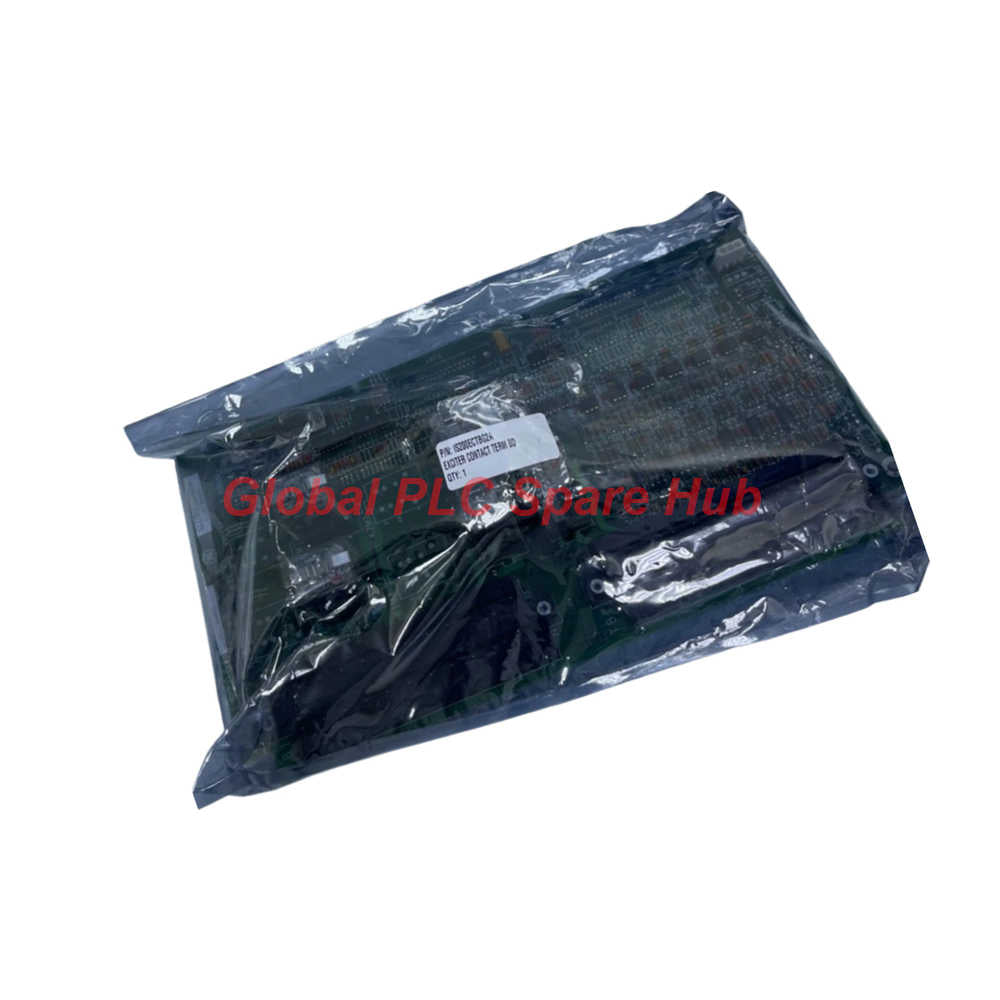

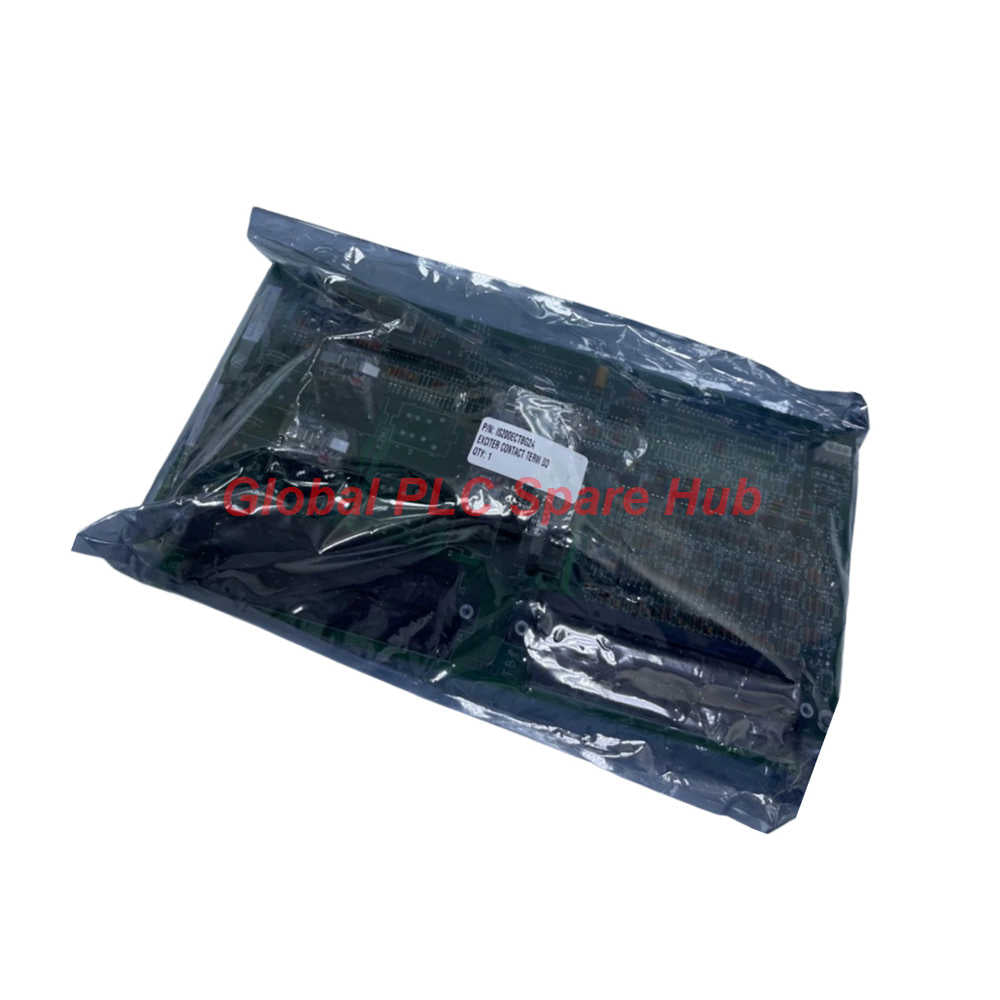

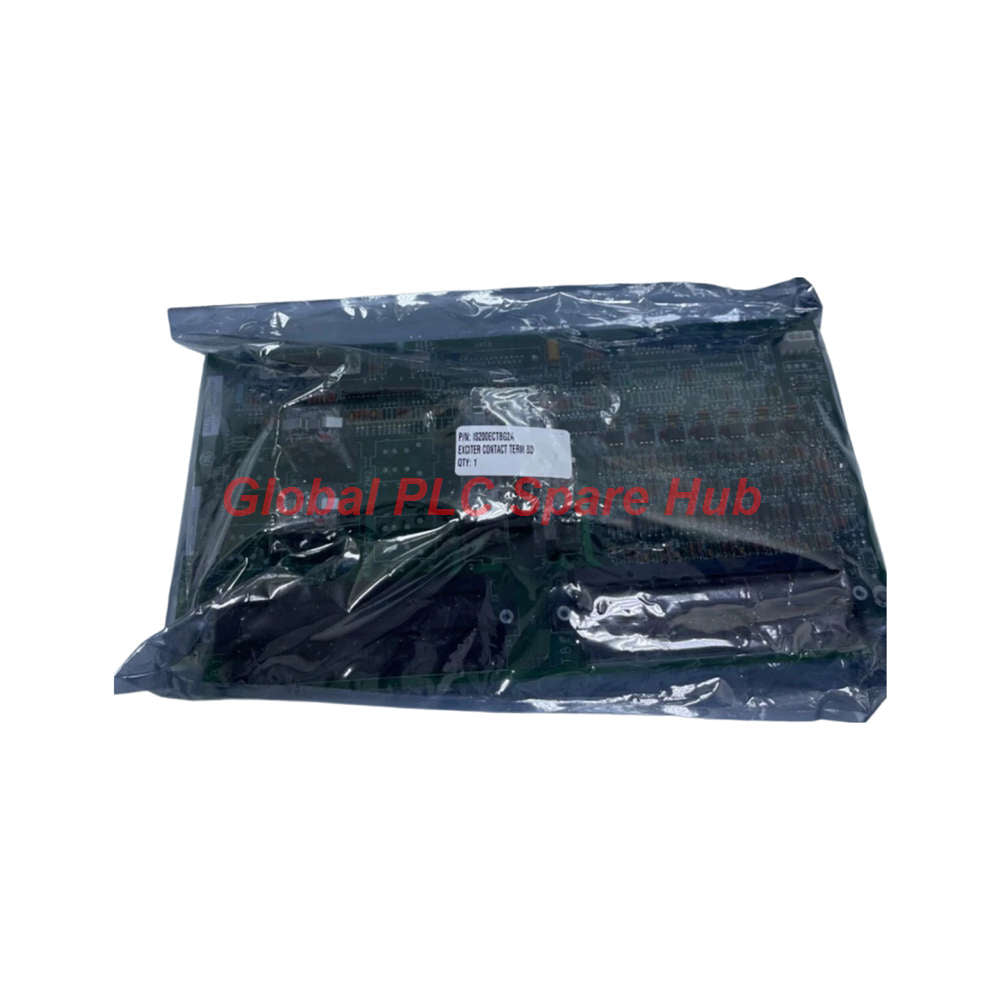

  • Antistatic protective wrap sealed inside a shock-resistant shipping container.
• Warranty Coverage:
  • Includes a full 12-month operational replacement warranty starting from the date of dispatch.
• Express Shipping & Delivery:
  • Dispatched within 24 to 48 hours following payment confirmation.
  • Global express delivery supported via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight

When engineering or servicing EX2100 exciter control panels, selecting the correct hardware variation between Simplex and Redundant boards is crucial. The IS200ECTBG2A (G2 hardware variant) is specifically designed for Simplex systems where only the M1 controller governs field I/O. Installing a G2 board into a Dual or Triple Redundant cabinet will cause hardware handshake errors due to missing voting relay circuits found only on G1 boards.

During an emergency call-out at a municipal power station, site engineers reported that auxiliary breaker contacts (52G) were not registering on the HMI screen despite the breaker being closed. Our technicians measured the wetting voltage across terminal block inputs and found only 12 VDC instead of the required 70 VDC loop power. Further trace troubleshooting revealed that external power connector J13M1 from the EPSM module had backed out slightly during routine panel maintenance. Reseating connector J13M1 restored the full 70 VDC wetting supply, lighting the board's channel LEDs and restoring real-time feedback to the M1 controller. We recommend verifying sub-D cable latching and terminal block screw torque during every scheduled outage.

Frequently Asked Questions (FAQ)

Q: What is the functional difference between the IS200ECTBG1A and IS200ECTBG2A boards?

A: The G1 version includes triple-redundant voting relay circuits for M1, M2, and C controllers, whereas the IS200ECTBG2A (G2) is engineered strictly for Simplex single-controller (M1) execution.

Q: How is contact wetting voltage supplied to field inputs on the IS200ECTBG2A?

A: Wetting power (70 VDC nominal) is fed onto the board via plugs J13M1 and J13M2 from the EPSM module power supply and routed through isolation resistors to field contact terminals.

Q: Can terminal blocks TB1 and TB2 be removed while the board remains mounted in the panel?

A: Yes. Terminal blocks TB1 and TB2 are secured with two retaining screws each and can be unplugged without disturbing the underlying board mounting or 25-pin sub-D cabling.

Q: What indicates that a contact input channel on the IS200ECTBG2A is successfully actuated?

A: The corresponding red channel LED on the board illuminates when field contacts close and complete the 70 VDC loop back to the monitoring circuit.

Q: What voltage can be switched through the K1GP-K4GP general-purpose Form-C contacts?

A: The Form-C contacts are rated to switch customer auxiliary circuits with nominal voltages up to 125 VDC (28 VDC relay break characteristic rating).
