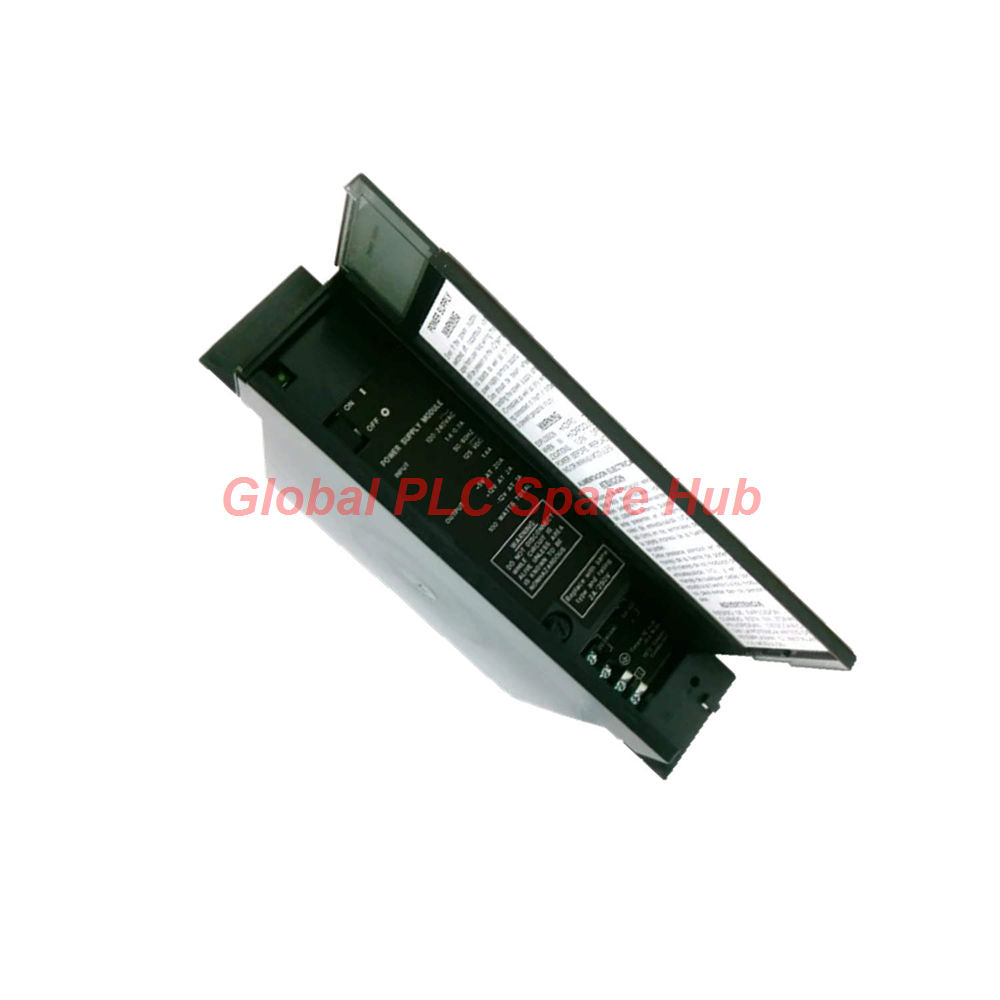

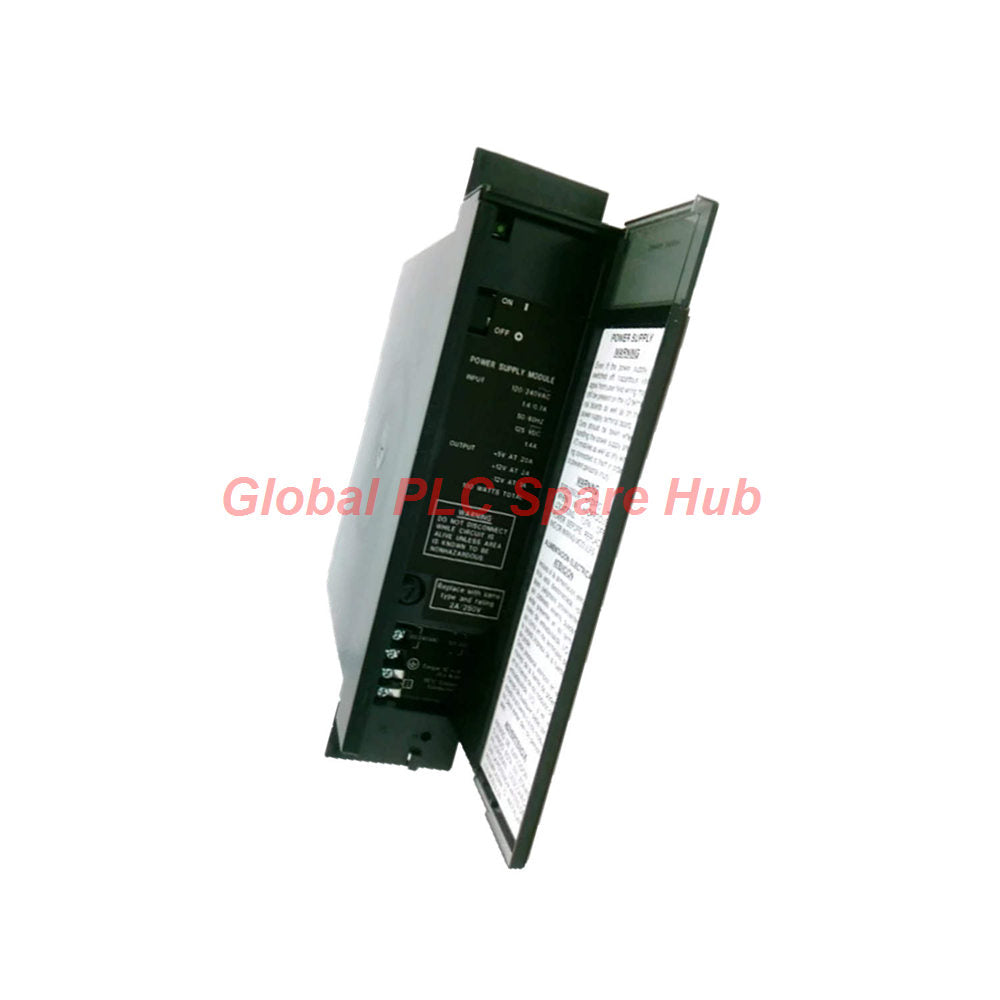

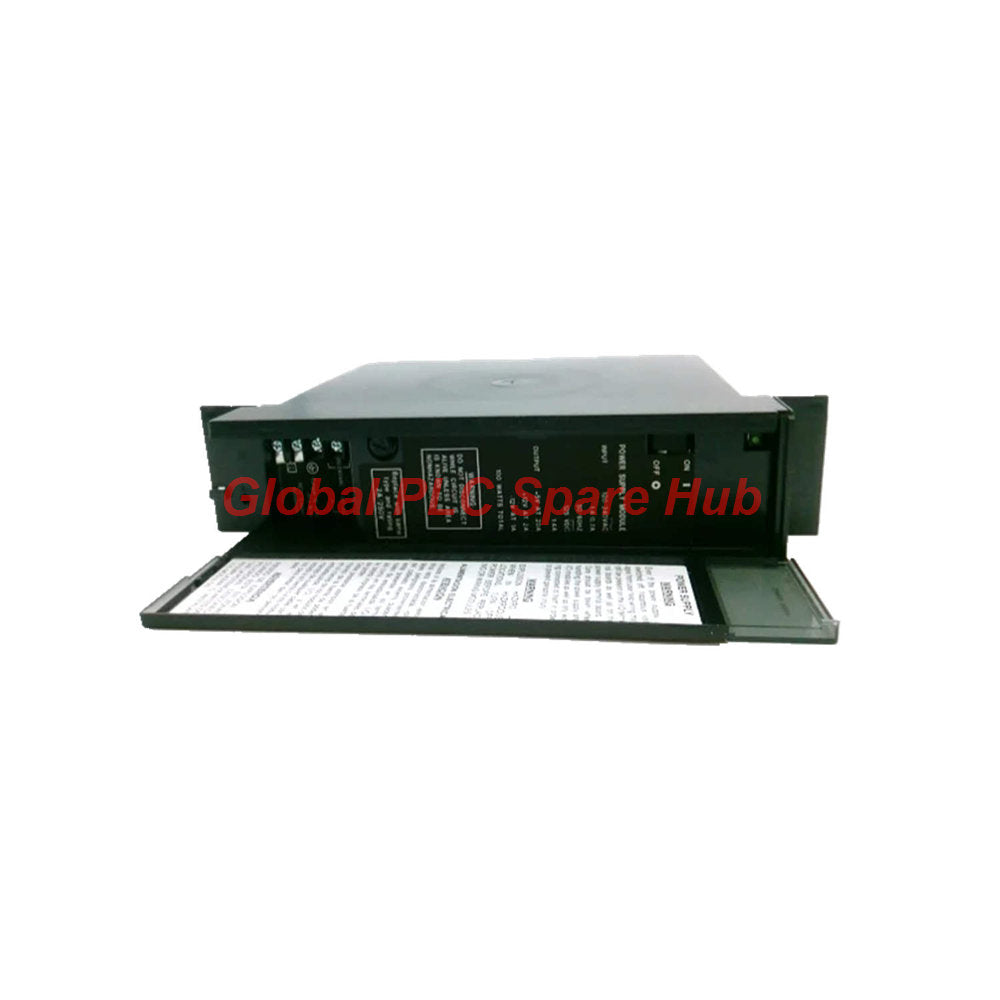

IC697PWR721 GE Fanuc Series 90-70 Power Supply Module

Overview

The IC697PWR721 GE Fanuc IC697PWR721 Series 90-70 Power Supply Module provides robust electrical regulation and external mounting flexibility for heavy-duty automation backplanes. Engineered specifically for the Series 90-70 product line, this 90-watt unit delivers dependable multi-voltage DC output while supporting external cabling configurations via a required Power Supply Adapter (PSA) module. Global PLC Spare HUB supplies rigorously inspected legacy power hardware to prevent catastrophic downtime across your mission-critical plant operations.

Electrical Specifications & Power Parameters

• Manufacturer & Brand: GE Fanuc / Rockwell-compatible legacy systems
• Product Line & Model: Series 90-70 / IC697PWR721
• Component Classification: Regulated DC Power Supply Module
• Nominal Input Voltage: 24 Volts DC (operates safely within a 21 to 32 VDC range)
• Maximum Output Power: 90 Watts continuous load capacity (156 Watts total peak input capacity)
• Inrush Energy Rating: Maximum 22 Joules at 32 Volts DC input
• Voltage Regulation Outputs: +5V DC (16.5A), +12V DC (1.5A), and -12V DC (1.0A)
• Overvoltage Protection Limit: Clamped between 6 to 7 Volts on regulated rails

System Integration & Physical Installation

• Rack Compatibility: Fully compatible with standard GE IC697 racks and WME integrated rack architectures.
• PSA Module Requirement: Requires an external Power Supply Adapter (PSA) module plugged into the designated rack slot to bridge backplane monitoring and TTL shutdown signals.
• External Mounting: Can be deployed externally outside the main rack assembly, linking to both the PSA and the backplane via dedicated interconnect cables.
• Shock & Thermal Tolerance: Operates reliably from 0 to 60 degrees Celsius; engineered to withstand 15G mechanical shock for 11 milliseconds.

Diagnostic Capabilities & System Health Monitoring

• TTL Shutdown Feedback: Integrates a TTL-compatible logic shutdown signal monitored continuously through the attached PSA module interface.
• Voltage Regulation Tracking: Automatically trips if output rails exceed the 6 to 7 Volt overvoltage ceiling, safeguarding sensitive processor and I/O boards.
• Backplane Interlock Verification: Ensures power delivery is safely cut if communication cables or adapter handshakes experience signal degradation.

Global PLC Spare HUB's Insight & Industrial Application Scope

• Engineering Experience: When mounting this power supply externally in high-vibration environments, ensure the interconnecting cable between the power module and the PSA adapter is shielded and securely clamped to prevent intermittent logic dropouts.
• Target Equipment & Scenarios: Large-scale wastewater treatment plants, heavy metal stamping lines, power generation turbine controls, and distributed petrochemical processing nodes.
• Express Global Shipping: Fast, secure dispatch via FedEx, UPS, and DHL to keep your maintenance schedules on track.
• Comprehensive Warranty: Backed by a full 12-month replacement warranty for absolute operational peace of mind.

Frequently Asked Questions (FAQ)

• Why does the IC697PWR721 power supply require a separate PSA module to operate?
  The PSA module acts as an essential hardware bridge that joins the power supply outputs to the rack backplane, allowing the system to monitor critical TTL-compatible logic shutdown signals.
• Can this power supply module be mounted completely outside of the main PLC chassis?
  Yes, it supports external mounting configurations, connecting safely to both the rack backplane and the PSA adapter through a specialized wiring harness.
• What happens if the input voltage exceeds the maximum 32 Volts DC operating threshold?
  Exceeding the specified voltage ceiling can trigger internal protection circuits or damage components; ensure your supply lines are regulated within the 21 to 32 VDC window.
• Global PLC Spare HUB's Buying Guide: How do I verify that my current rack setup supports this specific power module?
  Confirm that your backplane is a standard GE IC697 or WME integrated rack and verify that an open power supply slot is available to accept the required PSA module.
• What preventive maintenance steps should technicians perform on external power supply cabling?
  Periodically inspect cable insulation for wear caused by thermal expansion and check that all terminal screws remain tightly torqued to avoid resistance heating.
