IC697MDL653 GE Fanuc 90-70 Discrete Input Module 32-Point

IC697MDL653 | GE Fanuc Series 90-70 — 32-Point 24 VDC Discrete Input Module

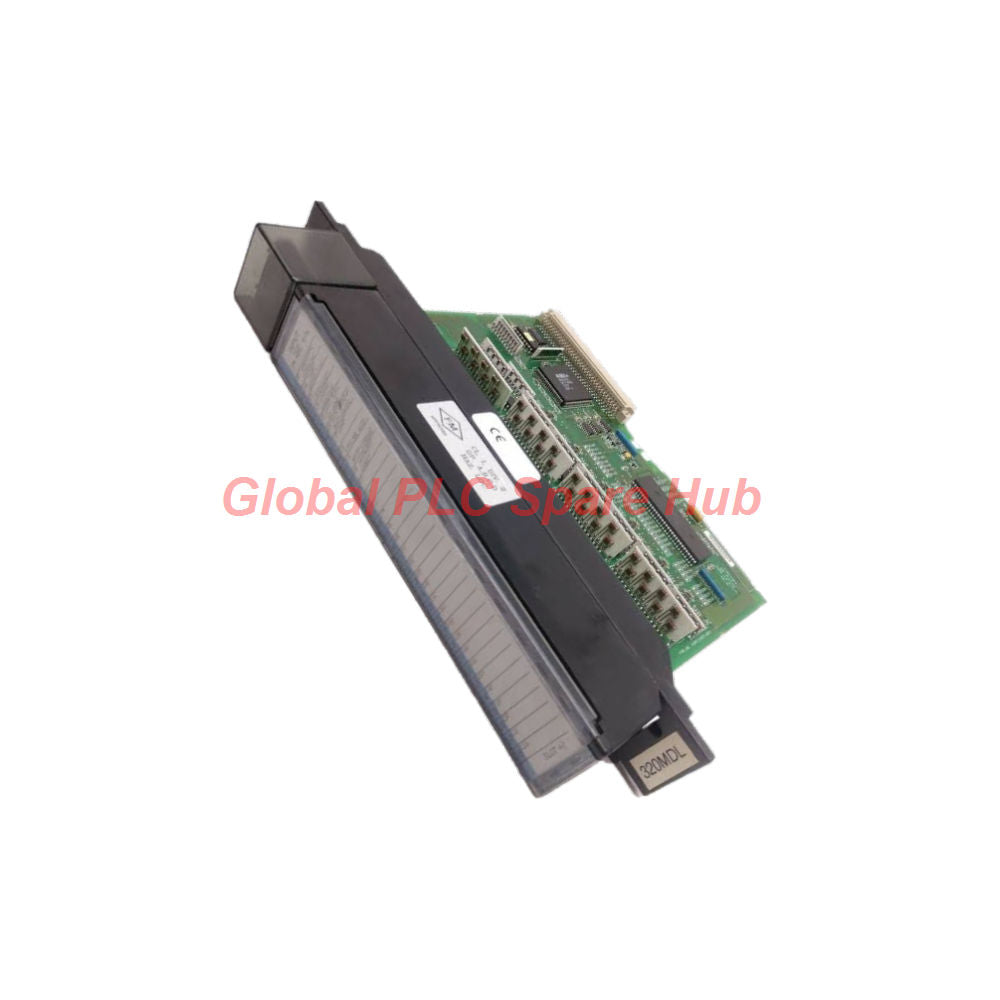

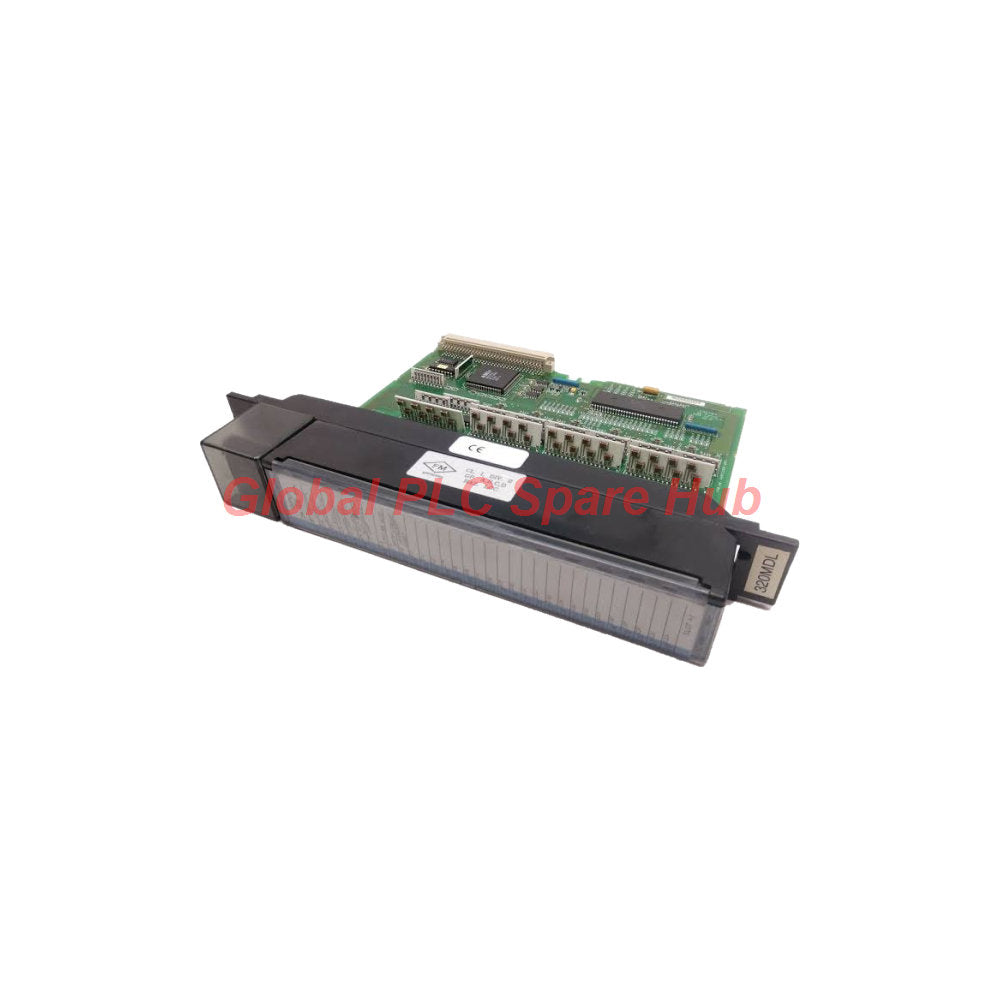

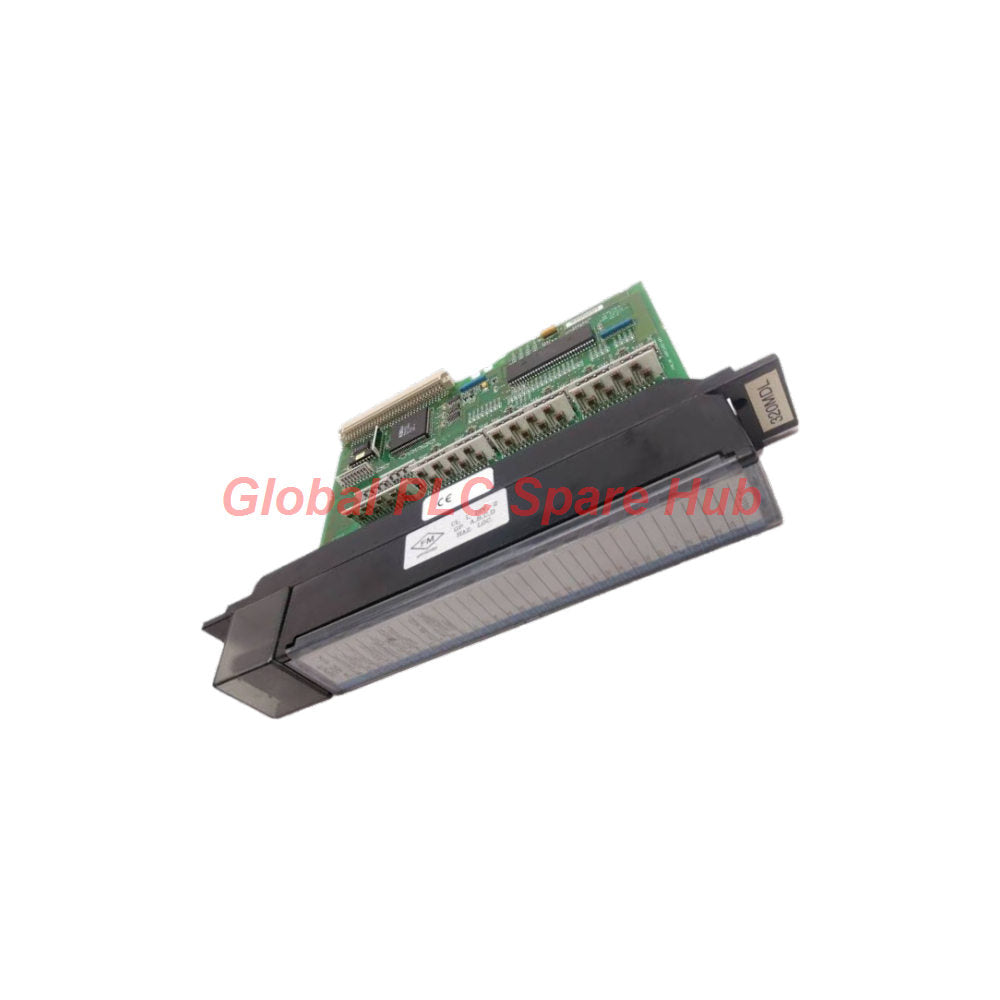

The GE Fanuc IC697MDL653 is a 32-point discrete input module designed for the Series 90-70 PLC platform. It accepts 24 VDC field signals and supports positive or negative logic wiring, making it suitable for established automation systems that use different field-device wiring arrangements.

Its 32 input points are arranged in four isolated groups of eight. The module combines per-point status LEDs, configurable input filtering, and defined ON/OFF voltage thresholds to help maintenance teams trace field signals from terminal wiring to the PLC input image.

01 | Signal Capacity and Electrical Limits

Specification clarification: The documented input range is −3 to +30 VDC, not −3 to +3 VDC. The 13.5–30 VDC ON-state range and 0–5 VDC OFF-state range define switching thresholds, not the full permissible input range. Confirm the complete specification against the applicable module manual before installation.

02 | How the Input Signal Reaches the PLC

The module's diagnostic value starts with a clear understanding of the signal path. A field sensor or contact changes state, the input circuit evaluates the electrical level, and the corresponding point indicator helps the technician compare field behavior with the PLC's reported state.

1. Field device: A proximity switch, limit switch, selector switch, pushbutton, or compatible DC output provides the input signal.
2. Group wiring: The signal connects to one of the module's 32 input points, with the appropriate supply and common arrangement for that group.
3. Electrical threshold: The input circuit distinguishes the documented ON and OFF voltage regions. Values between the stated regions require careful interpretation rather than an assumed logic state.
4. Point indication: The module's LED indicates the input state seen by the module's logic-side circuitry.
5. PLC application: The controller uses the input state in the configured logic, interlocks, sequencing, and monitoring functions.

This signal-path approach helps separate field wiring faults from input-channel problems, configuration issues, and downstream logic conditions.

03 | Four Groups, Eight Inputs Each — Why the Wiring Layout Matters

The IC697MDL653 has four isolated groups: A, B, C, and D, with eight inputs in each group. Group isolation can help separate field circuits, but it does not mean that every channel has individual galvanic isolation.

Commissioning tip: When replacing an installed module, photograph the existing wiring and label each group before disconnecting it. Recheck common connections and supply polarity against the official wiring diagram rather than relying on wire color alone.

04 | Input Filtering and Signal Quality

The module supports selectable 1 ms or 10 ms input filter delays. The correct choice depends on the signal's switching behavior and the application's response requirements.

• Short filter setting: Consider the 1 ms option when the application requires faster input recognition and the field signal is electrically clean.
• Longer filter setting: Consider the 10 ms option when contact bounce or brief electrical disturbances create unwanted state changes, provided the application tolerates the additional delay.
• Fast events: Confirm the configured filter and controller behavior before using an input for a short-duration event or timing-critical function.
• Interrupt applications: The module documentation identifies one input as configurable for interrupt use with supported IC697 PLC configurations. Verify the CPU and application support this feature before designing around it.

Filtering can help reject short disturbances, but it cannot correct poor grounding, incorrect polarity, loose terminals, or an unsuitable field-device output. Diagnose the physical signal before changing the filter configuration.

05 | Compatible Devices and Application Scenarios

This module is intended for compatible GE Fanuc Series 90-70 PLC installations. Typical field devices include:

• Proximity sensors: Read machine-position or object-presence signals from compatible 24 VDC sensors.
• Limit and selector switches: Monitor travel limits, equipment modes, and manual/automatic selection states.
• Pushbuttons and contact signals: Acquire operator commands and auxiliary status contacts.
• Compatible DC output devices: Receive status signals from field equipment or other control devices with suitable electrical characteristics.
• Production and process equipment: Collect discrete states used for sequencing, permissives, equipment monitoring, and alarm logic.

Before connecting a two-wire or three-wire sensor, check its output topology, ON-state voltage, OFF-state leakage current, polarity, and current capability. Do not assume that every nominally 24 VDC device will meet the module's input thresholds under all operating conditions.

06 | Global PLC Spare HUB's Insight — Field Diagnostics

When an input point does not match the real machine state, diagnose the signal in stages. Comparing the field voltage, module LED, and PLC application state helps narrow the fault without replacing parts unnecessarily.

• Field device changes state, but the LED stays OFF: Measure the voltage at the correct input terminal relative to its group reference. Check the group supply, return path, terminal tightness, polarity, and whether the signal reaches the ON-state threshold.
• The LED stays ON when the field device is OFF: Check for wiring shorts, incorrect common connections, residual voltage, leakage current, and a field output that does not fall into the specified OFF-state region.
• Only one channel fails: Compare its voltage and wiring with a known-good point in the same group. If the field signal is correct but the indication remains inconsistent, inspect the terminal contact and channel configuration before suspecting module hardware.
• Several points fail together: Check the shared group supply and common wiring first. Multiple simultaneous faults within one group may indicate a common wiring or supply problem rather than several failed channels.
• Inputs flicker or change intermittently: Inspect sensor wiring, shielding practices, grounding, contact bounce, and electrical noise. Evaluate the 1 ms or 10 ms filter only after confirming signal integrity.
• LED state is correct, but the logic does not respond: Check the configured I/O reference, PLC logic conditions, interlocks, and any application mapping. A correct point LED does not prove that the program uses the expected address.

Recommended diagnostic order: Confirm the field-device state, measure the input voltage, verify the group reference, inspect the LED, check the configured I/O reference, and then review the application logic. Follow site isolation and electrical safety procedures before touching terminals or performing resistance checks.

07 | Replacement and Obsolete-Module Purchasing Checklist

Because the IC697MDL653 is a legacy/discontinued product, purchasing should focus on exact identification and installation compatibility rather than the model number alone.

• Match the full part number: IC697MDL653.
• Confirm that the receiving PLC rack belongs to the compatible Series 90-70 system.
• Verify the required 24 VDC input type, 32-point capacity, and positive/negative logic arrangement.
• Check the existing field wiring against the four-group, eight-point-per-group layout.
• Confirm the filter configuration and whether the application relies on interrupt functionality.
• Request confirmation of product condition, hardware identification, stock status, and the applicable warranty before ordering.
• Plan post-installation testing for all affected inputs, interlocks, alarms, and machine sequences.

08 | Warranty and Shipping

Warranty: 12-month warranty, subject to the seller's applicable terms and conditions.

Shipping methods: FedEx, UPS, and DHL, subject to destination, carrier service availability, and shipping arrangements.

Request a quote: Contact Global PLC Spare HUB to check availability, condition, and compatibility for your existing Series 90-70 system. Providing the complete part number, current module details, and application requirements helps reduce replacement risk.
