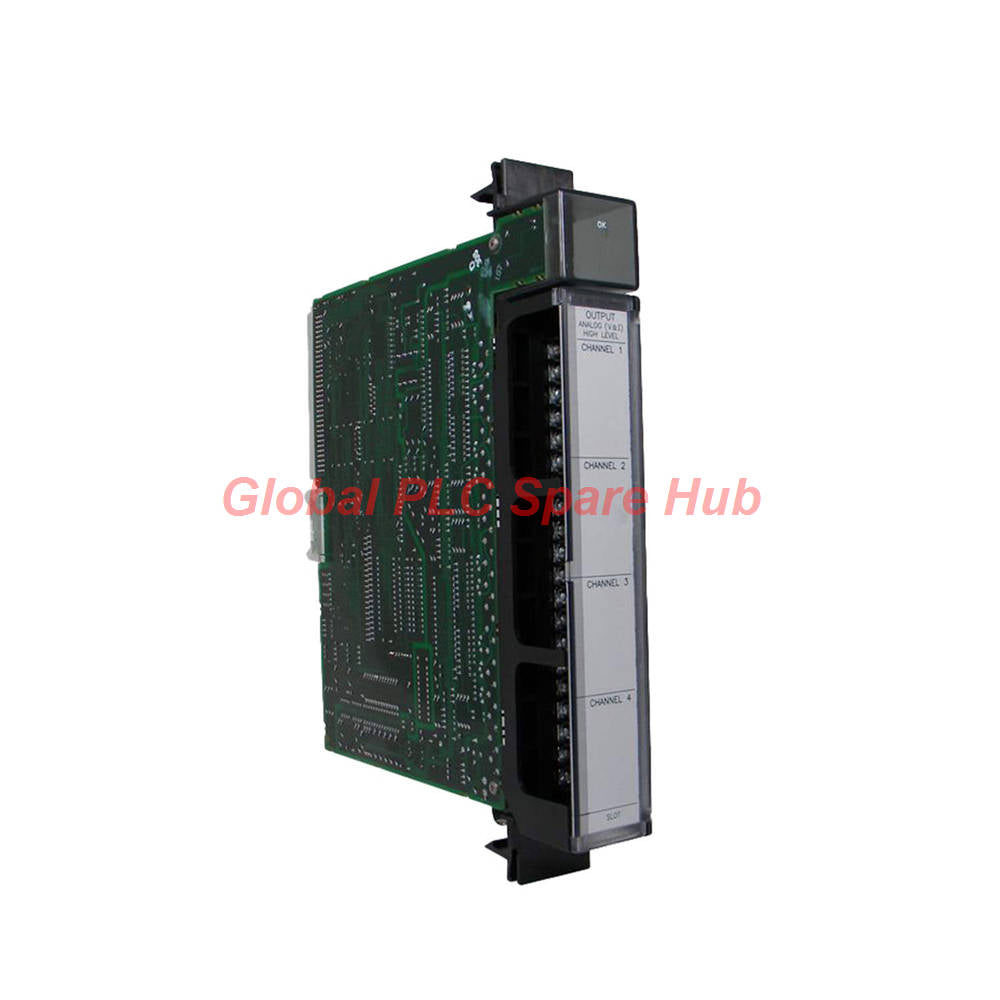

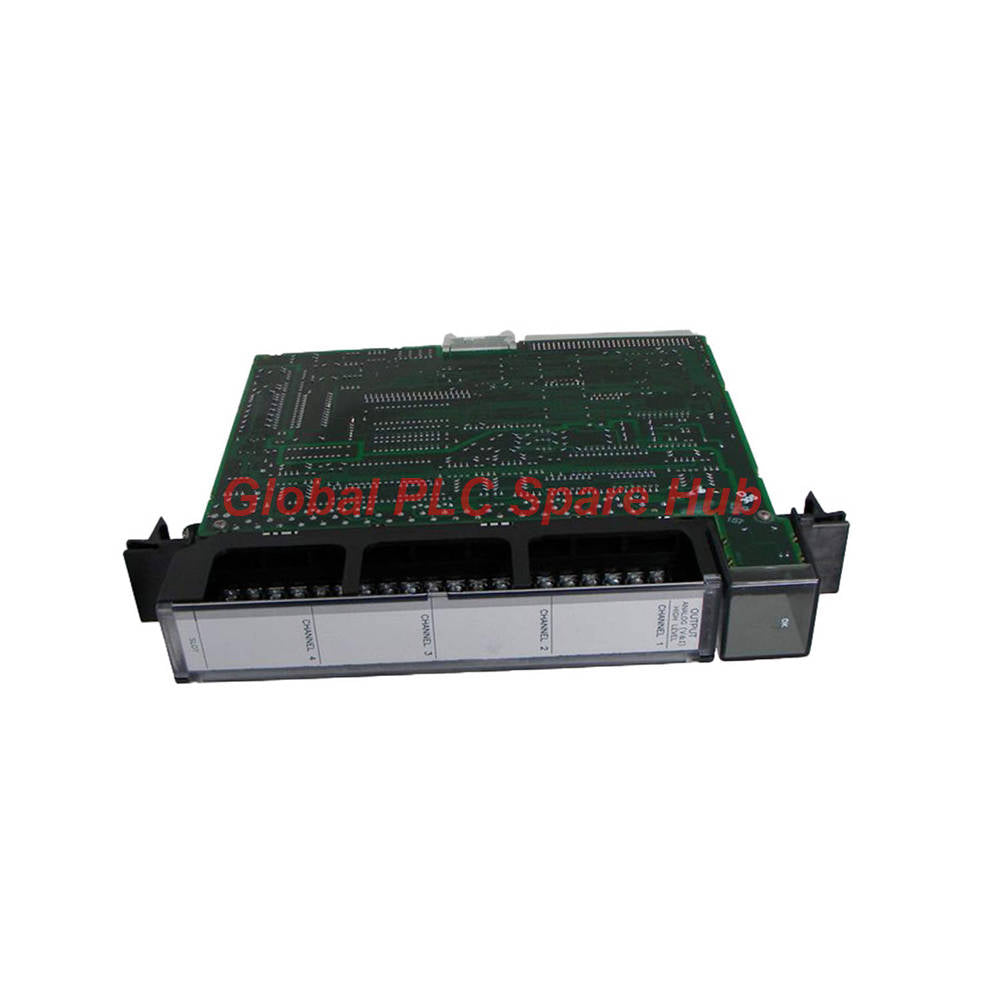

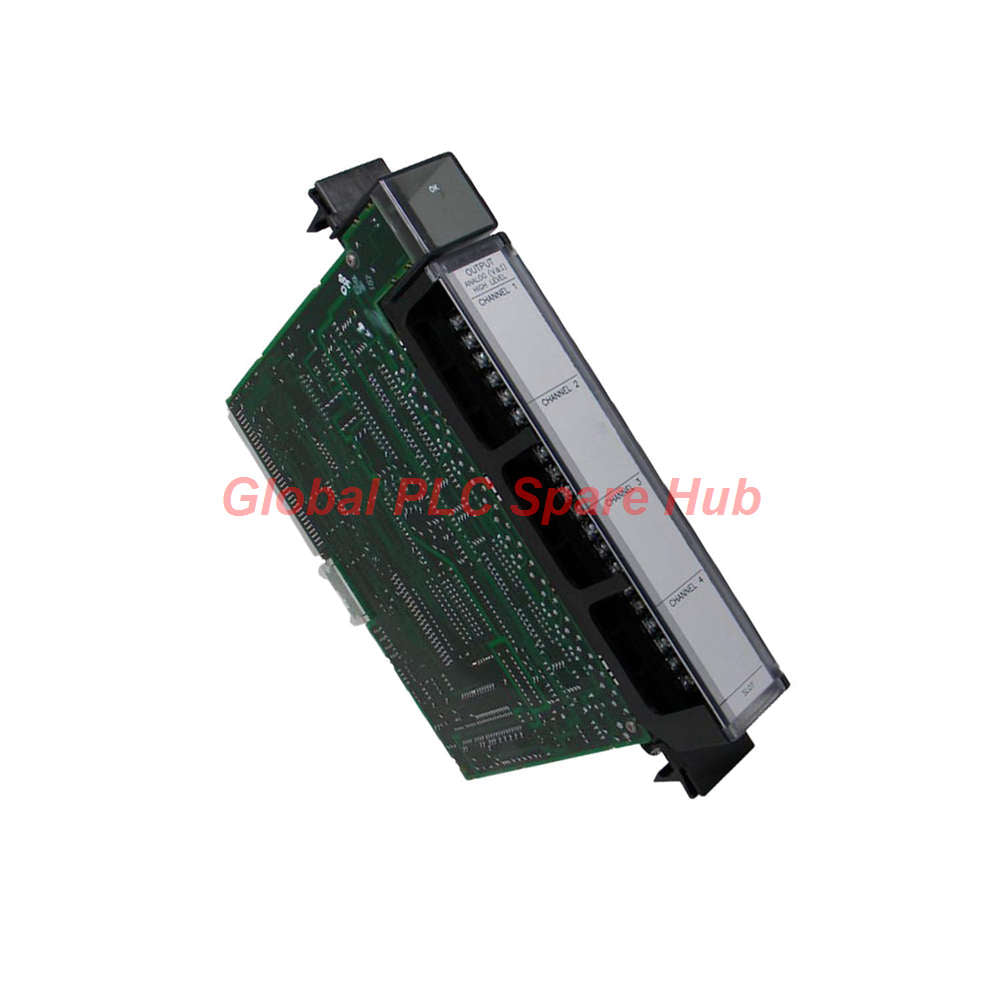

IC697ALG320 GE Fanuc Series 90-70 Analog Output Module - 4-Channel

Product Overview

The IC697ALG320 is a high-performance analog output module engineered for the Series 90-70 Programmable Logic Controller system. Originally built by GE Fanuc, this robust module bridges digital controller data and physical industrial actuators by converting digital commands into precise analog signals. Designed for demanding industrial automation environments, the IC697ALG320 features four individually configurable channels supporting both voltage and current outputs. Engineers rely on the IC697ALG320 to deliver dependable control for valves, actuators, and analog meters across complex architectures.

Technical Specifications

The table below outlines the core engineering parameters for the IC697ALG320 module:

Diagnostic Capabilities & Fault Protection

The IC697ALG320 incorporates advanced onboard diagnostics to ensure maximum system uptime and rapid troubleshooting:

• Fault Detection: Automatically detects configuration errors, open-wire conditions, and module health status.
• Range Monitoring: Features real-time over-range and under-range detection flags.
• Output Protection: Provides continuous short-circuit protection without hardware damage, automatically returning to normal operation once faults clear.
• Data Integrity: Stores factory calibration data directly within onboard EEPROM memory to eliminate drift.

Installation & Compatibility Guide

• Baseplate Mounting: Installs easily into any single slot of a Series 90-70 5-slot or 10-slot baseplate.
• Rack Limitations: Supports a maximum of seven IC697ALG320 modules in a standard CPU rack.
• Channel Capacity: Scales up to 252 total output channels per system architecture by distributing multiple modules.
• Software Configuration: Uses programming software for quick output range selection, user scaling, and custom engineering unit conversion.

Global PLC Spare HUB's Insight

Field commissioning of the IC697ALG320 reveals distinct installation best practices. Engineers should always verify that the external 24 VDC field power supply maintains tight voltage regulation before energizing current loops. When driving inductive loads up to 250 mH, adding external freewheeling diodes or surge suppressors near the actuator terminals extends module relay lifespan. Furthermore, separating low-level analog signal wiring from high-voltage AC power cables inside control cabinets prevents electromagnetic interference and preserves the module's 16-bit measurement stability.

Shipping, Warranty & Order Fulfillment

• Global Shipping: Fast and secure dispatch via FedEx, UPS, and DHL.
• Fulfillment Speed: Orders ship within 24-48 hours from confirmation.
• Package Contents: Includes one IC697ALG320 module and factory verification documentation.
• Warranty Terms: Backed by a comprehensive 12-month warranty for operational peace of mind.

Frequently Asked Questions

Q: How do I configure individual channels for voltage versus current output on the IC697ALG320?

A: You configure each channel independently through the system configuration software by selecting the desired operational mode and scaling parameters before downloading the hardware configuration to the CPU.

Q: What causes the IC697ALG320 to trigger an open-wire diagnostic alarm?

A: An open-wire alarm typically occurs when the current loop is broken, load resistance exceeds 700 ohms, or field power falls below the required threshold.

Q: Can I hot-swap the IC697ALG320 module while the rack is powered?

A: No, you must power down the baseplate rack before inserting or removing the IC697ALG320 module to prevent electrical arcing and backplane damage.
