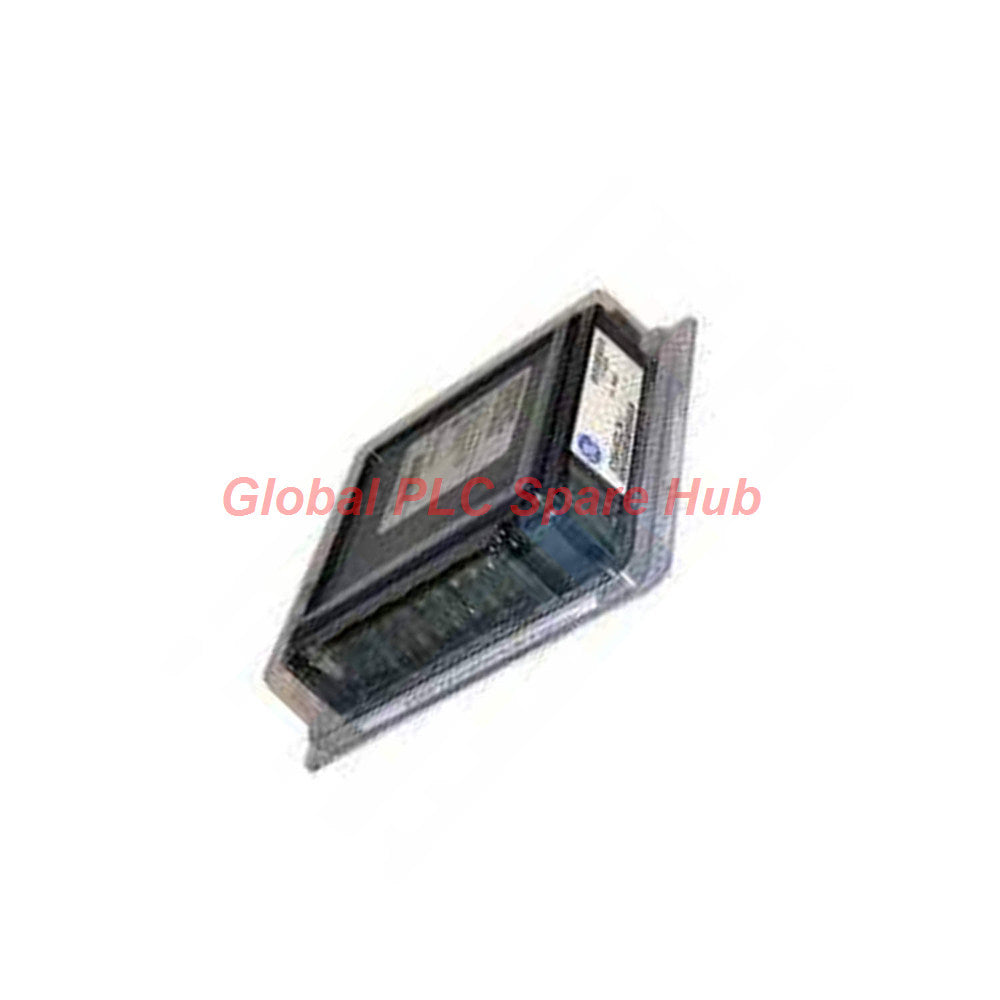

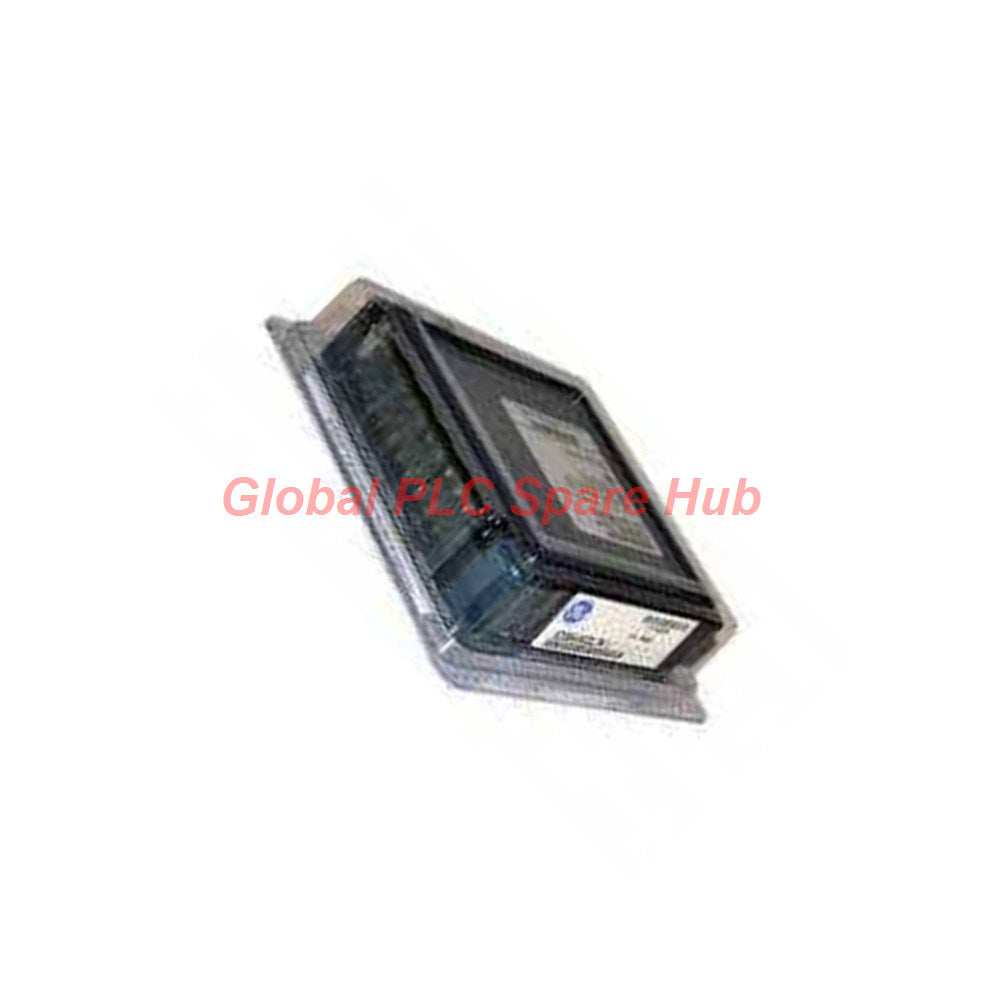

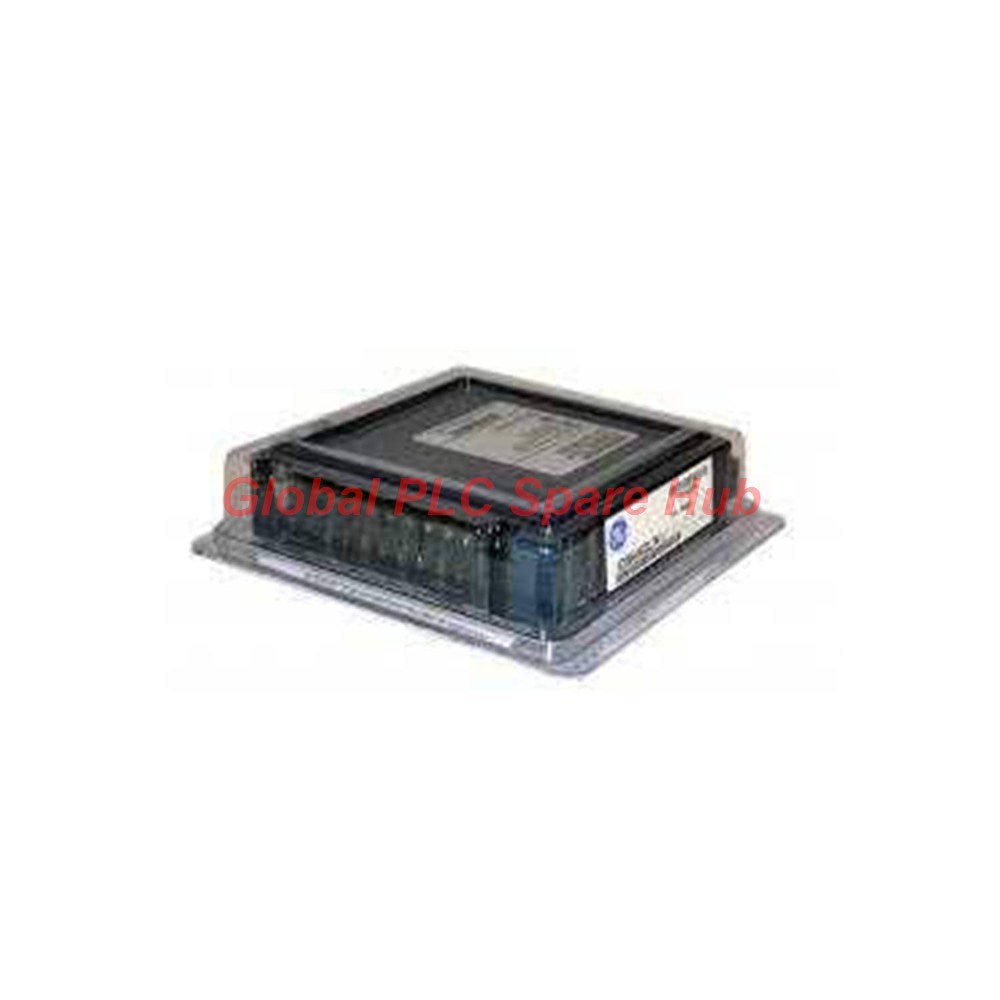

IC694MDL741 | GE Fanuc RX3i 12/24VDC Negative Logic Output Module

Product Introduction

IC694MDL741 is a PACSystem RX3i 12/24 VDC Negative Logic Output Module designed for high-reliability industrial control applications.

This discrete output module belongs to the GE Fanuc PACSystem RX3i platform. The product family is now supported by Emerson Automation.

The module provides 16 discrete output points with negative logic sinking operation. It controls external field devices through two isolated output groups.

Each group contains eight channels. Each output channel supports up to 0.5 A current.

Global PLC Spare HUB's Insight: In field automation projects, engineers often select IC694MDL741 for machine builders who need fast DC switching and reliable field device control. Typical installations include packaging machines, material handling systems, and process skids.

Engineering Highlights

Technical Specifications

• Brand: GE Fanuc
• Manufacturer: GE Intelligent Platforms / Emerson Automation
• Model: IC694MDL741
• Series: PACSystem RX3i
• Product Type: Discrete Output Module
• Output Channels: 16 points
• Output Groups: 2 groups
• Voltage Rating: 12/24 VDC
• Output Voltage Tolerance: +20% / -15%
• Current Per Output: 0.5 A
• Maximum Current Per Common: 2 A
• Backplane Current Consumption: 110 mA at 5 VDC
• Output Voltage Drop: Maximum 0.5 VDC
• OFF-State Leakage: Maximum 1 mA
• Isolation: Optical isolation between field and backplane
• Isolation Rating: 250 VAC continuous, 1500 VAC for 1 minute
• Status Indicators: Individual channel LEDs and fault LED

Functional Design and Field Performance

The IC694MDL741 uses negative logic switching technology. It sinks current from connected field devices during output activation.

The module supports devices that require stable DC control signals. It provides reliable switching performance for industrial equipment.

• Relay coils
• Solenoid valves
• Motor starters
• Indicator lamps
• Machine actuators
• Industrial control devices

Compatible Equipment and Application Areas

The IC694MDL741 fits applications using PACSystem RX3i controllers and distributed I/O systems.

Installation Recommendations

• Install the module in any available RX3i rack slot.
• Verify external field power before connecting loads.
• Confirm device polarity because the module uses negative logic operation.
• Check output current ratings before connecting actuators.
• Use proper grounding methods in industrial cabinets.

Commissioning Experience and Maintenance Tips

Global PLC Spare HUB Review: During commissioning, technicians should verify each output LED before connecting final loads. This prevents wiring mistakes from damaging field devices.

A common troubleshooting case involves a correct PLC program but inactive field equipment. Engineers should first check external DC supply polarity and common terminal wiring.

• Check the channel LED status during output commands.
• Review the fault indicator before replacing hardware.
• Measure field voltage at the terminal block.
• Confirm actuator current does not exceed channel limits.

Diagnostic Capability

• Individual LEDs identify active output channels.
• The fault LED provides quick module status verification.
• Output voltage testing helps locate field wiring problems.
• Current measurement confirms load compatibility.
• Isolation design helps separate control faults from field circuits.

System Compatibility Guide

• Compatible with GE Fanuc PACSystem RX3i controllers.
• Supports local and distributed I/O architectures.
• Requires external DC power for connected field devices.
• Suitable for 12 VDC and 24 VDC industrial loads.
• Requires application verification before replacing output modules.

Packaging, Shipping and Warranty

• Package Contents: 1 × IC694MDL741 Negative Logic Output Module.
• Professional anti-static packaging protects industrial electronics during transport.
• Warranty: 12 months quality assurance.
• Shipping methods include FedEx, UPS, and DHL.
• Orders normally ship within 24-48 hours after confirmation.

Frequently Asked Questions

Q: How can engineers confirm whether IC694MDL741 matches their existing output wiring?

A: Check the original wiring drawings and confirm the system uses negative logic sinking outputs. Field polarity is the most important verification point before installation.

Q: What causes an output channel to appear normal but the connected device does not operate?

A: Field experience shows incorrect common wiring, missing external power, and unsuitable actuator ratings are common causes.

Q: Can IC694MDL741 directly power large motors or high-current equipment?

A: No. The module controls signals and low-power DC loads. Large equipment requires suitable contactors or intermediate relays.

Q: What information should be collected before ordering this module?

A: Confirm the PACSystem RX3i CPU model, rack type, voltage level, output logic type, and connected device current requirements.

Q: Why should engineers choose optical isolation output modules in industrial systems?

A: Optical isolation reduces the impact of field voltage disturbances. It improves separation between PLC electronics and external devices.

Selection Guidance

• Choose IC694MDL741 for PACSystem RX3i applications requiring 12/24 VDC sinking outputs.
• Select this module when 16 discrete output channels are required.
• Verify load current before connecting field equipment.
• Consider wiring standards and machine safety requirements during selection.
