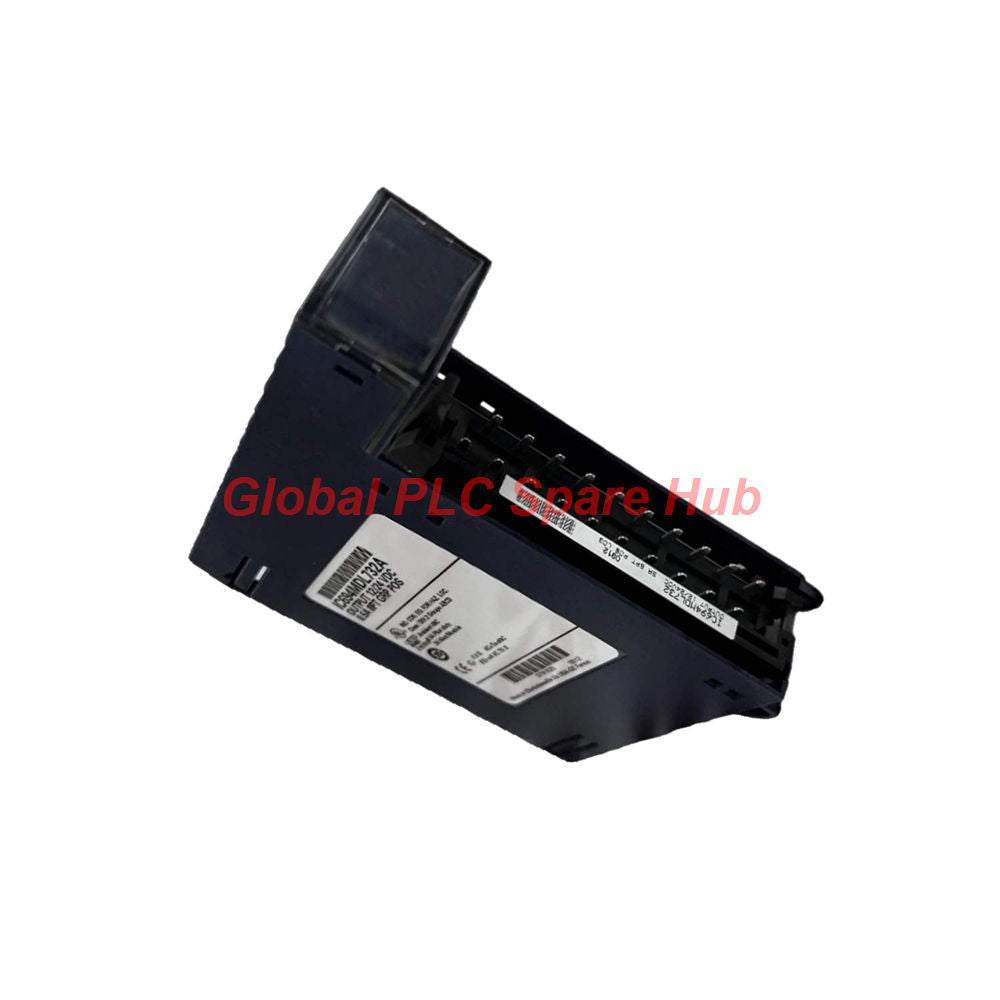

IC694MDL732 Emerson PACSystems 8-Pt Sourcing Output Module

Product Overview

The GE Fanuc IC694MDL732 module delivers eight high-speed discrete outputs. It controls low-voltage industrial DC field devices efficiently. This sourcing output module operates reliably within the PACSystems RX3i backplane. Hot-swap capability allows module replacement without shutting down system power.

Technical Specifications

System Compatibility and Integration

The IC694MDL732 installs into any available slot on an RX3i universal backplane. It interfaces with standard 12/24 VDC industrial field devices. The controller CPU automatically recognizes module configuration through Proficy software environments.

Installation and Mounting Guidelines

Align the module board with the chassis slot guides. Slide the IC694MDL732 firmly into the backplane connector until it seats completely. Lock the upper and lower terminal levers securely. Connect external 12-24 VDC user power across the field wiring connector.

Diagnostic Capabilities and Maintenance

Eight green LEDs on the front bezel indicate individual channel status. An active LED confirms logic high command from the CPU. Technicians can perform hot-swapping safely during continuous plant processing. Regular maintenance involves verifying terminal screw torque and checking power supply stability.

Target Equipment and Application Scenarios

• Solenoid valve actuation in automated pneumatic manifold systems.
• DC indicator lamp driving on operator control panels.
• Interfacing small DC motor starter coils in conveyor systems.
• Actuating solid-state relays in industrial heating control skids.

Global PLC Spare HUB's Insight

Because the IC694MDL732 lacks internal fusing, field inductive surges can damage un-suppressed outputs. During a recent line audit, un-suppressed solenoid coils caused intermittent channel lockups. Installing external flyback diodes across field loads eliminated back-EMF spikes instantly. Always install fast-acting external fuses on user power lines to protect output transistors.

Selection and Purchasing Guide

Select the IC694MDL732 for 8-channel sourcing applications requiring fast response times. Verify your field device load does not exceed 0.5 Amps per point. For higher current or isolated channel requirements, evaluate alternative discrete output models.

Certifications and 12-Month Warranty

This module complies with strict UL, CE, and industrial safety directives. Each unit undergoes full channel testing before inventory registration. Products include an extensive 12-month warranty covering technical defects.

Shipping and Express Delivery

Orders process within 24 to 48 hours following payment confirmation. Global logistics partners include FedEx, UPS, and DHL. Automated dispatch notifications provide immediate tracking information.

Frequently Asked Questions (FAQ)

Q: Does the IC694MDL732 output module contain internal fuse protection?

A: No, this module has no internal fuses. Engineers must install external fuses to protect output channels.

Q: Can technicians perform live hot-swapping on the IC694MDL732 in an active rack?

A: Yes, you can safely remove or insert the module while backplane power remains active.

Q: What does the blue band on the front face of the module indicate?

A: The blue color band signifies a low-voltage DC module for quick visual identification.

Q: How do technicians diagnose output failure on individual channels?

A: Check the front LED status first. If the LED turns on but load stays off, check field wiring fuses.

Q: When should engineers choose the IC694MDL732 over high-density output modules?

A: Choose this module when individual channel power requirements require up to 0.5 Amps per point.
