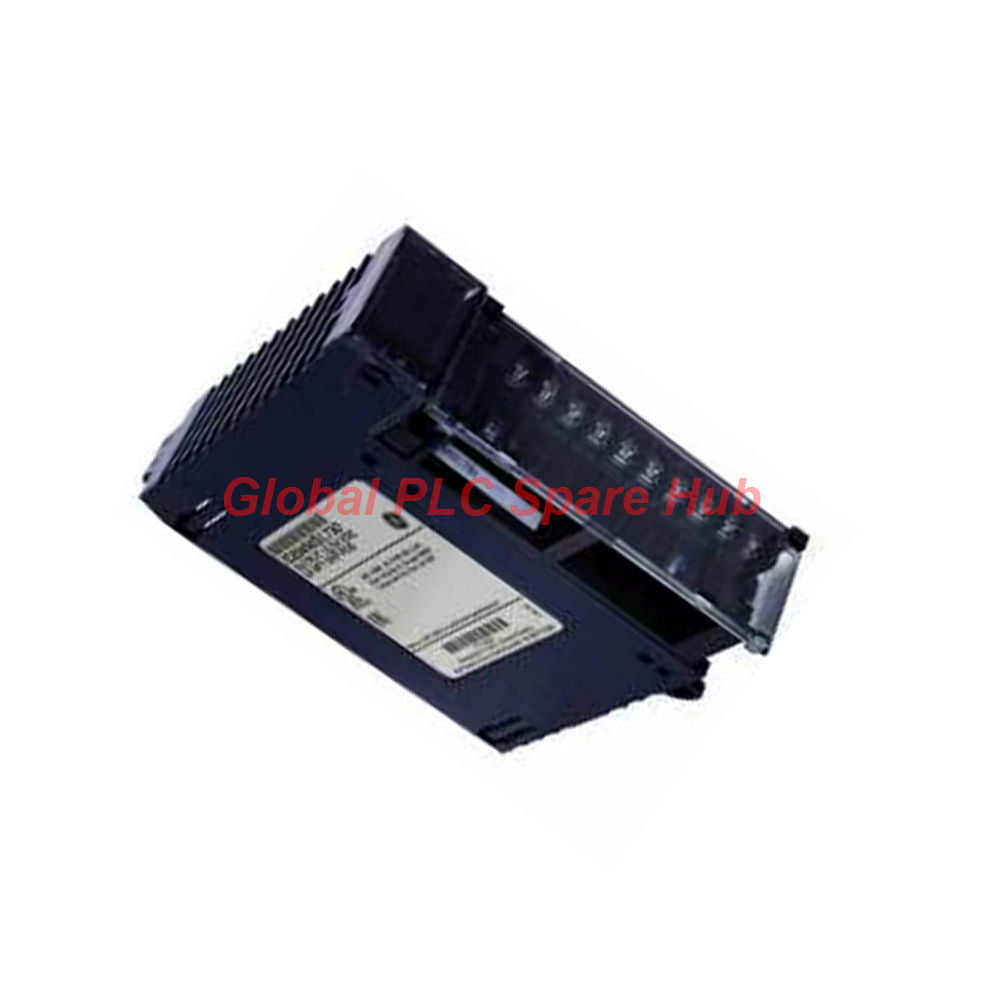

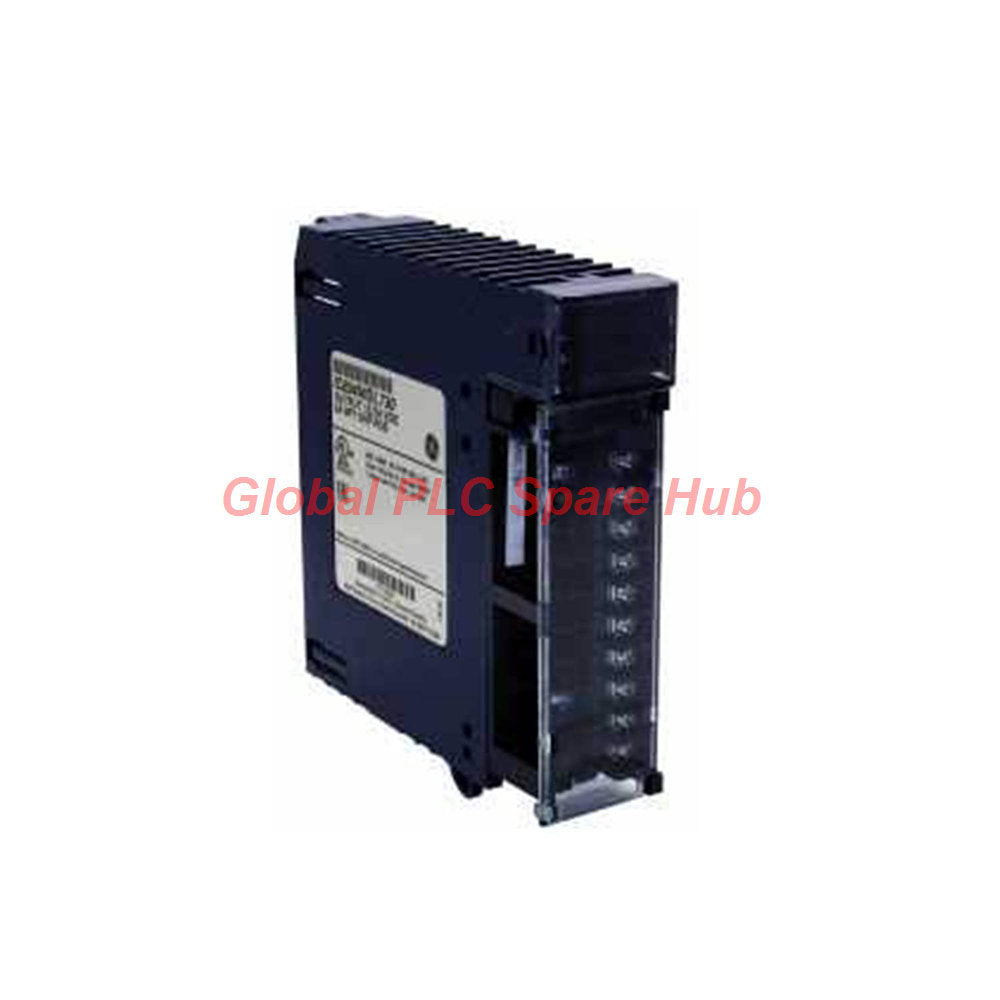

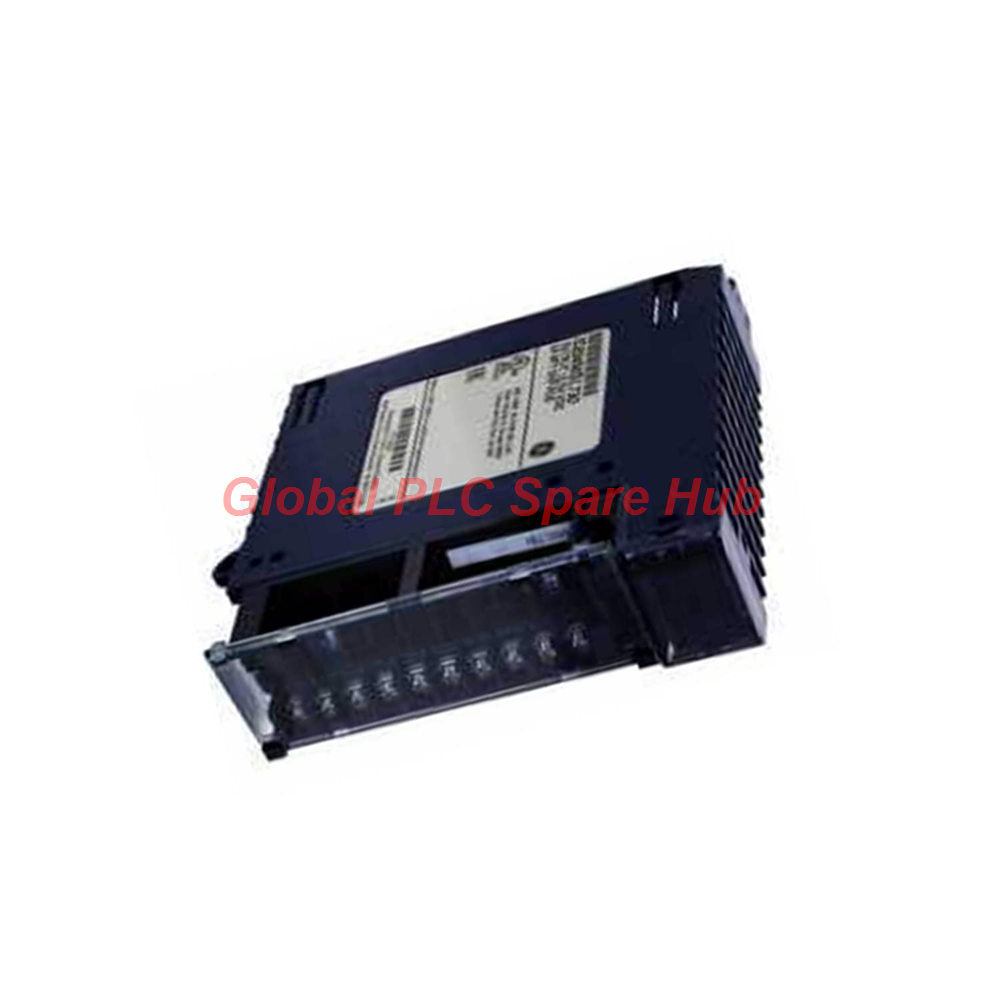

IC694MDL730 Enhanced GE Fanuc RX3i PacSystem DC Output Module
Manufacturer: GE Fanuc
Product No.: IC694MDL730
Condition： In stock
Product Type: Voltage Output Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
IC694MDL730 Output Module Overview
The IC694MDL730 is a high-performance DC output module designed for the GE Fanuc RX3i PacSystem automation platform.
It provides reliable switching control for industrial field devices with eight DC output points.
The module uses one shared power group and supports positive current sourcing operation.
Its design fits demanding machine control and process automation environments.
The IC694MDL730 integrates status indicators, output protection, and fast response performance.
Global PLC Spare HUB Review identifies this module as a practical choice for engineers maintaining RX3i control systems.
Field engineers commonly apply this module in motor starter control cabinets.
For example, a packaging line can use the eight outputs to control valves, relays, and indicator lamps.
Product Highlights at a Glance
| Feature | Engineering Benefit |
| 8 DC Outputs | Controls multiple field devices within one compact module |
| 12-24V DC Operation | Supports common industrial actuator voltage levels |
| Source Output Design | Provides current delivery through positive power bus |
| LED Channel Indicators | Allows quick field status verification |
| Output Protection | Dual 5A fuses protect output groups |
| Fast Switching | Maximum response time reaches 2 milliseconds |
Technical Specifications
| Specification | Details |
| Brand | GE Fanuc Automation |
| Series | RX3i PacSystem |
| Model | IC694MDL730 |
| Module Type | DC Output Module |
| Output Channels | 8 outputs |
| Output Configuration | One group with common power connection |
| Rated Voltage | 12-24V DC |
| Operating Voltage Range | 12-24V DC +20%, -15% |
| Output Current | 2 Amps per point |
| Inrush Current | 9.4 Amps for 10 milliseconds |
| Response Time | Maximum 2 milliseconds |
| Output Voltage Drop | 1.2 Volts maximum |
| Isolation Voltage | 1500 Volts field to logic isolation |
| Power Consumption | 55 mA |
| Protection Method | Two 5 Amp group fuses |
Engineering Design Advantages
- High current capability supports industrial DC loads.
- Source output architecture simplifies positive-side switching applications.
- Individual LED indicators improve maintenance visibility.
- Electrical isolation reduces control system risks.
- Compact RX3i design saves cabinet installation space.
Compatible Equipment and Application Fields
The IC694MDL730 works with multiple industrial devices requiring DC switching control.
- Motor starters and contactor control circuits
- Industrial solenoid valves
- Relay interface systems
- Machine status indicators
- Material handling equipment
- Packaging automation lines
- Assembly production systems
- Process control panels
Global PLC Spare HUB's Insight shows that this module performs well in applications requiring frequent output switching.
A common field installation uses the module for controlling pneumatic valves in automated production equipment.
Technicians can quickly identify output conditions through the integrated LED indicators.
Installation and Commissioning Guidance
- Confirm RX3i rack compatibility before installation.
- Verify DC supply polarity before wiring.
- Connect field loads according to output specifications.
- Check load current requirements before commissioning.
- Inspect fuse status during initial startup.
Engineers should consider temperature influence during high-current operation.
The output capacity may require adjustment when cabinet temperature increases.
Diagnostic Capability
- Channel LEDs provide direct output status feedback.
- Fuse protection helps locate overload conditions.
- Output voltage checks support troubleshooting.
- Isolation design helps separate field faults from logic circuits.
- Load testing confirms actuator performance.
Experienced technicians usually check field wiring before replacing the module.
Incorrect load wiring remains a common cause of abnormal output behavior.
Maintenance Experience and Field Notes
- Regular inspection of output terminals improves system stability.
- Proper load calculation prevents unnecessary fuse activation.
- Clean cabinet environments extend module service performance.
- Matching output ratings improves long-term reliability.
Global PLC Spare HUB Review indicates that RX3i users value this module for straightforward maintenance.
Packaging and Delivery Service
- IC694MDL730 DC Output Module ×1
- Protective industrial packaging
- Product documentation support
- Quality inspection before shipment
Shipping methods include FedEx, UPS, and DHL.
Standard order processing requires 24-48 hours before shipment.
Warranty Policy
- Warranty period: 12 months.
- Technical support assists installation questions.
- Product quality inspection supports reliable deployment.
- Professional service helps reduce integration risks.
Professional FAQ
Q: Can the IC694MDL730 directly drive large industrial motors?
A: The module suits motor starter control rather than direct motor power switching.
Engineers normally connect it with contactors or starter interfaces.
Q: What wiring mistake appears most often during field installation?
A: Incorrect common power connection is a frequent commissioning issue.
Technicians should verify the shared output supply before testing channels.
Q: How should users handle high-temperature control cabinets?
A: Users should review current loading because temperature affects output capability.
Proper ventilation improves module operating stability.
Q: Which replacement factors matter when selecting this module?
A: Engineers should confirm PLC family, voltage level, output type, and load current.
Matching these parameters prevents control system compatibility problems.
Q: Why do engineers choose this module for automation upgrades?
A: The module provides simple integration with existing RX3i systems.
Its diagnostics and protection features reduce troubleshooting time.
Selection Recommendations
| Requirement | Recommended Consideration |
| Existing RX3i System | Select IC694MDL730 for compatible DC output expansion |
| Multiple DC Loads | Confirm total current requirements per output point |
| Industrial Cabinet Installation | Evaluate temperature and wiring conditions |
| Fast Maintenance | Use LED indicators for channel diagnosis |
The GE Fanuc IC694MDL730 delivers dependable DC output control for RX3i PacSystem automation applications.
