IC694ALG392 GE Fanuc Emerson RX3i PacSystem Analog Output Module

Product Overview

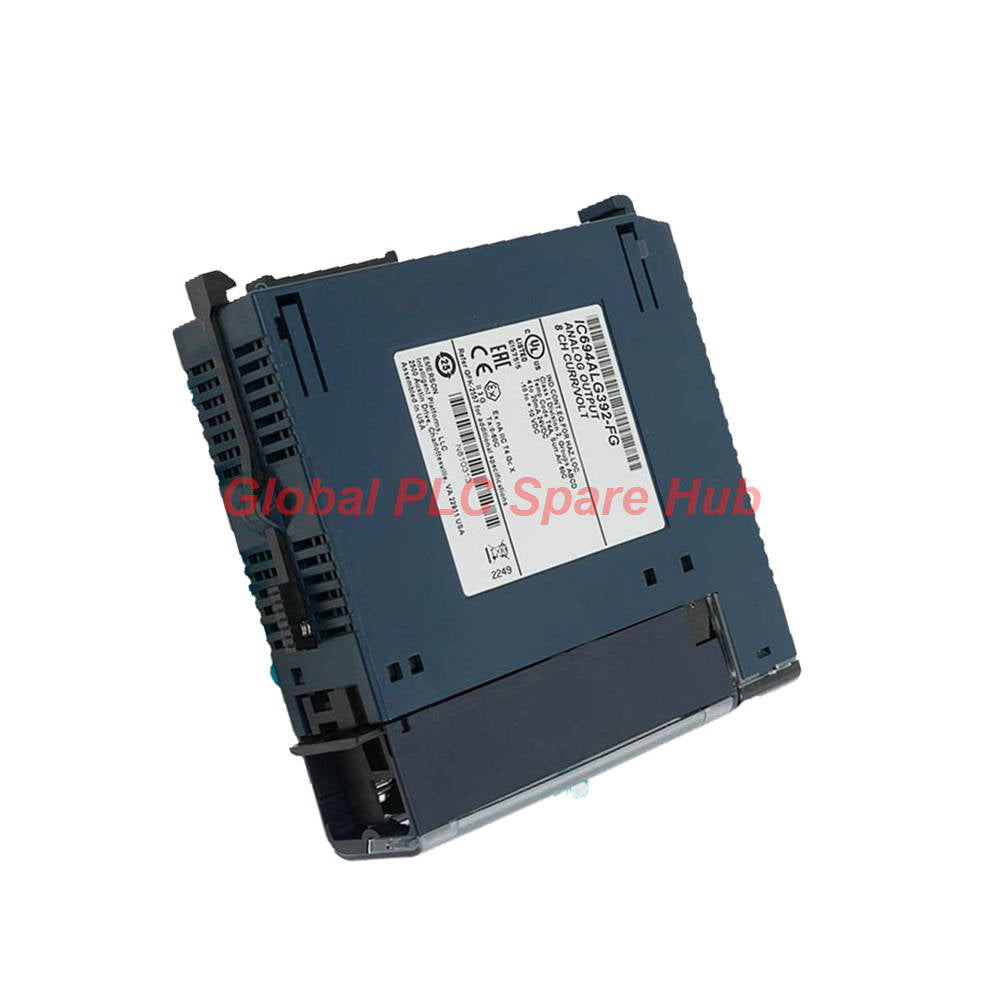

The GE Fanuc Emerson IC694ALG392 is an 8-channel analog output module.

Designed for the RX3i PacSystem Series, it delivers high-density modulating control.

Each single-ended channel generates precise voltage or current control signals.

The module updates all 8 channels simultaneously within an 8-millisecond loop interval.

Engineers deploy it in closed-loop systems requiring rapid actuator response.

Configuration & Signal Ranges

• Channel Capacity: 8 Single-Ended Outputs
  • Unipolar Voltage Mode: 0 to +10 VDC (15-bit resolution, 0.3125 mV/count)
  • Bipolar Voltage Mode: -10 to +10 VDC (16-bit resolution, 0.3125 mV/count)
  • Unipolar Current Mode: 0 to 20 mA (15-bit resolution, 0.625 µA/count)
  • Industrial Loop Mode: 4 to 20 mA (15-bit resolution, 0.5 µA/count)

Technical Specifications

Diagnostics & Safety Control Features

• Open Wire Detection: Continuous loop monitoring in current mode flags broken wire faults directly to CPU diagnostics.
• Failsafe Power Response: Configurable to hold last valid output state or force channel to zero during controller interruption.
• PID Loop Integration: Directly interfaces with internal PAC software PID blocks for continuous process modulation.
• Signal Re-transmission: Serves as an isolated buffer to feed process variables to external chart recorders and totalizers.

Field Installation & Environmental Considerations

The IC694ALG392 fits into any available slot within an RX3i main or expansion base.

External field devices require a regulated 24 VDC auxiliary power supply.

Because the open-frame module carries a low IP rating, install it within a NEMA 12 or IP54 sealed enclosure.

Ensure signal wiring utilizes twisted shielded pair cabling grounded at a single shield point.

Packaging, Shipping & Warranty Terms

• Product Condition: Brand New & Original in Sealed Factory Box.
• Factory Warranty: Covered by a full 12 Months Factory Warranty.
• Fast Dispatch: Dispatched within 24 to 48 hours following order placement.
• Global Express Couriers: Express delivery available via FedEx, UPS, and DHL.

Suitable Equipment & Industrial Application Scenarios

Engineers implement the IC694ALG392 module across high-speed analog control architectures.

• Modulating Control Valves: Drives 4-20 mA positioners on steam, gas, and liquid process valves.
• Variable Frequency Drives (VFDs): Sends 0-10 VDC speed reference command signals to motor controllers.
• Hydraulic & Pneumatic Actuators: Controls proportional pressure regulators and fluid dosing pistons.
• Agitator & Mixer Controls: Regulates variable speed drives in chemical blending tanks.

Global PLC Spare HUB's Insight

When upgrading legacy Series 90-30 racks to RX3i, the 8ms update speed of this unit significantly improves loop reaction times.

However, field failures often stem from unconditioned 24 VDC external power with high voltage ripple.

Always verify that external supply ripple remains under 10% to preserve the ±0.25% analog output accuracy.

For critical safety loops, configure the software channel fault response to "Hold Last State" to avoid abrupt valve closure.

Purchasing Guide & Frequently Asked Questions

Q: How does the channel open wire detection feature operate in 4-20 mA mode?

A: The module continuously senses output loop impedance; if the current loop breaks, an open-wire fault bit triggers instantly in CPU software diagnostics.

Q: What power sources does this module require for full operation?

A: It draws 110 mA from the 5 VDC PLC backplane for internal logic and 315 mA from an external 24 VDC supply to power the output loops.

Q: Can I mix voltage and current configurations on the same module?

A: Yes, each of the 8 single-ended output channels is individually configured in software for voltage or current ranges.

Q: What field wiring practices prevent signal noise on 0-10V outputs?

A: Use twisted shielded cable, separate low-voltage signal lines from AC motor leads, and ground cable shields at the PLC cabinet side only.

Q: How quickly can an emergency replacement unit be shipped to cut downtime?

A: We process replacement orders within 24 to 48 hours, shipping globally via express DHL, FedEx, or UPS couriers with a 12-month factory warranty.
