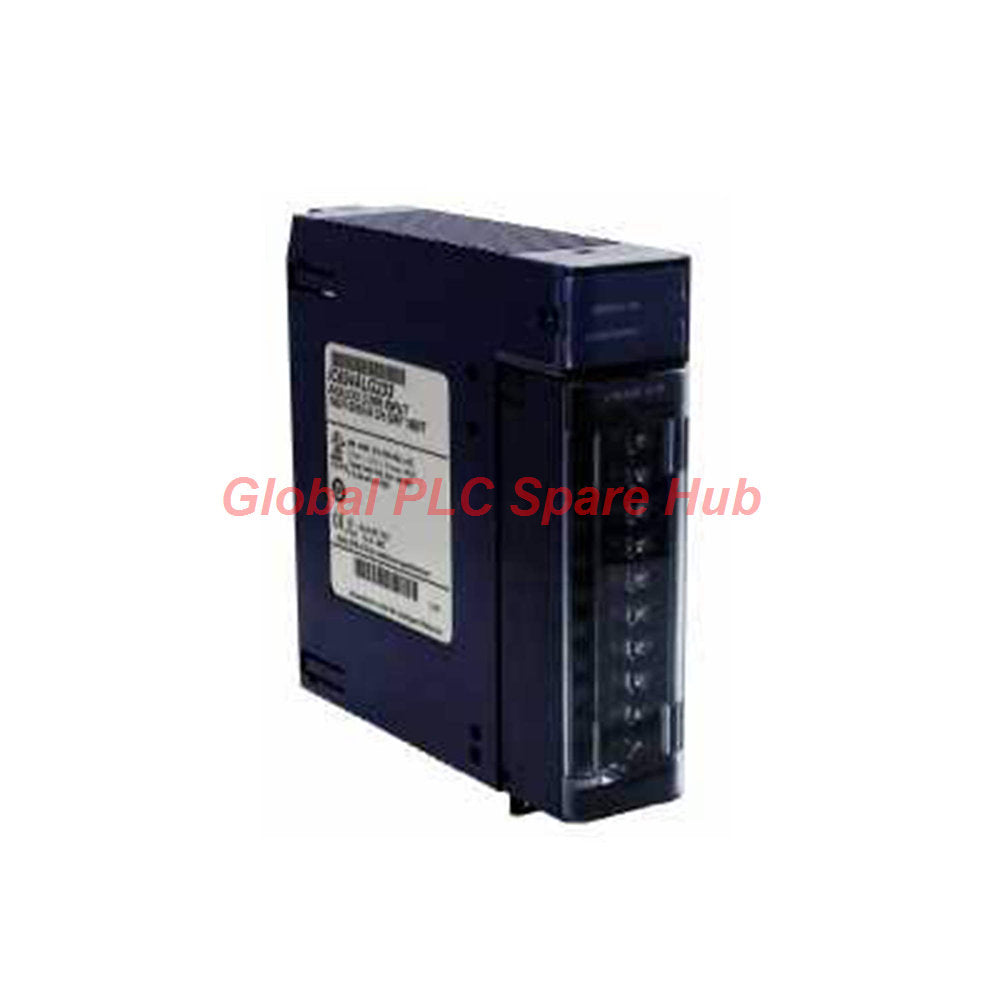

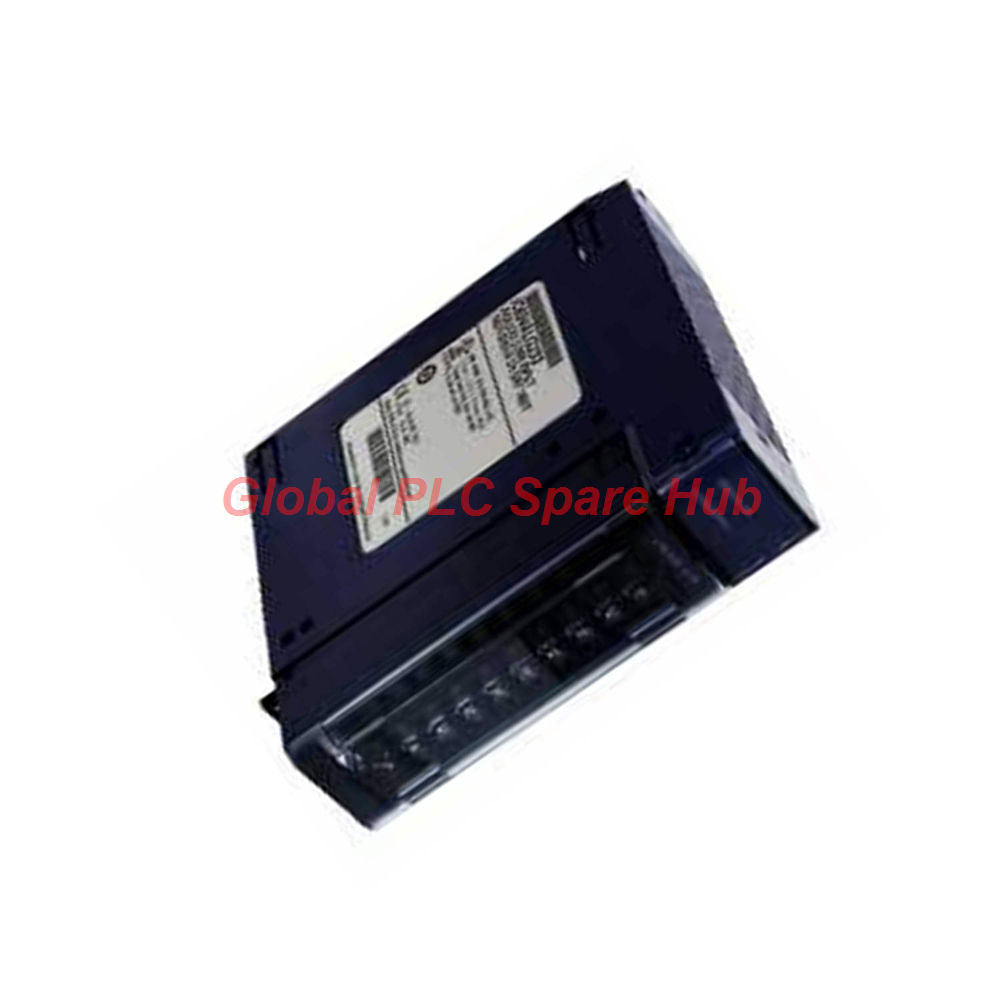

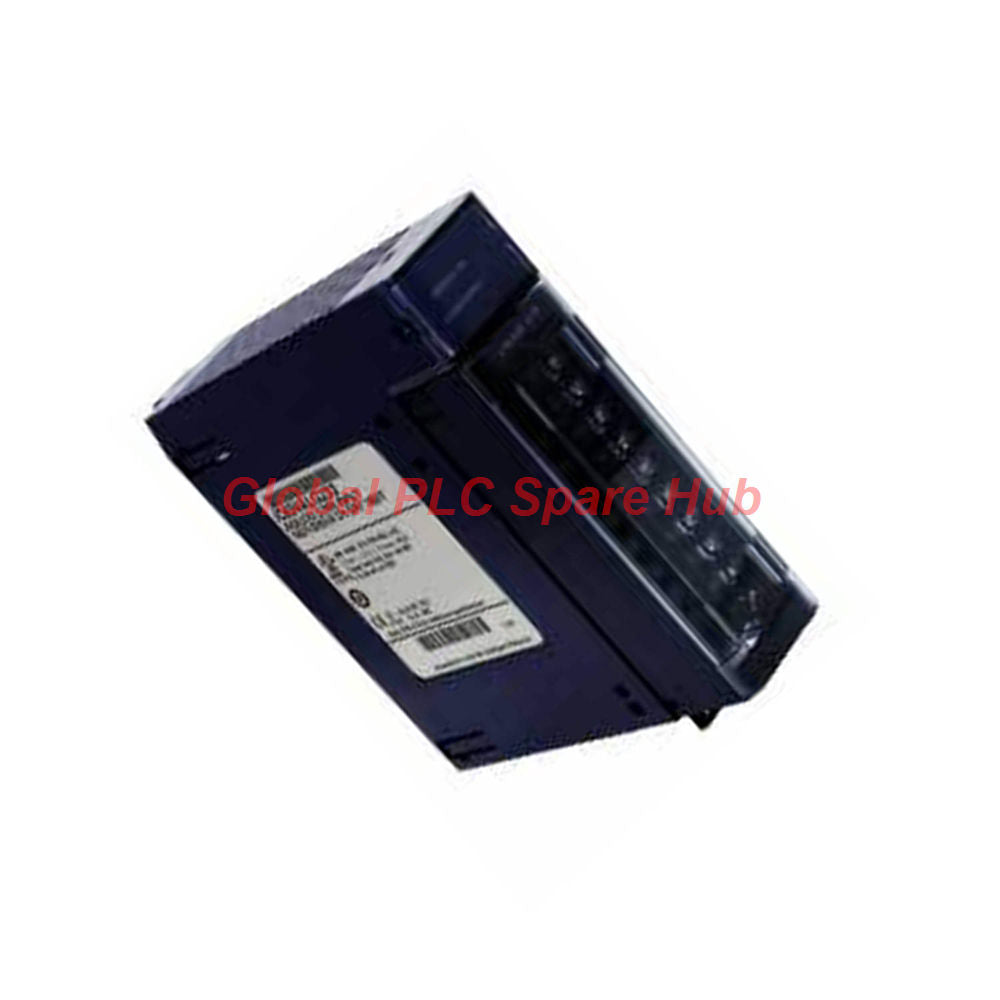

IC694ALG233 GE Fanuc RX3i Analog Input Module
Manufacturer: GE Fanuc
Product No.: IC694ALG233
Condition： In stock
Product Type: Analog Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 350g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Introduction & Global PLC Spare HUB Insight
Engineers deploying high-density analog loops require hardware that minimizes signal attenuation while ensuring robust channel isolation. The IC694ALG233 analog current input module by GE Fanuc engineered for the RX3i PACSystems architecture delivers precisely that capability. Featuring 16 single-ended channels, this module processes precision loop current measurements across demanding industrial process loops.
Global PLC Spare HUB's Insight: Based on our field deployment logs, technicians often leverage the enhanced 4-20mA range on the IC694ALG233 for immediate open-wire fault detection without requiring extra multi-meter verification loops.
Technical Specification Matrix
| Parameter Metric | Engineering Specification |
|---|---|
| Brand | GE Fanuc |
| Series | RX3i PACSystems |
| Part Number | IC694ALG233 |
| Module Classification | Analog Current Input Module |
| Channel Capacity | 16 Single-Ended Channels |
| Backplane Current Draw | 120 mA at 5 Volts DC |
| External Supply Requirements | 20 to 30 Volts DC (65 mA draw, 10% max ripple) |
| Frequency Response | 23 Hz Input Low-Pass Filter |
| Thermal Operating Envelope | 0°C to 60°C (Storage: -40°C to 100°C) |
| Ambient Humidity Limit | 5% to 95% Non-Condensing |
Deployment & Hardware Guidelines
- Power Interruption Protocol: Always switch off main backplane and external loop power before mounting or removing the IC694ALG233 in hazardous zones.
- Slot Placement: Insert into compatible RX3i backplane I/O slots equipped with serial connector interfaces.
- Firmware Validation: Utilize software tools to verify and upgrade firmware revisions for enhanced feature support.
System Compatibility & Target Applications
- Compatible Hardware Ecosystem: Fully optimized for RX3i PACSystems backplanes and central processing units.
- Process Control Scenarios: Distributed control loops in petrochemical refining, municipal water purification plants, and high-speed automated packaging lines.
Diagnostic Capabilities & Maintenance Protocols
- Live Status Reporting: Relays real-time module status and external power health directly to the CPU via designated reference addresses.
- Configurable Alarm Thresholds: Setup custom high and low software alarm limits to capture out-of-range sensor feedback instantly.
- Hot-Swap Support: Minimizes system downtime by allowing module removal and insertion without total rack power down (where local safety policies permit).
Logistics, Fulfillment & Warranty
- Global Courier Dispatch: Rapid fulfillment via FedEx, UPS, and DHL.
- Processing Lead Time: Dispatched securely within 24 to 48 hours.
- Quality Assurance: Backed by an extensive 12-month replacement warranty from Global PLC Spare HUB.
Frequently Asked Questions (FAQ)
Q: What specific current ranges can be configured on each channel of the IC694ALG233?
A: The module supports 0 to 20 mA, 4 to 20 mA normal, and 4 to 20 mA enhanced current ranges across all 16 channels.
Q: How does the enhanced 4-20mA range assist with field troubleshooting?
A: The 4 to 20 mA enhanced range permits the configuration of low alarm limits to identify values below 4 mA, giving operators native open-wire fault detection.
Q: Can the module be swapped out while the PLC rack is powered?
A: While the module supports hot insertion and removal features, technicians must always verify safety protocols and ensure external loop supplies are isolated to prevent arc flashes.
Q: What is the recommended buying guidance for upgrading legacy PACSystems hardware?
A: Verify that your existing backplane firmware is up to date and check that your external 24V supply can comfortably accommodate the additional 65mA current load.
Q: Why is monitoring the external supply ripple important for this unit?
A: The external supply must maintain a voltage range of 20 to 30 Volts DC with a maximum ripple tolerance of 10% to prevent unstable analog readings and erratic conversion filter responses.
