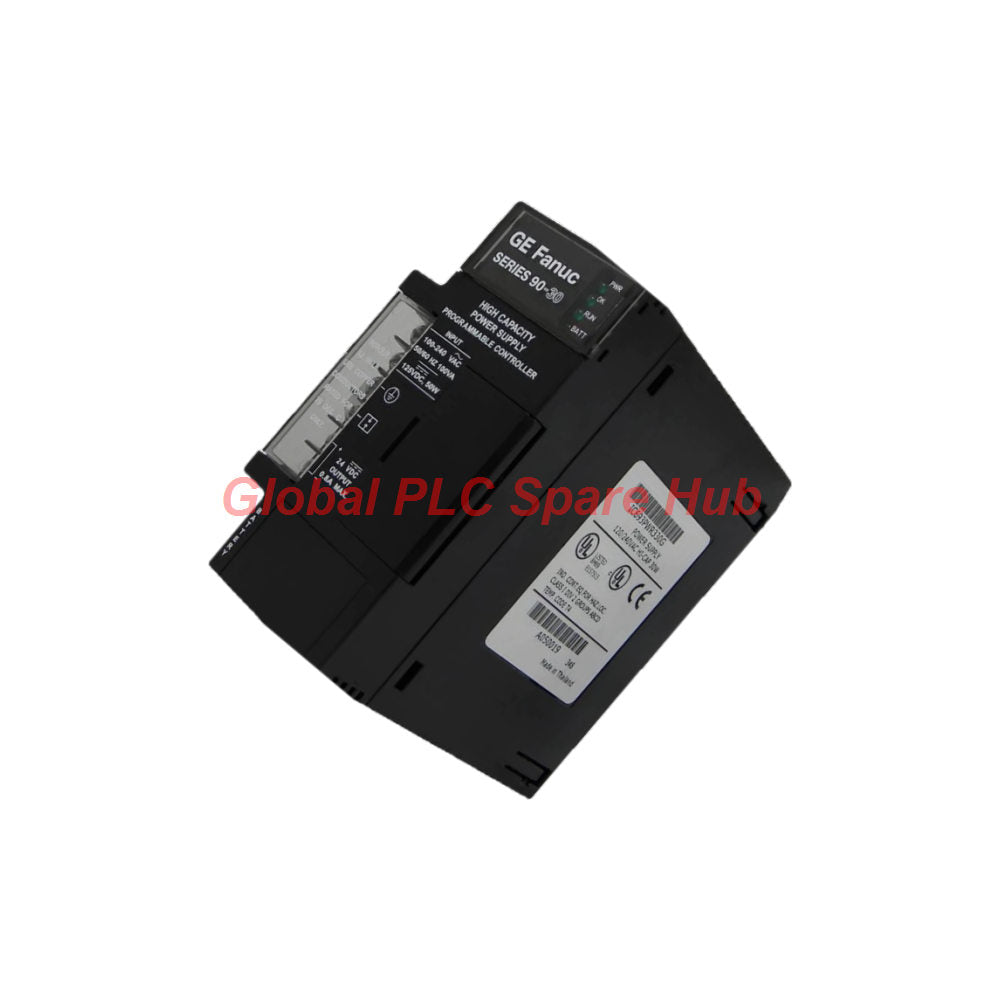

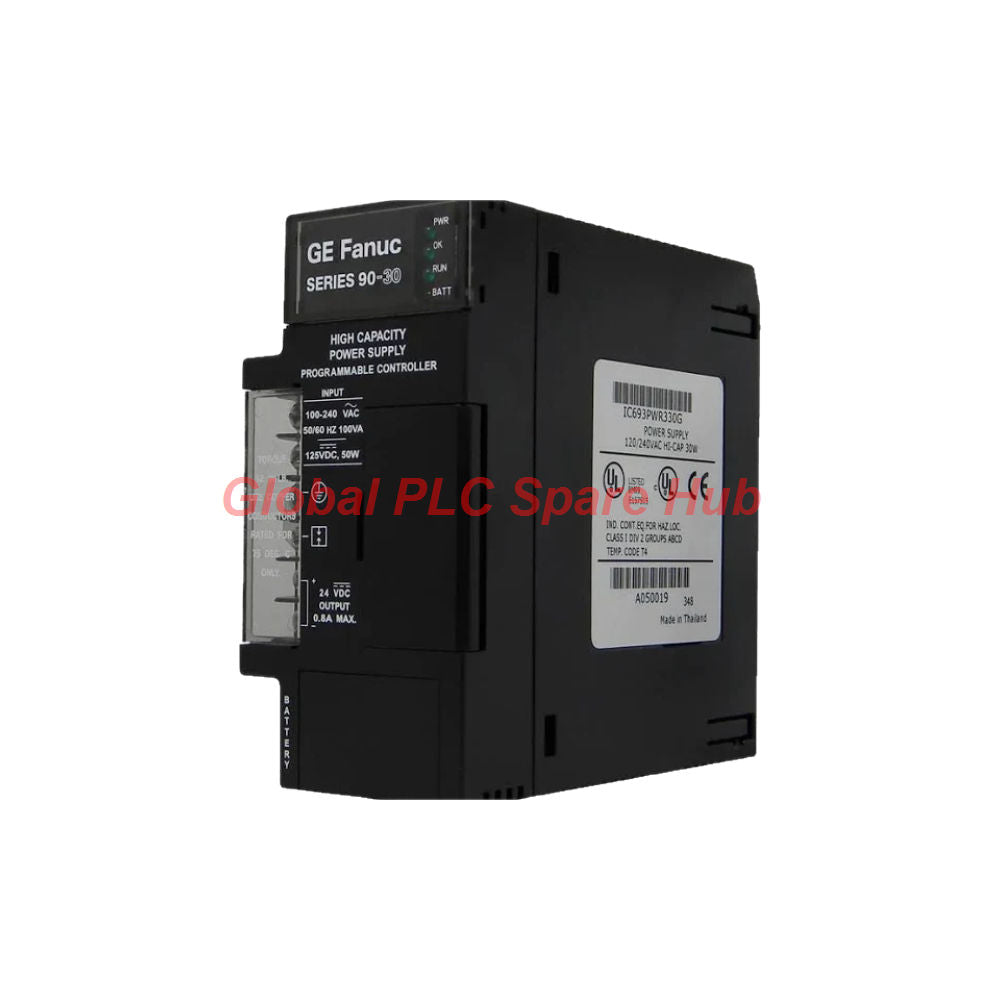

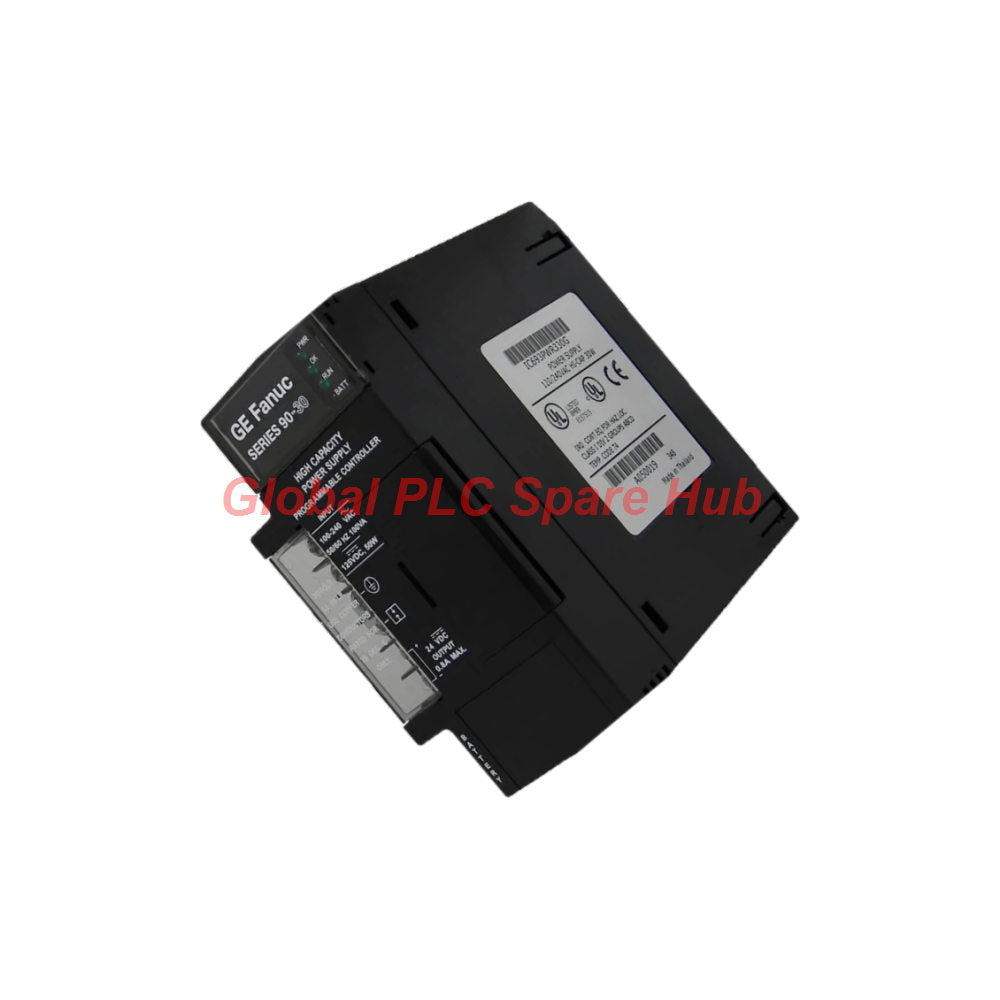

IC693PWR330 GE Fanuc Series 90-30 PLC Power Supply | 30W

IC693PWR330 | High-Capacity Power for Series 90-30 Racks

The GE Fanuc IC693PWR330 is a high-capacity power supply for the Series 90-30 PLC platform. It converts a compatible AC or DC input into the DC rails used by the PLC backplane and supported field circuits.

Its principal selection advantage is the stated 30W capacity on the 5VDC rail, making it relevant to Series 90-30 racks with substantial 5V backplane demand. Before installation, engineers should calculate the actual load on each output and confirm the power supply’s combined-load limits.

Power-Rail Overview

• 5VDC backplane supply: powers the PLC backplane and connected modules. The supplied data lists up to 30W for this rail.
• 24VDC relay supply: provides power for supported Series 90-30 relay-output circuitry; the supplied rating is up to 15W.
• Isolated 24VDC output: provides an isolated supply for compatible modules and, where permitted by the system design, external 24VDC input circuits. The supplied rating is up to 20W.
• AC/DC input flexibility: accepts a specified AC input range or DC input range, subject to correct wiring and polarity.

Technical Specifications

Power-rating clarification: The supplied material lists 30W for the 5VDC output, 20W for isolated 24VDC, and 15W for the 24VDC relay output, while also describing a 30W overall capacity. These figures should not be interpreted as simultaneously available output power. Confirm the manufacturer’s load-sharing and combined-output limits using the applicable IC693PWR330 manual and rack power calculation.

Rack Placement and Electrical Integration

The IC693PWR330 is installed in the designated power-supply position at the left side of a compatible Series 90-30 rack. It supplies the backplane rails required by the CPU and installed I/O or specialty modules. It is not an independent field I/O device.

• Rack load calculation: total the 5VDC demand of the installed modules and check any 24VDC loads against the relevant output ratings.
• Input source selection: verify whether the panel provides AC or DC power and that it falls within the applicable input range.
• DC polarity: follow the terminal diagram carefully; the supplied description states that DC input connections are polarity-sensitive.
• Protective earth: connect grounding and protective conductors according to the equipment manual and site electrical standards.
• Terminal work: isolate and verify input power before wiring, removal, or replacement.

Equipment and Application Suitability

• GE Fanuc Series 90-30 PLC racks: supplies backplane power to compatible CPU, digital I/O, analog I/O, and specialty modules.
• High 5V backplane-load configurations: may be appropriate where the installed rack requires the high-capacity 5V rail, provided the rack’s calculated demand is within the documented limit.
• Legacy machine-control panels: supports continued operation of existing Series 90-30 control equipment when the power-supply type and rack configuration match.
• Process and utility control cabinets: provides PLC power for compatible control applications; suitability depends on module load, environmental conditions, and panel design.
• Maintenance and replacement: can serve as a matching spare for a documented installation, subject to verification of the exact part number and condition.

Selection boundary: Do not choose this module solely because the input voltage matches. Confirm rack compatibility, the required 5V current, the use of the 24V outputs, and the combined power budget.

Commissioning Checks

1. Identify the rack: record the Series 90-30 rack configuration and the catalog numbers of the CPU and installed modules.
2. Calculate rail demand: use module-specific power consumption data to calculate the 5VDC load and any applicable 24VDC loads.
3. Check source voltage: measure the incoming AC or DC supply and confirm it is within the rated input range.
4. Inspect wiring and terminals: check polarity for DC input, terminal tightness, protective earth, and signs of heat damage.
5. Verify output rails: after installation and safe energization, measure the relevant DC rails and check that they remain within specification under normal rack load.
6. Confirm system operation: review CPU and module status after power-up and investigate any rack faults before returning equipment to service.

Diagnostic Guide: Power Supply or Rack-Level Fault?

A power-related PLC fault may originate in the incoming supply, the power supply module, an overloaded rail, a wiring issue, or a downstream module. Use measurements and system diagnostics to narrow the cause.

• No power or failed startup: verify the incoming source, terminal connections, and correct AC/DC input configuration.
• CPU or I/O modules report faults: check the backplane voltage and determine whether the installed rack load exceeds the supply’s capacity.
• Intermittent resets: investigate input dips, loose connections, excessive load, and whether the minimum holdup requirement is being met under actual conditions.
• Abnormal 24V behavior: identify whether the affected circuit uses the relay supply or isolated 24V output, then check its load and wiring against the correct output rating.
• Status indicators: observe the power supply’s available LEDs and record their state. The supplied description mentions PWR and OK indicators, as well as RUN and BATT indications; verify the exact indicator meanings for the installed unit.
• Suspected overload: compare the measured load with the manufacturer’s rail and combined-output limits. Do not repeatedly reset or re-energize a suspected overload without identifying its cause.

The listed RS-485 interface should not be assumed to provide general-purpose PLC communications or a specific diagnostic protocol without confirmation from the applicable manual.

Global PLC Spare HUB’s Insight

For the IC693PWR330, a reliable replacement decision starts with the rack’s power budget. Engineers should calculate the 5V backplane demand from the installed modules and separately account for relay and isolated 24V usage. The output ratings in product summaries can be misread as independent, simultaneous power allowances; check the manufacturer’s combined-load specifications before commissioning.

Because the supplied lifecycle information identifies this model as discontinued or obsolete, verify the exact catalog number, physical condition, and sourcing details before placing an order. For an operating legacy rack, document the existing supply wiring and measure the rail behavior under load before concluding that the supply itself is defective.

Warranty and Shipping

• Warranty: 12 months.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and shipping arrangements.
• Quotation details: provide catalog number IC693PWR330, quantity, destination, rack or CPU details, and any required condition or packaging information.

Frequently Asked Questions

1. How do I determine whether the IC693PWR330 has enough capacity for my rack?

List every installed module and obtain its specified 5VDC and applicable 24VDC consumption. Add the loads by rail and compare them with the power supply’s documented limits, including combined-output restrictions. Leave appropriate design margin rather than sizing only to the nominal wattage.

2. Can I replace another Series 90-30 power supply with this high-capacity model?

Not automatically. Compare the replacement’s catalog number, input range, rack position, output rails, and power ratings with the original supply and the rack’s requirements. A higher 5V capacity does not establish compatibility with every rack or load arrangement.

3. What should I inspect if the PLC resets when additional I/O modules are installed?

Recalculate the rack’s power demand and measure the 5V rail under load. Check for an overloaded supply, loose backplane or power connections, input-voltage sag, and a faulty module drawing abnormal current. Add modules only after verifying the power budget.

4. Does the RS-485 port mean the power supply can be used as a general communications adapter?

No such capability should be assumed from the port description alone. Confirm the interface’s intended function, supported device connections, and protocol in the relevant GE Fanuc documentation before designing a communications or diagnostic connection.

5. What information is most useful when sourcing this legacy power supply?

Provide a clear image of the nameplate, the exact catalog number, the rack and CPU model, the input source type, and the measured or calculated rail loads. Also confirm whether the replacement must match a particular product condition or certification marking, since the supplied lifecycle data identifies the part as obsolete.
