IC693MDL750 GE Fanuc Series 90-30 32-Point Output Module In Stock

Overview

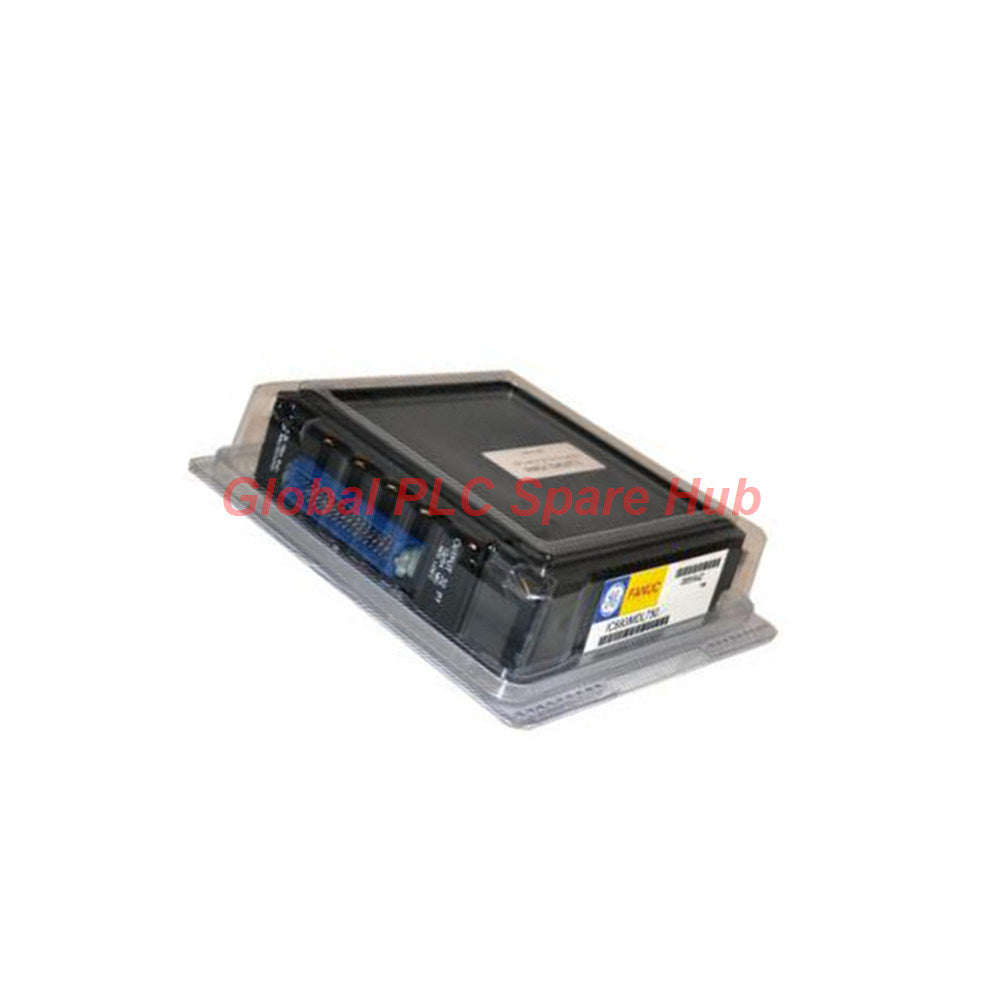

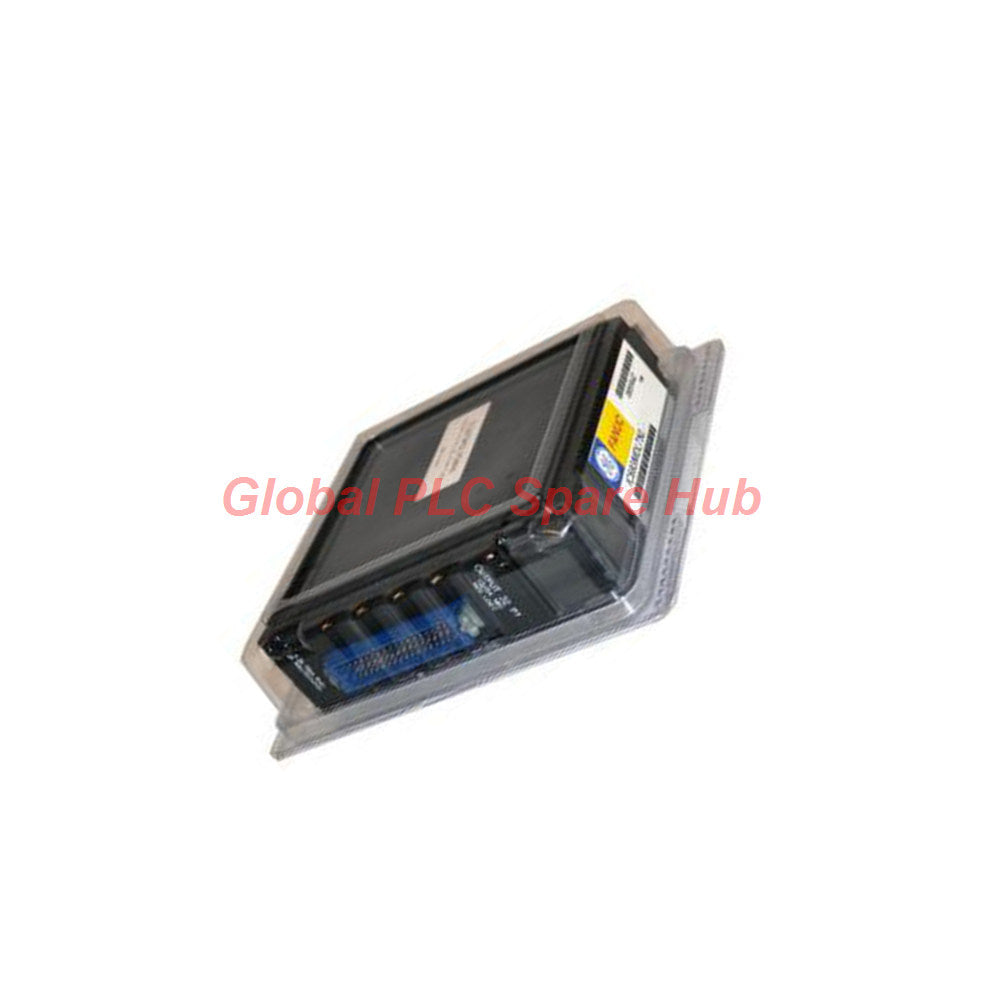

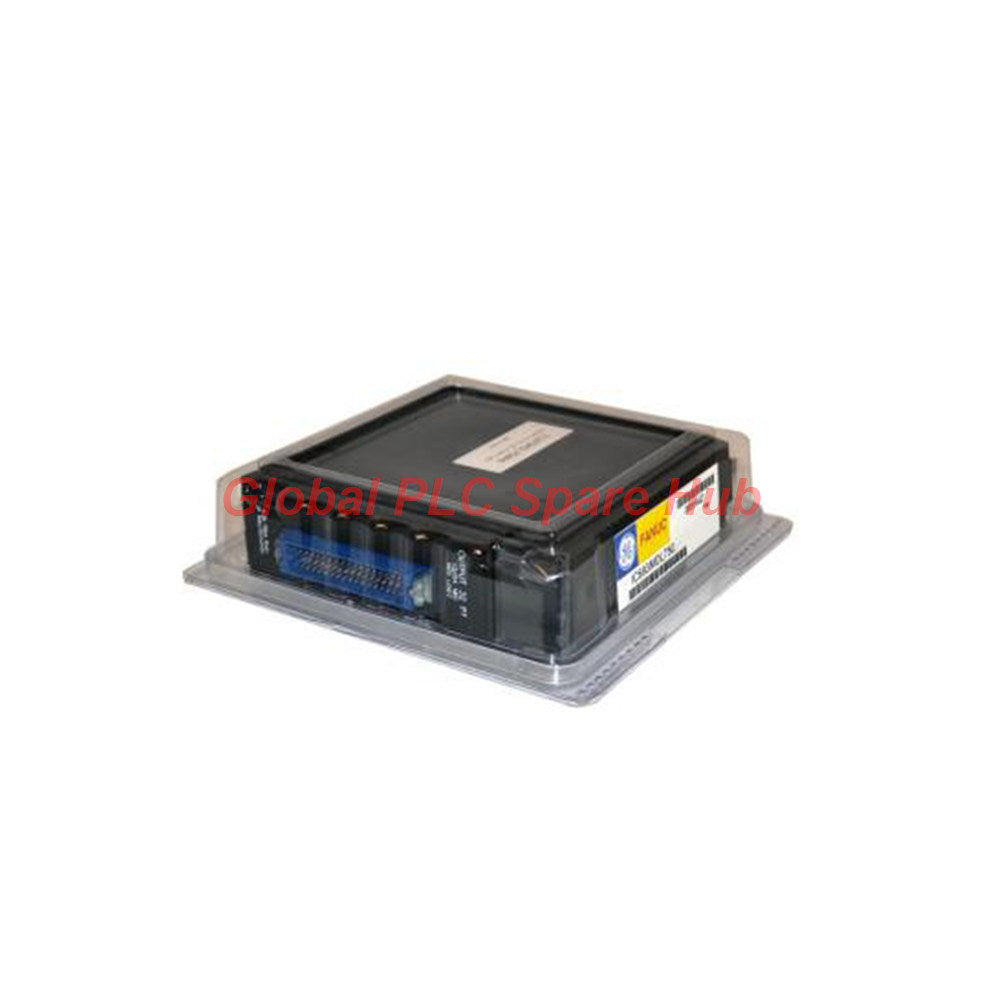

The GE Fanuc IC693MDL750 high-density digital output module expands control capacity across Series 90-30 programmable logic controller architectures. Built with 32 negative logic sinking output points, this compact module routes load current from connected field devices to the negative power rail. Engineers integrate the IC693MDL750 into high-point-count industrial control panels requiring 12/24 VDC switching. The front-mounted 50-pin connector enables fast cable harness integration, minimizing cabinet footprint while maintaining reliable current switching up to 0.3 Amps per channel.

Technical Specifications

System Integration & Backplane Installation

• Mounts into any available slot on 5-slot or 10-slot Series 90-30 baseplates.
• Provides 2 dedicated common pins per 8-point output bank to balance heavy return currents.
• Requires external 12/24 VDC user power supply to energize external actuators and loads.
• Interfaces directly via pre-wired or custom 50-pin ribbon/crimp cable assemblies.

Target Applications & Compatible Equipment

• Direct control of low-power industrial solenoid valves and pneumatic manifold coils.
• Interfacing with external 24 VDC motor starter relays and contactor coils.
• High-density pilot light and annunciator panel driver arrays.
• Automated packaging machinery, material handling conveyors, and sorting lines.

Diagnostic & Fault Detection Capabilities

• Monitors internal logic rail status via CPU backplane communications.
• Supports system-level output state forcing via host PLC programming software.
• Exhibits minimal off-state leakage current to prevent false triggering of sensitive solid-state loads.
• Prevents internal thermal overload through low-voltage-drop output transistors (0.24V peak).

Warranty, Packaging & Fast Shipping

• Warranty Protection: Fully covered by an extended 12-Month Quality Warranty.
• Shipment Dispatch: Fast order handling with 24 to 48 hours dispatch timeframe.
• Express Logistics: Global delivery via top-tier carriers including FedEx, UPS, and DHL.
• Packaging Standards: Shipped in custom anti-static ESD shielding bags with high-density shock foam.

Selection & Engineering Guidance

When selecting the IC693MDL750 for your control architecture, confirm that your field devices operate on current-sinking logic (NPN output switching). If your field field contactors or valves require current-sourcing (PNP), select a positive logic module instead. Because this 32-point assembly omits individual point status LEDs to maximize density, engineering teams should incorporate external terminal blocks with integral LED indicators or software diagnostic screens if visual point-by-point status verification is required at the panel door.

Global PLC Spare HUB's Insight & Field Experience

During panel retrofits involving high-density digital modules, field engineers often overlook common terminal current limits. While each point on the IC693MDL750 supports up to 0.3 Amps, energizing all 8 points in a single bank simultaneously at maximum load exceeds the 2.0 Amp common rating. Our technical team recommends wiring both return common pins for each group to prevent connector pin degradation over extended duty cycles. In a recent automotive assembly line overhaul, installing external suppression diodes across inductive DC solenoids reduced back-EMF voltage spikes, completely eliminating intermittent backplane communication resets on adjacent rack slots.

Frequently Asked Questions (FAQ)

What type of wiring interface is required to connect field devices to the module?

Field signals connect through a front-mounted 50-pin high-density connector rather than traditional screw terminal blocks.

How can maintenance technicians troubleshoot output states without front-panel LEDs?

Technicians monitor channel status online via programming software or utilize remote I/O terminal blocks equipped with individual channel LEDs.

What is the difference between current sinking and current sourcing in this context?

This negative logic sinking module provides a path to ground, pulling current from the external load through the module switches to the negative power bus.

Field Experience: What causes an entire 8-point output bank to stop switching while other banks function normally?

This condition usually indicates a blown external field supply fuse or an open return path on the specific group's dual common pins.

Field Experience: How do I prevent inductive kickback from damaging the output transistors when driving DC solenoids?

Install reverse-biased freewheeling flyback diodes directly across the terminals of each inductive coil to clamp inductive voltage spikes.
