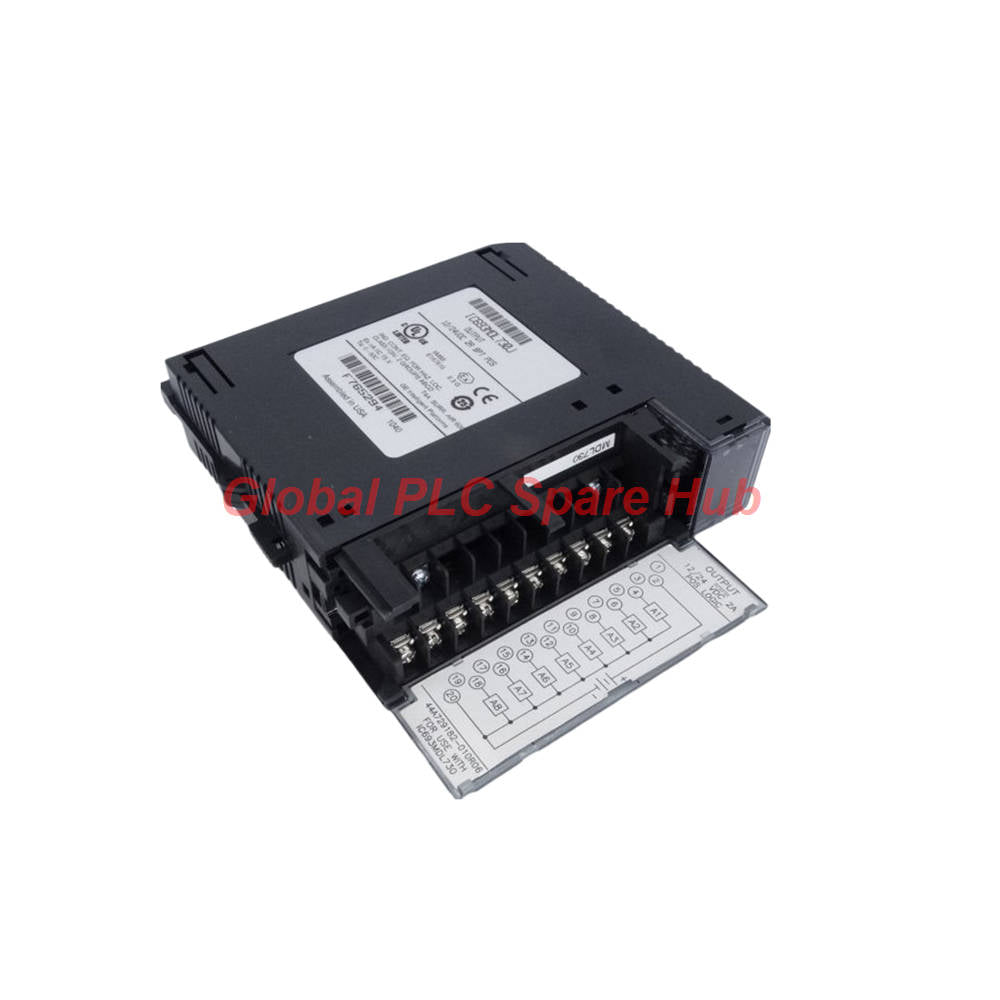

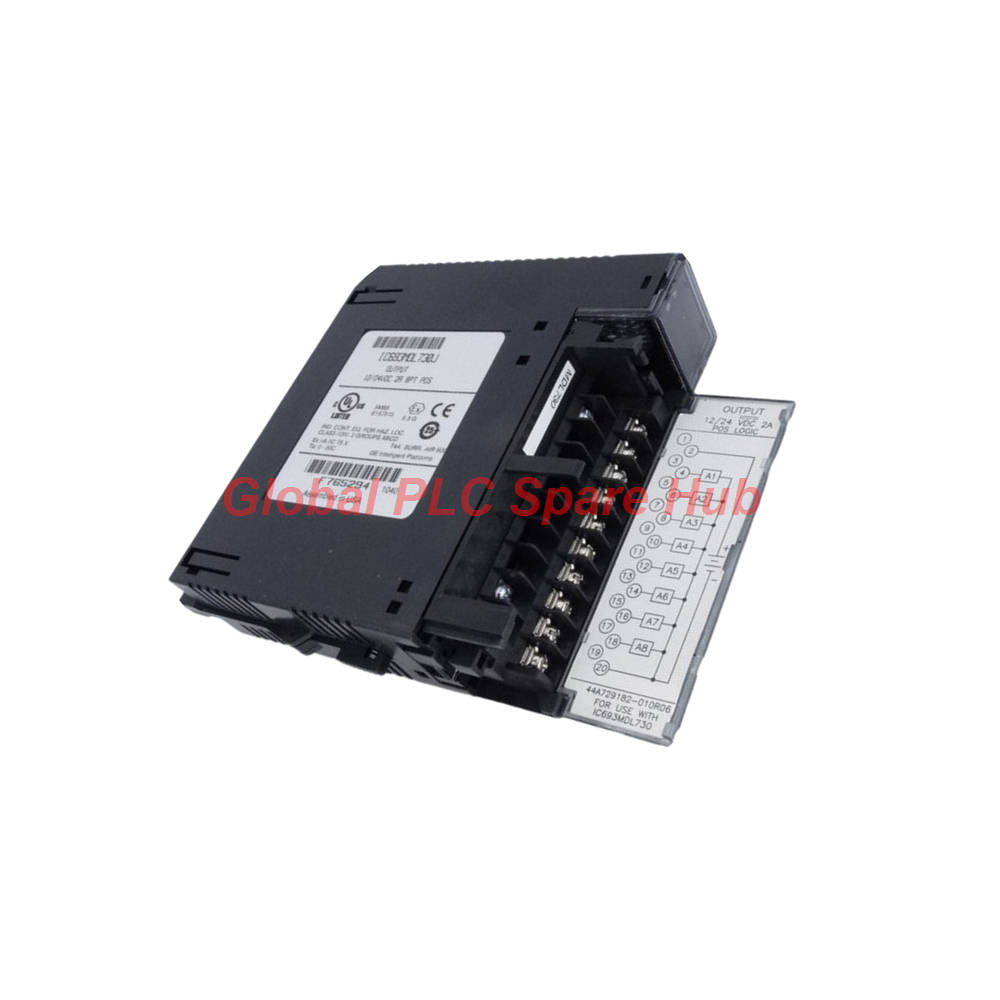

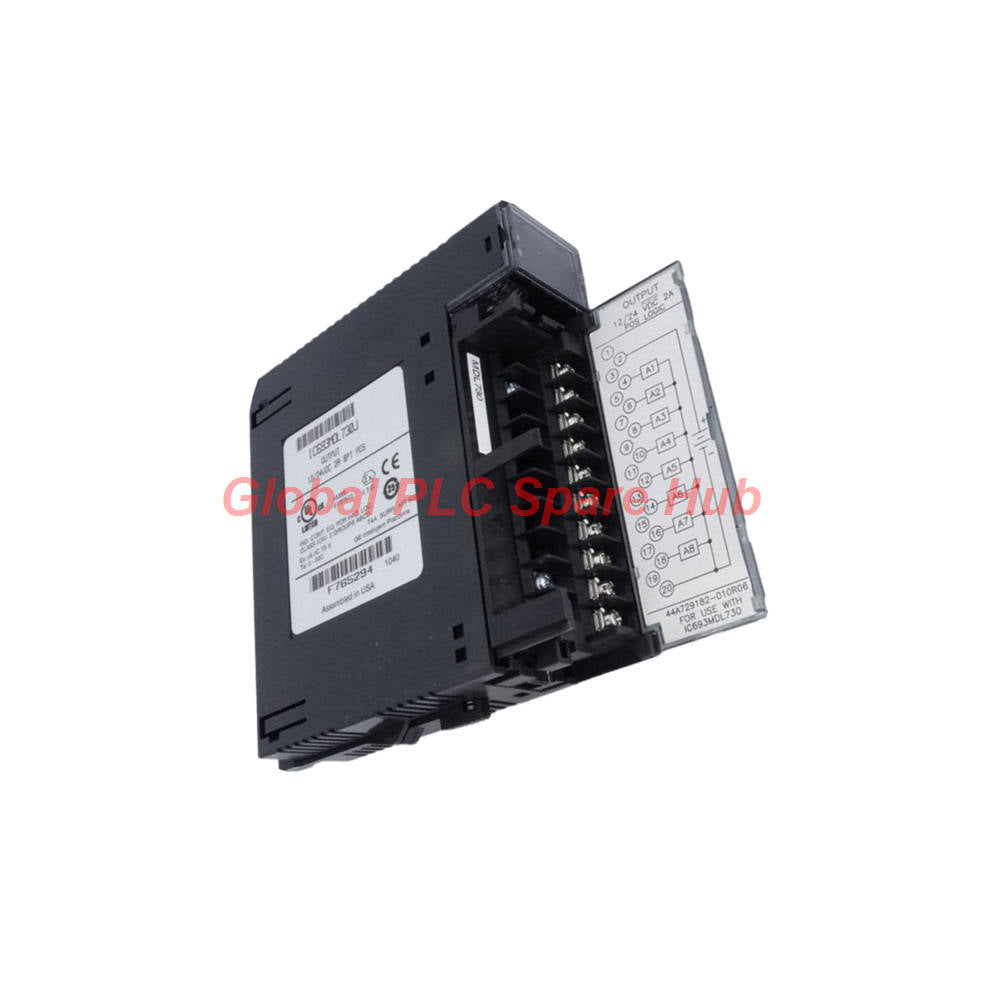

IC693MDL730 Series 90-30 GE Fanuc Discrete Output Module

Engineering Architecture & Configuration Breakdown

The IC693MDL730 is a high-density DC discrete output module designed by GE Fanuc (now Emerson Automation) for the Series 90-30 PLC platform. It features eight positive-logic transistor output channels arranged in a single isolated group, drawing 55 mA from the 5V backplane bus. Engineered for heavy industrial switching, it handles 12 to 24 V dc loads while providing 1500V galvanic isolation between the field and logic sections.

Technical Parameter Specifications

Advanced Diagnostic Capabilities

• Features dedicated front-panel LED indicators for each of the eight individual output points to verify real-time switching status.
• Includes an integrated blown fuse indicator LED to immediately flag internal overcurrent protection events.
• Provides a dedicated module fault indicator to assist maintenance teams in tracking backplane communication anomalies.
• Allows live replacement wiring verification via the removable front terminal block without disturbing baseplate mounting.

Global PLC Spare HUB's Insight

Global PLC Spare HUB technical specialists highlight that premature fuse trips on the IC693MDL730 often stem from unsuppressed inductive kickback from high-wattage solenoids. Engineers should always verify that external freewheeling diodes or RC snubbers are installed across inductive DC loads. Maintaining a tested replacement module in stock minimizes unexpected downtime in continuous process lines.

Global Logistics & Assurance Guarantees

• Comprehensive 12-month warranty included with every purchased IC693MDL730 unit.
• Expedited 24 to 48-hour order dispatch to reduce plant operational interruptions.
• Reliable, secure worldwide shipping routing through FedEx, UPS, and DHL.

Target Equipment & Industrial Application Scenarios

• Discrete actuator control loops in automated manufacturing cells using Series 90-30 controllers.
• Electromagnetic valve, relay, and indicator lamp drivers in water treatment facilities.
• Interfacing DC motor starter coils with PLC logic in material handling conveyor networks.

Expert Frequently Asked Questions

What is the primary difference in fuse current limits based on ambient temperature?
The module permits up to 4 Amperes per fuse when operating at or below 50°C, which derates to 2 Amperes per fuse when ambient temperatures reach 60°C.

Does this module require an external power supply to function?
Yes, an external 12 to 24 V dc power supply must be wired to the module terminals to supply operating power to the field-side load devices.

What physical footprint does this unit occupy within an automation rack?
It occupies a single I/O slot and is fully compatible with any standard 5-slot or 10-slot Series 90-30 baseplate.

What guidance should be followed when selecting replacement inventory?
Verify your system's backplane current availability (ensuring the 55 mA draw is supported) and confirm that your application requires positive-logic transistor switching rather than sinking configurations.

How can technicians safely service field wiring without rewiring the entire rack?
The module is equipped with a removable terminal board, allowing technicians to disconnect all 20 screw connections at once while leaving the housing secured to the baseplate.
