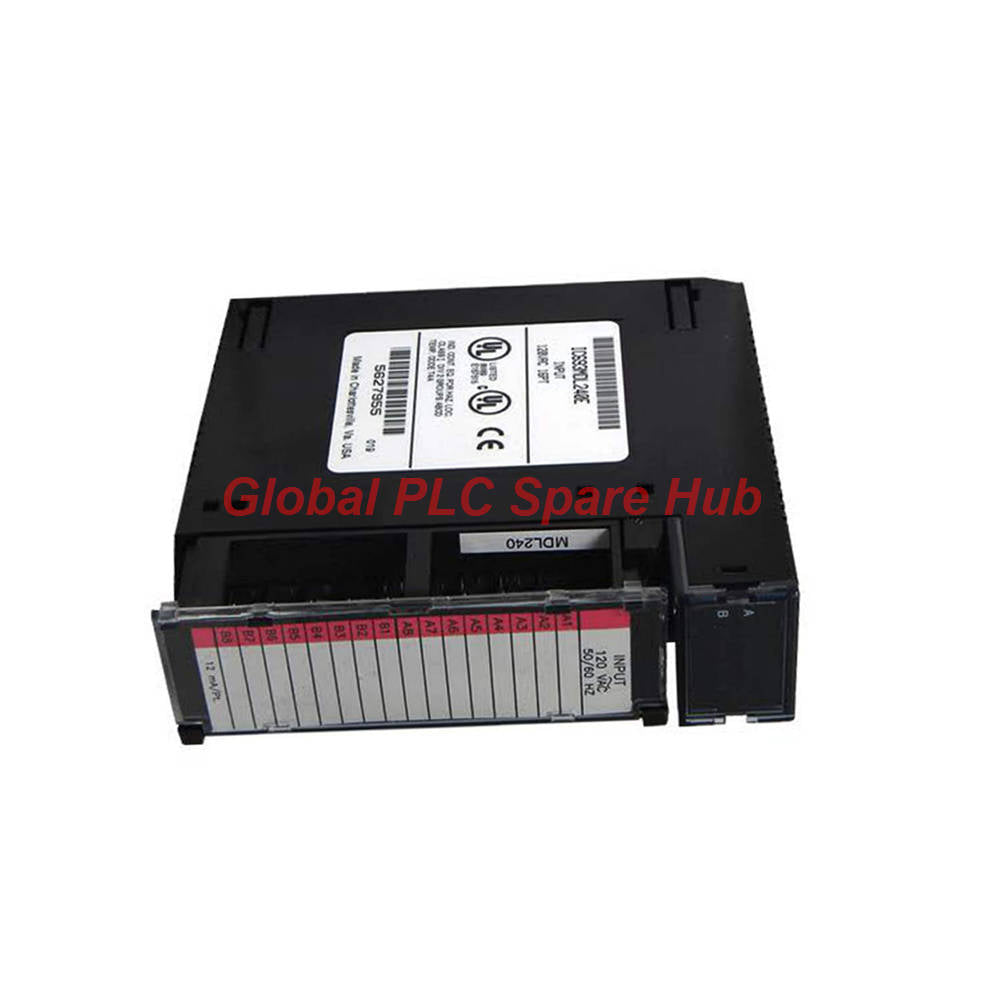

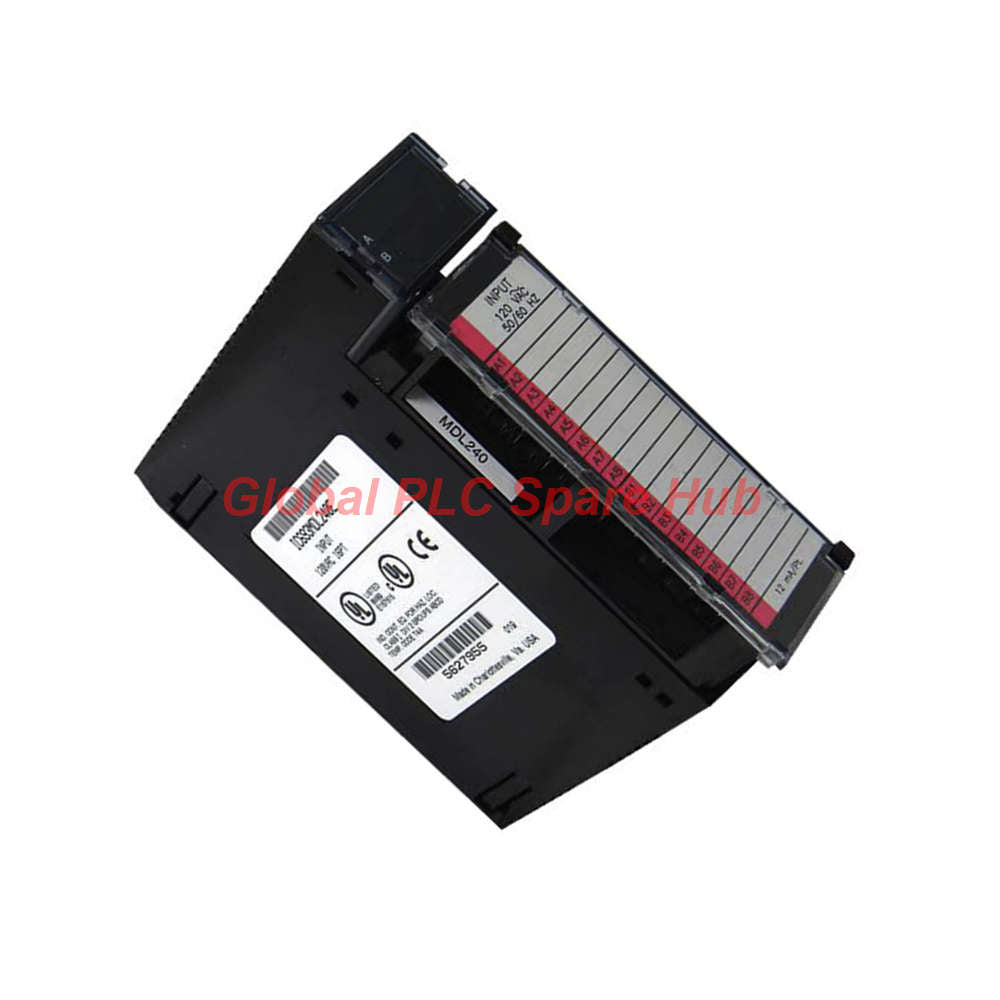

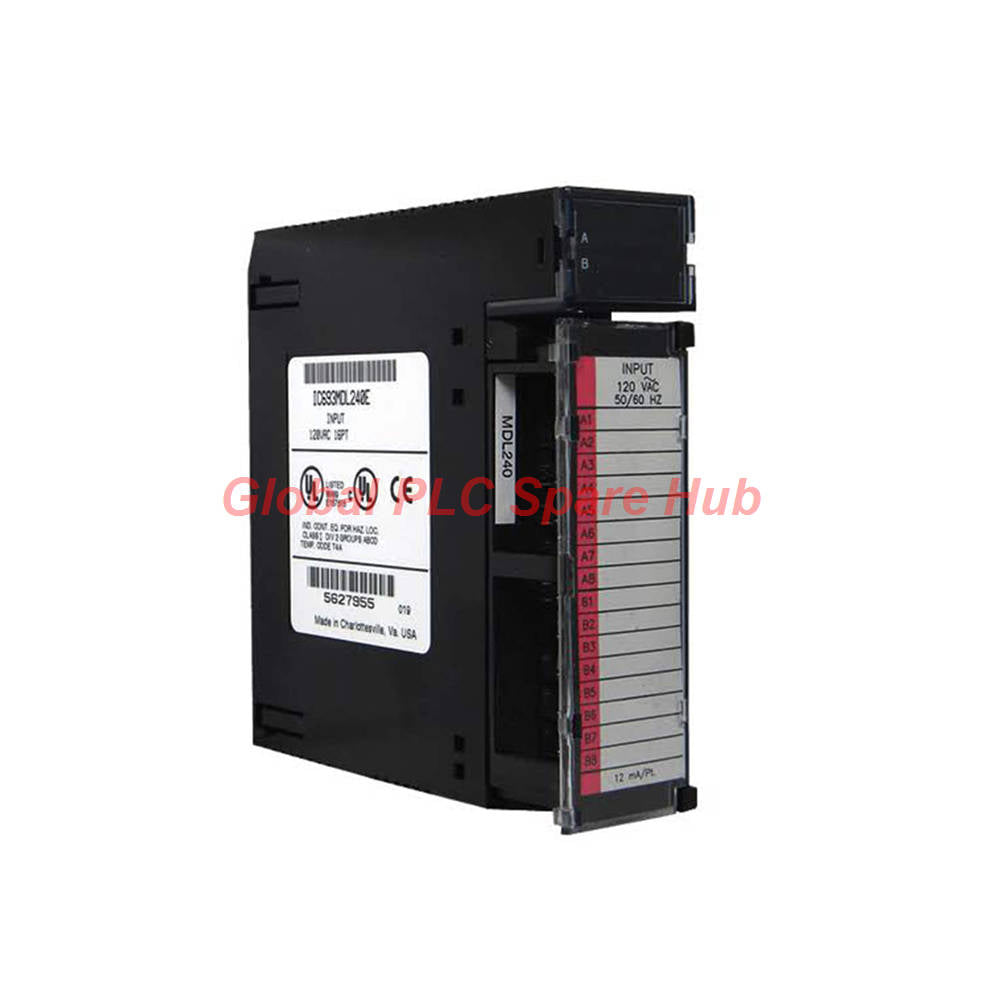

IC693MDL240 GE Fanuc Series 90-30 16-Channel AC Discrete Input Module

Product Overview

The IC693MDL240 is a foundational 16-channel discrete input module engineered specifically for the Series 90-30 Programmable Logic Controller platform. Originally produced by GE Fanuc and supported through industrial automation channels, this single-slot hardware unit monitors 120 VAC binary signals from industrial field devices. Featuring reactive input circuitry with an integrated RC filter network, the IC693MDL240 effectively suppresses electrical noise and transients. Engineers integrate this unit to translate external switch closures and push-button states into reliable logic level data for automated processing.

Technical Specifications

• Brand: GE Fanuc / GE Intelligent Platforms
• Series: Series 90-30
• Model / Part Number: IC693MDL240
• Module Type: Discrete Input Module
• Number of Channels: 16 Input Points (Single Common Group)
• Nominal Input Voltage: 120 VAC (Range: 0 to 132 VAC)
• Input Frequency: 47 to 63 Hz (50/60 Hz nominal)
• Input Current: 12 mA per channel (nominal)
• On-State Voltage / Current: 74 VAC to 132 VAC; 6 mA minimum
• Off-State Voltage / Current: 0 VAC to 20 VAC; 2.2 mA maximum
• Response Time: 30 ms typical ON, 45 ms maximum OFF
• Backplane Current Draw: 90 mA at +5 VDC
• Isolation Rating: 1500 VAC RMS (Field side to logic side)
• Physical Profile: Single slot width, compatible with 5-slot and 10-slot baseplates

Diagnostic Capabilities & Status Indicators

• Discrete LED Monitoring: Equipped with two horizontal rows of green LEDs (A1-A8 and B1-B8) to provide real-time visual feedback for each of the 16 individual points.
• Logic Mapping: Directly updates the %I memory status table inside the central processing unit upon valid signal detection.
• Hinged Access Door: Features an integrated internal wiring card layout on the door surface for fast field point identification during troubleshooting.

Recommended Applications & Compatible Equipment

• Target Equipment: Pushbuttons, limit switches, selector switches, auxiliary relay contacts, and solid-state 120 VAC proximity sensors.
• Industrial Sectors: Water treatment plants, conveyor distribution systems, packaging machinery, and legacy manufacturing assembly lines.
• Baseplate Compatibility: Mounts seamlessly on any standard CPU, expansion, or remote I/O baseplate within the Series 90-30 architecture.

Global PLC Spare HUB's Insight

Commissioning the IC693MDL240 in heavy industrial environments requires careful attention to common-mode voltage isolation and leakage currents from solid-state sensors. Because all 16 channels share a single common power terminal, field technicians must ensure that upstream control power transformers are properly grounded to prevent ground loop discrepancies. Additionally, when interfacing with long cable runs, verify that capacitive coupling does not elevate off-state leakage above the 2.2 mA threshold, which could otherwise cause false channel triggering in sensitive control routines.

Shipping, Warranty & Order Fulfillment

• Global Shipping: Fast dispatch via trusted carriers including FedEx, UPS, and DHL.
• Fulfillment Timeframe: Orders process and ship within 24-48 hours from order confirmation.
• Warranty Coverage: Fully backed by a comprehensive 12-month warranty for reliable long-term plant operation.

Frequently Asked Questions

Q: How does the IC693MDL240 handle electrical noise on long field wiring runs?

A: The module utilizes reactive input circuits containing paired resistors and capacitors that act as built-in low-pass filters to dampen high-frequency transient spikes and electrical interference before reaching the internal logic.

Q: Can I mix different AC voltage phases across the 16 channels of the IC693MDL240?

A: No, because all 16 input channels share a single common power output terminal, every connected field device must derive its power from the same AC source phase and reference potential.

Q: Which programming software platforms support the configuration of the IC693MDL240?

A: Depending on the processor firmware version and system age, configuration can be performed using legacy LogicMaster 90-30, VersaPro, or modern Proficy Machine Edition software packages.

Q: What physical precautions should I take when replacing an active IC693MDL240 module?

A: Always disconnect external 120 VAC field power and power down the baseplate rack before extracting the module to protect internal backplane pins from electrical arcing and short-circuit damage.

Q: How do I select between expanding an existing rack or adding a remote baseplate for extra IC693MDL240 modules?

A: Evaluate the total backplane current load of your existing power supply and the physical distance to your field instruments; if your 5-slot or 10-slot rack power supply is near capacity, deploy a remote I/O baseplate with an independent power source.
