IC693BEM341 Emerson Series 90-30 2.5 MHz FIP Communication Module

Product Overview & Architecture

The **IC693BEM341** is an advanced Factory Instrumentation Protocol (FIP) bus controller module originally engineered by **GE Fanuc Automation** and currently supported under **Emerson Automation**. Operating within the modular **Series 90-30** Programmable Logic Controller (PLC) architecture, this single-slot unit provides high-speed deterministic networking at a 2.5 MHz transmission rate. Designed to mount directly into Slot 1 of the CPU baseplate, the module acts as a high-performance communication gateway supporting Configuration Mode 30 for complex industrial control networks.

Global PLC Spare HUB's Insight & Technical Review

Deploying legacy FIP networks requires rigorous management of backplane power loading and firmware compatibility. During upgrades of older GE 340 bus controllers, automation engineers frequently encounter bus synchronization faults and false CPU fault reporting. Based on our practical evaluation of **Series 90-30** hardware, the **IC693BEM341** completely resolves these legacy diagnostic flaws through optimized internal timing and enhanced Mode 30 firmware handling.

In a recent plant automation overhaul utilizing Series 90-70 and remote I/O drops, technicians noted that pairing this module with CPU firmware version 8.10 or higher ensured seamless MPS synchronous exchanges and accurate timestamping of up to 1024 Boolean values. The dual 9-pin FIP ports paired with the dedicated RS-485 utility port significantly streamlined firmware updates and network configuration downloads via the FBCLOAD utility.

Technical Specifications Breakdown

Hardware Configuration & Installation Guidelines

• **Baseplate Placement:** Must occupy Slot 1 of the main **Series 90-30** CPU baseplate to establish correct backplane communication priority.
• **Programming Software:** Requires Windows-based programming software (IC641CTLxxx Release 2.0 or later) or the specialized FBCLOAD utility for parameter configuration.
• **Hand-Held Programmer:** Fully supports Enhanced Hand Held Programmer (HHP) interfacing across all operating modes.

Diagnostics & Troubleshooting Capabilities

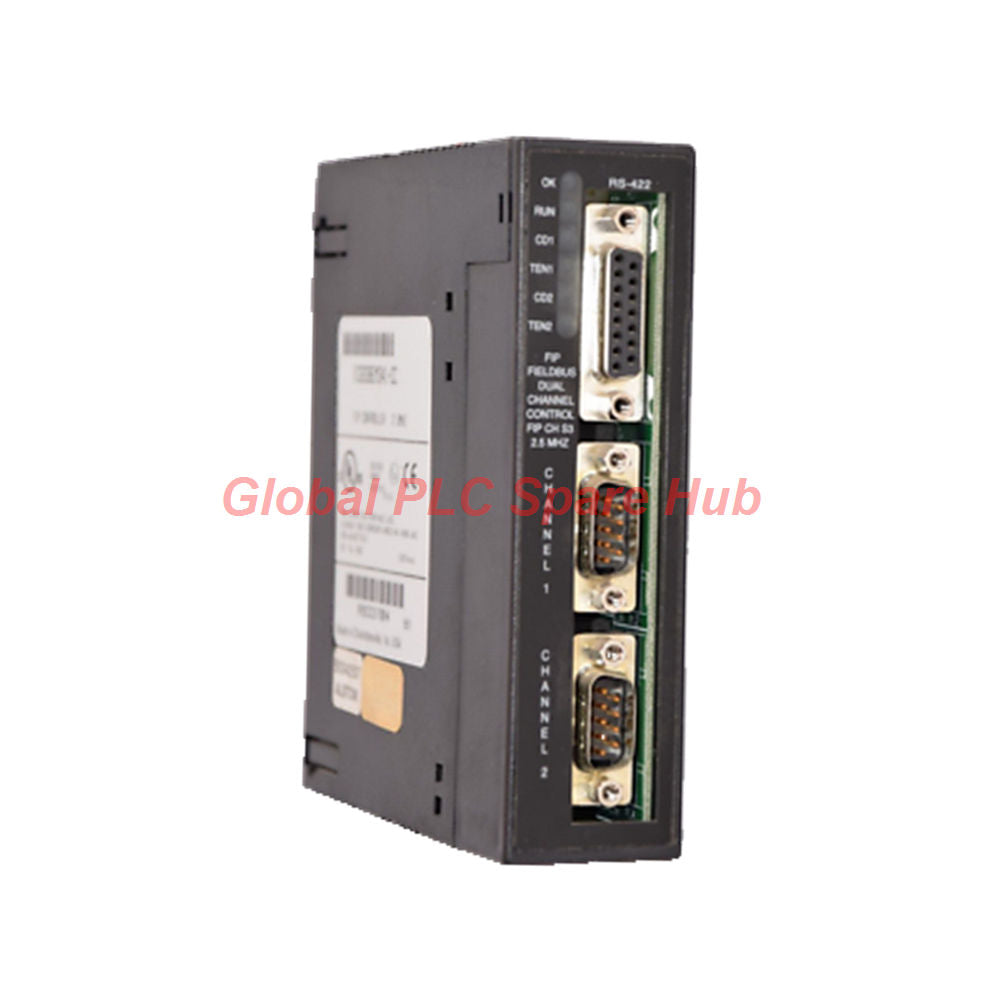

• **Status LED Indicators:** Equipped with 6 dedicated front-panel LEDs including Module OK, RUN, Carrier Detection for Channel 1 & 2 (CD1 / CD2), and Transmit Enable for Channel 1 & 2 (TEN1 / TEN2).
• **Fault Correction:** Engineered specifically to eliminate false CPU "Loss of Module" fault reports and incorrect application state determinations common in older controller revisions.
• **Timestamping Engine:** Hardware-level timestamping logs critical Boolean state changes for post-incident sequence-of-events analysis.

Compatible Hardware & Typical Application Scenarios

• **Compatible Systems:** **Series 90-30** and **Series 90-70** PLCs, Field Control stations, and Bus Interface Units (BIUs).
• **Target Applications:** Distributed manufacturing plants, continuous process water treatment facilities, and heavy industrial automation networks requiring deterministic multi-drop FIP communication and controller redundancy.

Logistics, Warranty & Fulfillment

• **Package Contents:** 1 x **IC693BEM341** FIP Bus Controller Module enclosed in antistatic packaging.
• **Global Shipping:** Fast 24-48 hour dispatch fulfilled worldwide via premium carriers including FedEx, UPS, and DHL.
• **Warranty Assurance:** Backed by an industry-standard 12-month operational warranty.

Frequently Asked Questions (FAQ)

What specific CPU version is required to operate the **IC693BEM341** module?

This controller requires an **Series 90-30** PLC CPU running firmware release 8.10 or later to ensure proper communication handling and Mode 30 configuration support.

Why does the module need to be installed strictly in Slot 1 of the baseplate?

Slot 1 provides the dedicated backplane bus architecture and timing synchronization required by the FIP bus controller to manage master/slave data exchanges without communication latency.

How should I approach configuration if the module fails to recognize network slave devices?

Verify that you are using the FBCLOAD utility or IC641CTLxxx software (Release 2.0 or higher) to download a valid Configuration Mode 30 file, and check that the TEN1 and TEN2 LEDs indicate active transmission.

What key performance differences exist between this module and older GE 340 controllers?

The **IC693BEM341** operates at an upgraded 2.5 MHz transmission rate and features internal firmware corrections that eradicate false module fault flags generated by older CPU revisions.

What guidance is recommended when replacing a legacy FIP controller in an active plant?

Always back up your current PLC program logic, ensure rack power is de-energized before swapping modules in Slot 1, and verify that all 9-pin D-shell FIP and RS-485 cables are firmly secured to prevent loose contact resistance.
