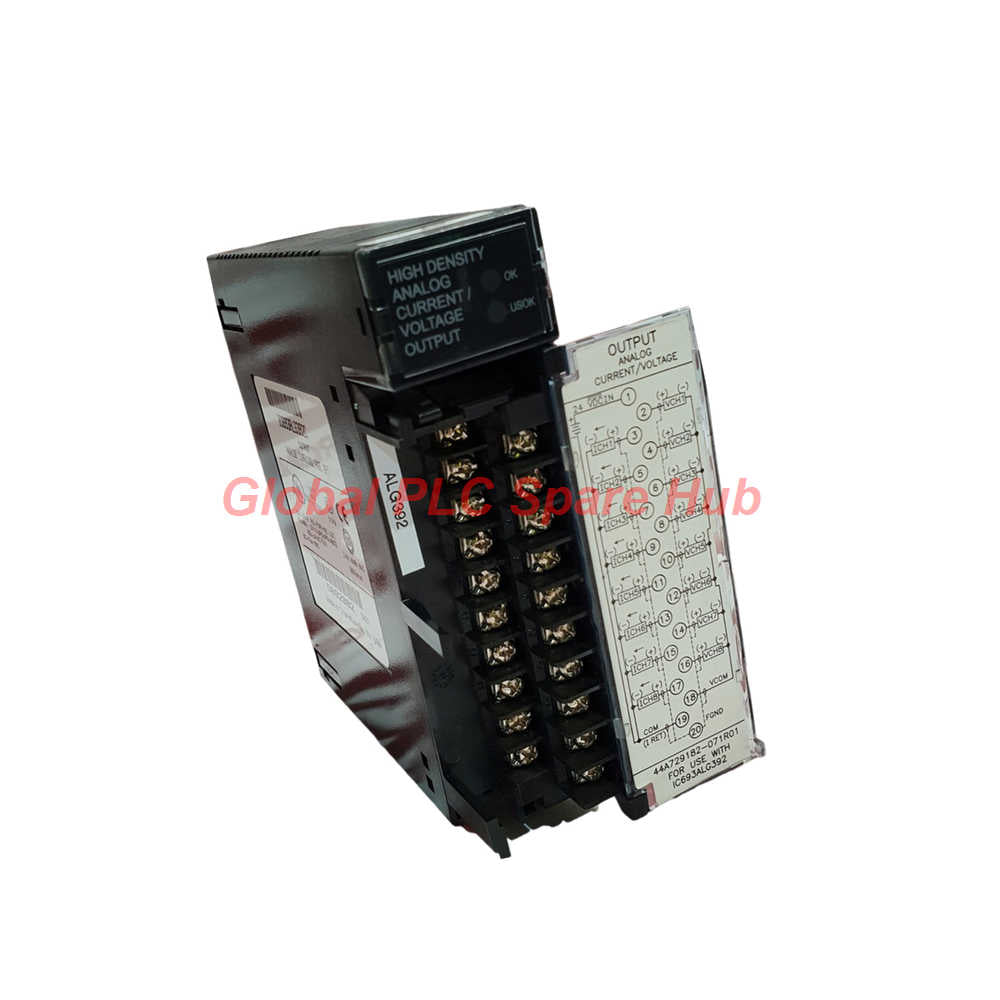

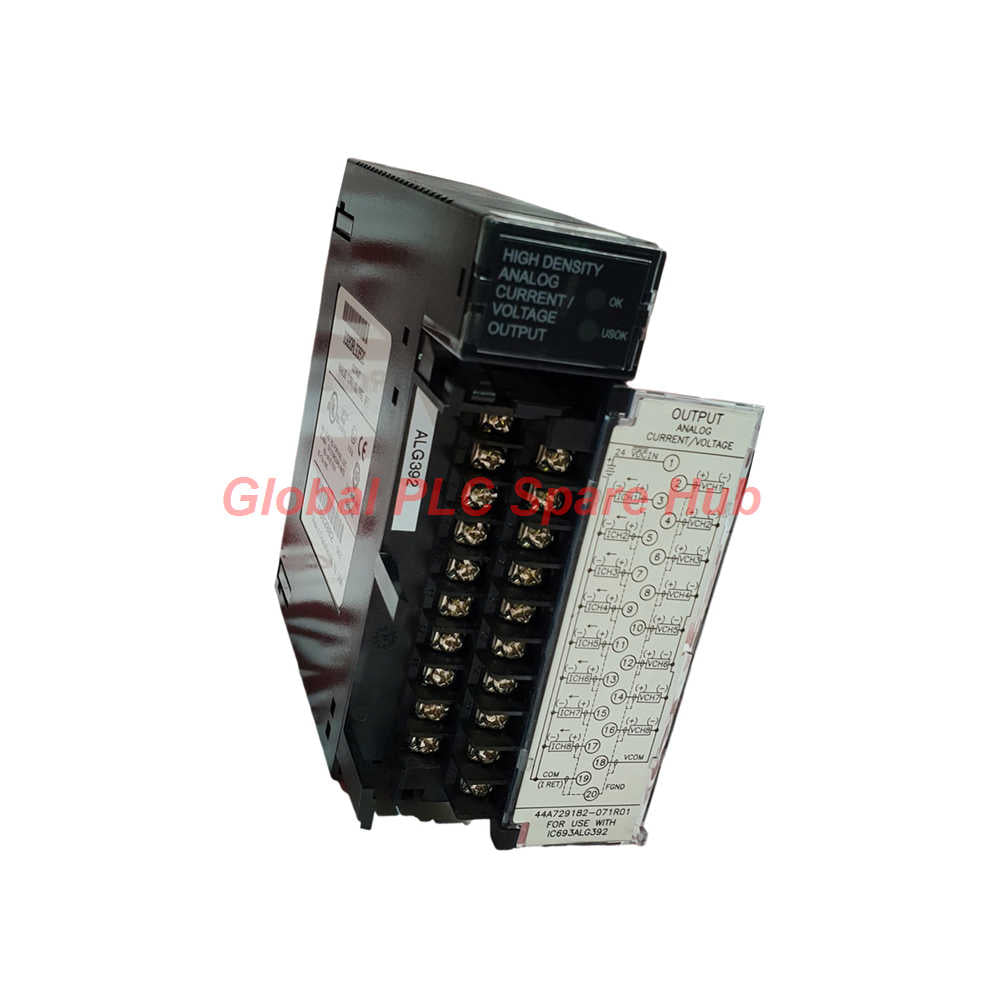

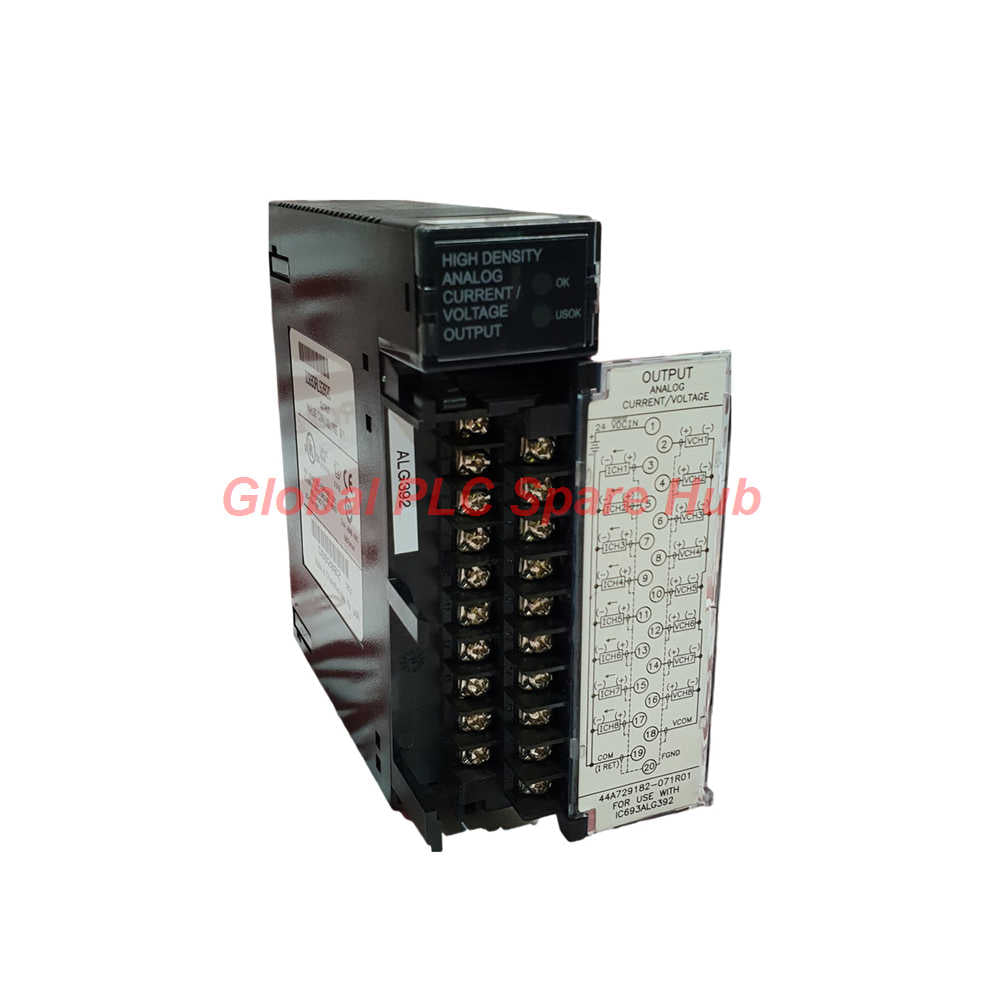

IC693ALG392 GE Fanuc Series 90-30 Analog Output Module Overview

The IC693ALG392 engineered by GE Fanuc is a high-performance analog output module built specifically for the Series 90-30 and RX3i platform architectures. Featuring eight single-ended output channels, the IC693ALG392 delivers precision voltage and current control loops for demanding industrial process control systems.

Global PLC Spare HUB's Insight

Global PLC Spare HUB automation engineers frequently integrate the IC693ALG392 into legacy GE Fanuc Series 90-30 racks controlling high-speed proportional valves and variable frequency drives. During a recent system upgrade at a municipal water treatment plant, our technical team evaluated the update rate stability of the module across all eight active channels under heavy backplane polling loads. We verified that maintaining an isolated 20 to 30 VDC external supply directly to the module terminal block completely eliminates output count jitter during simultaneous multi-channel voltage and current scaling steps.

Configuration Matrix & Technical Specification Hierarchy

• Hardware Family & Series: GE Fanuc / Series 90-30 (IC693ALG392)
• Core Architectural Parameters
  • Module Type: Analog Current / Voltage Output Module
  • Channel Capacity: 8 Single-Ended Output Channels
  • Voltage Output Ranges: 0 to +10 V (unipolar) and -10 to +10 V (bipolar)
  • Current Output Ranges: 4 to 20 mA and 0 to 20 mA
  • Resolution Configuration: 15 or 16-bit configurable depending on range selection
  • Update Speed: 8 ms for all 8 channels simultaneously
• Electrical Power Requirements
  • Internal Backplane Draw: 110 mA at 5 VDC
  • External User Supply: 315 mA at 20 to 30 VDC

Suitable Equipment and Application Scenarios

• Modulating control loops for industrial Variable Frequency Drives (VFDs).
• Precise positioning control for pneumatic and hydraulic control valves.
• Re-transmission of analog process variables to chart recorders and data loggers.
• Direct integration into any slot of compatible RX3i backplane chassis racks.

Diagnostics and Signal Resolution Capabilities

• Provides a fine resolution of 0.312 mV for 0-10V and -10 to +10V voltage output modes.
• Delivers high-precision current tracking with 0.5 microamps resolution for 4-20 mA and 0.625 microamps for 0-20 mA loops.
• Factory calibration ensures low drift and accurate counts per channel without requiring initial bench tuning.
• Supports continuous loop integrity monitoring via external power supply fault detection.

Logistics, Fulfillment, and Warranty Terms

• Condition & Packaging: Brand new and original factory packaging standards.
• Dispatch Lead Time: Rapid 24 to 48-hour order processing and global dispatch execution.
• Shipping Carriers: Express international transit via FedEx, UPS, and DHL.
• Warranty Assurance: Comprehensive 12-month manufacturer defect protection clause.

Frequently Asked Questions (FAQ)

Q: Why does the IC693ALG392 module require an independent external DC power source when installed in an RX3i rack?

A: The internal 5 VDC backplane power only drives logic circuitry, meaning an isolated 20 to 30 VDC external supply is strictly necessary to power the digital-to-analog converter output drivers and loop drivers.

Q: How can an instrument technician prevent ground loops when wiring 4-20 mA actuators to the IC693ALG392 terminals?

A: Technicians must ensure that shield drain wires are grounded exclusively at one end (typically the control panel side) and avoid sharing DC common lines with heavy inductive relay loads.

Q: What specific software configuration steps are required to switch channel resolution from 15-bit to 16-bit on the IC693ALG392?

A: Resolution is automatically adjusted by the programming software based on the selected voltage or current range configuration parameters within the hardware configuration table.

Q: What diagnostic symptoms indicate that the internal 24VDC user supply input to the IC693ALG392 is failing?

A: Output channels will freeze at zero scale or drop out of range, accompanied by PLC controller fault table error logs reporting missing external loop power.

Q: What key factors should engineers evaluate when selecting a replacement or spare IC693ALG392 module for obsolete Series 90-30 systems?

A: Engineers must verify firmware revision compatibility with existing CPU racks and ensure that terminal block wiring capacity matches the physical dimensions of the slot layout.
