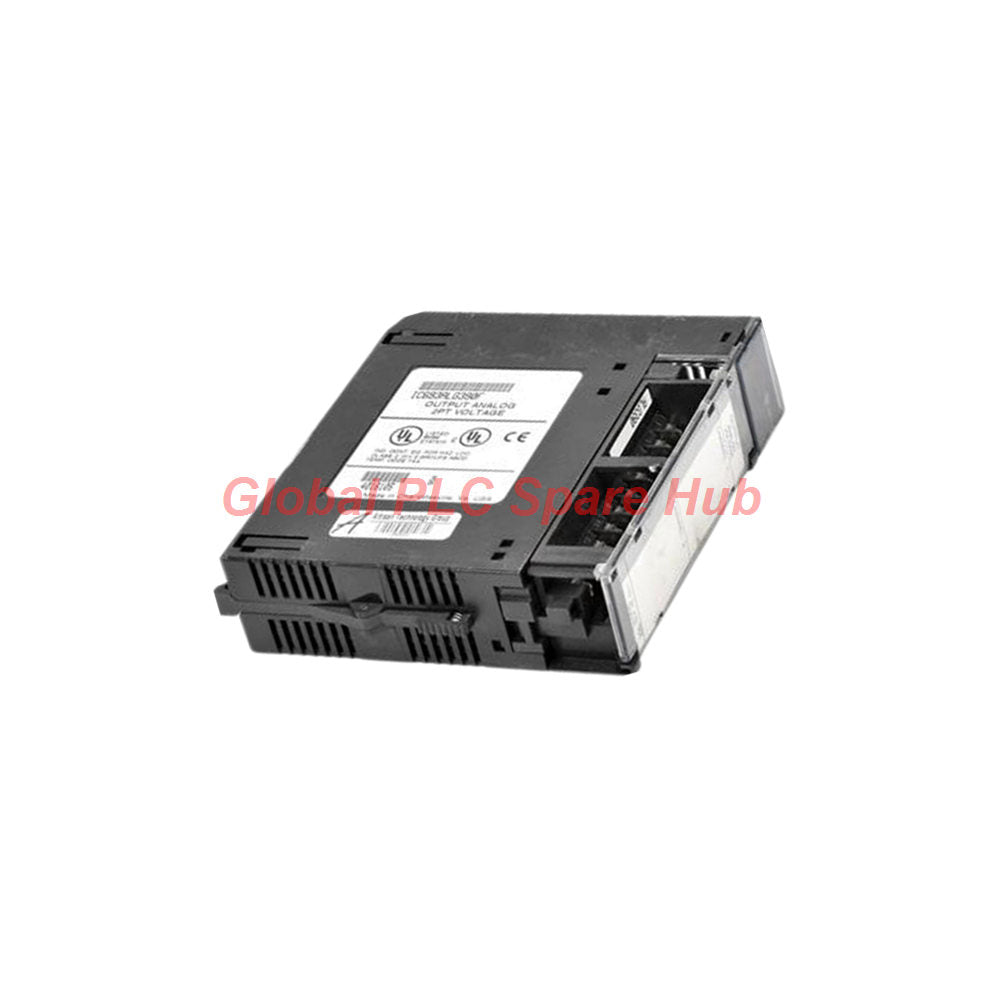

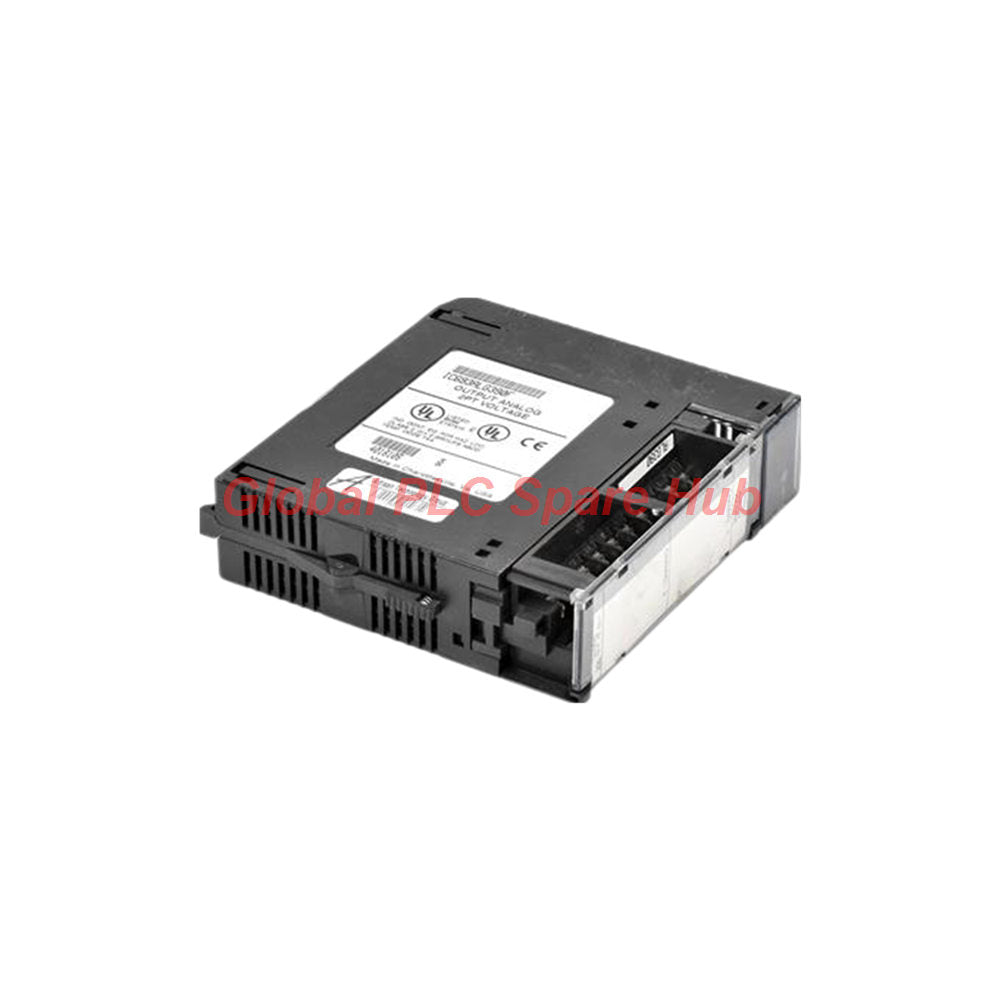

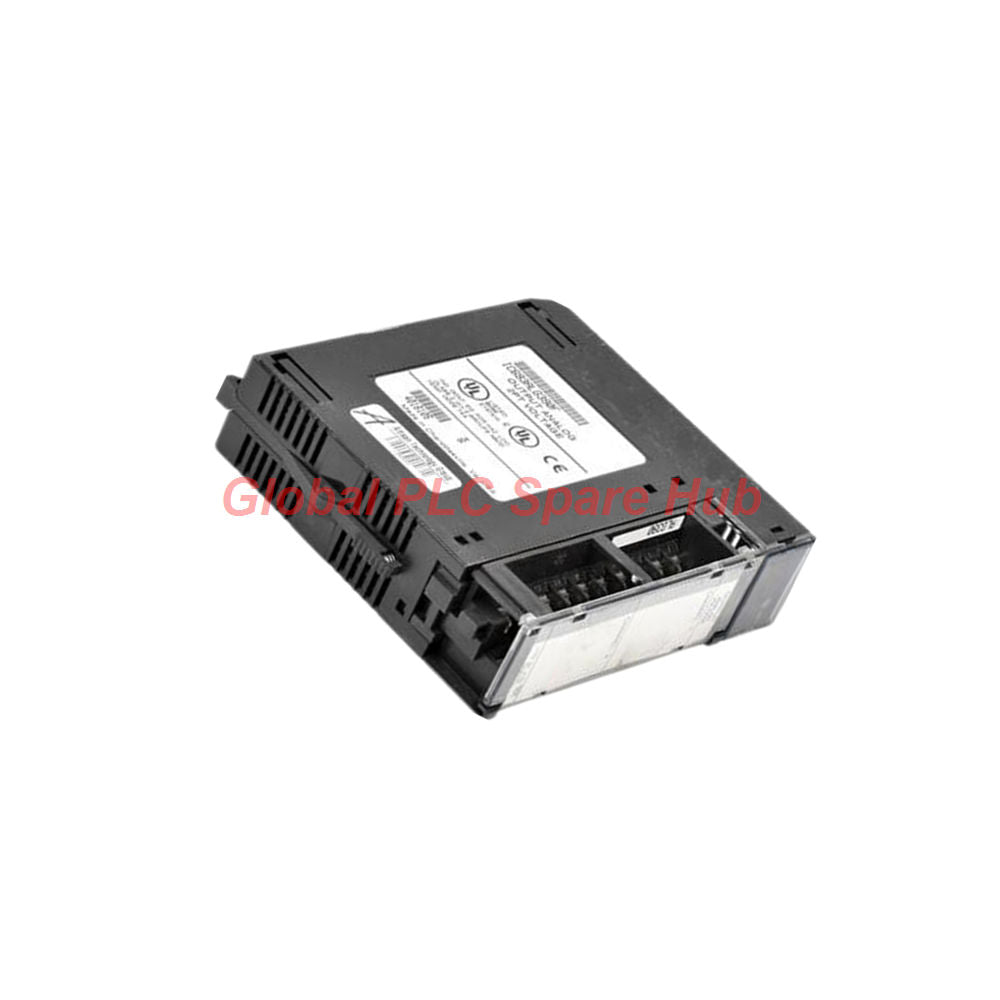

IC693ALG390 GE Fanuc Series 90-30 Analog Voltage Output Module | 2-Channel

Precision Analog Output for Demanding PLC Applications

The IC693ALG390 is a dedicated analog voltage output module for the GE Fanuc Series 90-30 PLC platform.

It provides two independent analog voltage outputs for accurate process control.

Each channel delivers a stable output from -10VDC to +10VDC.

Its fast update cycle supports responsive industrial automation.

The module suits both closed-loop regulation and precision analog signal transmission.

Integrated electrical isolation improves system reliability in electrically noisy environments.

The configurable output behavior during CPU STOP mode increases application flexibility.

The module supports continuous industrial operation where stable analog control remains essential.

Engineering Snapshot

Performance Characteristics

• High-resolution analog voltage generation for demanding control applications.
• Stable ±10V output for industrial instrumentation.
• Fast 5ms refresh minimizes control latency.
• 1500Vrms isolation protects the PLC from field disturbances.
• Factory calibration reduces commissioning effort.
• Selectable output behavior during controller STOP mode.

Suitable Equipment

The IC693ALG390 interfaces with equipment requiring precision voltage reference signals.

• Variable frequency drives
• Servo drive controllers
• Electro-pneumatic positioners
• Control valves
• Analog panel meters
• Industrial data acquisition equipment
• Signal conditioners
• Laboratory testing systems
• Calibration benches
• Distributed process control equipment

Typical Industrial Applications

Global PLC Spare HUB's Insight

Field engineers appreciate this module because of its predictable analog stability.

The HOLD LAST STATE feature reduces unexpected equipment movement during CPU interruptions.

In several retrofit projects, engineers retained analog output values while replacing processors.

This minimized production downtime during commissioning.

Shielded instrumentation cable significantly improves analog signal quality.

Connecting the shield directly to the designated GND terminal reduces electrical interference.

Diagnostic Features

• Power LED confirms module operating status.
• Field-to-logic isolation limits fault propagation.
• Selectable FAIL SAFE output simplifies troubleshooting.
• Stable calibration assists output verification.
• External power monitoring improves maintenance efficiency.
• Shielded wiring minimizes measurement instability.

Installation Recommendations

1. Verify the PLC rack supports Series 90-30 modules.
2. Use a regulated 24VDC power source.
3. Install shielded instrumentation cable.
4. Ground cable shielding at the specified terminal.
5. Select the DEF0 jumper before system startup.
6. Confirm output polarity before energizing equipment.

Package Includes

• IC693ALG390 Analog Voltage Output Module
• Protective industrial packaging
• Quality inspection before shipment
• Product identification label

Shipping & Warranty

Professional FAQ

Q1. Why should engineers choose voltage output instead of current output?

Voltage output offers excellent compatibility with servo drives, inverters, and analog controllers requiring ±10V references.

Q2. What is the most common commissioning recommendation?

Verify the external 24VDC supply before checking PLC logic.

Many startup issues originate from unstable field power instead of module configuration.

Q3. How can output stability be improved in electrically noisy cabinets?

Use shielded instrumentation cable with proper grounding.

Keep analog wiring separated from motor power cables whenever possible.

Q4. What should engineers evaluate before selecting this module?

Confirm the controlled equipment accepts bipolar ±10V analog input signals.

Also verify available rack slots and external power capacity.

Q5. Which operating mode is recommended for critical automation systems?

Many engineers select HOLD LAST STATE when maintaining actuator position is important.

Applications prioritizing equipment safety often configure the output to return to 0V.

Engineering Selection Guide

• Select this module for precise bipolar analog voltage control.
• Ideal for applications requiring fast analog updates.
• Recommended where electrical isolation improves reliability.
• Suitable for precision industrial instrumentation.
• Excellent for upgrading existing Series 90-30 analog output systems.

The GE Fanuc IC693ALG390 combines precise voltage output, industrial isolation, and dependable PLC integration for professional automation projects.
