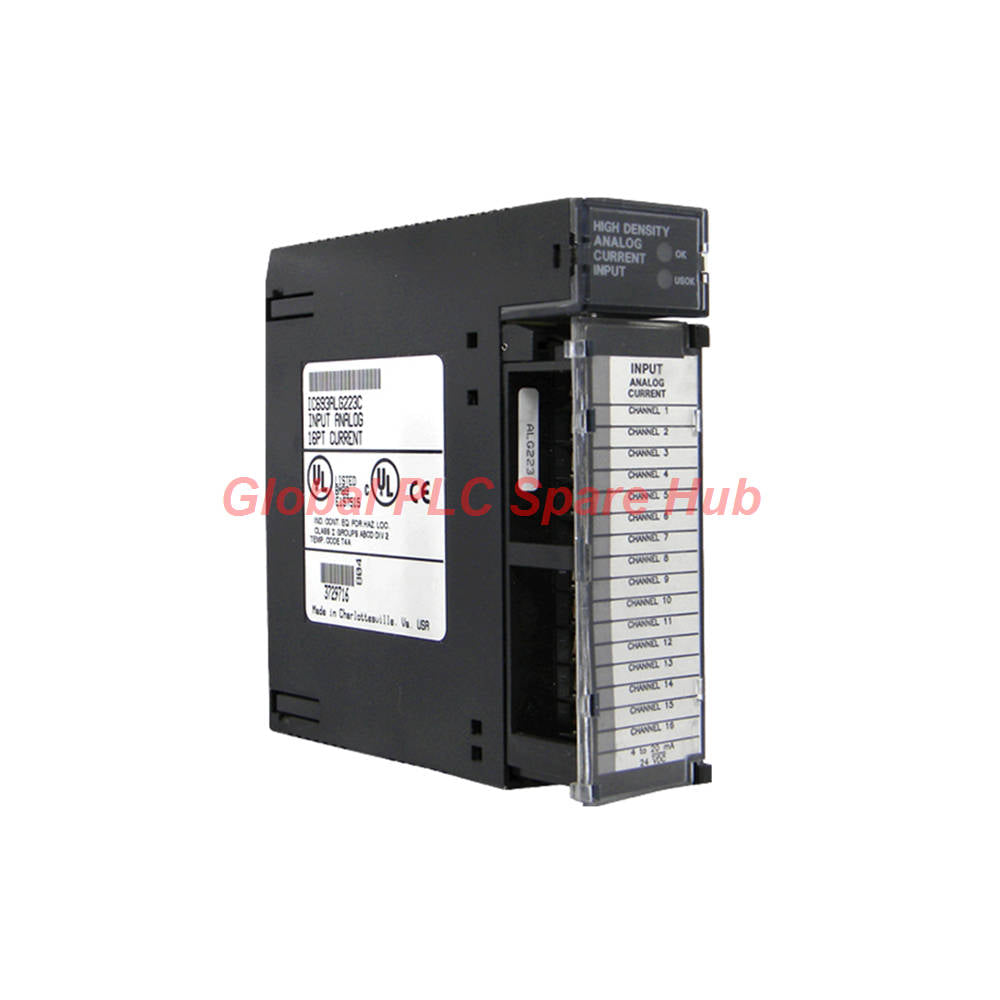

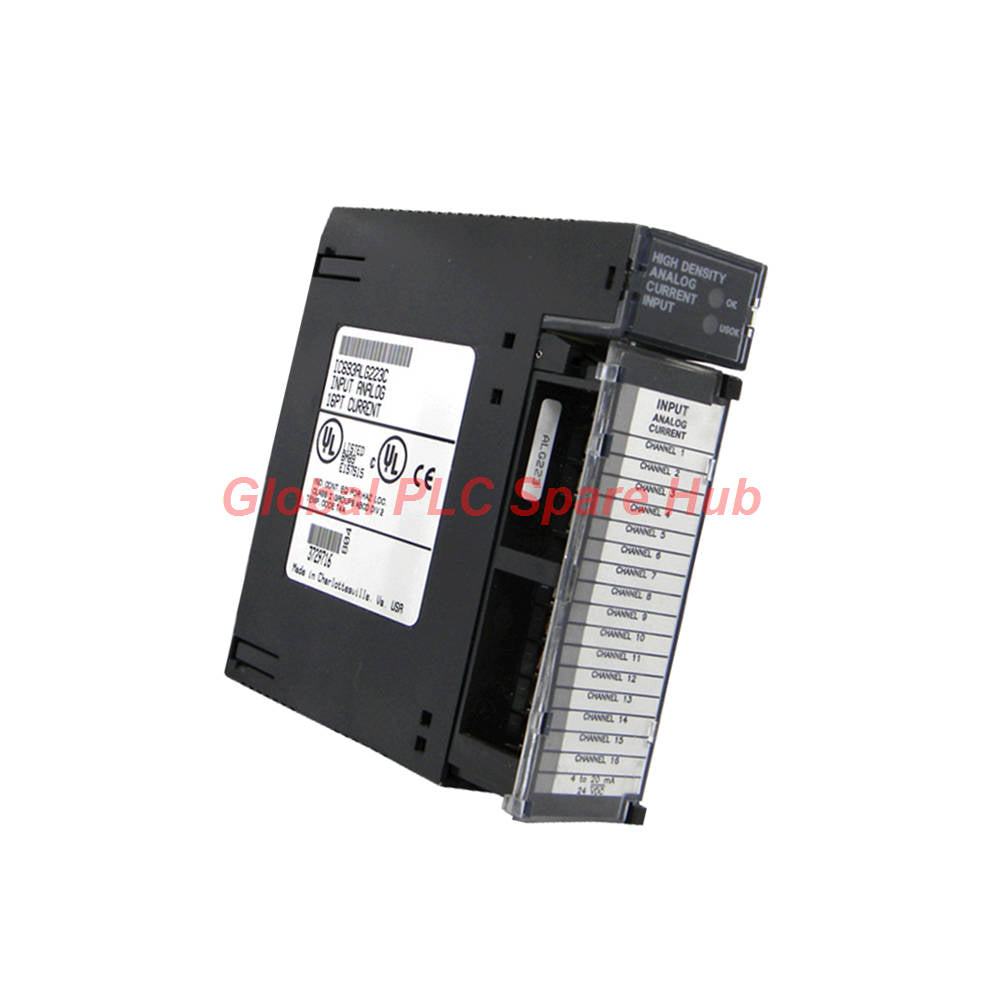

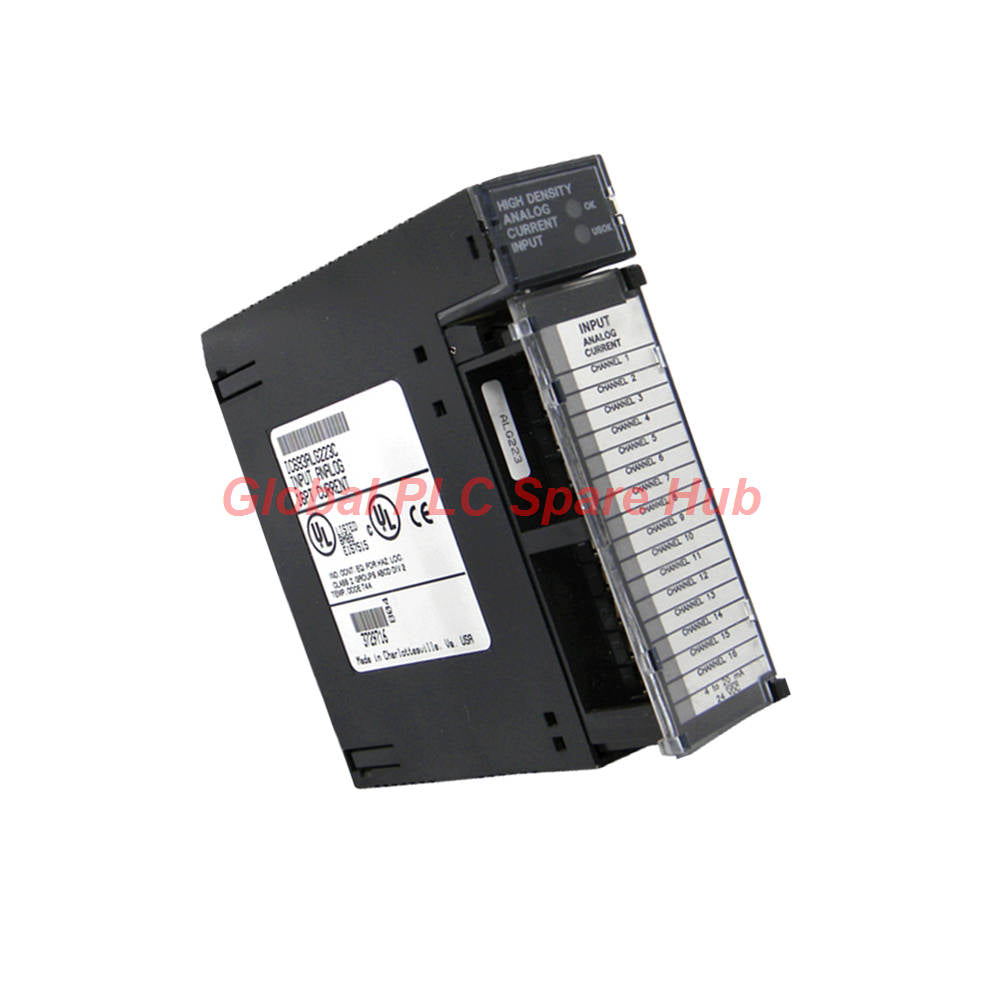

GE Fanuc Series 90-30 IC693ALG223 Product Summary

Global PLC Spare HUB Review: The IC693ALG223 is a high-density analog current input module designed for the Series 90-30 PLC framework. Engineered with 16 single-ended channels, this IC693ALG223 unit processes 0-20 mA, 4-20 mA, and 4-20 mA enhanced inputs with 12-bit resolution. Plant operators rely on its 1500V RMS optical isolation to protect controller logic from severe industrial ground loops and field-side electrical noise transients.

Core Engineering Parameters

• Manufacturer Brand: GE Fanuc
• Hardware Series: Series 90-30
• Catalog Number: IC693ALG223
• Input Channels: 16 single-ended configuration
• Signal Ranges: 0-20 mA, 4-20 mA, 4-20 mA enhanced
• System Resolution: 4 µA (4-20 mA), 5 µA (0-20 mA)
• Conversion Accuracy: ±0.25% at 25°C full scale
• Input Impedance: 250 ohms standard resistance
• Update Frequency: 13 ms for all 16 channels scanning simultaneously
• Input Filter Cutoff: 200 Hz response rate
• Dielectric Isolation: 1500 volts RMS field-to-logic barrier
• Power Draw Requirements: 120 mA from 5VDC bus, 65 mA from user 24VDC supply

Chassis Integration & Slot Placement

• Mounts into any single slot across 5-slot or 10-slot Series 90-30 baseplates.
• Maximum module allowances vary by CPU: up to 4 for Model 311/313/323, 8 for Model 331, 12 for Model 340/341, and 51 for Model 351/352 systems.
• Requires a stable external 24 VDC supply (20 to 30 VDC operating range with under 10% ripple).

Field Device Compatibility & Application Scenarios

• Integrates directly with 2-wire and 4-wire industrial transmitters for level, pressure, and flow monitoring.
• Interfaces with Variable Frequency Drive (VFD) speed feedback loops and industrial data loggers.
• Deployed extensively in water treatment plants, chemical processing skids, and automated manufacturing assembly lines.

System Diagnostics & Fault Handling

• Monitors loop continuity to detect open-circuit conditions and out-of-range signal spikes instantly.
• Backplane communication health checks report hardware configuration errors and low user-supply conditions.
• High linearity parameters (< 1 LSB deviation) ensure consistent conversion tracking without calibration drift.

Logistics, Fulfillment & Warranty Terms

• Dispatch Speed: Rapid 24 to 48-hour order processing and shipping turnaround.
• Global Shipping Partners: Secure tracked transport via FedEx, UPS, and DHL.
• Warranty Protection: Fully backed by a comprehensive 12-month replacement or repair warranty.

Purchasing Guidance

• Confirm your existing CPU model supports the total slot count requirement before deploying multiple IC693ALG223 modules.
• Check field loop power budgets to guarantee the external 24 VDC source can handle the 65 mA current draw per module.

Frequently Asked Questions

Question: How does the IC693ALG223 handle severe electrical noise in heavy industrial environments?

Answer: The module incorporates a robust 200 Hz input filter response paired with 1500 volts RMS field-to-logic isolation, effectively suppressing high-frequency electromagnetic interference from nearby motors and drives.

Question: What determines the maximum number of IC693ALG223 modules allowed in a single PLC rack?

Answer: The capacity is strictly determined by the CPU model installed in your rack, scaling from a maximum of 4 modules on legacy Model 311/313/323 CPUs up to 51 modules on high-end Model 351/352 systems.

Question: Why are my channel readings fluctuating outside the normal accuracy window?

Answer: Check the external 24 VDC power supply ripple; fluctuations exceeding the 10% supply voltage ripple threshold will directly impact ADC conversion stability and degrade the 12-bit resolution.

Question: Can unconfigured channels on the IC693ALG223 be left completely open-ended?

Answer: Yes, unused channels can remain unconnected without causing hardware faults, though grounding unused inputs or disabling them in software prevents floating voltage reading fluctuations.

Question: What is the practical difference between standard 4-20 mA and 4-20 mA enhanced modes on this module?

Answer: The enhanced mode provides extended range scaling capabilities below 4 mA and above 20 mA while maintaining sub-microamp linearity (< 1 LSB) for precise diagnostic over-range tracking.
