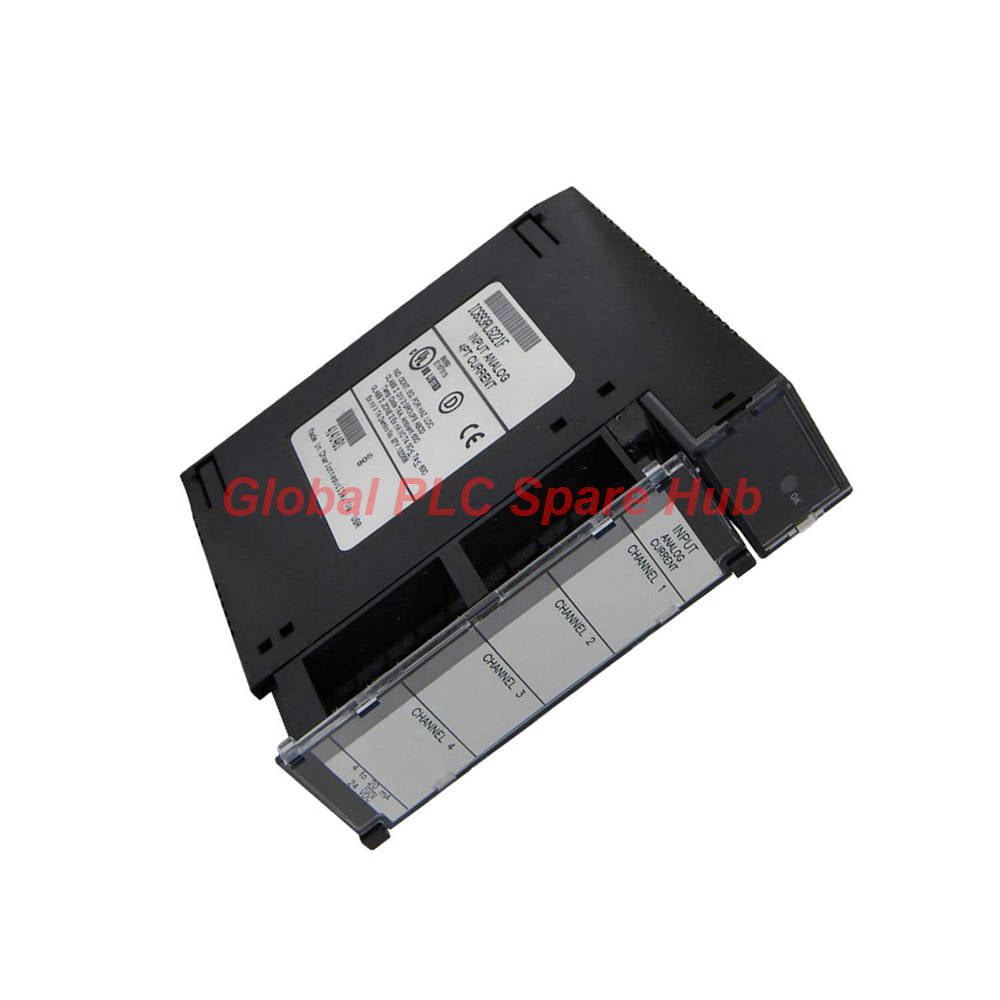

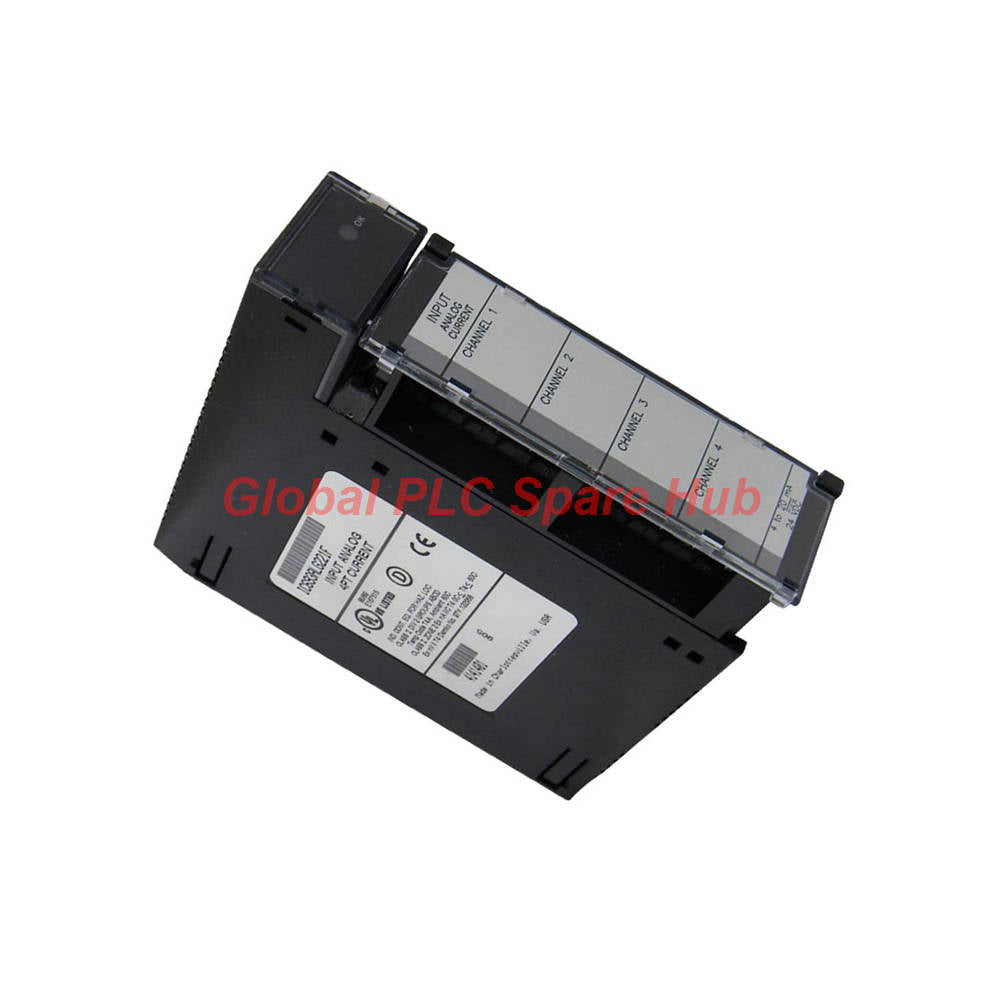

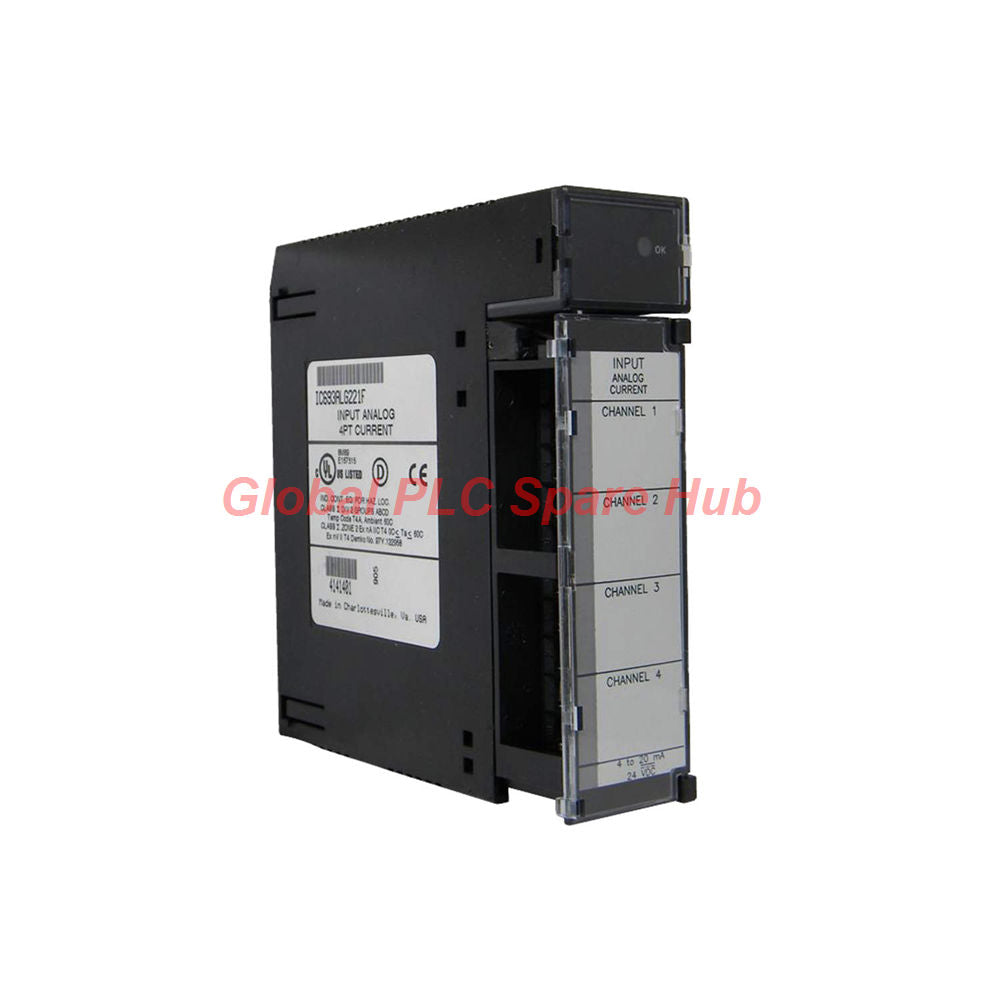

IC693ALG221 GE Fanuc Series 90-30 Analog Input Module

IC693ALG221 GE Fanuc Series 90-30 4-Channel Analog Current Input Module IC693ALG221 Sale

Acquire the IC693ALG221 GE Fanuc Series 90-30 analog input module. Explore technical precision parameters, hardware range jumper configurations, and global fulfillment options.

IC693ALG221 Engineering Metrology Audit: Global PLC Spare HUB Review

The IC693ALG221 serves as a high-precision analog measurement interface engineered for legacy Series 90-30 architecture. This hardware samples multi-channel industrial current loops with exceptional conversion accuracy and robust electrical isolation.

System Architecture & Technical Specifications

• Manufacturer: GE Intelligent Platforms / GE Fanuc
• Brand / Series: GE Fanuc / Series 90-30 IC693
• Catalog Number: IC693ALG221
• Module Classification: Analog Current Input Module (4 Single-Ended Channels)
• Input Signal Range: 0-20 mA and 4-20 mA
• A/D Conversion Resolution: 12-bit (4 µA per LSB for 4-20 mA; 5 µA per LSB for 0-20 mA)
• Absolute Accuracy: 0.1% of full scale plus 0.1% of reading
• Linearity: Less than 1 Least Significant Bit (LSB)
• Input Impedance: 250 ohms
• Input Filter Response: 325 Hz
• Update Rate: 2 ms for all channels scanned
• Common Mode Voltage Rating: 200 Volts
• Field-to-Logic Isolation: 1500 Volts RMS
• Internal Power Consumption: 25 mA at 5 VDC, 100 mA at 24 VDC Isolated

Global PLC Spare HUB's Insight: Installation & Maintenance Guidelines

Configuring the IC693ALG221 requires careful attention to physical range jumper placement on the removable terminal block. Technicians must short specific terminal jumpers to toggle between 0-20 mA and 4-20 mA signal ranges—one jumper handles channels one and two, while a separate jumper controls channels three and four. Field wiring must utilize shielded, twisted pair cables to mitigate capacitive loading and electromagnetic interference.

Diagnostic Capabilities & Signal Mapping

The internal Analog-to-Digital converter translates raw analog feedback into a normalized integer register scale spanning from 0 to 32000. For 4-20 mA loops, 4 mA maps to a register value of 0, whereas 20 mA corresponds to 32000. Engineers monitor these integer registers within control programs to track process variable scaling and detect out-of-range sensor failures instantly.

Typical Applications & Industrial Environments

Automation professionals deploy this module across water treatment facilities, chemical processing plants, and energy management systems. It directly interfaces with 4-20 mA industrial field transmitters, pressure transducers, flow meters, and temperature controllers.

Fulfillment, Warranty & Logistics

• Delivery Couriers: Fast global dispatch via FedEx, UPS, and DHL
• Processing Window: Orders ship within 24 to 48 hours
• Hardware Assurance: Backed by a comprehensive 12-month replacement warranty

Frequently Asked Questions

Question: How are signal ranges physically modified on the IC693ALG221 module?

Answer: Range selection is executed via hardware shorting jumpers located on the removable terminal block. Separate jumpers manage pairs of channels to configure either 0-20 mA or 4-20 mA operational loops.

Question: What register values correspond to minimum and maximum scale readings for a 4-20 mA input loop?

Answer: The internal conversion scales the input signal into a unitless register span from 0 to 32000, where 0 represents 4 mA and 32000 represents 20 mA.

Question: Why is twisted-shielded cabling mandatory for field wiring connected to the IC693ALG221?

Answer: Shielded twisted pairs minimize external electrical noise interference and reduce capacitive loading on sensitive low-amperage current loops, preventing erratic analog register fluctuations.

Question: What causes severe reading discrepancies or calibration drift on isolated analog channels?

Answer: Drift usually stems from exceeding the 200V common mode voltage threshold, component aging in the 250-ohm input resistor network, or an unstable 24VDC isolated power bus.

Question: What key verification factors should guide purchasing decisions for a replacement IC693ALG221 unit?

Answer: Buyers must verify backplane power budget availability (specifically the 100 mA 24V isolated load requirement), confirm terminal block jumper integrity, and source units from certified suppliers offering rigorous bench testing and a 12-month warranty.
