IC687BEM713 GE Fanuc Bus Transmitter for Rx7i PACSystems

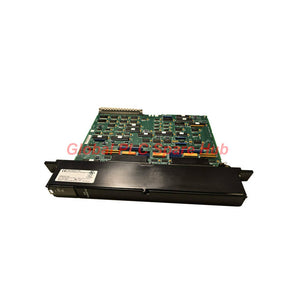

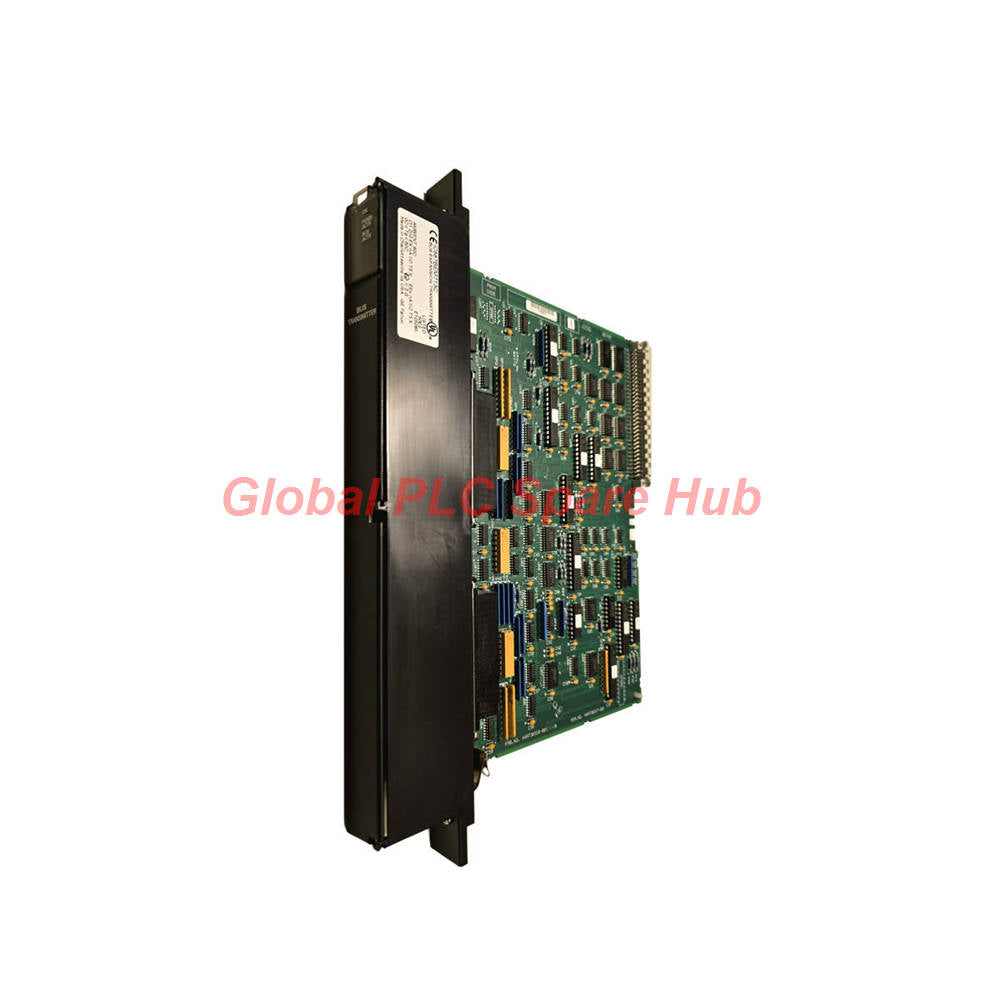

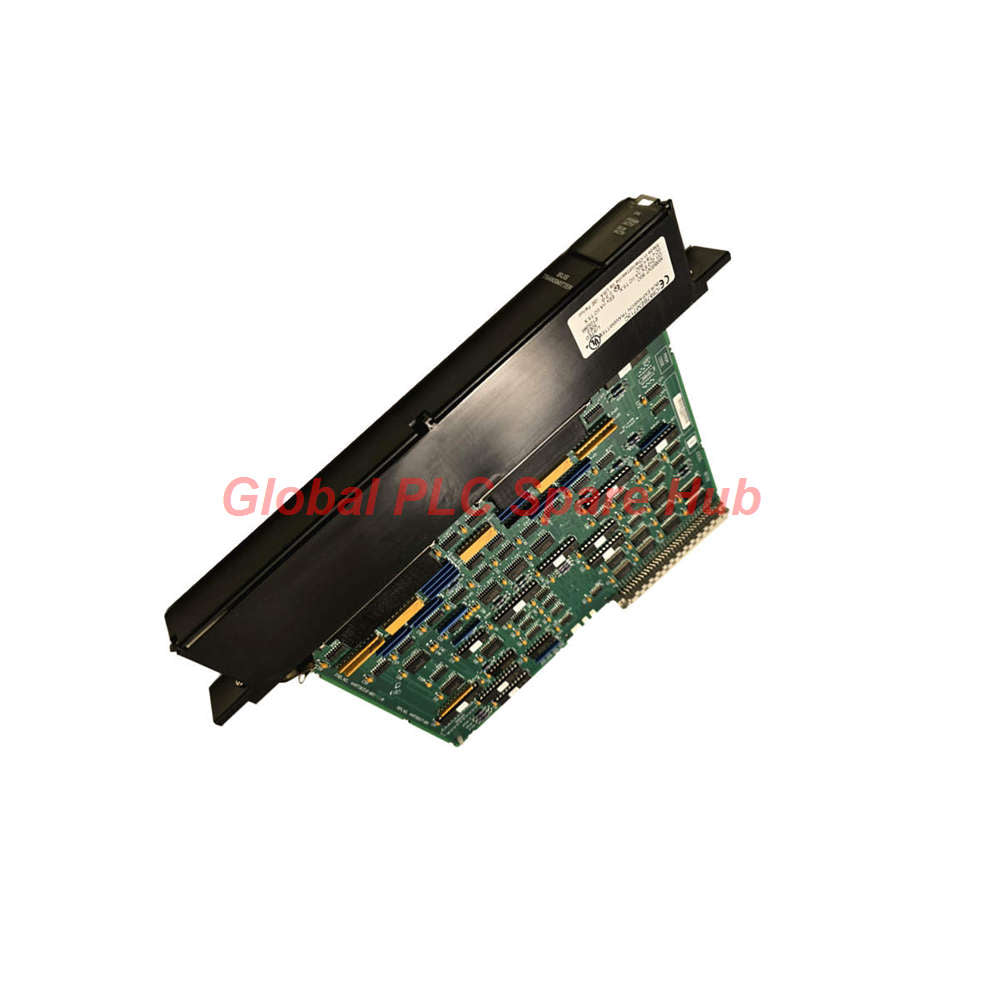

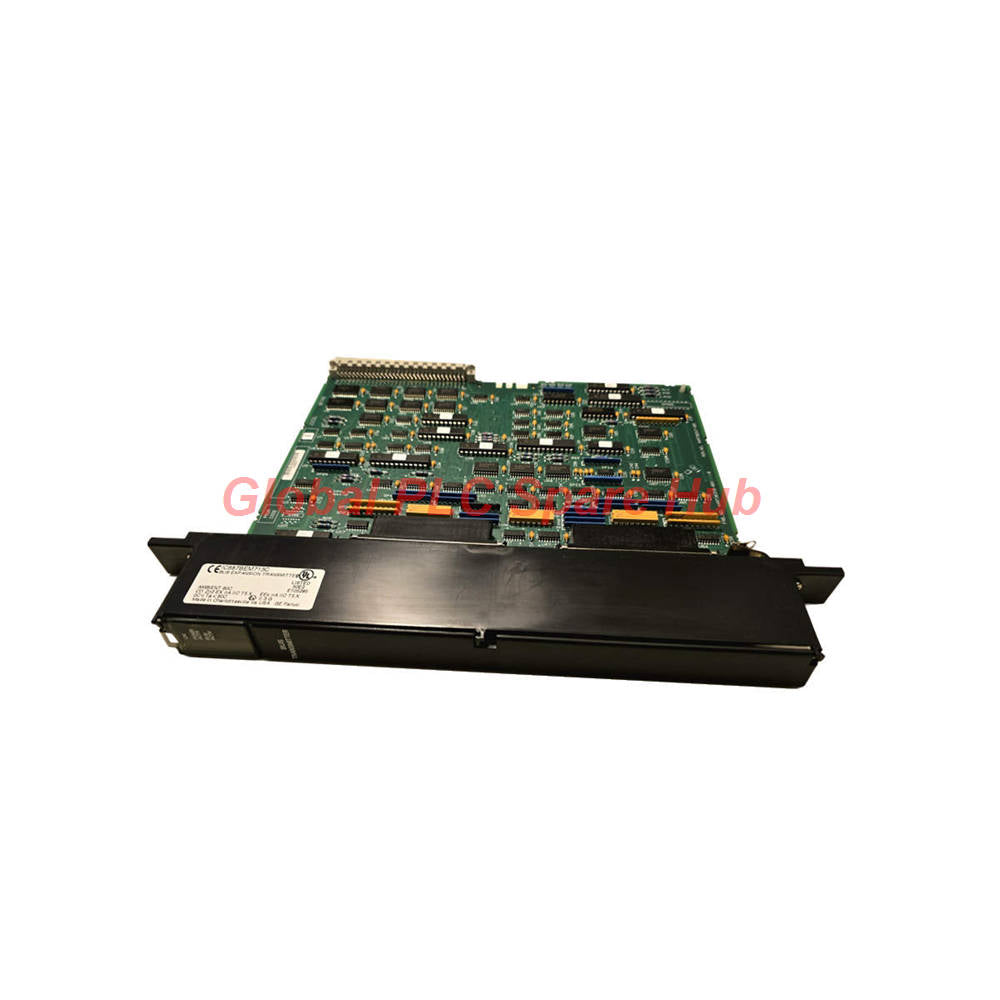

GE Fanuc IC687BEM713 Rx7i Bus Transmitter Module

The GE Fanuc IC687BEM713 is a bus transmitter module designed for the Rx7i PACSystems platform and FIP redundant system architecture. It provides the bus interface required for redundancy-related communication when installed with a compatible Redundancy Communications Module (RCM) in the designated dual-section redundancy rack.

In a redundant configuration, each rack section requires its own bus transmitter and redundancy communications module. The IC687BEM713 occupies one VME slot and uses two built-in connectors for the programming-device interface and the connection to the redundancy communications module. Its mechanical keying helps prevent incorrect module placement.

01 | Module Identity and Electrical Requirements

02 | Redundancy Architecture: How the Module Fits

The IC687BEM713 should be selected as part of a coordinated redundancy configuration rather than as a standalone communications accessory. The supplied system description identifies a two-section redundancy rack, with a bus transmitter and an RCM installed in each section.

Functional relationship:

• Redundancy rack: Provides the designated installation positions for the two redundant sections.
• IC687BEM713 bus transmitter: Provides the required bus-transmitter interface for its rack section.
• Redundancy Communications Module (RCM): Works with the bus transmitter to support redundancy communications.
• Programming device: Connects through the designated top connector, as described in the supplied information.
• Redundant counterpart: A second bus transmitter is required for the other rack section in the described system architecture.

Important: Confirm the exact rack, RCM model, connector arrangement, and system revision against the equipment documentation before installation. The functional description above does not establish compatibility with every Rx7i configuration.

03 | Connector Roles and Installation Logic

04 | Suitable Equipment and Application Scenarios

• GE Fanuc Rx7i control systems: Replacement or maintenance of a compatible bus transmitter position.
• FIP redundant control architectures: Systems that use the specified bus transmitter and redundancy communications module arrangement.
• Process automation: Legacy process-control installations where the existing approved configuration uses this module.
• Power and utility control: Maintenance of compatible redundant control equipment, subject to confirmation of the installed system architecture.
• Industrial equipment lifecycle support: Repair stock, planned maintenance, and recovery from a confirmed bus-transmitter fault.

These are potential application contexts based on the module's described function. They are not a claim of universal compatibility with all process, power, or utility control systems.

05 | Commissioning and Fault-Isolation Workflow

The IC687BEM713 supports a communication path within a redundant system. Troubleshooting should therefore distinguish between a module fault, a connector or rack issue, an RCM fault, a bus-supply problem, and a wider redundancy-configuration issue.

Diagnostic limitation: The supplied information does not identify onboard status LEDs, specific fault codes, self-test results, or built-in diagnostic functions for the IC687BEM713. Do not assume that it provides a particular LED indication or diagnostic register. Use the applicable GE Fanuc system manual and controller diagnostics to confirm the actual fault.

06 | Replacement and Procurement Checklist

1. Verify the complete part number: Confirm IC687BEM713 from the installed module label, not only from a system inventory description.
2. Confirm the rack architecture: Establish that the equipment uses the described dual-section redundancy arrangement.
3. Check the RCM: Verify the installed redundancy communications module and its interface requirements.
4. Validate the connector arrangement: Compare the programming-device and RCM connections with the existing installation.
5. Check electrical requirements: Confirm the rack's 5 V bus capacity and the reported 1.4 A module current requirement against the system documentation.
6. Confirm condition and revision: Before purchase, request confirmation of the actual unit condition, label details, and any relevant hardware revision.

07 | Global PLC Spare HUB's Insight

For a redundant control system, a bus transmitter should be evaluated as part of the complete communication path—not simply as a plug-in board. A replacement may have the correct model number yet still require verification of the rack section, RCM pairing, connector orientation, and system configuration.

For maintenance planning, record the part number and hardware markings of both rack sections before removing a module. If only one section is affected, compare its physical installation and diagnostic results with the healthy section. This comparison can help separate a module-specific problem from a common rack, supply, cable, or configuration issue.

The stated 5 VDC supply and 1.4 A current requirement should also be checked against the rack's approved power budget. Do not use the current figure alone to conclude that a rack has sufficient capacity; account for the complete installed configuration and manufacturer limits.

08 | Frequently Asked Questions

Q1: What should be checked before ordering an IC687BEM713 as a replacement?

Confirm the complete part number, rack type, RCM model, connector arrangement, and hardware markings on the existing unit. If the original system documentation specifies additional revision or compatibility requirements, use those requirements to qualify the replacement.

Q2: Can one IC687BEM713 support both sections of a redundant system?

According to the supplied system description, a complete configuration uses two bus transmitter modules, with one assigned to each section of the two-section redundancy rack. Verify the exact configuration in the applicable system manual before commissioning.

Q3: If the module fits physically, does that confirm electrical and functional compatibility?

No. Mechanical fit alone does not establish that the module is approved for the installed rack or compatible with the RCM and system revision. Confirm the slot assignment, bus requirements, connector interface, and documented system support.

Q4: What information helps a supplier identify the correct replacement?

Provide a clear photo of the module label, the full part number, any visible hardware revision, the rack model, the RCM model, and a description of the fault. Photos of the installed connector arrangement can also help reduce ordering errors.

Q5: Should the module be replaced immediately if redundancy communication is lost?

Not without basic fault isolation. First check module seating, connector engagement, the RCM, rack-side assignment, bus power, and available controller diagnostics. If the fault remains isolated to the module, replacement with a confirmed compatible unit may be appropriate under the site's approved maintenance procedure.

9 | Supply, Warranty and Shipping

• Product: GE Fanuc IC687BEM713 Rx7i Bus Transmitter Module
• Warranty: 12-month warranty, subject to the seller's written warranty terms and confirmed product condition.
• Shipping Methods: FedEx, UPS, or DHL, subject to destination and service availability.
• Dispatch: Target dispatch within 24–48 hours after order and payment confirmation, subject to stock status, order processing, and export requirements.
• Before ordering: Contact us to verify availability, product condition, and compatibility with your installed configuration.

Request a quote for IC687BEM713. Provide your required quantity and system details so the replacement can be checked against your existing GE Fanuc installation.
