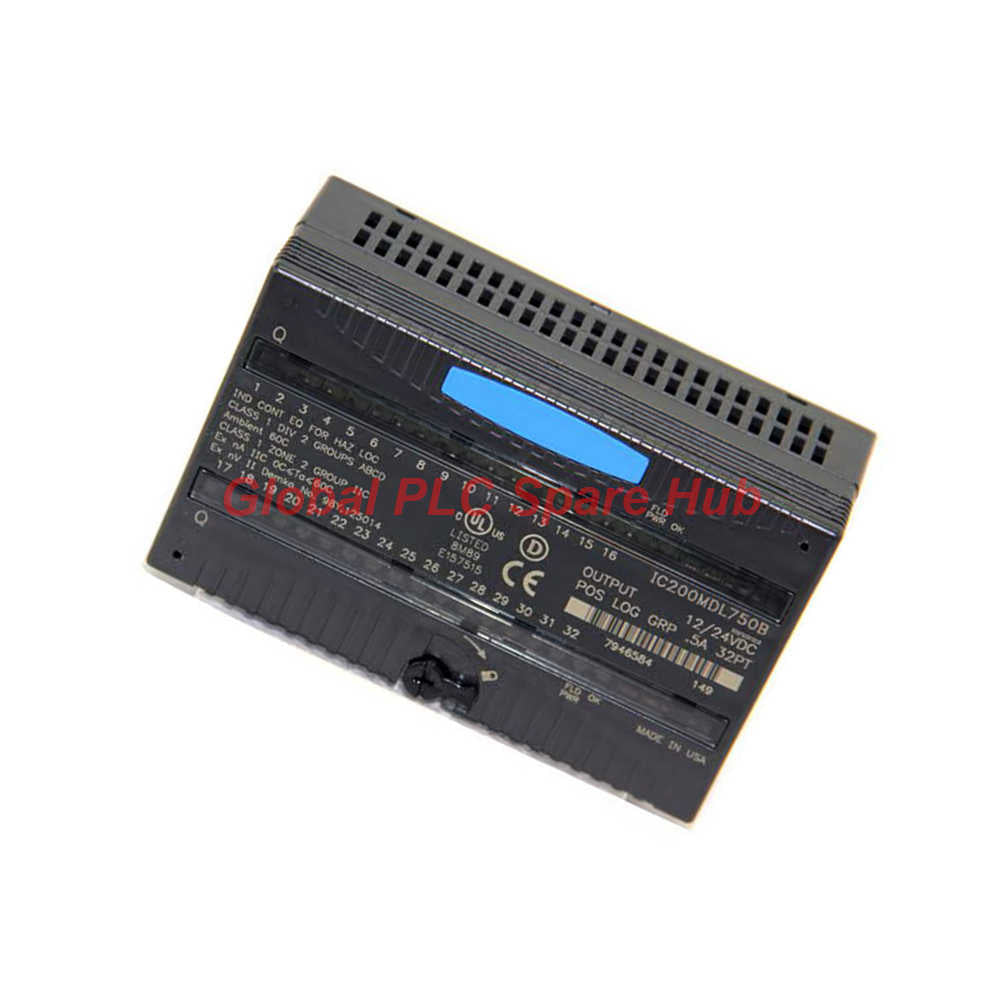

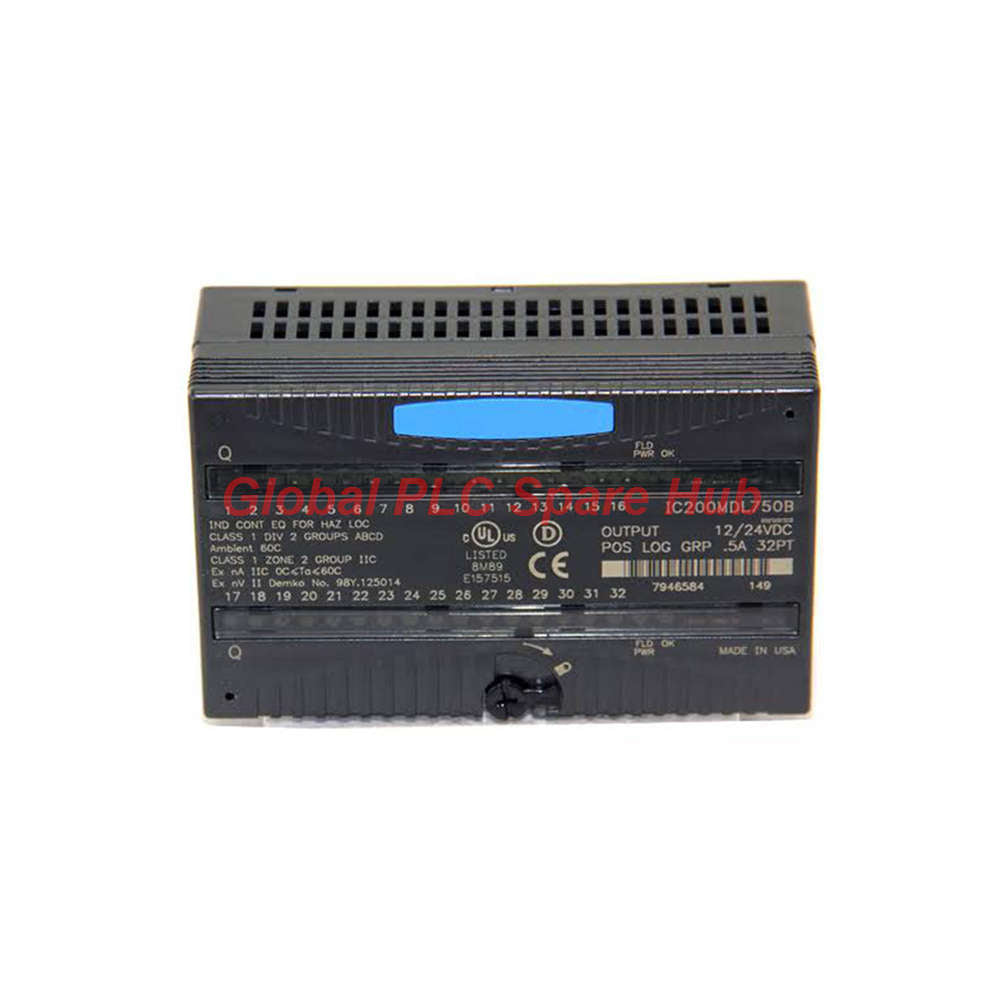

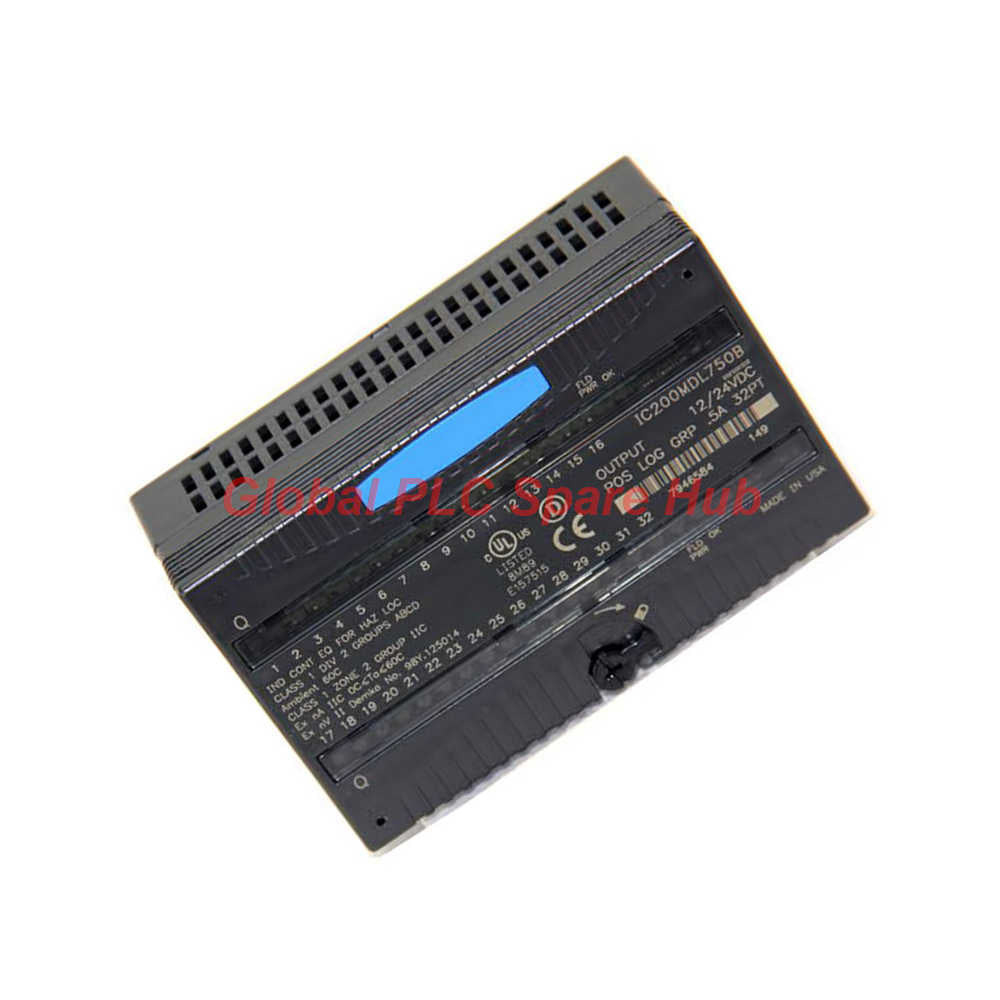

IC200MDL750 GE Fanuc Emerson VersaMax 32 Pt Output Module

Product Overview

The IC200MDL750 is a high-density 32-channel discrete output module engineered for the VersaMax I/O system platform.

Originally manufactured by GE Fanuc (GE Intelligent Platforms) and currently produced under Emerson Automation, this module delivers compact digital control.

It provides thirty-two sourcing outputs structured into two isolated groups of sixteen channels each for distributed automation networks.

The unit features positive logic operation switching 12/24 VDC nominal field devices with rapid 0.2 ms response times.

Individual channel status LEDs and dedicated power indicators provide clear physical diagnosis across all control channels.

Technical Specifications

• Brand: Emerson Automation / GE Fanuc
• Part Number / Model: IC200MDL750
• Product Series: VersaMax I/O Platform
• Module Type: Discrete Output Sourcing Module
• Output Channel Count: 32 Channels (2 Groups of 16 Channels)
• Operating Output Voltage: 10.2 to 30 VDC (12/24 VDC Nominal)
• Continuous Load Current: 0.5 Amperes maximum per channel point
• Inrush Current Capacity: 2.0 Amperes maximum for 100 milliseconds
• Backplane Current Draw: 90 mA maximum at 5 VDC
• Switching Response Time: ON: 0.2 ms max / OFF: 1.0 ms max
• Isolation Protection: 250 VAC continuous; 1500 VAC for 1 minute
• Thermal Derating Range: 0°C to 30°C for full 32-point simultaneous operation
• Hazardous Location Certification: Class I, Division 2 rated
• Dimensions & Weight: 110 mm x 66.8 mm x 50 mm; Weight: 0.90 kg

Installation & Hardware Setup

Mount the IC200MDL750 onto a standard 35 mm DIN rail using a compatible VersaMax carrier base.

The module supports horizontal or vertical mounting layouts depending on cabinet space and thermal air circulation requirements.

Connect external 24 VDC power supplies directly to the carrier terminal block to energize output field circuits.

Install external flyback diode suppression circuits when wiring inductive field loads to prevent reverse voltage spikes.

System Compatibility & Compliance

Fully compatible with all VersaMax PLC CPUs, Network Interface Units (NIUs), and expansion racks.

Maintains complete backward compatibility across existing legacy GE Fanuc control architecture installs.

Meets industrial safety standards for installation in Class I Division 2 hazardous environments.

Diagnostic Capabilities & System Surveillance

Thirty-two green LEDs display real-time ON/OFF switching states for each output channel.

An onboard OK LED validates active backplane power communication with the central controller.

The FLD PWR LED confirms the presence of required external field voltage across terminal groups.

Commissioning, Maintenance & Logistics

Carrier-base snap-in mounting enables quick module swap-outs without disconnecting field wiring harnesses.

Snug DIN rail locking latches ensure mechanical stability against industrial machine vibration.

Package Contents:

• 1x Factory-Inspected IC200MDL750 Discrete Output Module
• 1x Protective Terminal Base Interface Cover

Warranty & Dispatch Terms:

• Warranty Period: Full 12-Month Replacement Warranty included
• Dispatch Speed: Express warehouse dispatch within 24 to 48 hours
• Global Carriers: Fast international shipping via FedEx, UPS, or DHL

Target Equipment & Practical Application Scenarios

Actuating 24 VDC pneumatic solenoid valves on high-speed sorting conveyors.

Energizing interposing relay coils inside industrial motor control centers (MCC).

Driving multi-segment LED stack lights and audible alarms on packaging machinery.

Global PLC Spare HUB's Insight & Field Experience

Field installations show that overheating issues often stem from exceeding ambient thermal thresholds during high-density switching cycles.

During a retrofit at a food processing plant, technicians reported intermittent channel failures on a 32-point output node.

Our engineers identified that operating all thirty-two outputs simultaneously above 30°C ambient temperature caused thermal derating trips.

Re-orienting the module vertically and installing RC snubber networks across external inductive coils resolved the overheating immediately.

This simple layout adjustment extended hardware operational life while maintaining full 0.5A channel switching performance.

Selection & Application Guidance

Choose the IC200MDL750 when your design requires high channel density with sourcing positive logic outputs.

If your field devices require sinking negative logic wiring setups, select the IC200MDL740 module instead.

Frequently Asked Questions

Question 1: Why does the FLD PWR LED remain off even though the PLC backplane has power?

Answer: The field power LED indicates external 10.2-30 VDC supply voltage connected directly to the carrier base, not backplane logic power.

Question 2: What happens if I operate all 32 output channels at full 0.5A load above 30°C ambient temperature?

Answer: Operating above 30°C requires thermal derating, reducing the number of simultaneously active outputs to prevent internal thermal shutoff.

Question 3: Does this module require internal protective fuses during installation?

Answer: The module contains no internal fuses; external fast-acting fuses should be wired in series with field power lines for overload protection.

Question 4: Can I replace the module while the carrier base wiring remains intact?

Answer: Yes, the two-piece VersaMax design lets you snap off the module while leaving field wiring secured to the terminal carrier.

Question 5: How do I select the right suppression diode for inductive solenoid loads?

Answer: Install a standard 1N4004 diode or equivalent varistor in parallel across the DC load terminals to absorb inductive switching transients.
