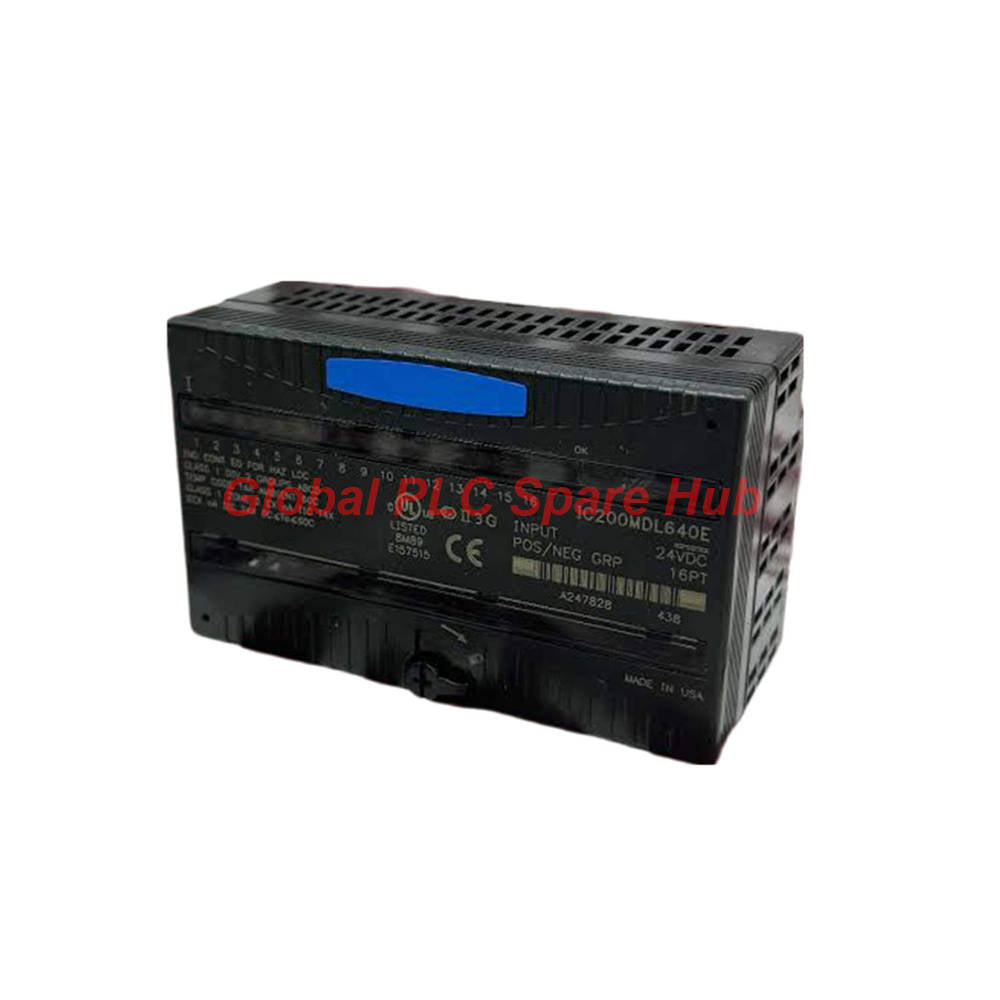

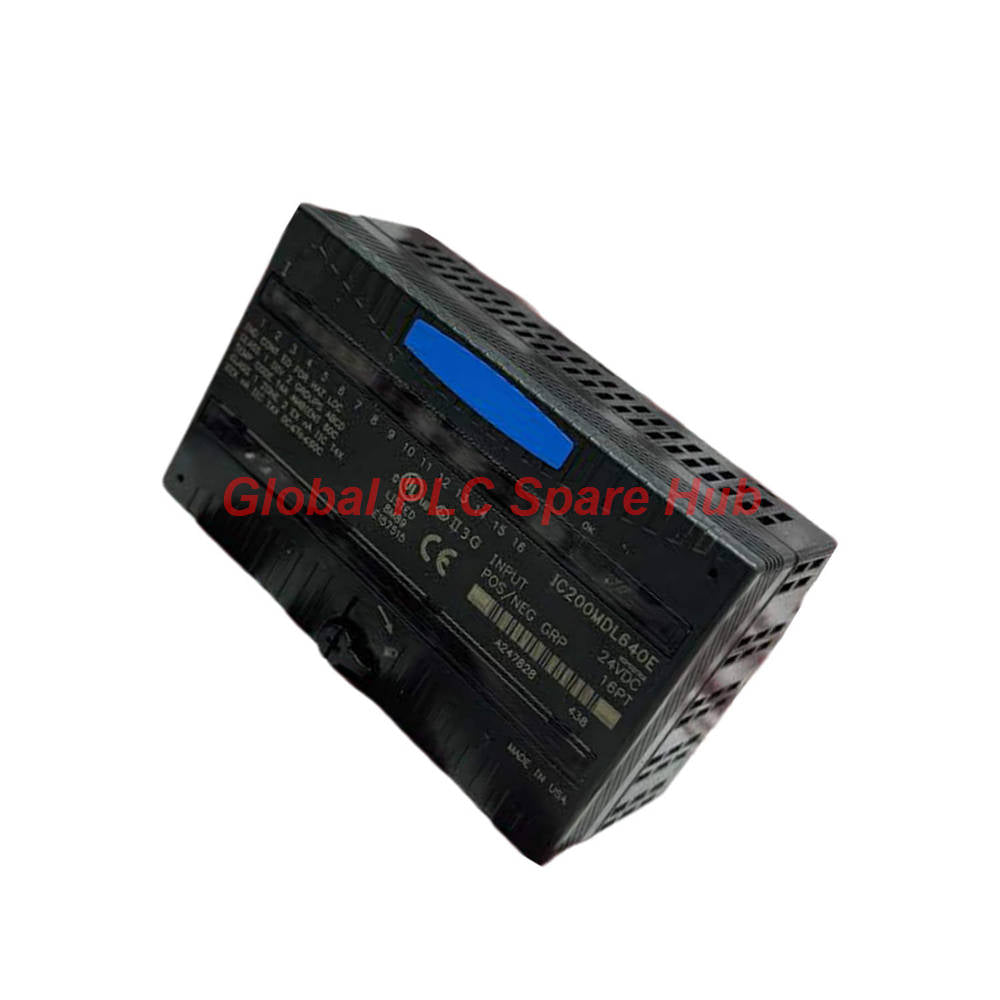

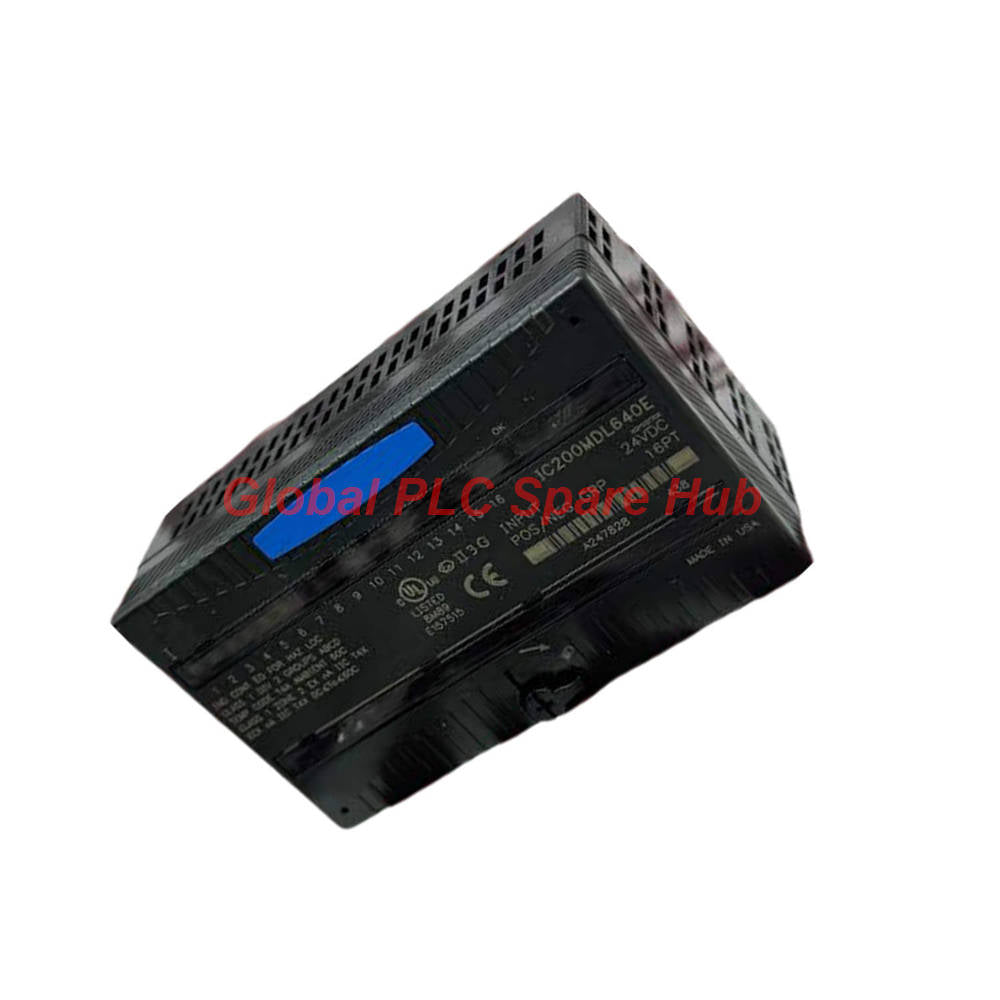

IC200MDL640 GE Fanuc Versamax Discrete Input Module 24V DC

Product Summary & Structural Architecture

The IC200MDL640 operates as a high-density digital interface card within the GE Fanuc Versamax automation environment.

As a 16-point Discrete Input Module, it accepts 24V DC field signals configured for either positive (sinking) or negative (sourcing) logic.

The 16 channels are divided into two distinct isolated groups of 8 points, providing reliable circuit separation across mixed-voltage field buses.

Drawing all operating power directly from the backplane bus, the unit requires zero external auxiliary logic power supplies.

Global PLC Spare HUB's Insight

In high-speed packaging conveyors, input signal bounce often triggers false system jams and nuisance downtime.

Deploying the GE Fanuc IC200MDL640 allowed our engineering team to tune software filter response times from 1.0ms down to 0ms for high-speed sensor tracking.

Technical Specifications Matrix

Wiring Flexibilities & Mechanical Design

• Dual Logic Sink/Source Wiring:
  • Positive logic configurations receive current flow directly from connected sourcing input field switches.
  • Negative logic configurations source current out to ground-sinking field sensor contacts.
  • Utilize shorting bars on B terminals to distribute auxiliary common power lines across terminal blocks.
• Hot Insertion & Backplane Handling:
  • Supports hot-swapping under backplane power without halting adjacent I/O carrier operations.
  • Careful mechanical alignment prevents momentary pin misalignment during live rack insertion.

Target Equipment & Application Scenarios

• Automated Assembly Lines & Robotic Cells:
  • Captures proximity switch triggers and pneumatic cylinder reed switch position states.
• Material Handling & Sorting Conveyors:
  • Monitors high-frequency photo-eye sensors using customizable fast hardware filter settings.
• Water Pumping & Treatment Skids:
  • Interfaces dry-contact float switches, pressure alarms, and valve status indicators.

Diagnostic Capabilities

• Dedicated "OK" status LED confirms active backplane communication with the CPU or Network Interface Unit (NIU).
• 16 green individual channel status LEDs provide clear visual indication of active field signal inputs.
• Software diagnostic flags report module presence, backplane bus errors, and carrier integrity status.

Warranty Clause & Dispatch Logistics

• 12-Month Comprehensive Warranty: Covers operational defects and hardware performance guarantees.
• Rapid Shipping: Orders packed and dispatched globally within 24 to 48 hours.
• Carrier Services: Worldwide express shipping via FedEx, UPS, or DHL.

Frequently Asked Questions (FAQ)

Q: How do I select between positive and negative logic wiring on the IC200MDL640?

A: Wire the common terminal of each group to DC negative for positive logic or DC positive for negative logic.

Q: Can Group 1 run on positive logic while Group 2 runs on negative logic?

A: Yes. Because Group 1 and Group 2 are isolated by 250 VAC, each group can use an independent power polarity.

Q: What is the benefit of adjusting the input filter time parameter from 1.0ms to 7.0ms?

A: Increasing filter time eliminates electrical noise and contact bounce on long field sensor wiring runs.

Q: Does replacing an IC200MDL640 require shutting down the entire Versamax rack?

A: No. The card supports hot insertion, though smooth straight insertion is required to avoid backplane bus noise.

Q: What field hardware causes the "OK" LED to remain extinguished after power-up?

A: An unseated backplane connection or an unconfigured carrier carrier station prevents the CPU from initializing the module ID.
