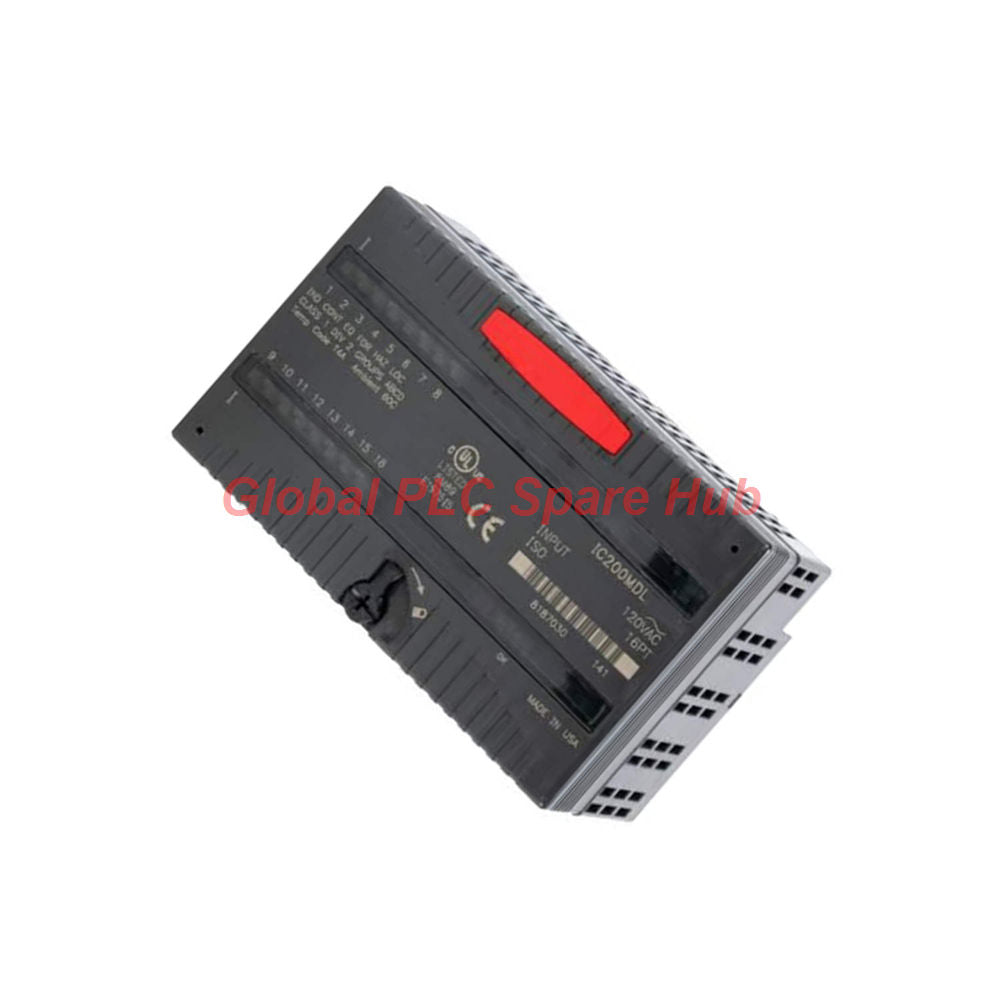

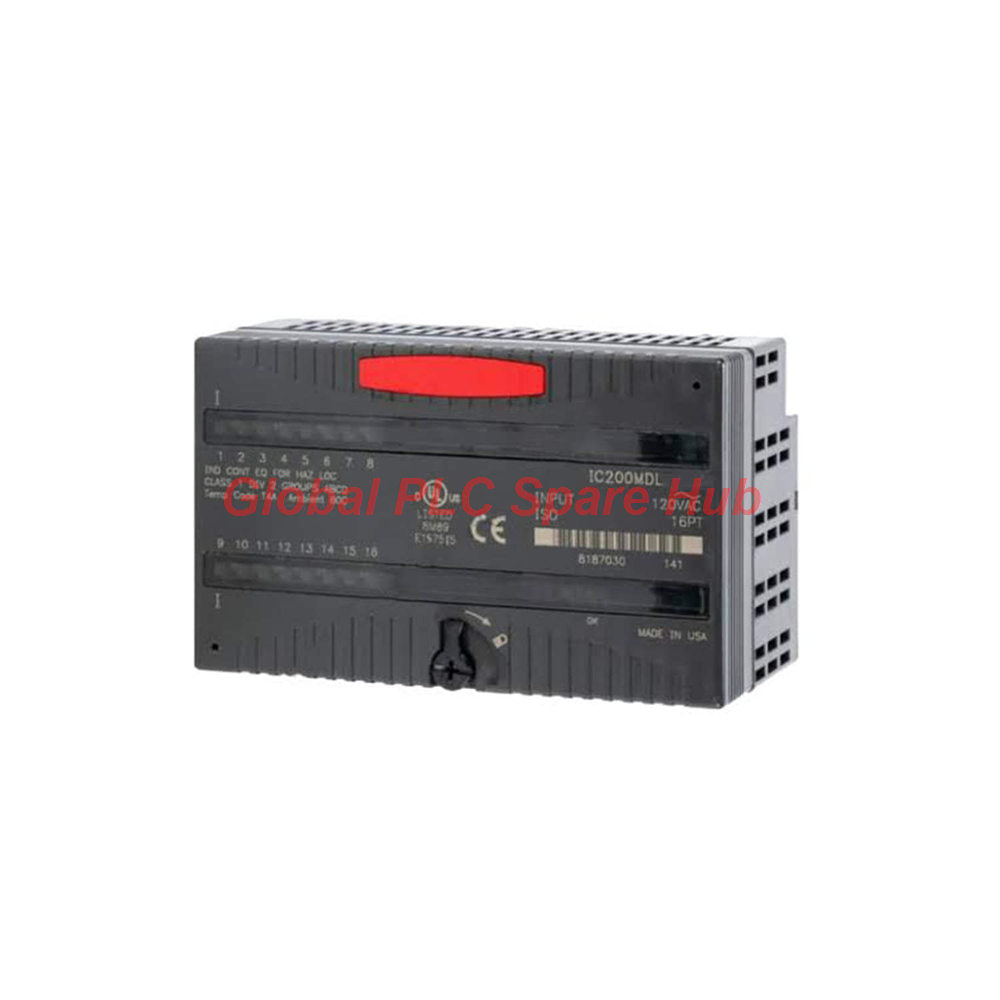

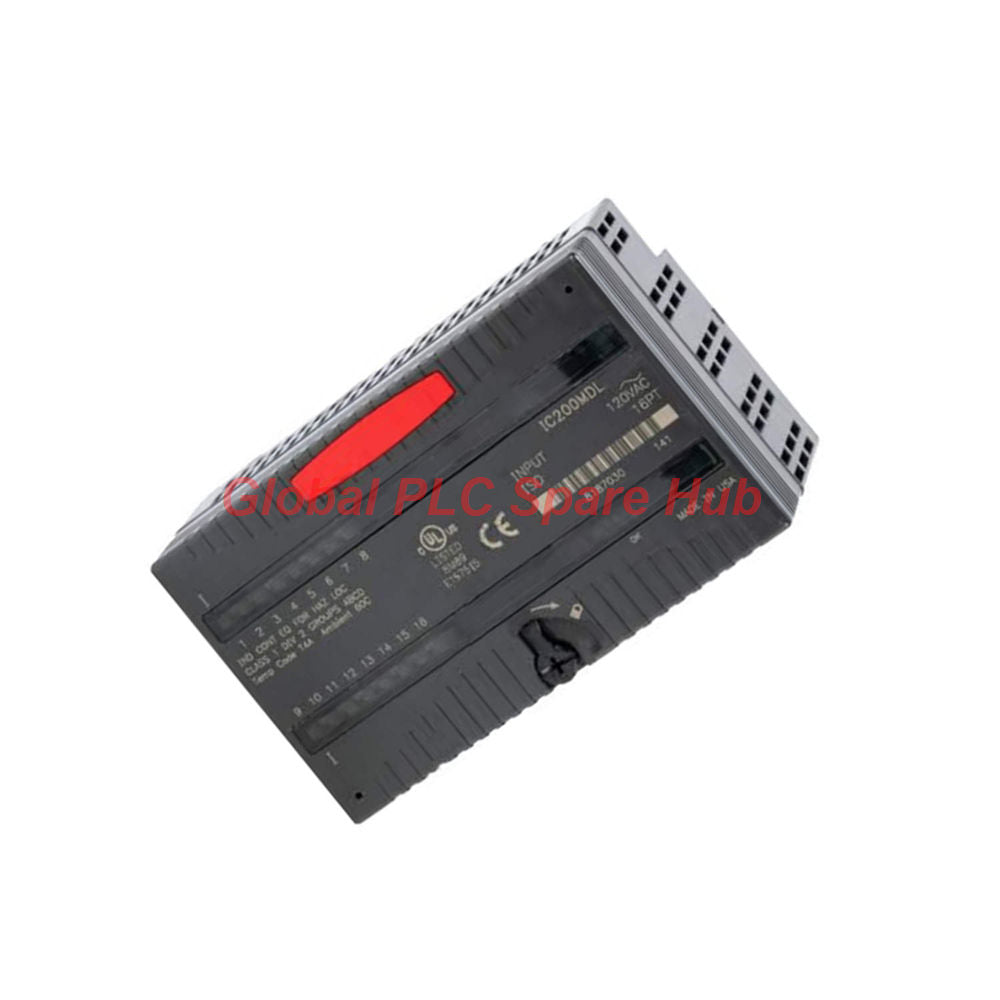

IC200MDL331 Emerson GE VersaMax 8-Point Isolated AC Output Module

Overview

The Emerson GE IC200MDL331 is an 8-point, individually isolated 120 VAC discrete output module engineered for the VersaMax I/O system. Built to handle heavy-duty switching duty, it delivers up to 2.0 Amps per channel with robust channel-to-channel isolation. Integrated MOV and RC snubber protection at each output point ensure long-term stability when controlling high-current inductive actuators, contactor coils, and remote industrial loads across distributed architectures.

Circuit Isolation & Protection Architecture

• Individually Isolated Channels:
  • All 8 output points operate as separate isolated circuits with no shared common terminals.
  • Galvanic isolation rating: 250 VAC continuous and 1500 VAC for 1 minute (channel-to-channel and user input to logic/frame ground).
  • Allows mixing of independent 120 VAC power phases or separate line sources across channels.
• Transient Spike Mitigation:
  • Every output point features an integrated MOV (Metal Oxide Varistor) paired with an RC snubber circuit.
  • Suppresses severe back-EMF voltage transients produced when switching inductive field loads.
  • Limits output leakage current to under 2.0 mA at 132 VAC.
• High Load Capacity:
  • Delivers up to 2.0 Amps maximum per point (10 mA minimum load current).
  • Handles peak inrush currents up to 20 Amps for 1 cycle (47 to 63 Hz).
  • Low maximum output voltage drop of only 2.0 Volts at full continuous current rating.

Technical Specifications Parameter Matrix

Target Applications & System Integration

• Compatible Carrier Systems:
  • Mounts onto standard VersaMax I/O snap-in carrier bases (e.g., IC200CHS001, IC200CHS002).
  • Communicates across Network Interface Units (NIUs) or VersaMax CPUs (e.g., IC200CPUE05).
• Industrial Use Cases:
  • Direct control of high-power 120 VAC interposing relay coils and NEMA contactor starters.
  • Operating heavy-duty solenoid valves in pneumatic and hydraulic manifold systems.
  • Switching high-current visual stack lights, alarm horns, and industrial beacons.

Diagnostic Capabilities & Visual Feedback

• System Status Verification:
  • Front-panel OK LED confirms active backplane power presence and module logic health.
• Channel State Tracking:
  • 8 individual green channel LEDs mirror CPU logic command states directly.
  • Channel LEDs operate from internal system logic power independently of field load connection status.

Supply Chain & Warranty Guarantees

• Package Contents:
  • One factory-sealed Emerson IC200MDL331 AC output card.
  • Antistatic shielding enclosure lined with shock-absorbent protective foam.
• Warranty Terms:
  • Includes a full 12-month operational replacement warranty from the date of dispatch.
• Express Shipping & Dispatch:
  • Dispatched within 24 to 48 hours following order confirmation.
  • Worldwide air express service managed via FedEx, UPS, or DHL.

Global PLC Spare HUB's Insight

When deploying the IC200MDL331 in distributed control racks, field technicians must take note of its minimum load current requirement (10 mA). Because each channel includes a robust onboard RC snubber to absorb switching transients, a small off-state leakage current (up to 2 mA at 132 VAC) flows continuously through the output circuit.

During an on-site commissioning call at a chemical batching facility, our engineers resolved an issue where a low-power 120 VAC LED pilot indicator remained faintly glowing even when the output point was turned off. The high input impedance of the ultra-low-power indicator allowed the 2 mA leakage current to generate enough voltage across the load to illuminate it. Adding a parallel load resistor (bleeder resistor) across the field terminal safely shunted the leakage current, eliminating the false indication. We recommend auditing field load current draw prior to installation to ensure all connected devices exceed the 10 mA minimum operational threshold.

Frequently Asked Questions (FAQ)

Q: What is the main operational benefit of individual channel isolation on the IC200MDL331?

A: Channel-to-channel isolation eliminates ground loops and permits each of the 8 output points to switch independent AC power sources or different phases safely without cross-talk.

Q: Does the IC200MDL331 supply power to connected field loads directly from the backplane?

A: No. The backplane bus only powers internal module logic (drawing 85 mA). An external 85-132 VAC field power supply must be wired to supply power to the loads.

Q: Why does a channel LED light up on the IC200MDL331 even if no external load power is connected?

A: Channel LEDs are powered directly by the module logic bus. They indicate CPU output commands regardless of field voltage status.

Q: Can I use the IC200MDL331 module to switch 24 VDC control signals?

A: No. The solid-state AC switches on the IC200MDL331 require AC zero-crossing to turn off. Connecting a DC supply will cause the output to latch permanently ON.

Q: How can I verify whether an unpowered load on the IC200MDL331 is caused by a module fault or field wiring?

A: Measure the AC voltage directly across the module field output terminal and neutral line. If 120 VAC is present when the channel LED is ON but the load does not actuate, check the field wiring and load coil continuity.
