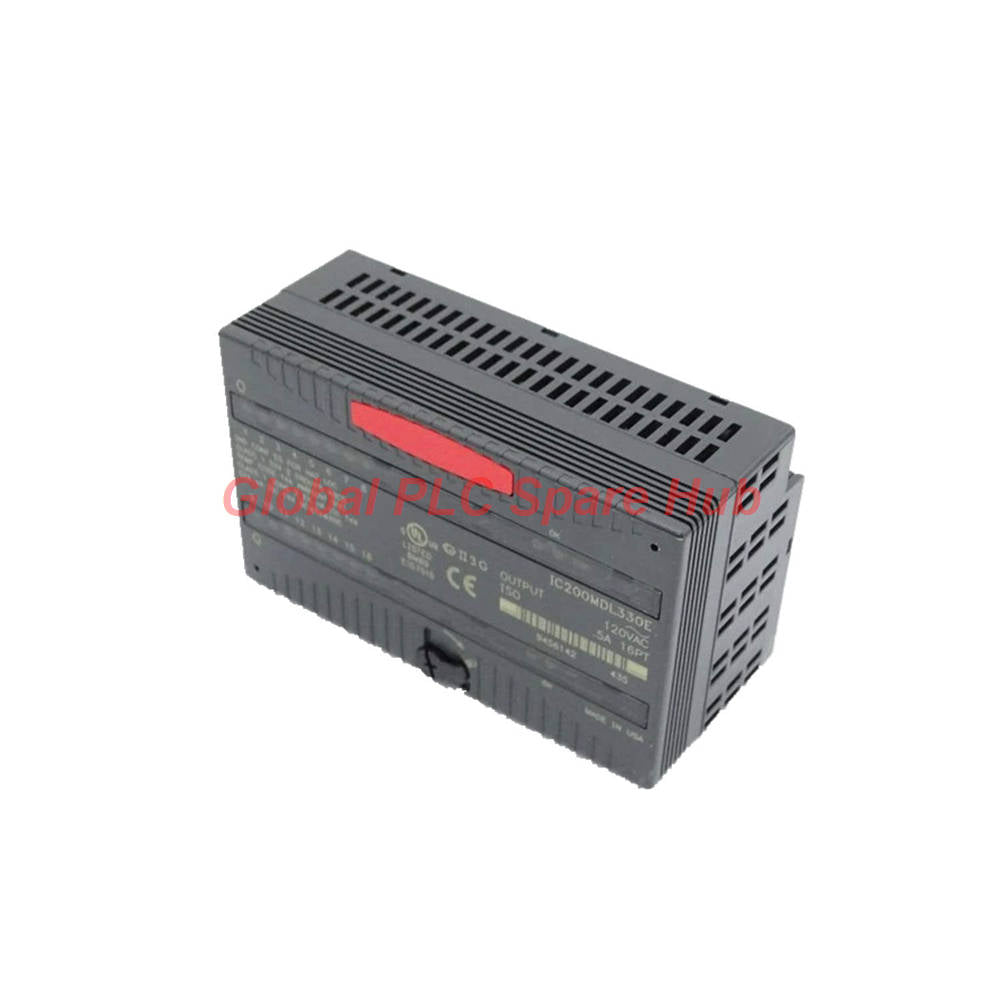

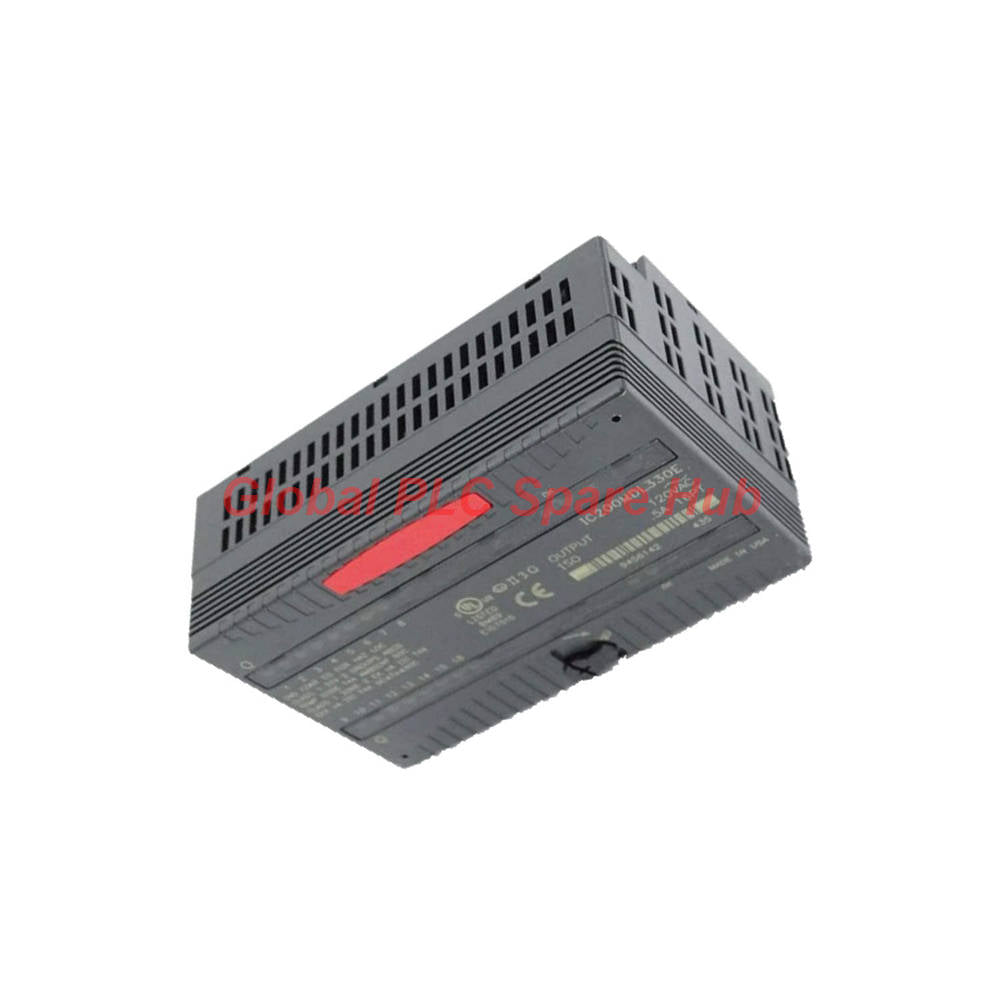

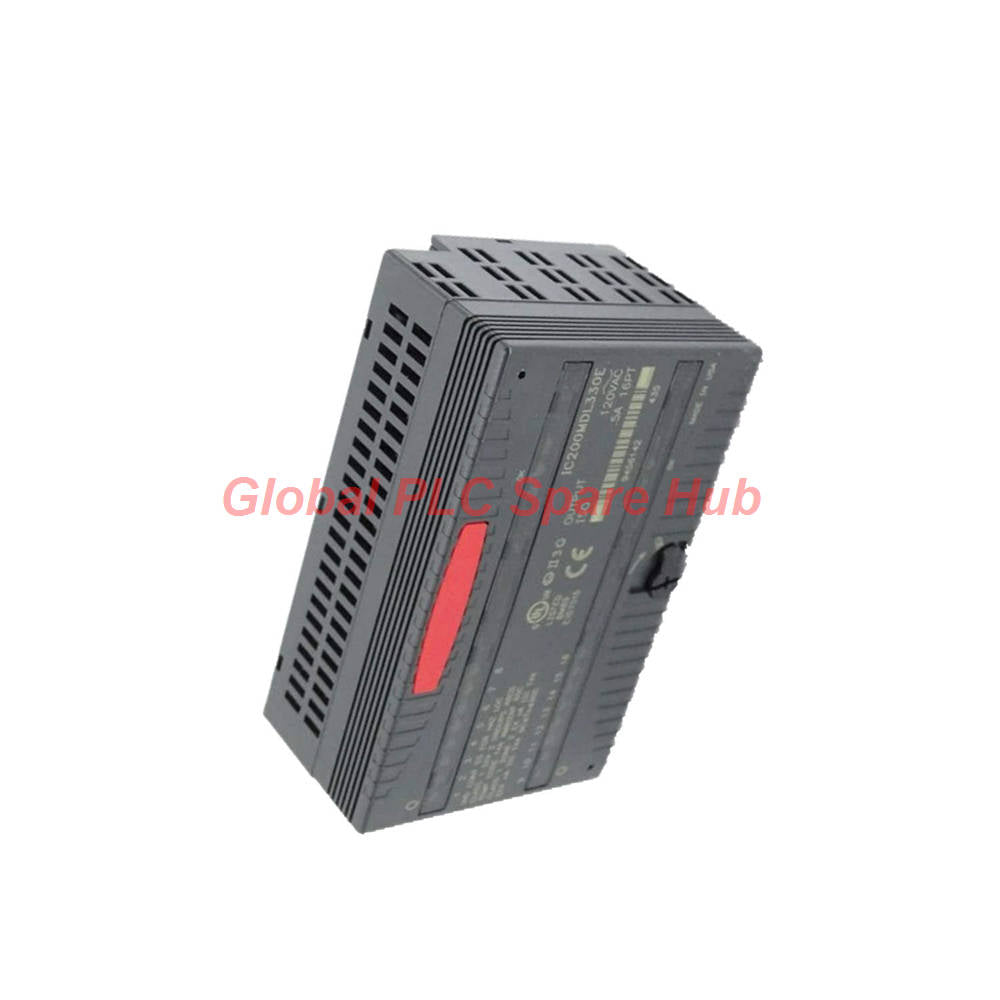

IC200MDL330 Discrete AC Output Module GE Fanuc VersaMax

Overview

The GE Fanuc IC200MDL330 is a high-density 16-point AC discrete output module engineered for the compact VersaMax I/O Series (now under Emerson Automation). Providing sixteen individually isolated output channels, the IC200MDL330 switches field loads operating at a nominal 120 VAC over a functional voltage window of 85 to 132 VAC (47–63 Hz). Designed for distributed control architectures, this solid-state Triac switching card delivers up to 0.5 Amps continuous load current per point with zero mechanical contact wear.

Core Functional & Architectural Highlights

• Complete Channel-to-Channel Isolation: All 16 output channels feature individual optical isolation, preventing ground loops and eliminating cross-channel electrical noise.
• Integrated Transient Protection: Built-in RC snubber circuits and internal Metal Oxide Varistors (MOVs) are hardwired across every channel to suppress high-voltage inductive turn-off spikes.
• High-Speed Triac Switching: Fast half-cycle maximum response time for both turn-on and turn-off transitions in 50/60 Hz utility environments.
• VersaMax Carrier Base Mounting: Installs onto any standard IC200CHSxxx snap-in carrier base, reducing panel assembly time and eliminating complex point-to-point backplane field wiring.
• Comprehensive Visual Diagnostics: Features 16 dedicated point-status LEDs alongside a green backplane OK indicator for immediate visual verification of logic states and power rail health.

Technical Specifications

Target Applications & Hardware Compatibility

• VersaMax Control System Racks: Snap-fits directly into any VersaMax I/O station governed by IC200CPU001, CPU005, CPX118 CPUs, or network interface units (NIUs) including Profibus, Ethernet, and Genius bus headers.
• Industrial Pilot & Annunciator Panels: Drives 120 VAC incandescent indicator lamps, visual beacons, and audible alarm buzzers across manufacturing plants.
• Solenoid & Valve Control: Directly energizes pneumatic cylinder directional valves and small fluid solenoids without requiring external interposing relays.
• Motor Starter & Contactor Control: Actuates NEMA size 0 to size 2 AC magnetic contactor coils in HVAC systems and conveyor handling equipment.

Diagnostic Workflows & Troubleshooting Capabilities

• Backplane Power Health: The single green "OK" LED illuminates when the logic backplane supplies stable 5 VDC. A dark "OK" LED points to carrier power interruption or improper module seating on the IC200CHSxxx base.
• Channel Logic Indication: Each of the 16 numbered yellow LEDs reflects the backplane output state. If an LED is lit but the physical field device fails to actuate, check for open field wiring fuse links or insufficient AC load current.
• Minimum Load Threshold: Because solid-state Triac circuits require a minimum holding current of 10 mA, connecting ultra-low power devices (e.g., high-impedance digital monitor inputs) can cause off-state voltage floating. Adding a bleeder resistor across the load terminal resolves off-state voltage bleed issues.

Order Fulfillment, Shipping & Warranty

• Product Condition: Guaranteed 100% original factory unit, fully tested prior to dispatch.
• 12-Month Guarantee: Includes a comprehensive 12-month replacement warranty from date of invoice.
• Dispatch Handling: Ships from warehouse stock within 24 to 48 business hours.
• Global Express Courier Options: Reliable express door-to-door delivery via FedEx Express, UPS Worldwide, or DHL.

Global PLC Spare HUB's Insight

Solid-state AC output modules present a classic engineering trade-off: unlimited switching cycle lifespan versus off-state leakage current. In retrofitting a packaging line's 120 VAC pneumatic manifold control panel, technicians replaced older mechanical relay cards with the GE Fanuc IC200MDL330 to stop relay contact welding caused by rapid continuous cycling.

While mechanical failures vanished, the engineering team noted that three low-wattage LED pilot lamps remained faintly illuminated even when their corresponding channels were turned off in software. This occurred because the module's internal RC snubber circuit permits a small off-state leakage current (<2 mA at 132 VAC), which was sufficient to charge the gate circuit of low-draw LED bulbs.

The solution was simple: parallel load resistors (or load dummy resistors) were wired across those three specific output terminals to bleed off the leakage current. The installation achieved zero mechanical switching failures over millions of operations while maintaining clean signal isolation across every channel on the carrier rack.

Frequently Asked Questions & Procurement Guide

What installation step prevents solid-state Triac channels from latching in the ON state indefinitely?

Ensure your field load draws at least the specified 10 mA minimum operational holding current. If the load impedance is too high and current drops below 10 mA, the internal Triac may fail to turn off at zero-crossing, causing the output channel to latch ON until power is manually interrupted.

Why does my field multimeter measure nearly 120 VAC on an un-terminated output terminal when the output channel is OFF?

High-impedance multimeters measure voltage passing through the internal RC snubber network embedded across the channel for surge suppression. Connect a standard load or temporary load resistor to the channel, and the off-state voltage reading will immediately collapse to 0 VAC.

Is an external field power supply required to supply backplane logic power to this card?

No. Logic-side operational power (140 mA max) is drawn directly from the backplane via the VersaMax CPU or Network Interface Module. However, external 120 VAC field power must be supplied through the carrier base terminal block to drive the connected load devices.

What precautions should be taken when switching high-inrush inductive loads like large solenoid coils?

Verify that peak initial inrush current does not exceed 5.0 Amps for longer than 20 milliseconds (1 line cycle at 50/60 Hz). Although internal MOVs protect against inductive voltage spikes at turn-off, sustained inrush currents exceeding 5 Amps can thermally degrade the internal Triac junction.

How do I choose between this AC output card and a relay output card (such as IC200MDL940)?

Select this AC Triac unit when controlling 120 VAC loads that require high-frequency, continuous cycle rates where mechanical relay contacts would wear out within months. Choose a relay card if you need zero leakage current, low contact resistance, or need to switch DC voltage loads on the same module.
