IC200MDL241 GE Fanuc VersaMax Discrete Input Module 240 VAC

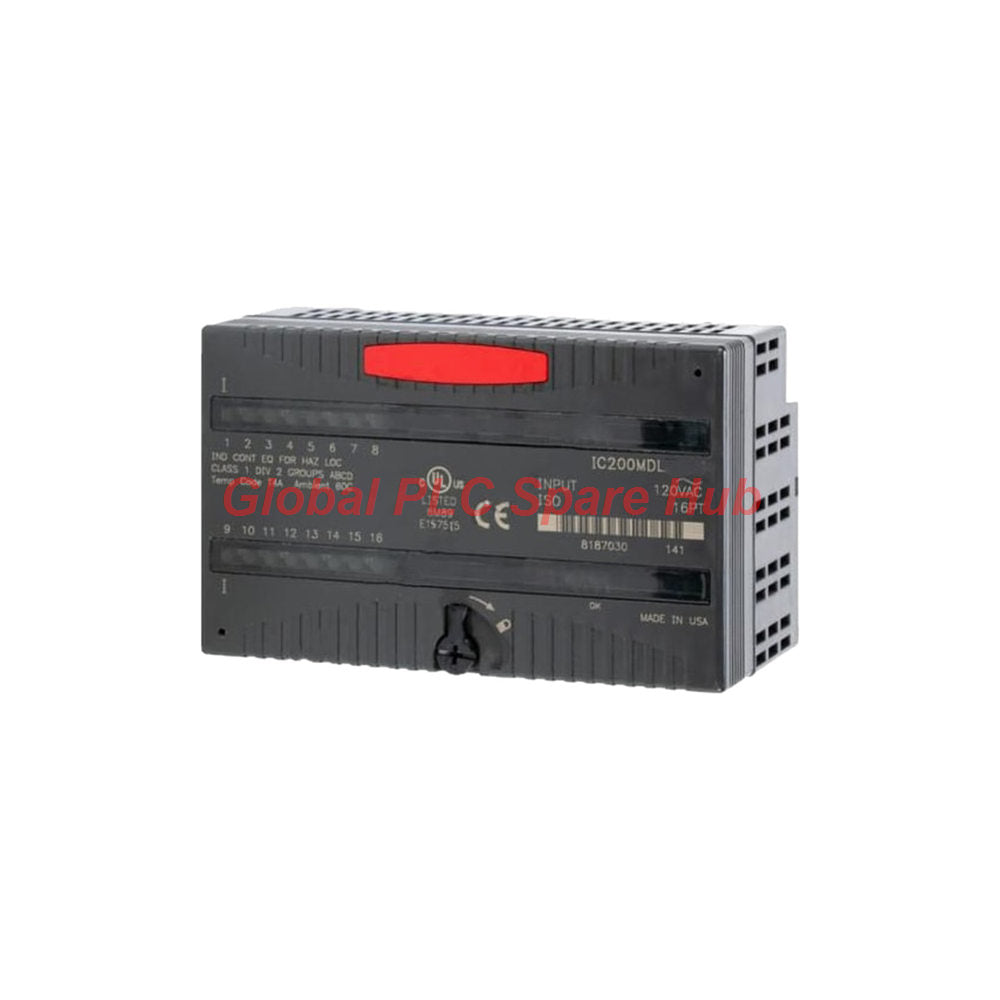

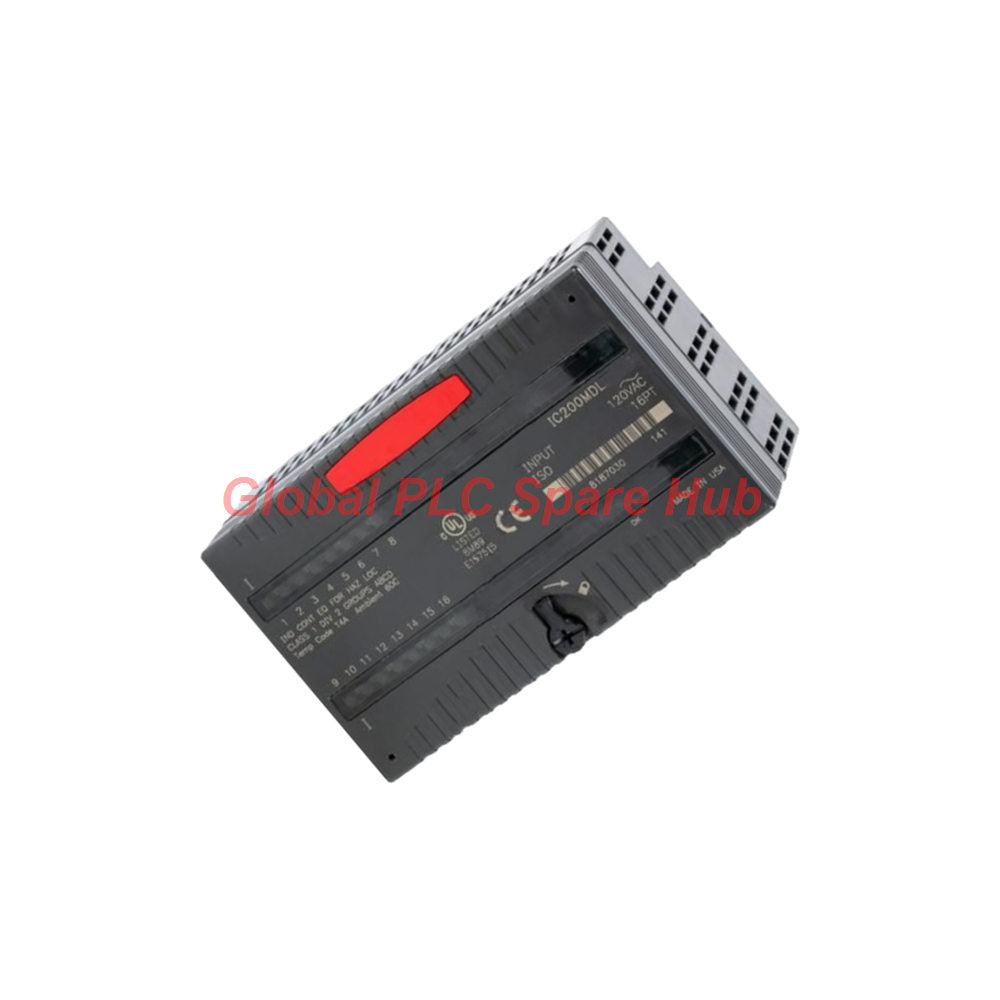

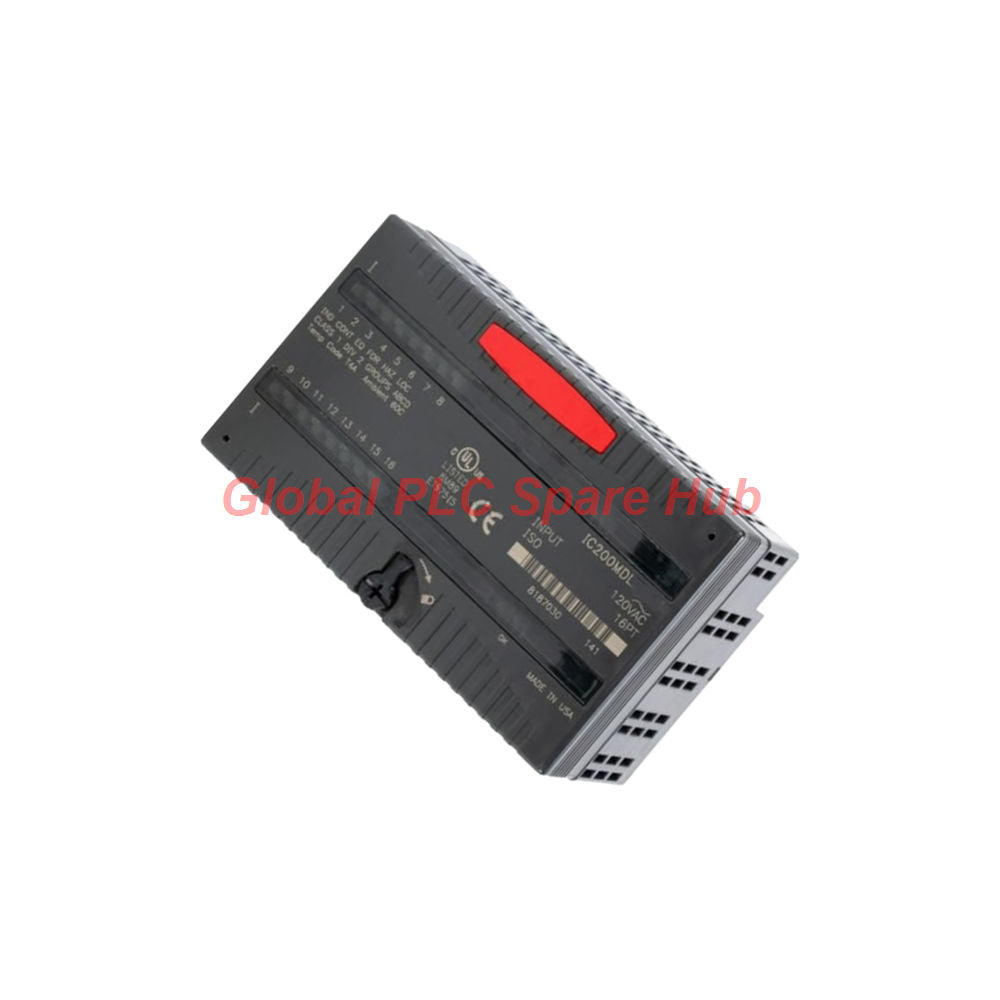

IC200MDL241 GE Fanuc VersaMax 16-Point AC Discrete Input Module

The GE Fanuc IC200MDL241 is a 16-point AC discrete input module for the VersaMax I/O and Control System. It receives two-state signals from field devices and presents their status to the controller as discrete input data for PLC logic processing.

Designed for nominal 240 VAC applications, the module provides 16 non-point-to-point-isolated inputs arranged in two groups of eight. Each input has an individually numbered status LED, while a separate backplane LED indicates module backplane operation. The module draws its operating power from the backplane and is installed on a compatible VersaMax I/O carrier.

01 | Field Signal to PLC Data

Signal path: AC field device → IC200MDL241 input channel → group-level input circuitry → VersaMax backplane → controller input data → PLC logic.

• Field-device interface: Accepts supported AC on/off signals from switches, pushbuttons, and compatible AC-output sensors.
• Channel processing: Handles 16 discrete input points, organized as two groups of eight.
• Status indication: Provides 16 channel LEDs for field-state troubleshooting and one backplane LED.
• Controller interface: Makes input states available to the control system as discrete input data.

The module reports discrete states; it is not an analog measurement device. It should not be selected for continuously variable voltage measurement or for signals outside its specified AC input range.

02 | Electrical and Mechanical Specifications

Electrical selection note: The specified operating range, on-state range, and off-state range leave a transition region between 40 VAC and 155 VAC. Do not assume that voltages in this region will produce a guaranteed logic state. Confirm the manufacturer's switching thresholds and input timing requirements before using the module in a critical interlock.

03 | Two Groups, Eight Inputs Each

The IC200MDL241 has 16 input points divided into two groups. The supplied information specifies group-level isolation but no point-to-point isolation. This distinction matters when field devices belong to different circuits or when troubleshooting ground references and unwanted coupling.

Do not infer terminal assignments or group common wiring from the channel count alone. Use the correct IC200MDL241 wiring diagram and compatible carrier documentation when connecting field circuits.

04 | Equipment and Application Scenarios

• Machine control panels: Monitoring AC-operated limit switches, selector switches, and pushbutton contacts.
• Industrial packaging equipment: Collecting supported AC discrete signals for machine sequencing and operating-state logic.
• Material handling systems: Monitoring compatible field switches and discrete position signals.
• Process auxiliary equipment: Collecting AC status signals from field devices in compatible VersaMax installations.
• Legacy PLC maintenance: Replacing a confirmed faulty input module while preserving the existing VersaMax I/O architecture.

These examples describe potential uses based on the module's input function. Actual suitability depends on the field-device output, wiring design, carrier compatibility, controller configuration, and application safety requirements.

05 | LED-Based Diagnostics and Fault Isolation

The 16 channel LEDs provide a direct comparison between the field input condition and the module's indicated input state. The backplane LED provides a separate indication related to module/backplane operation. Use these indicators as one part of a structured fault-isolation process rather than as proof that the entire control path is functioning correctly.

Diagnostic limitation: The supplied data identifies the LED count but does not define every LED color, blink pattern, or diagnostic code. Confirm the indicator meanings in the applicable GE Fanuc documentation. Do not assume a particular LED pattern indicates a specific failure without that reference.

06 | Replacement and Commissioning Checklist

1. Confirm the part number: Check the installed label for IC200MDL241. Similar VersaMax input modules may have different voltage ratings or input characteristics.
2. Verify the field voltage: Confirm that the application uses compatible AC signals and that normal operating voltage falls within the module's specified thresholds.
3. Check the carrier: Verify the I/O carrier model, terminal arrangement, and installation requirements.
4. Review channel allocation: Record the existing point assignments and group wiring before removing the original module.
5. Check backplane capacity: Allow for the module's maximum stated current consumption of 110 mA at 5 VDC within the system power budget.
6. Verify controller configuration: Confirm the I/O configuration and input references after replacement.
7. Test each point: Where operationally safe, verify field-device activation, channel LED response, and the corresponding PLC logic state.

AC field circuits can present a serious shock hazard. Isolate power and follow the site's electrical safety procedures before handling terminals or removing the module. Do not assume that a module or carrier supports hot swapping merely because a product description mentions snap-in terminals or hot-swap capability; verify the approved procedure for the exact hardware and operating configuration.

07 | Global PLC Spare HUB Review

The IC200MDL241 is best evaluated as a 240 VAC discrete signal acquisition module, not simply as a 16-channel replacement board. Its operating thresholds, two-group input arrangement, and lack of point-to-point isolation directly affect field wiring and fault diagnosis.

For replacement work, the most useful pre-order information is the complete part number, carrier model, field voltage, and a record of the existing channel assignments. For troubleshooting, compare the physical field signal, channel LED, and controller input state in sequence. This separates field-circuit problems from I/O configuration and backplane-related issues more effectively than replacing the module based on a single symptom.

The module's 110 mA maximum backplane current at 5 VDC should be included in the rack power assessment. Before commissioning, also confirm the isolation requirements and input switching thresholds against the applicable manufacturer documentation, especially where the module interfaces with separate field circuits or critical machine interlocks.

08 | Frequently Asked Questions

Q1: Is IC200MDL241 suitable for a 120 VAC field input circuit?

The supplied specifications identify a nominal 240 VAC module, with a stated on-state range beginning at 155 VAC. A 120 VAC signal is below that specified on-state range, so this module should not be selected for a 120 VAC application without authoritative documentation confirming suitability. Choose a module whose specified input thresholds match the actual field voltage.

Q2: Can two field circuits be treated as fully isolated because the module has group isolation?

No. The provided information states that the module has no point-to-point isolation and provides isolation between groups. That does not mean every input is individually isolated. Check the wiring diagram and isolation specifications before connecting circuits with different references or grounding arrangements.

Q3: What should be recorded before replacing an installed input module?

Record the part number, carrier model, channel-to-device mapping, group wiring, field voltage, and the input status observed before removal. Clear records help prevent swapped channels and make post-replacement testing more efficient.

Q4: If the input LED responds correctly, can the field input be considered fully operational?

Not by itself. An illuminated LED indicates that the module is recognizing a channel state, but the controller may still have an addressing, configuration, communication, or logic issue. Confirm that the corresponding PLC input reference changes as expected and that the application logic uses the correct address.

Q5: Which details should be supplied when requesting a replacement quotation?

Provide the full IC200MDL241 part number, required quantity, carrier information, field voltage, unit condition requirements, and a photo of the nameplate if available. If replacing a failed unit, include the observed LED behavior and whether the problem affects one channel, a group of channels, or the whole module. This information helps screen out modules with unsuitable voltage ratings or mounting requirements.

09 | Warranty and Shipping

• Product: GE Fanuc IC200MDL241 VersaMax Discrete AC Input Module.
• Warranty: 12-month warranty, subject to the seller's written terms and the confirmed product condition.
• Shipping: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch Target: 24–48 hours after order and payment confirmation, subject to stock status, processing, and applicable shipping requirements.
• Compatibility Support: Contact us with your system and carrier details before ordering to confirm the required configuration.

Request a quote for IC200MDL241. Include the required quantity, product condition preference, and VersaMax system details to help verify the correct replacement.
