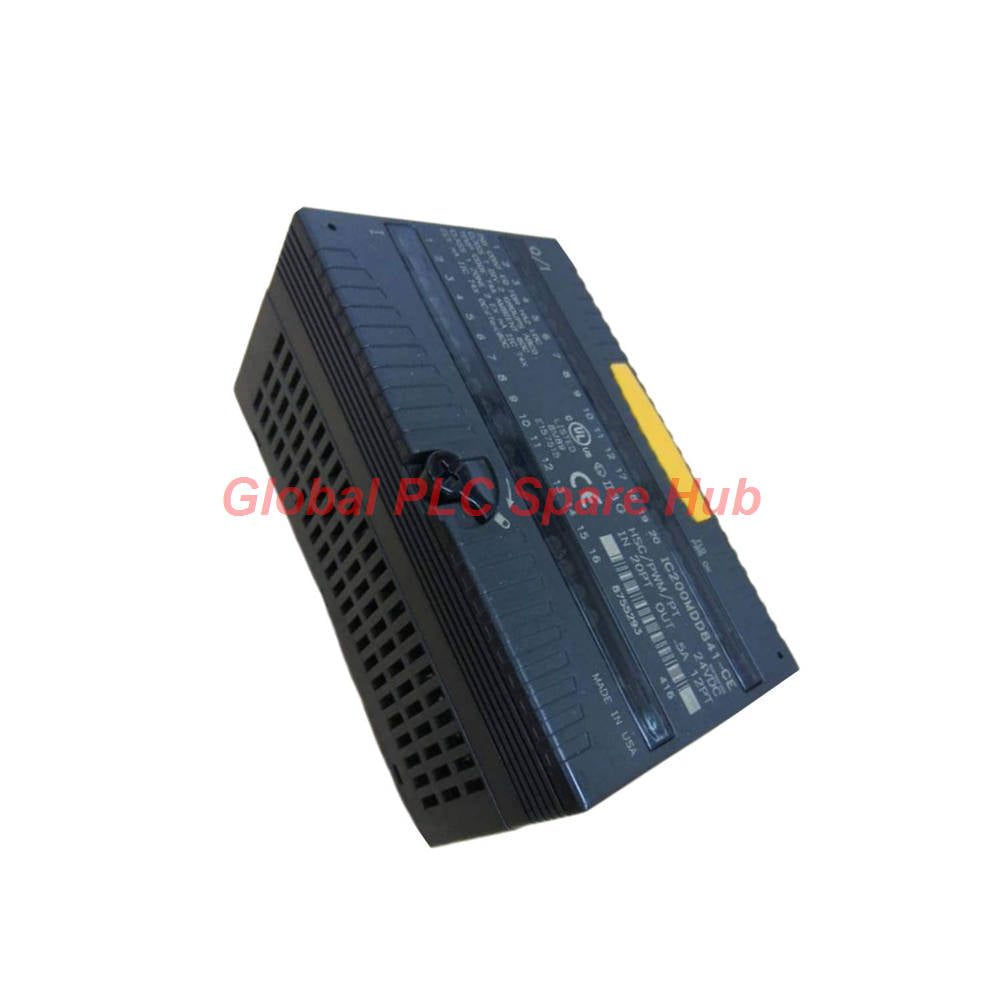

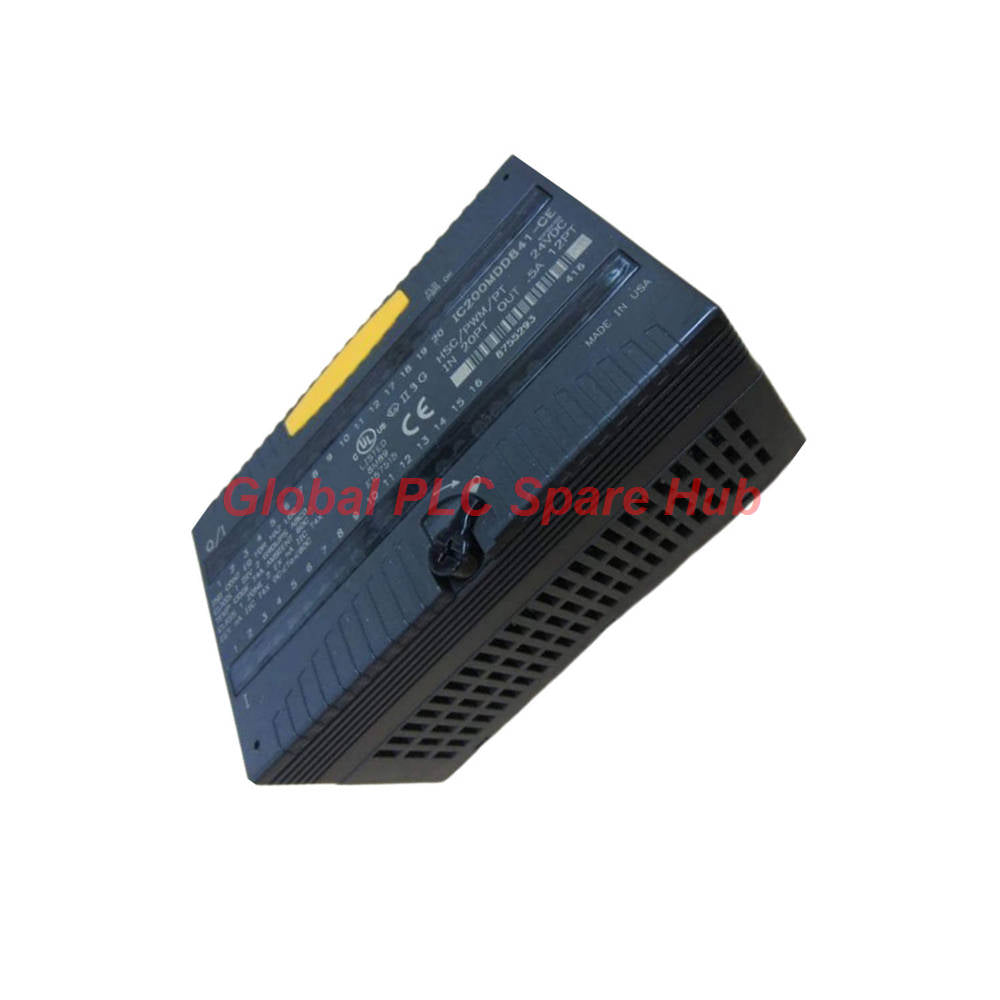

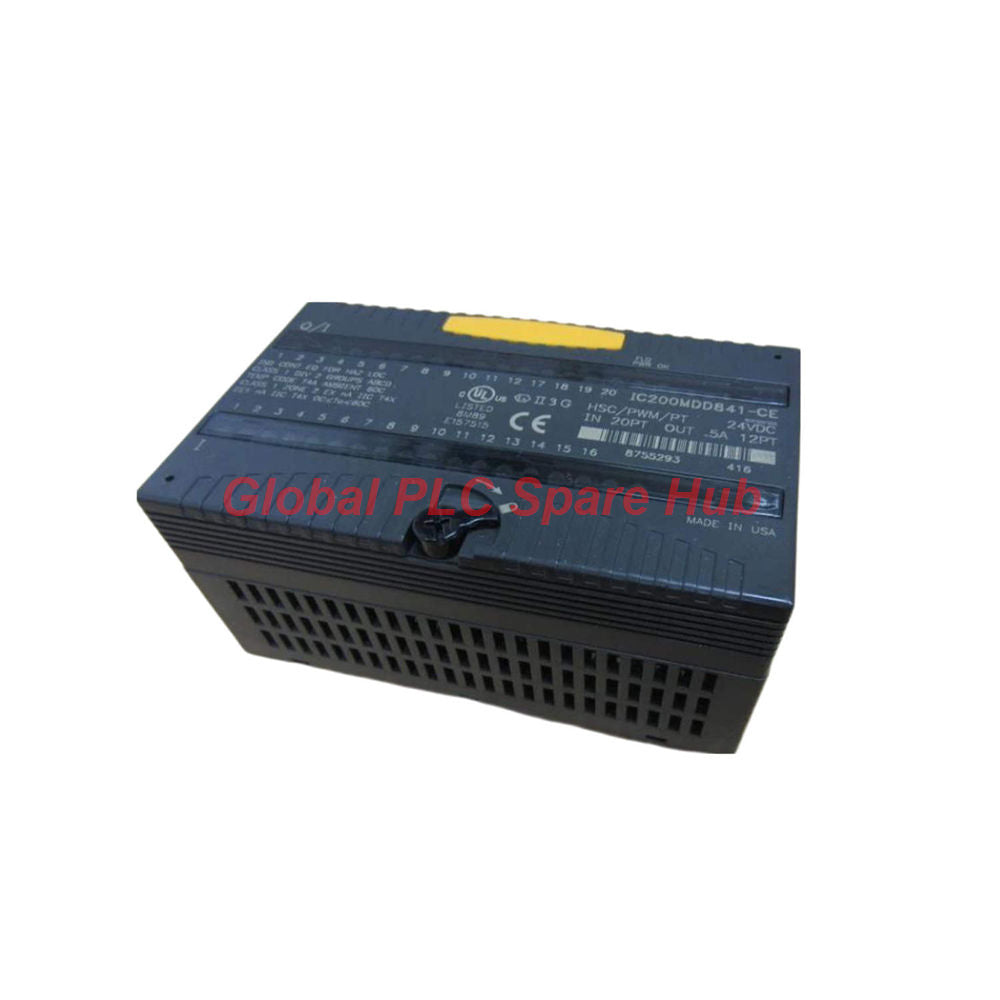

IC200MDD841 GE Fanuc VersaMax Counter Module | 32-Point

High-Speed Pulse Processing with Flexible VersaMax I/O Integration

The IC200MDD841 is a GE Fanuc VersaMax High-Speed Counter Module designed for advanced discrete automation applications.

It combines high-speed counting capability with configurable digital input and output functions.

The module provides 32 mixed I/O points including 20 positive logic inputs and 12 positive logic outputs.

Its flexible architecture supports motion-related applications, pulse control, and industrial sequence monitoring.

The module processes pulse signals up to 80kHz using four Type-A high-speed counters.

Engineers can configure multiple operating modes according to machine requirements.

Product Identity & Application Position

Technical Performance Profile

Configurable Control Functions

• High-speed counting mode for encoder and pulse feedback.
• Pulse train output for motion-related control.
• Pulse width modulation for adjustable output control.
• Ramping pulse train for smoother machine acceleration.
• Flexible I/O assignment adapts to different machine designs.

Suitable Equipment & Systems

The IC200MDD841 fits automation equipment requiring fast pulse acquisition and discrete control.

• Packaging machinery
• Material handling systems
• Servo positioning equipment
• Rotary encoder applications
• Conveyor automation systems
• Counting and inspection machines
• Production line monitoring equipment
• Machine tool control systems
• Industrial indexing equipment

Typical Application Scenarios

Global PLC Spare HUB Review

The IC200MDD841 remains valuable in systems requiring both fast pulse processing and compact I/O expansion.

Field engineers often use this module for encoder feedback because the 80kHz counter capability handles demanding machine speeds.

A practical example involves packaging equipment where the module counts product positions while controlling output sequences.

The configurable architecture reduces hardware changes during machine upgrades.

Technicians benefit from LED indicators and status words during commissioning.

Diagnostic and Monitoring Capability

• LED indicators display module operating status.
• Status data provides up to 13 diagnostic words.
• Error detection assists troubleshooting.
• Pulse counting feedback supports performance verification.
• I/O status monitoring improves maintenance efficiency.

Installation Considerations

1. Install the module in a compatible VersaMax rack.
2. Confirm 24VDC field power availability.
3. Provide separate power for external output loads.
4. Configure counter modes before machine operation.
5. Verify pulse signal wiring and polarity.
6. Check output load requirements during commissioning.

Engineering Notes from Field Experience

• The module does not provide individual channel isolation.
• External protection should be considered for sensitive applications.
• Stable power quality improves pulse counting accuracy.
• Proper grounding reduces signal disturbance.
• Encoder cable routing affects high-speed signal reliability.

Package Contents

• IC200MDD841 High-Speed Counter Module ×1
• Industrial protective packaging
• Product identification label
• Quality inspection before shipment

Shipping & Warranty

Professional FAQ

Q1. What makes this module different from standard VersaMax digital I/O modules?

This module adds high-speed counting and pulse processing functions beyond normal discrete control.

It is designed for machines requiring fast event detection.

Q2. Can the high-speed counter inputs connect directly to encoder signals?

Yes, the counter functions support pulse-based feedback devices when signal specifications match.

Engineers should verify voltage level and wiring requirements before connection.

Q3. What should users check when pulse counting becomes unstable?

Review cable shielding, grounding, signal quality, and encoder wiring.

Electrical noise is a common cause of incorrect counting results.

Q4. How should buyers select this module for machine upgrades?

Confirm required counter channels, output quantity, voltage level, and VersaMax compatibility.

Future expansion requirements should also influence module selection.

Q5. Is additional protection recommended for output devices?

Yes, external protection may improve reliability because the module does not include individual channel isolation.

Relay interfaces are often used for higher-power field loads.

Selection Guide

• Select the IC200MDD841 for VersaMax systems requiring high-speed counting.
• Choose this module for mixed digital input and output applications.
• Recommended for encoder-based automation equipment.
• Suitable for pulse control and production counting tasks.
• Ideal for compact machine control architectures.

The GE Fanuc IC200MDD841 VersaMax High-Speed Counter Module provides flexible I/O configuration, fast pulse processing, and reliable diagnostics for advanced industrial automation systems.
