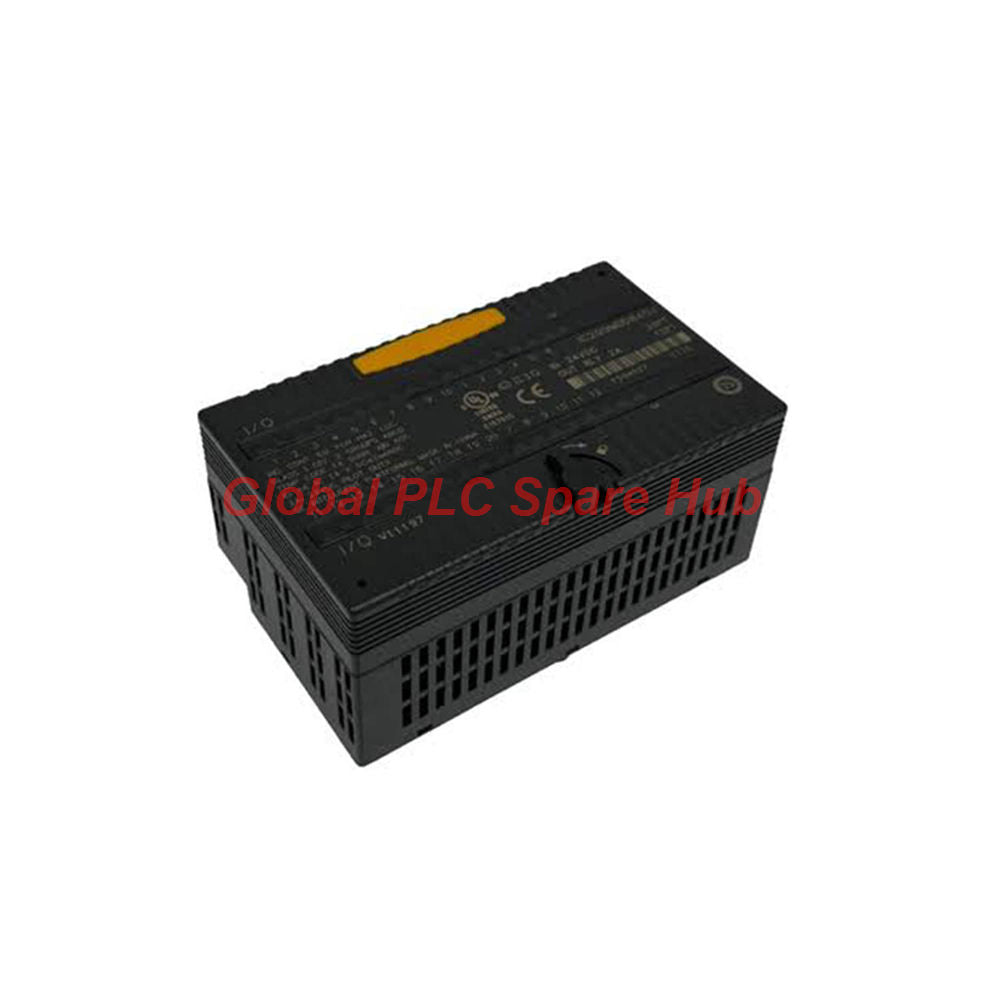

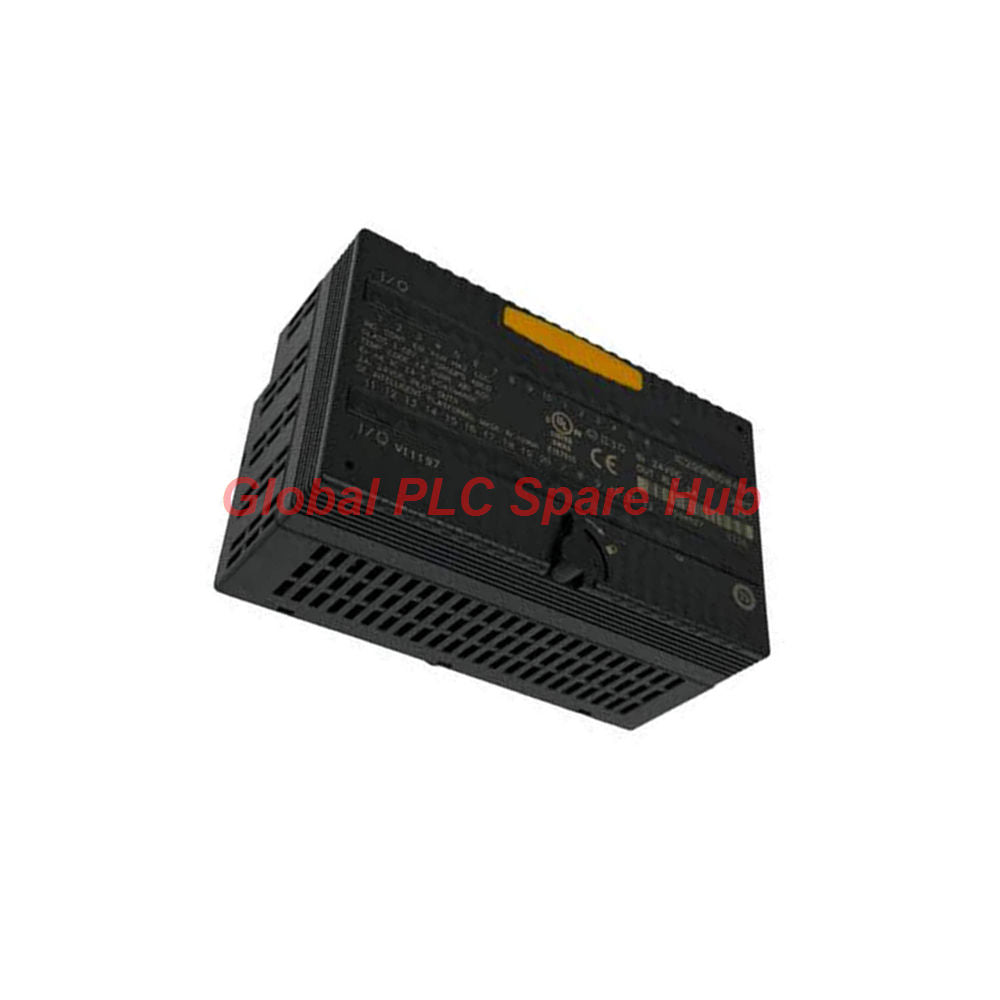

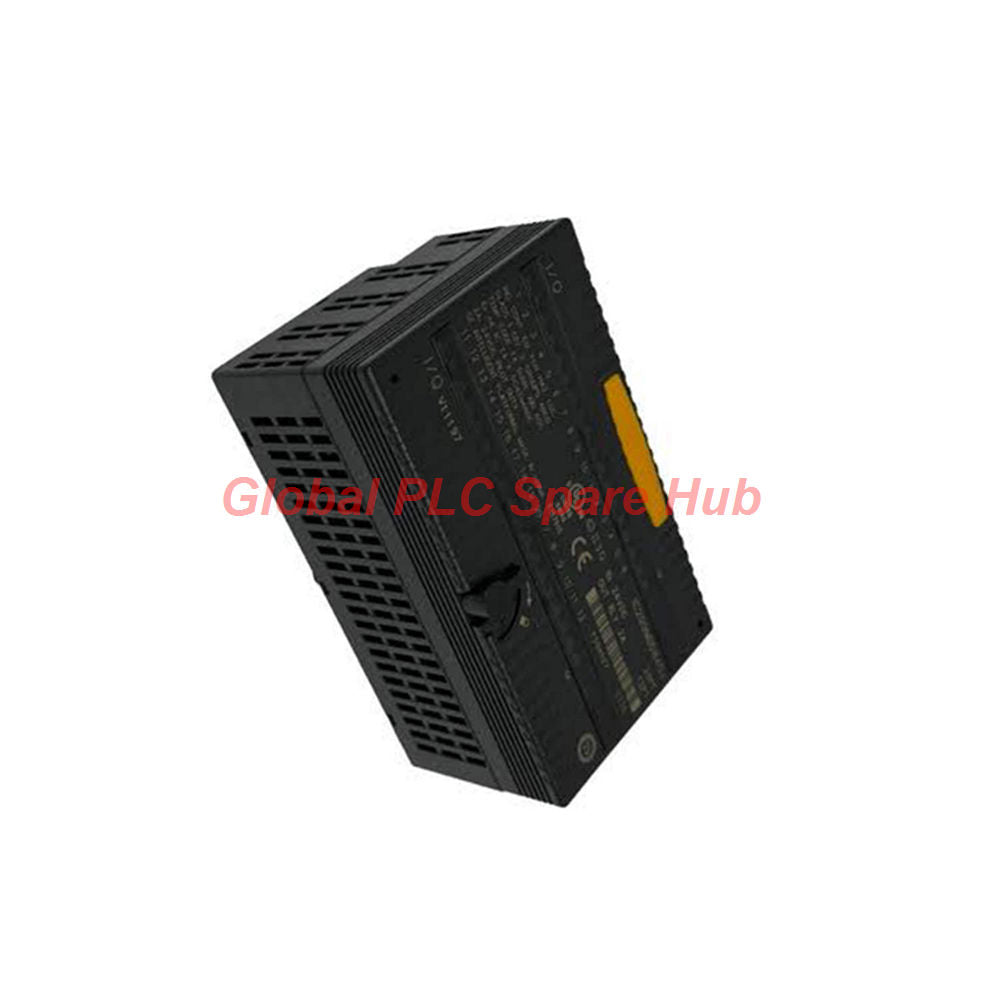

IC200MDD840 Discrete Input Output Unit GE Fanuc

Product Overview

The IC200MDD840 GE Fanuc Emerson VersaMax Discrete I/O Module is a high-density combination interface designed for space-critical PLC architectures.

This single-slot assembly integrates 20 sourcing 24V DC input channels alongside 12 Form A relay contact outputs, maximizing backplane rack real estate.

Field signals route through central processing units (CPU) or Network Interface Units (NIU) to execute real-time discrete control loops.

Engineers deploy this module to eliminate external interposing relays while consolidating field power connections within compact control cabinets.

Technical Specifications Table

Target Equipment & Application Scenarios

• Packaging & Palletizing Lines: Reads optical photo-eyes and proximity sensors while directly driving solenoid valves and starter coils.
• Pumping Station Control Skids: Monitors high/low float switches while switching 120V AC alarms and auxiliary motor starters without interposing hardware.
• HVAC Air Handling Units (AHU): Processes pressure switch inputs and commands damper actuators across distributed VersaMax I/O drop locations.

Advanced Diagnostic Capabilities

Visual status inspection relies on individual channel green LED indicators mapped directly to each input and output terminal.

A master OK LED continuously verifies backplane communication integrity and logic bus power availability.

Field technicians utilize software-configurable input filter settings (0 to 1.0 ms) to suppress mechanical contact bounce and electrical line noise.

Global PLC Spare HUB's Insight & Field Experience

During a system overhaul at a commercial bottling facility, mechanical relay contact bounce caused false input counts on high-speed capping machinery.

Additionally, inductive voltage spikes from external 120V AC solenoids regularly damaged un-fused relay banks on third-party controllers.

Our automation engineering team supplied the IC200MDD840 combined module and recommended two key installation practices:

• Increasing the software input filter time to 1.0 ms directly eliminated false trigger counts caused by mechanical switch chatter.
• Adding external fast-acting inline fuses and surge suppression diodes across the relay contacts protected the Form A silver-alloy junctions from inductive arc degradation.

Implementing these simple design adjustments achieved zero unexpected I/O faults across 18 months of continuous operating cycles.

Packaging, Delivery & Warranty Terms

We test and securely ship every IC200MDD840 module in ESD-shielded packaging to ensure field readiness.

Orders dispatch within 24 to 48 hours via fast global express carriers including FedEx, UPS, and DHL.

All items come backed by full 12-month warranty coverage against operational defects.

Frequently Asked Questions (FAQ)

Q1: Does the IC200MDD840 contain internal fuses to protect relay contacts against short-circuit overloads?

A1: No, internal fuses are omitted from this assembly; external fast-blow inline fuses must be wired upstream on each relay channel group.

Q2: How does adjusting the input filter time from 0 ms to 1.0 ms impact high-speed signal capture?

A2: Setting a 1.0 ms filter rejects transient contact bounce noise effectively, but introduces a minor processing delay unsuitable for high-frequency pulse counters.

Q3: Can individual channels within the same relay group switch different operating voltages simultaneously?

A3: No, channels within each 6-point output group share a common power supply line, requiring identical voltage sources across that specific group.

Q4: Why is external inductive suppression recommended when switching DC solenoid valves with this relay module?

A4: Inductive collapse creates high voltage spikes that pit silver alloy contacts; installing flyback diodes dissipates reverse EMF and extends contact life.

Q5: What factors should engineers verify when selecting replacement modules for legacy VersaMax installations?

A5: Confirm backplane power budget head-room (375 mA maximum draw), field wiring carrier keying positions, and ensure suppliers include a 12-month warranty.
