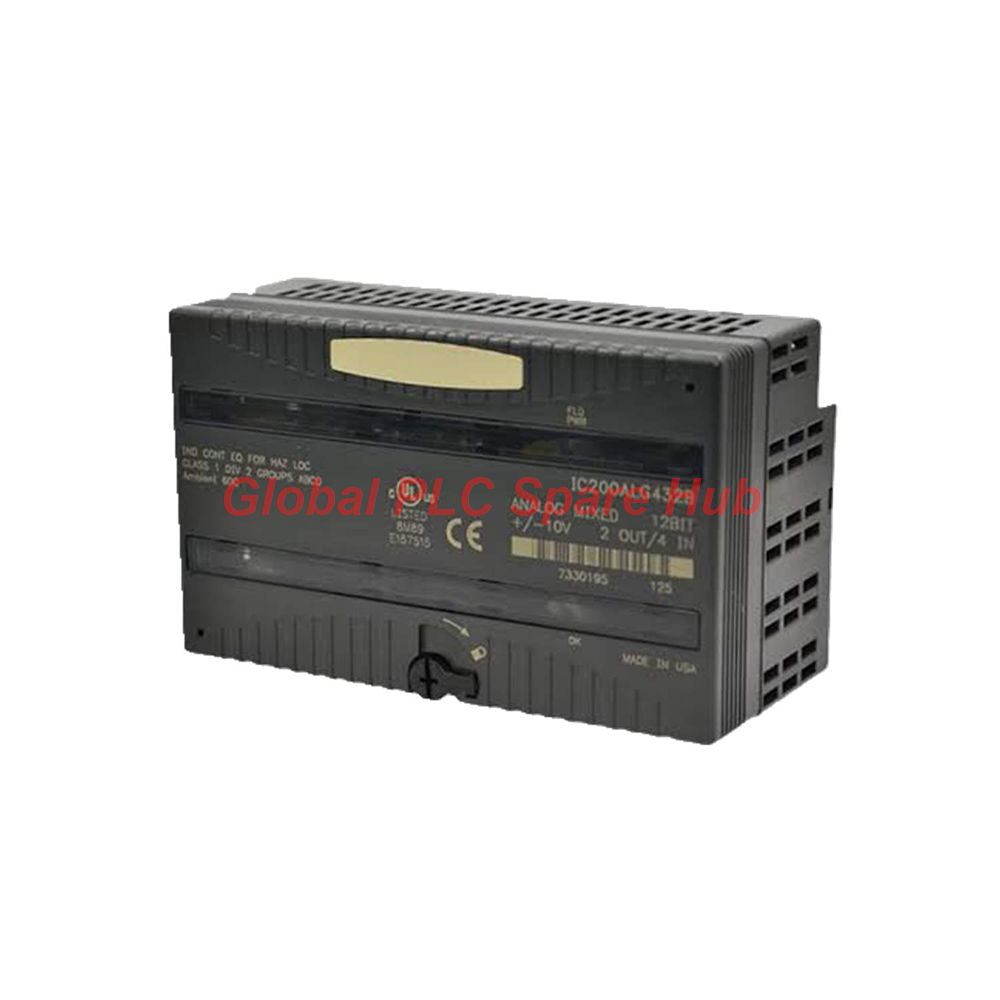

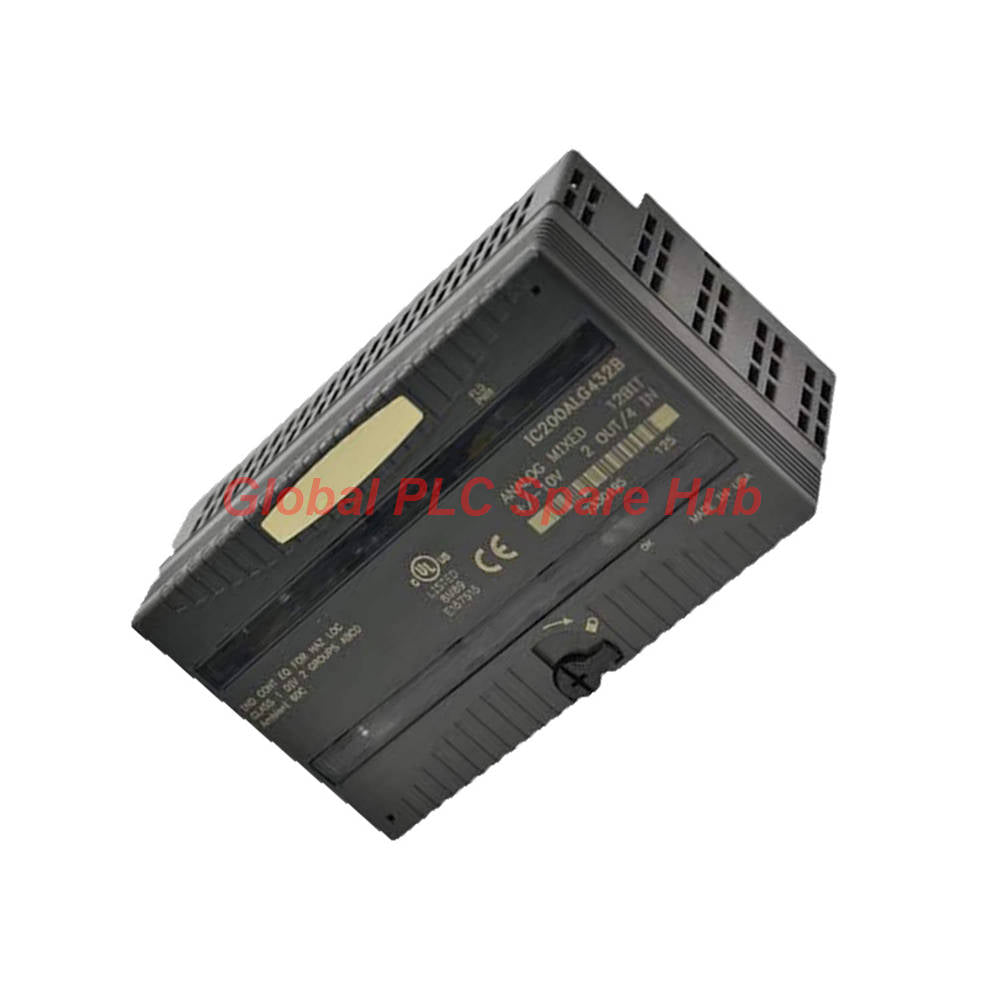

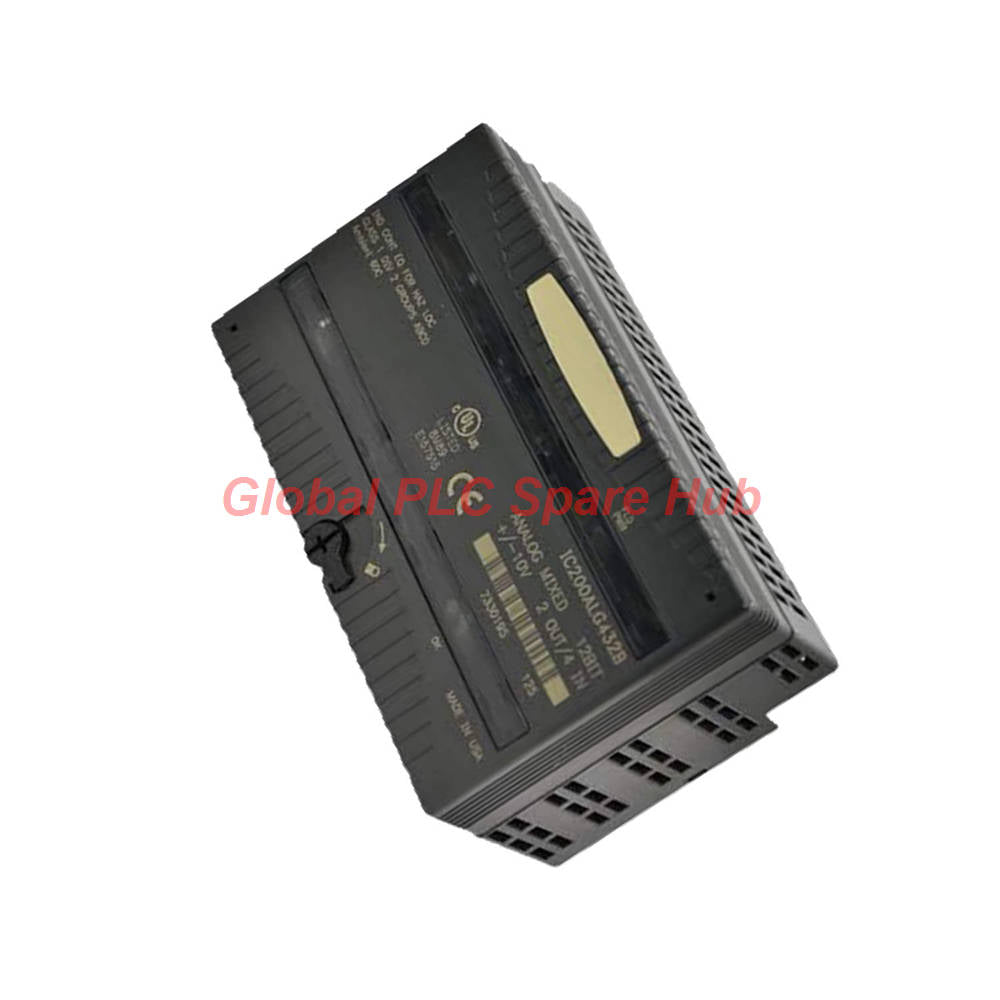

IC200ALG432 Versamax GE Fanuc Analog Unit - Ready to Ship

Global PLC Spare HUB Review

Our test bench evaluation of the IC200ALG432 highlights its reliable conversion speed in compact PLC nodes. During a recent commissioning of a skid-mounted water treatment system, we noticed that grounding the shield drain wire exclusively at the panel entry point eliminated low-level analog signal drift across the mixed I/O channels. For automation professionals deploying this Versamax unit in high-vibration enclosures, utilizing a separate isolated DC supply for the loop power rather than sharing it with high-current actuators prevents common-mode noise corruption and stabilizes the 12-bit conversion readings.

Key Technical Parameters & Architecture

• Brand: GE Fanuc
• Series: Versamax
• Model / Part Number: IC200ALG432
• Module Type: Mixed Analog Module
• Input / Output Channels: 4 input channels and 2 output channels
• Conversion Resolution: 12-bit digital representation (8 counts base resolution)
• Update Rate: 0.4 milliseconds processing cycle
• Input Response Time: 5 milliseconds maximum
• Operating Voltage: 10 Volts DC nominal supply
• Accuracy Metrics: +/-0.3% of full scale at 25°C; +/-1% maximum at 60°C
• Power Consumption: 160 mA total operation current; 60 mA from 5VDC backplane bus
• Common Mode Voltage: 0 Volts standard rating
• Thermal Performance: Zero thermal derating across standard operating parameters

Deployment & Maintenance Guidelines

• Mounting Standards: Install on standard DIN rails within grounded metallic enclosures to mitigate ambient electromagnetic interference.
• Environmental Limits: Ensure maximum operating temperatures remain strictly under 60°C to maintain specified measurement accuracy.
• Wiring Practices: Separate low-voltage analog signal cables from high-voltage AC power lines to prevent induced signal errors.
• Power Isolation: Connect dedicated external power sources for loop-powered transmitters to safeguard internal conversion circuitry.

System Diagnostics & Operational Monitoring

• Power Fault Detection: Built-in diagnostic routines instantly flag user-side power loss on the output circuitry.
• Status Indicators: Front-panel LEDs provide real-time visual verification of backplane communication status and power distribution health.

Compatible Hardware & Target Applications

• Compatible Controllers: Versamax CPU backplanes and expansion racks
• Industrial Applications: Skid-mounted process skids, wastewater treatment monitoring systems, HVAC environmental controllers, and automated assembly test benches.

Logistics, Fulfillment & Warranty Terms

• Fulfillment Carriers: Expedited global shipping via FedEx, UPS, and DHL.
• Dispatch Timeline: Guaranteed dispatch within 24 to 48 hours of order verification.
• Warranty Coverage: Comprehensive 12-month replacement warranty covering material and workmanship defects.

Frequently Asked Questions (FAQ)

How does the IC200ALG432 handle power loss on the output side?

The module features dedicated internal diagnostic circuits that actively monitor user-side power supplies and flag faults to the CPU immediately upon voltage drops.

Why is my analog reading fluctuating despite stable input signals?

Field experience indicates that ungrounded shield cables or shared power loops introduce common-mode noise. Running independent twisted-pair shielded cables usually resolves this instability.

What backplane current draw should be factored into power budget calculations?

The module draws 60 mA directly from the 5VDC backplane bus, while total operational consumption reaches 160 mA including external loop demands.

Can this mixed module operate safely in high-temperature control panels?

Yes, it operates up to 60°C with zero thermal derating, though accuracy shifts from +/-0.3% at room temperature to +/-1% at the upper thermal limit.

What criteria should guide my selection when replacing older analog blocks?

Verify that your application requires a combined 4-input and 2-output architecture, confirm your rack supports the Versamax form factor, and ensure your control environment matches the 10VDC supply requirements.
