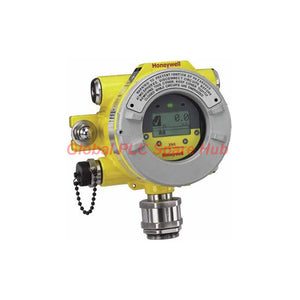

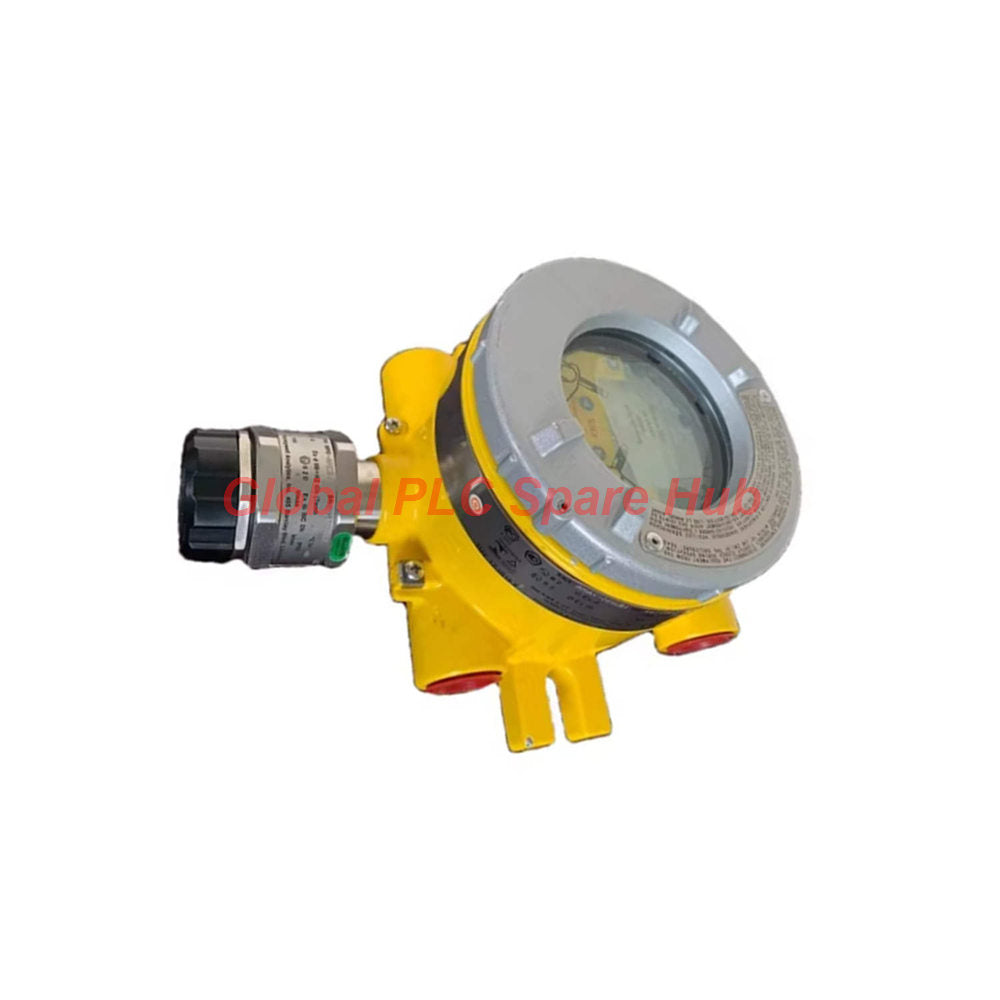

Honeywell XNX-AMAI-RNCB1 Universal Gas Transmitter | Catalytic Bead Sensor

Honeywell XNX Universal Transmitter Product Overview

The Honeywell XNX-AMAI-RNCB1 is an advanced universal gas transmitter designed for robust industrial environments. Engineered by Honeywell Analytics, this unit supports infrared gas detectors and catalytic bead sensors. It provides reliable monitoring for hazardous areas requiring stringent safety protocols. The XNX-AMAI-RNCB1 features a durable aluminum enclosure suited for harsh plant conditions. Its modular architecture simplifies system integration across diverse process control networks.

Global PLC Spare HUB's Insight

Global PLC Spare HUB technical specialists frequently deploy the XNX-AMAI-RNCB1 in offshore drilling rigs and petrochemical processing units where explosive gas mixtures present daily hazards. During a recent commissioning project at a North Sea natural gas terminal, our engineering team evaluated transmitter response stability against environmental temperature swings. We observed that the integrated catalytic bead sensor array maintained sub-second detection thresholds even under sudden ambient cooling. This field performance confirms that proper ground shielding on the 4-20mA loop prevents ground loops caused by long cable runs across large industrial yards. Maintenance technicians appreciate the plug-and-play personality board replacement, which eliminates the need for complete unit recalibration during sensor module swaps.

Technical Specifications

Installation and Mounting Guide

• Mount the XNX-AMAI-RNCB1 rigidly on vertical walls or structural pipes using certified brackets.
• Position the sensor pointing downward to prevent moisture and particulate accumulation.
• Ensure clearance around the M25 cable entries for secure conduit connection and wiring access.
• Verify earth grounding continuity to protect internal circuitry against lightning surges and electrical noise.

Commissioning and Maintenance Efficiency

• Power up the XNX-AMAI-RNCB1 and observe the local LC display initialization sequence.
• Use magnetic calibration wands to perform zero and span adjustments without opening the housing in hazardous zones.
• Inspect optical windows and sintered metal flame arrestors quarterly for dust or chemical scaling.
• Replace plug-in sensor cells rapidly during scheduled turnarounds without rewiring terminal blocks.

Compatibility and Technical Selection Guidance

The XNX-AMAI-RNCB1 operates seamlessly with Searchline Excel, Searchpoint Optima, and standard 4-20mA controllers. When evaluating options for plant expansion, compare this unit with the alternative model XNX-AMAI-NHCB1 Honeywell XNX Gas Transmitter Local HART. Technical Advice: Select the XNX-AMAI-RNCB1 when hardwired alarm relay integration is required directly at the field unit. Choose the alternative model if digital HART diagnostic polling via control system asset management software takes priority over local relay switching.

Diagnostics and Troubleshooting Capabilities

• Continuous self-test routines monitor sensor health, lamp degradation, and internal power supply voltages.
• Fault codes appear instantly on the local display interface to guide instrument technicians during troubleshooting.
• 4-20mA output fault levels drop to configurable failure states to alert safety logic solvers immediately.
• Event logging tracks historical calibration cycles and sensor exposure peaks for predictive maintenance auditing.

Certifications and Standards Compliance

• ATEX / IECEx: Certified for use in Zone 1 and Zone 2 hazardous classified gas atmospheres.
• Ingress Protection: Certified IP66 rating for high-pressure water washdown resistance.
• EMC Directive: Tested against rigorous electrical disturbance and surge immunity criteria.

Packaging, Logistics, and Warranty Terms

• Packaging Contents: One XNX-AMAI-RNCB1 transmitter, catalytic bead sensor module, mounting hardware kit, and user manual.
• Dispatch Lead Time: Fast 24-48 hour order processing and global dispatch.
• Shipping Carriers: Express delivery via FedEx, UPS, and DHL.
• Warranty Terms: Comprehensive 12-month manufacturer defect warranty included.

Frequently Asked Questions (FAQ)

Q: Can the XNX-AMAI-RNCB1 sensor be replaced in an active hazardous area?

A: Yes, intrinsic safety approvals allow plug-in sensor head replacement without de-energizing the entire loop when local hot-work permits allow.

Q: What causes a persistent zero-drift fault on the catalytic bead input?

A: Accumulated silicone poisoning or chronic exposure to sulfur compounds can degrade catalytic pellet efficiency, requiring sensor cell replacement.

Q: How do I verify that the internal relay outputs are functioning correctly during testing?

A: Use the local menu configuration tool to force relay states manually and check continuity across terminal blocks using a multimeter.

Q: Is specialized software required for routine calibration?

A: No, routine calibration is performed entirely via the local magnetic switch interface without external laptop software.
