General Electric IS200ERIOH1A EX2100 Mark VI Exciter Regulator IO

Overview

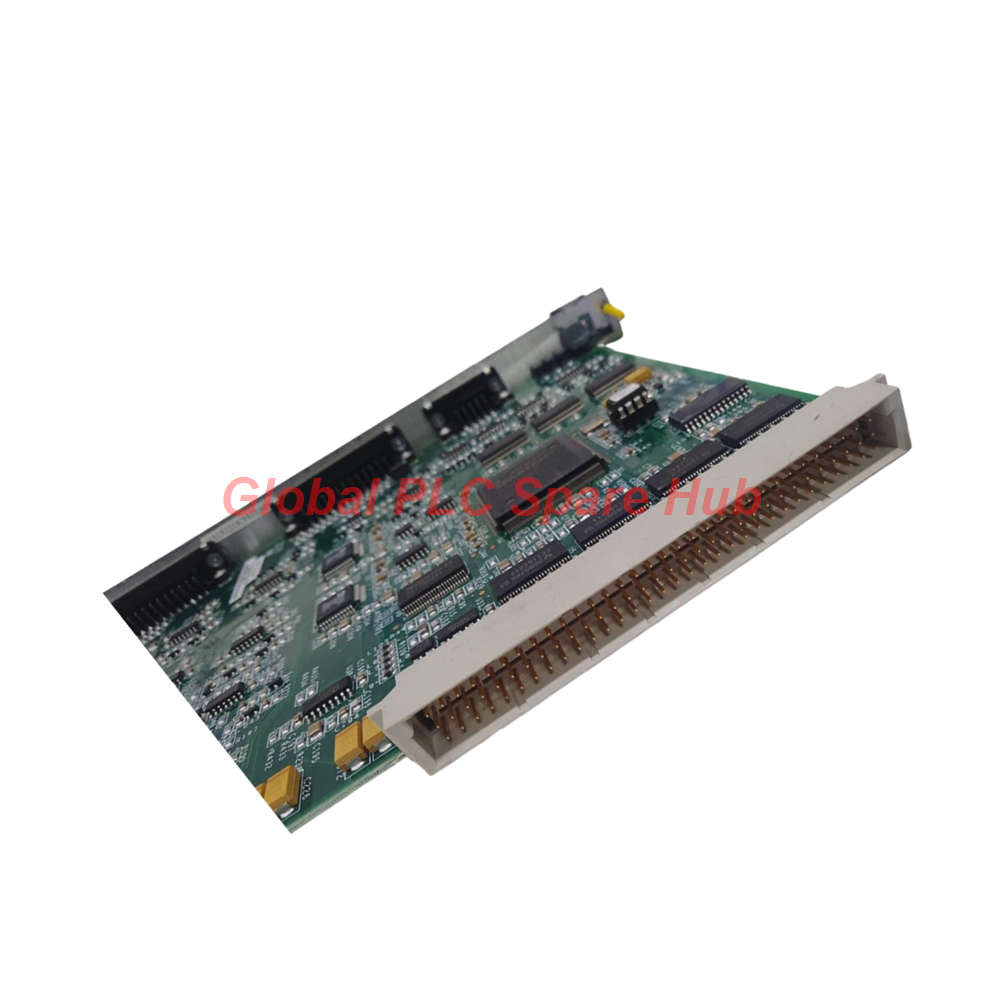

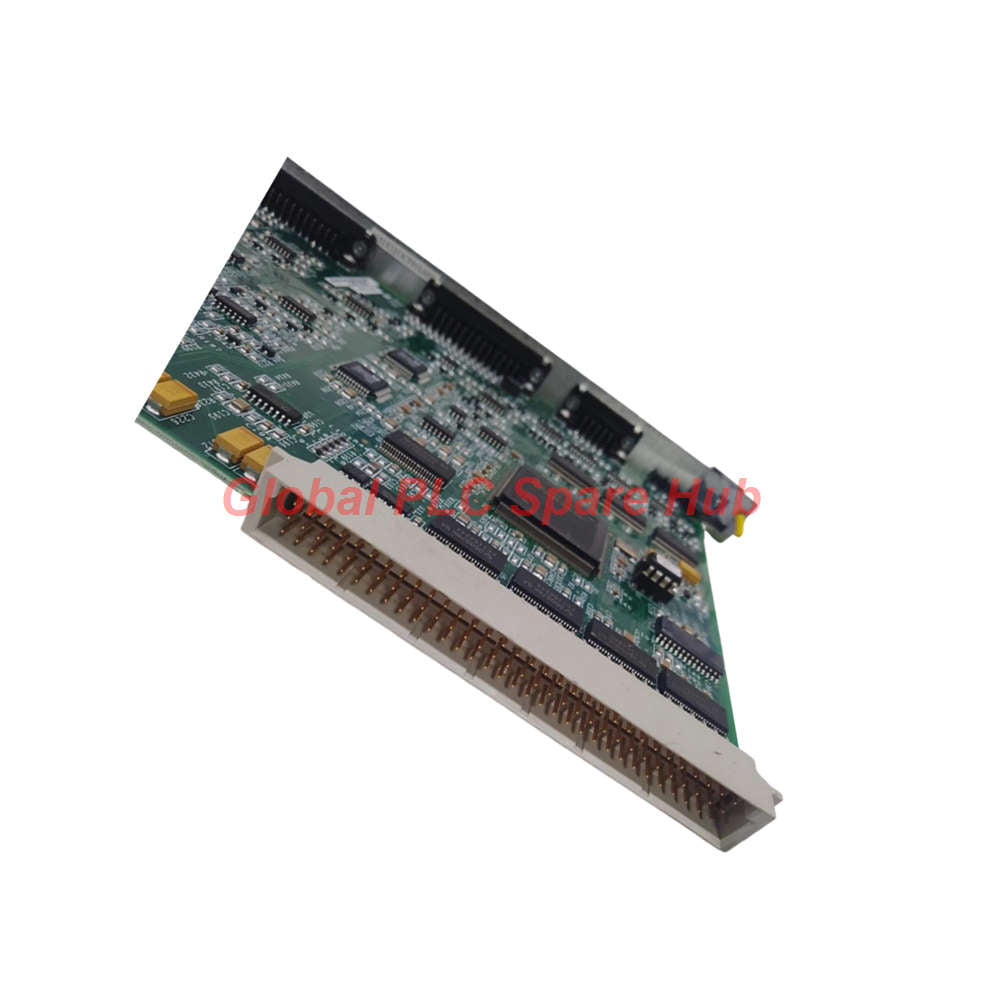

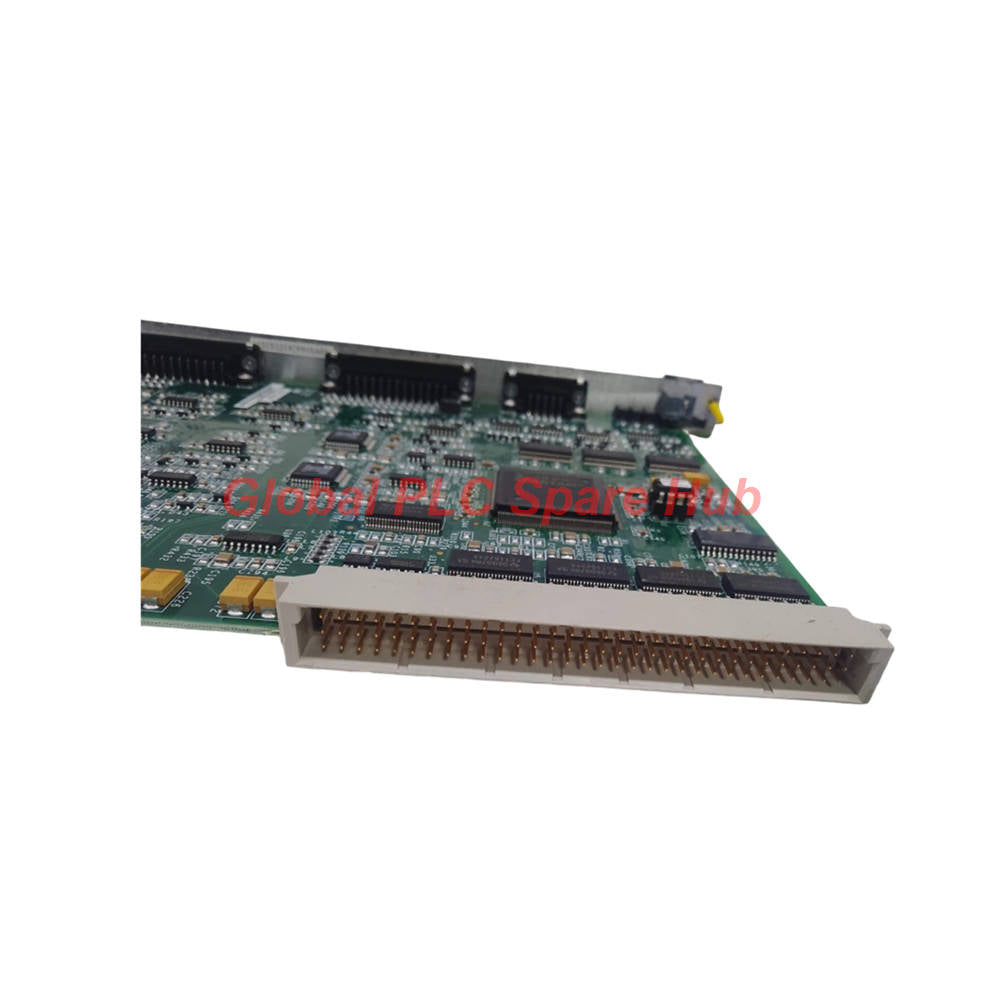

The GE IS200ERIOH1A serves as a vital Exciter Regulator I/O board within the Mark VI EX2100 excitation system. This specialized module manages both system and customer I/O interfaces across simplex and redundant architectures. It features an onboard FPGA to control high-speed data acquisition and storage directly into Dual Port Memory (DPM) for real-time control.

Product Architecture and Key Components

• Processing Architecture:
  • Dual CPU sockets support local control algorithms.
  • One high-performance Field-Programmable Gate Array (FPGA) manages data flow.
  • Integrated Dual Port Memory (DPM) speeds up data interchange.
• Physical Interfaces:
  • Double-wide front faceplate houses an integrated toggle switch.
  • Two rear edge backplane connectors (P1 and P2) ensure secure backplane mating.
  • Two 25-pin pin-header connectors interface directly with ECTBG2 and EPCT terminal boards.
• Signal Routing:
  • Routes customer I/O signals through ECTBG2 and EPCT terminal boards.
  • Handles internal system I/O signals from EROC and ERDD control cards.
  • Routes redundant relay signals through the ERRR board in triple-modular configurations.

System Mounting and Configuration

• Simplex System Mounting:
  • Installs directly into the ERBP (Exciter Regulator Backplane) slot.
  • Interfaces customer signals from ECTBG2 and EPCT terminal blocks.
  • Connects options and interface boards (EROC/ERDD) over the backplane bus.
• Redundant System Mounting:
  • Requires three IS200ERIOH1A units per system.
  • Mounts across ERBP M1, ERRB M2, and ERRB C backplanes.
  • Interfaces system I/O directly to the ERRR redundant relay board.

Technical Specifications

Installation Guidelines

• Pre-Installation Safety Steps:
  • De-energize the EX2100 cabinet power before servicing the card.
  • Wear an ESD grounding wrist strap attached to the metal enclosure frame.
  • Verify the backplane slot designation (ERBP M1 or ERRB M2/C).
• Insertion and Board Seating:
  • Align the module edges carefully with the card guide rails.
  • Slide the card inward until rear connectors touch the backplane.
  • Press the faceplate levers firmly to seat P1 and P2 edge connectors completely.
  • Tighten top and bottom faceplate mounting screws to ensure grounding path integrity.

Maintenance and Diagnostics Capabilities

• Hardware Status Diagnostics:
  • Front panel toggle switch provides manual mode selection and reset capability.
  • Onboard status registers report bus hardware faults to the primary CPU.
  • FPGA continuously monitors DPM read/write integrity.
• Field Maintenance Convenience:
  • System log capture records I/O channel telemetry continuously.
  • Front faceplate permits direct physical access to the toggle switch mechanism.
  • Edge connectors allow straightforward removal without disturbing external field wiring.

Compatibility and Certifications

• System Compatibility:
  • Fully compatible with GE Mark VI control platforms.
  • Directly interfaces with EROC, ERDD, EPCT, and ECTBG2 terminal boards.
  • Integrates seamlessly with ERBP and ERRB backplane assemblies.
• Certifications:
  • UL listed for industrial control equipment applications.
  • CE marked for European industrial electromagnetic compatibility directives.

Packaging and Global Logistics

• Package Contents:
  • One GE IS200ERIOH1A Exciter Regulator I/O Module.
  • Anti-static protective packaging shell with shock-absorbing foam inserts.
• Warranty Terms:
  • Includes a comprehensive 12-month operational warranty.
• Dispatch & Express Shipping:
  • Dispatched within 24 to 48 hours following order confirmation.
  • Express global delivery handled via FedEx, UPS, or DHL.

Typical Application Scenarios

• Power Plant Synchronous Generator Excitation:
  • Manages excitation regulation feedback in utility-scale thermal power generators.
  • Controls field current feedback through the EPCT interface.
• Industrial Drive Field Control:
  • Interfaces I/O signals for high-horsepower synchronous motor drives.
  • Stabilizes grid voltage fluctuations via rapid FPGA logic processing.

Global PLC Spare HUB's Insight

In field excitation systems like the GE EX2100, field engineers often encounter system trip alarms linked to loss of feedback. During an emergency response at a gas turbine plant, our engineering team diagnosed recurring excitation trips on a triple-redundant controller. The IS200ERIOH1A board located in the ERRB M2 slot experienced intermittent DPM read errors due to localized contact oxidation on the P1 backplane connector pin array. Re-seating the IS200ERIOH1A card restored stable DPM data flow to the processor instantly.

We recommend inspecting the gold-plated pins on the P1/P2 connectors whenever you perform routine maintenance. Always use isopropyl alcohol wipes during routine retrofits to keep pin contact resistance low, preventing bus communication faults.

Frequently Asked Questions (FAQ)

Q: How many IS200ERIOH1A boards do I need for a redundant EX2100 control rack?

A: You need three IS200ERIOH1A boards for a fully redundant setup. They mount into the ERBP M1, ERRB M2, and ERRB C backplanes.

Q: What is the main function of the onboard FPGA chip on this board?

A: The FPGA handles high-speed data collection and manages continuous storage into Dual Port Memory (DPM) for the system CPU.

Q: Can I hot-swap the IS200ERIOH1A card while the exciter is actively online?

A: No. You must de-energize power to the specific EX2100 rack section before removing or inserting the board to prevent circuit damage.

Q: What does the "A" suffix mean at the end of the IS200ERIOH1A part number?

A: The "A" revision letter indicates the initial functional design revision of the original circuit board layout by General Electric.

Q: How do I select between a Simplex and Redundant IS200ERIOH1A configuration?

A: Check your cabinet drawing. Simplex systems use one card in the ERBP backplane. Redundant systems require three cards mounted across ERBP M1 and ERRB M2/C slots.
