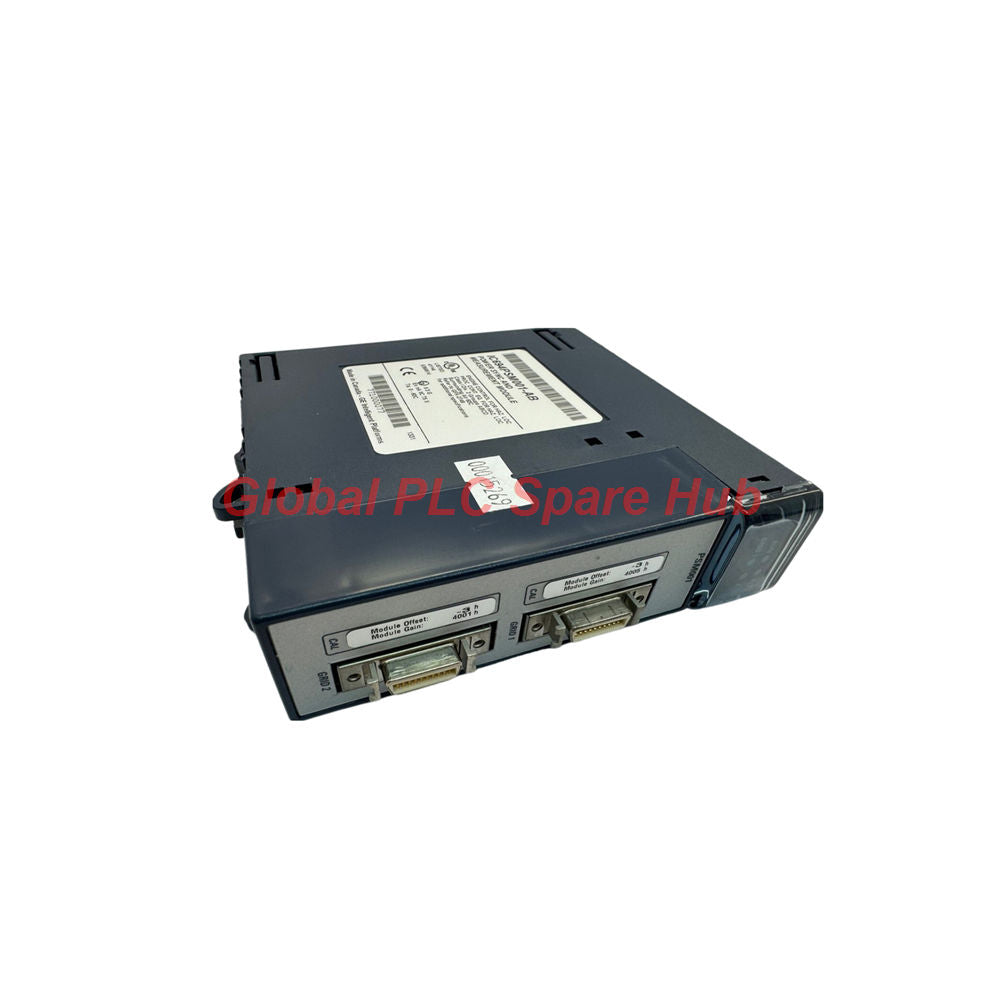

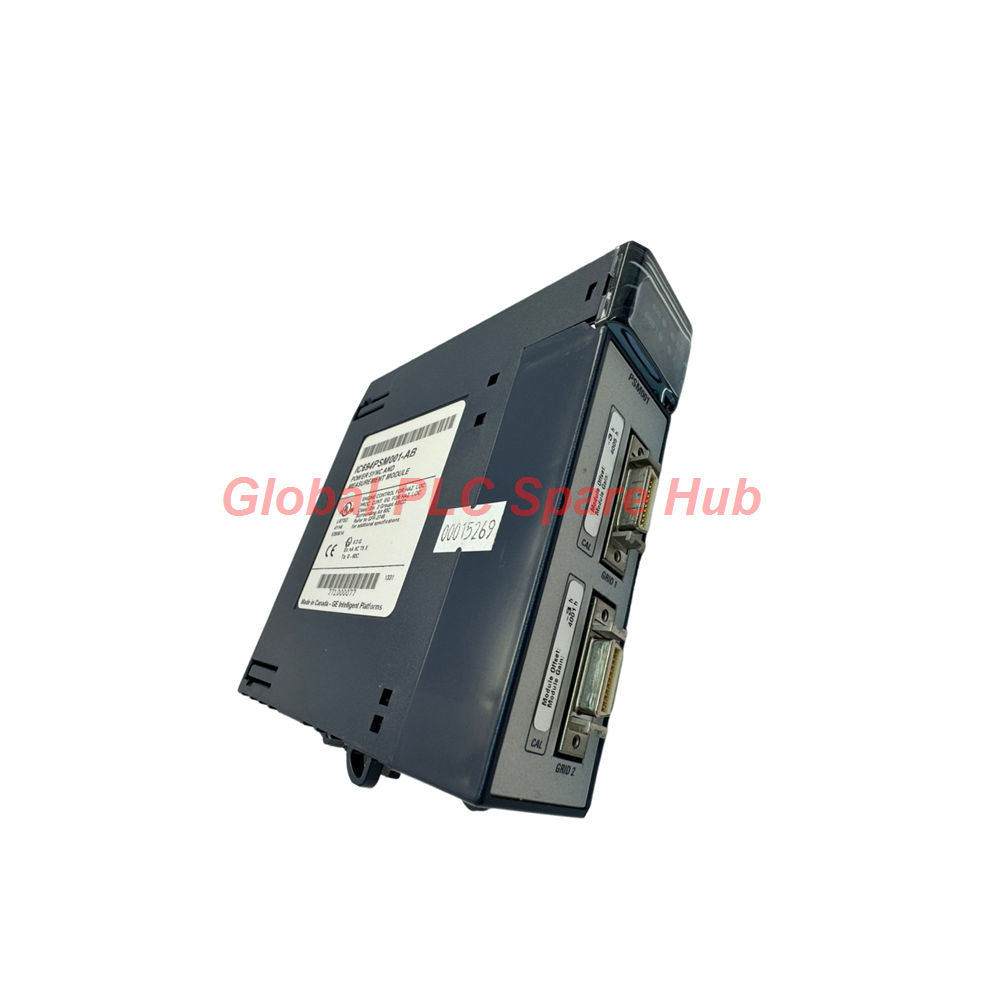

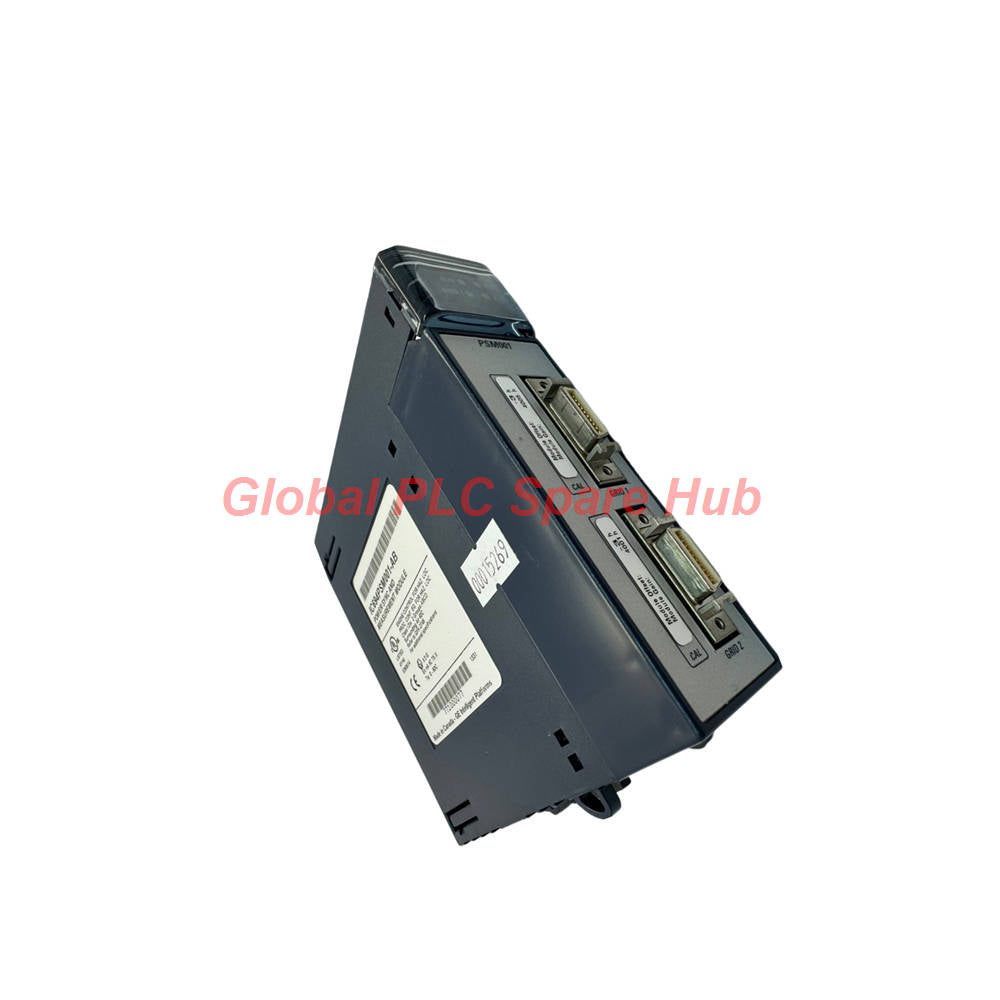

GE Fanuc RX3i IC694PSM001 Power Sync Module | PacSystems

Overview

The GE Fanuc IC694PSM001 Power Sync and Measurement (PSM) module delivers high-precision grid monitoring for RX3i PacSystems architectures. Engineered to continuously analyze two independent power grids, this module processes four current inputs and three voltage inputs per grid using advanced Digital Signal Processor (DSP) technology. Engineers deploy the IC694PSM001 to calculate RMS power, RMS voltage, RMS current, line frequency, and voltage phase relationships in real time. It supports single-phase, 3-phase Wye, and 3-phase Delta electrical configurations to optimize generator synchronization, fault monitoring, and demand penalty reduction.

Technical Specifications

System Integration & Compatibility

• Requires RX3i PacSystems CPU Firmware Version 7.70 or higher for full operational support.
• Installs exclusively into the main CPU rack or primary backplane of the PLC.
• Supports Hot-Swapping to allow module insertion or removal while backplane power remains active.
• Connects to dedicated terminal assemblies and interface cables to complete the physical PSM assembly.

Installation Guide & Maintenance

• Verify backplane keying before inserting the IC694PSM001 module into the main CPU rack.
• Align the module securely with the backplane guide rails to ensure proper terminal connection.
• Firmly press the upper and lower levers until the locking tabs snap into place.
• Attach external terminal assemblies and shield ground cables to prevent signal noise interference.
• Perform hot-swap replacements without removing system power during active plant operations.

Diagnostics & Operational Capabilities

• Calculates continuous phase angle differences between Grid 1 and Grid 2 for precise generator synchronization.
• Monitors peak power consumption to execute automated load shedding strategies and reduce penalty costs.
• Reports high-resolution voltage drops and frequency variations for immediate system fault logging.
• Transmits diagnostic data arrays directly to the RX3i PacSystems CPU memory registers.

Target Industrial Applications

• Utility power grid synchronization and main breaker transfer control schemes.
• Industrial generator control systems requiring precise phase matching before grid connection.
• Facility peak demand management and real-time power quality logging.
• Fault monitoring on dual utility feeds in critical industrial processing plants.

Certifications, Packaging & Shipping

• Certifications: UL, CE, and cULus industrial control standard approvals.
• Package Contents: Factory sealed IC694PSM001 PSM module with protective anti-static packaging.
• Warranty: Complete 12-Month Quality Warranty coverage included.
• Shipping Options: Express delivery via FedEx, UPS, or DHL.
• Dispatch Time: Fast dispatch within 24 to 48 hours after payment confirmation.

Selection Guide

When selecting grid monitoring hardware for the GE Fanuc RX3i PacSystems platform, verify your application requirements against the system architecture. Choose the IC694PSM001 when your facility requires dual-grid monitoring, fast phase angle calculation, or direct generator synchronization within the main CPU rack. Confirm that your CPU runs firmware 7.70 or higher. For simple single-line voltage monitoring without dual-grid sync requirements, standard analog input modules may suffice, but they lack the fast DSP calculations built into the IC694PSM001.

Global PLC Spare HUB's Insight & Field Experience

Field commissioning teams routinely encounter synchronization faults during generator transfer operations when relying on software-calculated phase angles. The IC694PSM001 solves this issue by executing hardware-level DSP processing directly on the module backplane. During a recent field installation at a cogeneration facility, our engineers observed a 45 millisecond reduction in generator synchronization times after replacing external transducer loops with the IC694PSM001. Additionally, ensure proper grounding on the CT/PT interface cables; floating shield connections represent the primary source of harmonic noise in high-current switchgear installations.

Frequently Asked Questions (FAQ)

Can I install the IC694PSM001 module in an expansion backplane?

No, you must install this module in the main CPU rack or primary backplane of the RX3i PacSystems PLC.

Does the IC694PSM001 require a system shutdown during replacement?

No, the module fully supports hot-swapping under live backplane power conditions.

Which firmware version is necessary for the RX3i PacSystems CPU?

The RX3i PacSystems CPU requires firmware version 7.70 or newer to recognize the module.

Field Experience: What causes inaccurate power factor readings on a newly installed module?

Inverted current transformer polarity on the interface wiring typically causes negative power factor or false phase shift errors.

Field Experience: How do I clear a backplane communication timeout alert after hot-swapping?

Ensure the locking latches engage completely; partial seating prevents the high-speed data bus from initializing properly.
