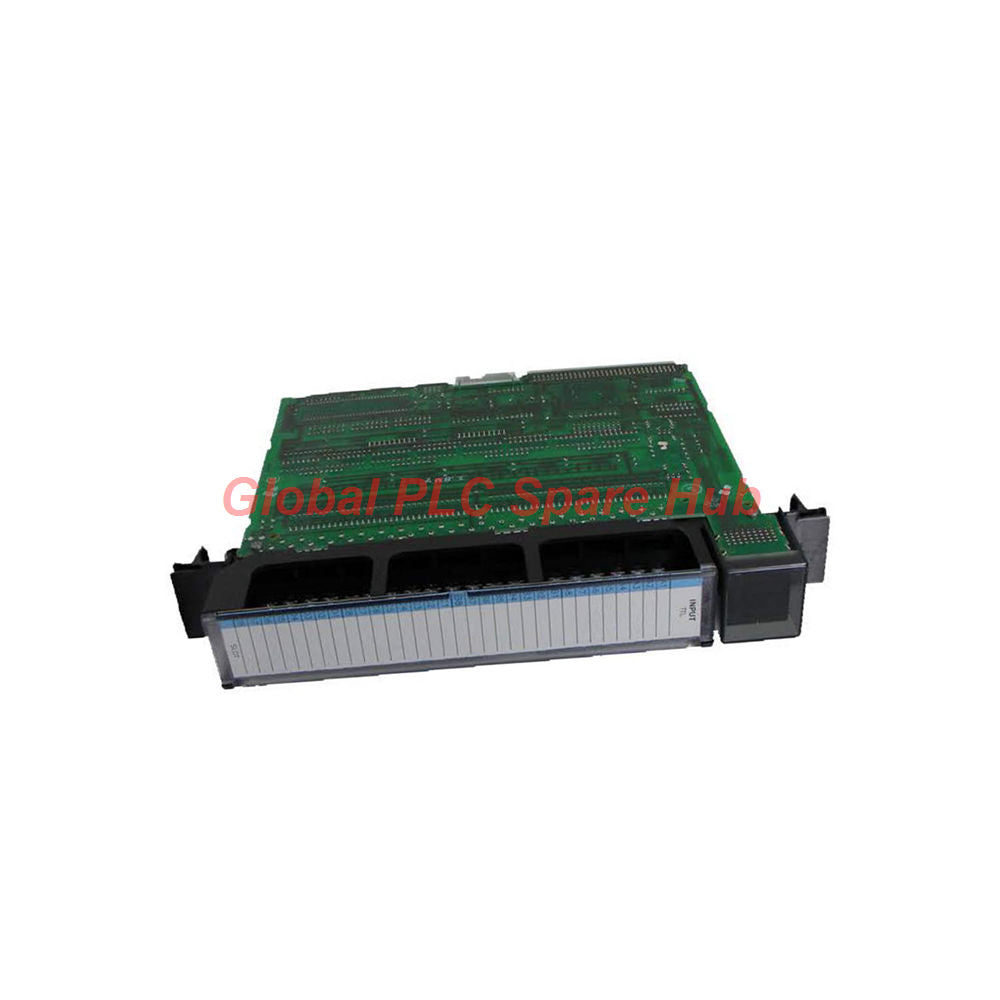

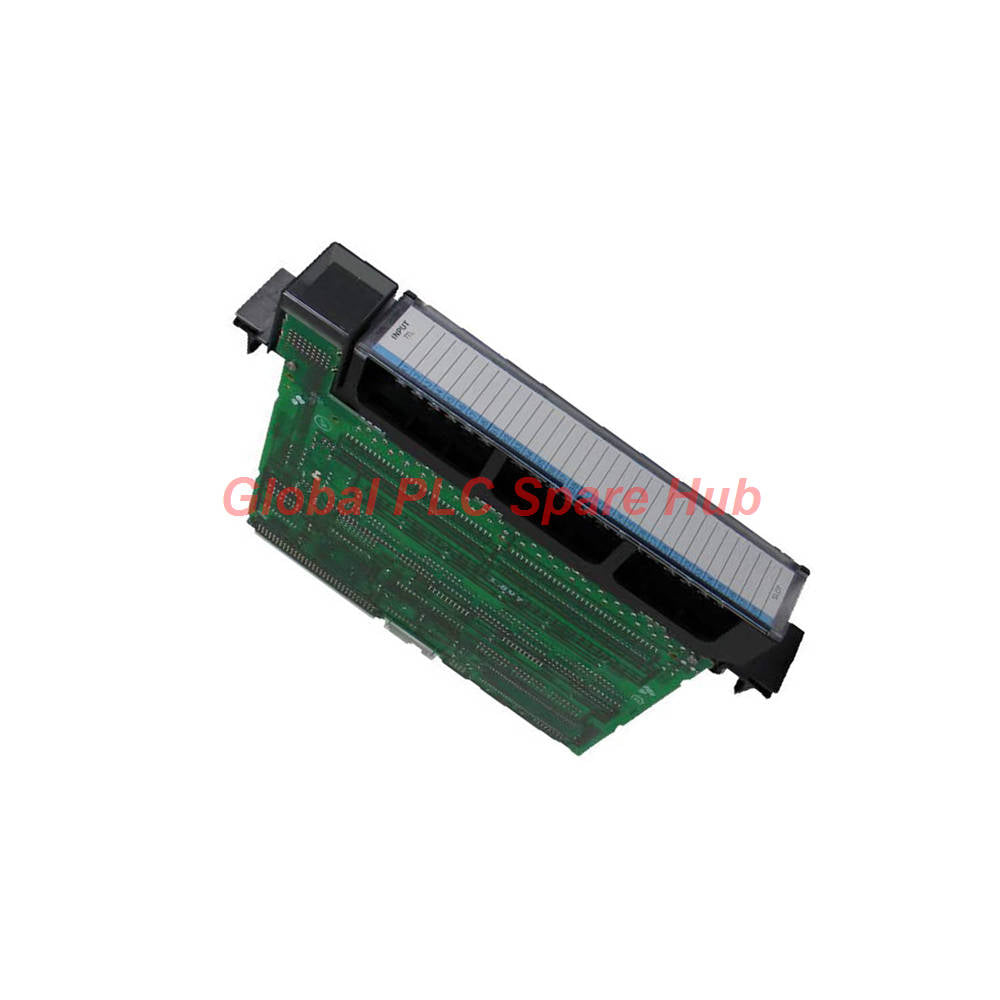

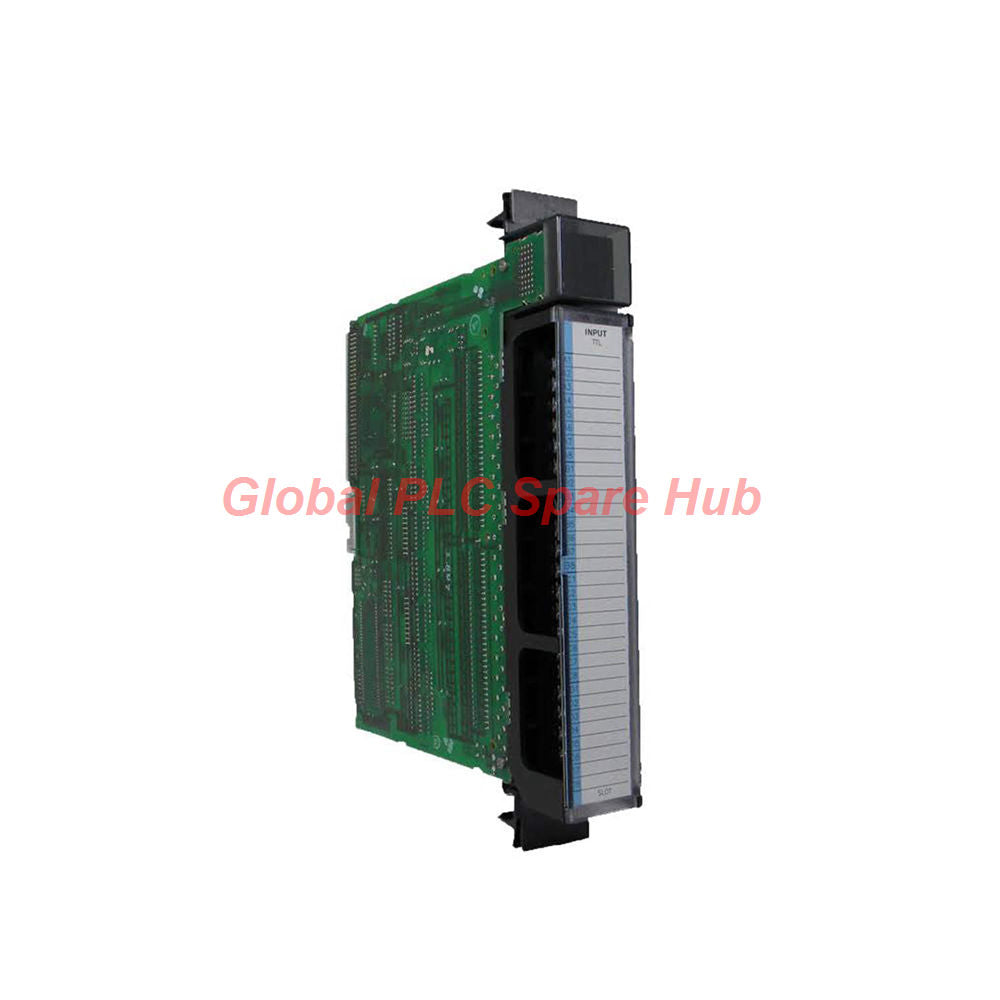

GE Fanuc IC697MDL651 Input Module: High-Performance Series 90-70

Manufacturer: Schneider Electric
Product No.: IC697MDL651
Condition： In stock
Product Type: Discrete Input Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Engineering Overview: GE Fanuc IC697MDL651

The IC697MDL651 is a high-density 32-point discrete input module engineered for the robust Series 90-70 programmable controller architecture. Adhering to the VME standard (C.1), this module facilitates high-level industrial data acquisition. It features TTL-compatible inputs with software-selectable filtering (1ms or 10ms), providing superior signal integrity in electrically noisy environments.

Technical Performance Matrix

Module Identification: IC697MDL651 Input Module (Series 90-70)
Point Density: 32 TTL-compatible discrete inputs
Input Impedance: 5.9 kΩ (±5% tolerance)
Operating Range: -3 to 7 V DC
Signal States: ON (-3 to 0.5 V) / OFF (2 to 7 V)
Operational Currents: 1.7 mA (ON typical) / 1.1 mA (OFF maximum)
Bus Requirements: 0.53 A @ 5 V DC backplane power
Connectivity: 30m (98.4 ft) maximum cabling distance
Diagnostics: Local LED status indicators per channel

Global PLC Spare HUB Insight

At Global PLC Spare HUB, we categorize the IC697MDL651 as a critical interface solution for legacy systems requiring high-speed TTL sensing. Its modular filtering options distinguish it from standard input cards, allowing for fine-tuned debounce timing on mechanical or sensor-based inputs.

Maintenance & Logistics

Diagnostic Capability: On-module LED indicators provide instant visual verification of signal states, minimizing downtime.
Warranty: 12-month quality guarantee on all units.
Shipping: Rapid dispatch via FedEx, UPS, or DHL within 24–48 hours.

Professional Technical FAQ

Q: Why does my module show flickering LEDs on unused inputs?

A: High-impedance TTL inputs can pick up noise. Ensure all unused inputs are terminated or grounded to eliminate interference.

Q: Can I adjust the input filtering while the PLC is running?

A: Filter settings are modified via system configuration software and typically require a PLC stop-mode update.

Q: Does the module require external power for pull-ups?

A: No, the module features an internal pull-up network, reducing external cabinet wiring requirements.

Q: Is this module compatible with non-TTL signal levels?

A: This unit is strictly for TTL logic. Standard 24V industrial sensors require level conversion before connecting to this module.

Q: Selection Guidance: How do I choose the filter setting?

A: Use 1ms for fast digital pulses. Select 10ms for mechanical switches to prevent false triggering from contact bounce.
