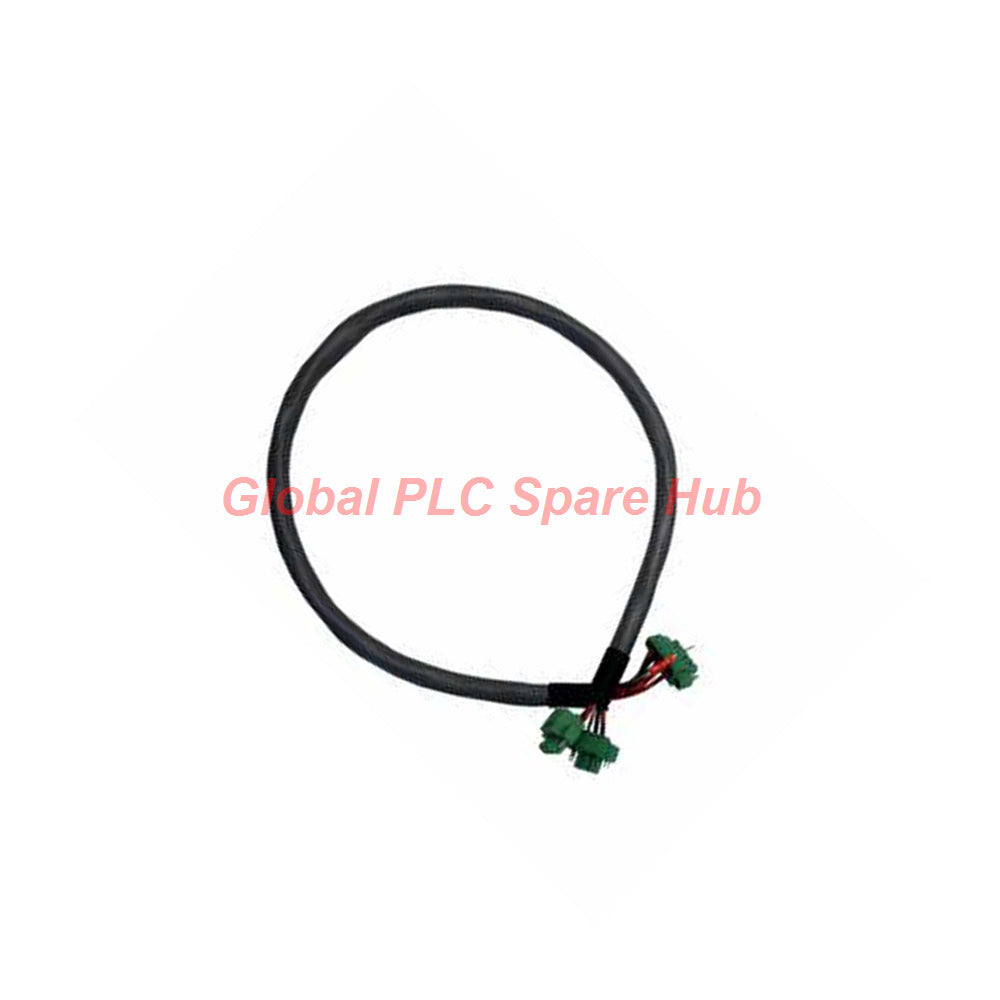

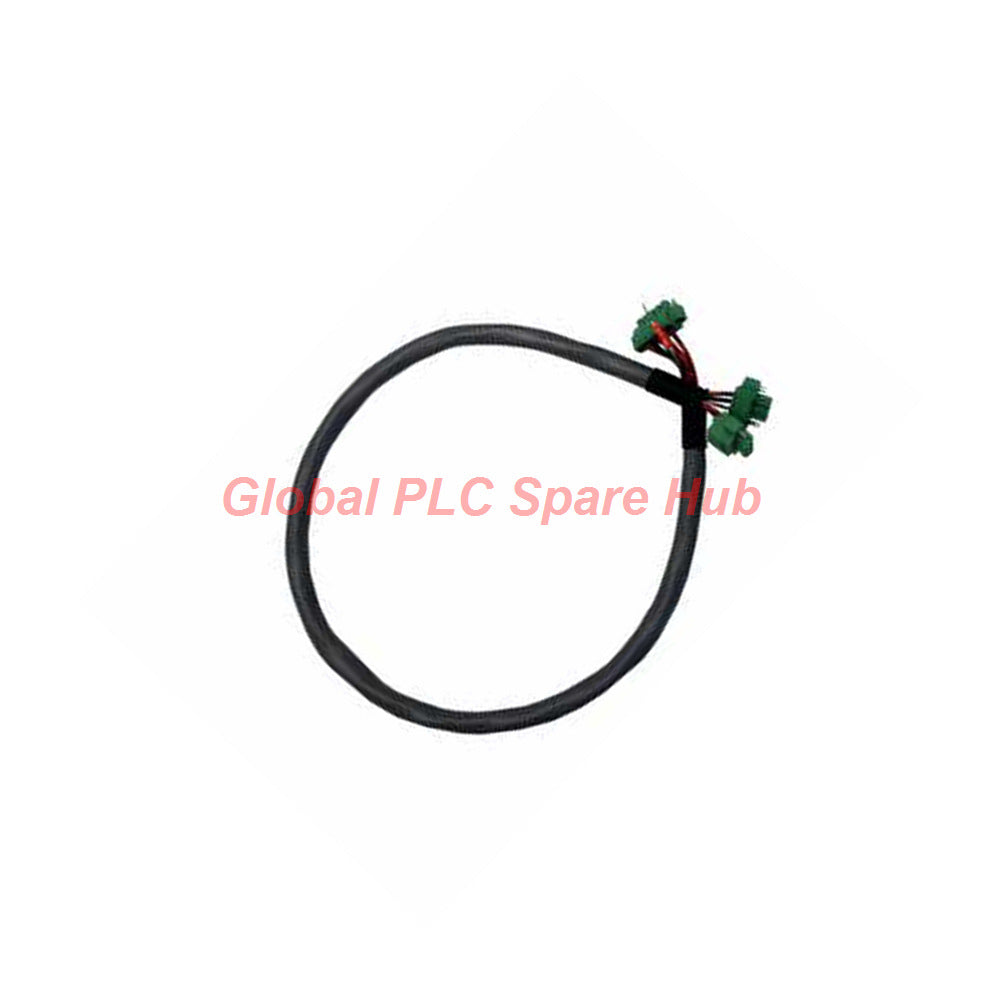

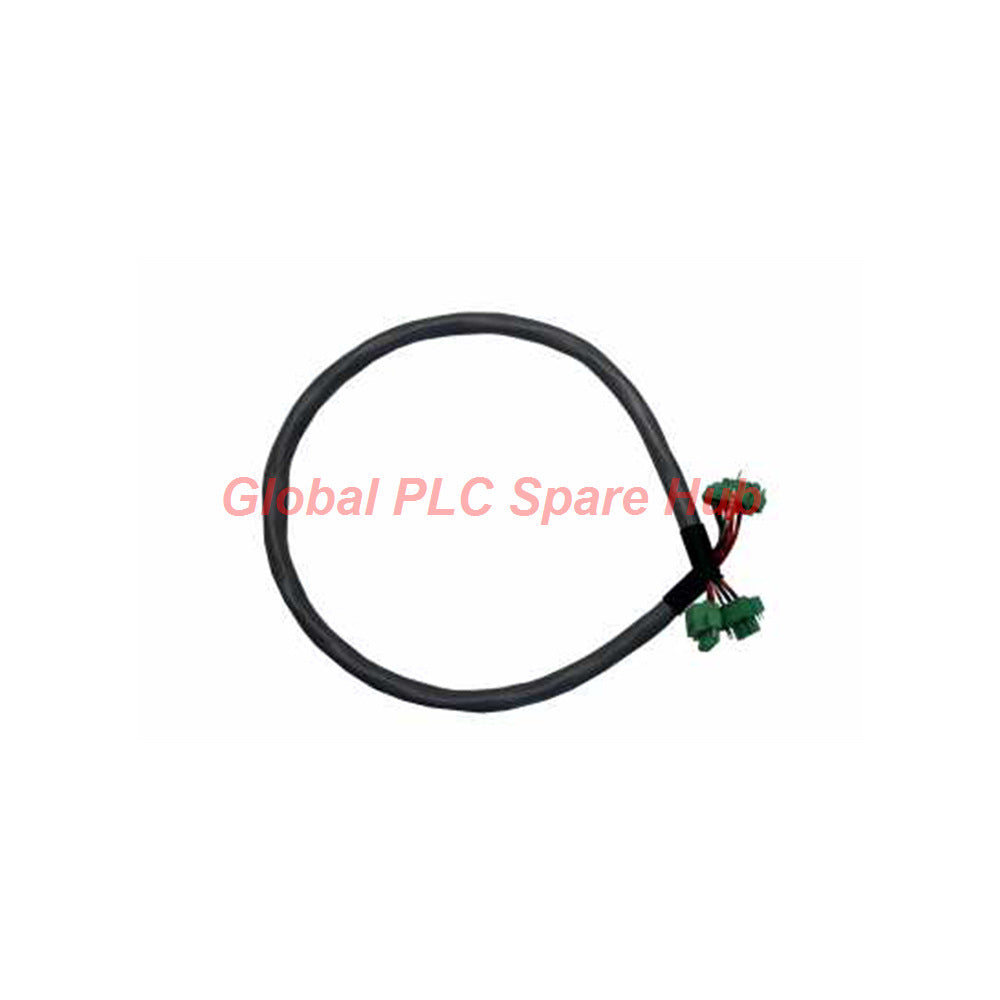

GE Fanuc IC695CBL003 RX3i Energy Pack Cable
Manufacturer: GE Fanuc
Product No.: IC695CBL003
Condition： In stock
Product Type: Energy Pack Cable
Product Origin: USA
Payment: T/T, Western Union
Weight: 500g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Product Introduction
Welcome to the Global PLC Spare HUB engineering review for the IC695CBL003 connection cable. In industrial automation applications, maintaining uninterrupted controller operations during power anomalies is critical. The IC695CBL003 cable by GE Fanuc acts as the vital physical and electrical link between the RX3i PACSystems CPU module and the backup energy pack. Measuring precisely 0.6 meters, this factory-engineered component prevents data loss by routing backup power seamlessly when primary power irregularities occur.
Based on our field deployment insights at Global PLC Spare HUB, technicians frequently select this cable to secure reliable controller shutdowns and maintain RAM data integrity without relying on traditional consumable batteries. The assembly incorporates standard connectors, protective coatings, and strict compliance standards to endure rigorous industrial environments.
Technical Specifications
| Technical Parameter | Specification Detail |
|---|---|
| Brand | GE Fanuc |
| Series | RX3i PACSystems |
| Model Number | IC695CBL003 |
| Cable Length | 0.6 meters (24 inches) |
| Voltage Range | 120/240 Volts DC, 125 Volts DC, or 24 Volts DC |
| I/O Type | Analog |
| Wiring Configuration | Straight-through end-to-end |
| Termination Resistor | Yes |
| Operating Temperature | 0 to 60 degrees Celsius (32 to 140 degrees Fahrenheit) |
| Energy Pack Mounting | DIN rail and panel-mounting compatible |
| Compliance Standards | EU RoHS directive 2011/65/EU |
Installation Guidelines
- Mount the compatible energy pack securely onto a standard DIN rail or enclosure panel within the designated operating temperature limits.
- Inspect the IC695CBL003 cable for any physical jacket damage before installation.
- Connect one end of the IC695CBL003 directly to the RX3i PACSystems CPU module port.
- Connect the opposing end securely to the energy pack interface using standard connectors.
- Secure both a ring terminal and a spade terminal firmly to establish proper system grounding.
- Configure the controller parameters to power up directly from the RAM to validate backup functionality.
Commissioning and Maintenance Convenience
- Features plug-and-play standard connectors that eliminate complex field wiring procedures.
- Supports rapid physical swaps during routine maintenance windows.
- Incorporates built-in diagnostic LED indicators on the connected energy pack for real-time status monitoring.
- Performs automated self-diagnostic routines to verify hardware readiness prior to active commissioning.
Compatibility Information
- Fully compatible with the RX3i PACSystems CPU series.
- Designed specifically for use with the IC695ACC403 energy pack.
- Operates seamlessly within control panels utilizing analog I/O architectures.
Certification Information
- Complies fully with EU RoHS directive 2011/65/EU concerning hazardous substance restrictions.
- Manufactured to industrial quality standards ensuring reliable electrical conductivity and mechanical durability.
Package Contents & Warranty
- 1 x IC695CBL003 GE Fanuc Connection Cable
- Factory Inspection Report
- Comprehensive 12-Month Warranty Coverage provided by Global PLC Spare HUB
Shipping Logistics
- Primary Logistics Providers: FedEx, UPS, and DHL
- Processing Time: 24 to 48 hours from order confirmation
- Secure industrial packaging designed to prevent transit damage
Typical Application Scenarios
- Continuous process manufacturing plants requiring guaranteed data retention during power dips.
- Water treatment facilities managing automated control panels with analog instrumentation.
- Energy management infrastructure utilizing RX3i PACSystems controllers.
- Heavy industrial automation cells where unexpected controller reboots risk batch integrity.
Diagnostic Capabilities & Field Insights
- Global PLC Spare HUB's Insight: During unexpected power interruptions, the energy pack paired via the IC695CBL003 supplies transient power to safeguard volatile memory.
- Built-in energy pack diagnostics monitor internal charge levels and report status irregularities through module LED indicators.
- Technicians can verify link continuity by observing proper communication handshakes between the CPU and the energy pack during startup diagnostics.
Frequently Asked Questions (FAQ)
Q: What is the exact length of the IC695CBL003 cable?
A: The cable measures 0.6 meters, equivalent to 24 inches, designed for close-proximity cabinet installations.
Q: Can this cable be used with legacy Series 90-30 systems?
A: No, the IC695CBL003 is engineered specifically for the modern RX3i PACSystems architecture.
Q: What maintenance steps are recommended for this cable?
A: Periodically inspect the grounding terminals and connector seating during scheduled panel maintenance to prevent vibration-induced loosening.
Q: Why is proper grounding critical when installing this cable?
A: Securing both the ring and spade terminals ensures proper shielding and prevents electrical noise from interfering with analog I/O signals.
