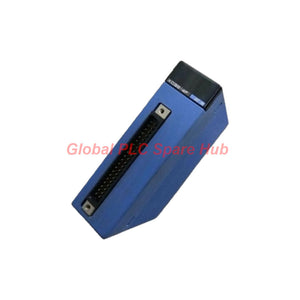

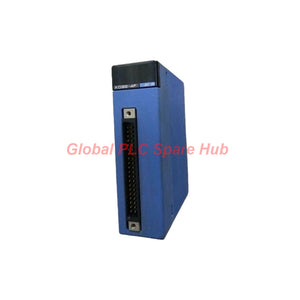

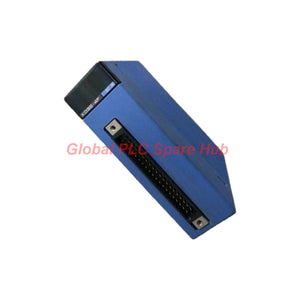

F3XD16-4F Yokogawa FA-M3 DC Input Module

Yokogawa F3XD16-4F | 16-Point DC Input Module

The F3XD16-4F is a Yokogawa FA-M3-series DC input module designed to collect discrete signals from compatible industrial field devices. It provides 16 input points, photocoupler isolation, and configurable input sampling times for different response requirements.

Its 12 V DC input design suits control systems that use compatible low-voltage DC signals. Engineers should verify input polarity, ON/OFF thresholds, common wiring, and the controller's configuration before commissioning.

01 | Signal Interface at a Glance

02 | Input Thresholds and Sampling Behavior

Reliable signal acquisition depends on the actual voltage and current reaching each input terminal. The module's ON and OFF thresholds provide practical reference points for field testing.

• ON recognition: The input requires at least 8.0 V DC and 2.6 mA under the stated ON conditions.
• OFF recognition: The input meets the stated OFF condition at 3.4 V DC maximum and 1.0 mA maximum.
• Input operating range: Keep the applied signal within the specified 10.2–13.2 V DC range.
• Sampling configuration: Select from five available settings according to the required response and signal stability.
• Point-level interrupts: The interrupt function can be specified separately for individual input points.

The Always (0 μs) setting represents the specified sampling option, not a guarantee of zero end-to-end system response time. Controller scan behavior, signal transitions, and application logic can affect the final response.

03 | Where This Module Fits

The F3XD16-4F can collect discrete DC status signals in compatible FA-M3 control configurations. Confirm the PLC base unit, installation requirements, and system documentation before selecting a replacement.

These examples describe potential applications, not guaranteed compatibility with every field device. This module is a discrete input interface, not an analog measurement module or a standalone safety controller.

04 | Field Diagnostics: Trace the Signal Path

When an input does not change as expected, isolate the fault systematically instead of replacing the module immediately. The following checks help distinguish field wiring problems from configuration or controller issues.

1. Measure the field signal: Check voltage directly at the input terminal in both active and inactive states.
2. Verify input current: Confirm that the connected device can supply or sink sufficient current for the required ON state.
3. Inspect common wiring: Check the correct common group, polarity, terminal tightness, and return path.
4. Review the sampling setting: A longer sampling interval may affect the recognition of short pulses or brief transitions.
5. Compare terminal behavior with PLC logic: Determine whether the physical signal changes correctly and whether the controller program reads the intended input address.
6. Check interrupt configuration: If an event is missing, verify the selected input point and the controller's interrupt-handling logic.
7. Inspect the environment: Check for loose terminals, excessive dust, moisture, corrosive gases, or temperatures outside the specified range.

Practical troubleshooting note: If several inputs fail together, inspect their shared common and external supply first. If one point behaves differently from neighboring points, compare its terminal voltage, wiring, and program assignment before suspecting an internal fault.

The supplied specifications do not identify specific module LEDs, built-in fault codes, or onboard diagnostic software. Use the relevant hardware manual and controller tools to confirm which diagnostic indications the installed system supports.

05 | Wiring and Commissioning Considerations

• Check the voltage class: Do not connect a 24 V DC signal merely because the field device uses 24 V. This module specifies a 12 V DC rated input and a 10.2–13.2 V DC operating range.
• Confirm sink/source wiring: Match the field device's output arrangement to the module's wiring requirements and the relevant connection diagram.
• Respect common grouping: The module uses eight input points per common. Plan signal returns and polarity accordingly.
• Choose sampling deliberately: Use a suitable setting for the expected pulse width, switching frequency, and noise environment.
• Secure the terminal block: Check terminal identification, conductor preparation, and screw tightness against the manufacturer's instructions.
• Check environmental limits: Operate within 0–55°C and 10–90% RH without condensation. Avoid corrosive gases, flammable gases, and heavy dust.
• Validate the application: Test representative ON/OFF transitions and verify the resulting PLC states before returning the equipment to service.

06 | Global PLC Spare HUB Review

For engineers maintaining existing FA-M3 installations, the key selection issue is matching the module's electrical interface to the actual field signals. A physically compatible module may still be unsuitable if its rated voltage, common arrangement, or input response differs from the original configuration.

• Compare the complete model and suffix code against the installed module label.
• Confirm the required 12 V DC input interface and sink/source wiring arrangement.
• Review the eight-point common grouping before moving field wiring.
• Record the original input sampling settings and interrupt assignments where applicable.
• Verify the target controller's hardware compatibility using the applicable Yokogawa documentation.

Global PLC Spare HUB recommends confirming the system configuration before ordering replacement I/O hardware. Providing the existing module label, controller model, and field signal details helps reduce selection errors and avoid unnecessary commissioning work.

07 | Warranty and Shipping

• Warranty term: 12 months, subject to the seller's applicable warranty terms and conditions.
• Shipping carriers: FedEx, UPS, and DHL, subject to destination and service availability.
• Order confirmation: Confirm model suffix, quantity, destination, and compatibility requirements before ordering.
• Technical inquiry: Provide your controller configuration and field voltage details when requesting a compatibility check.

Contact Global PLC Spare HUB for a quotation, availability confirmation, shipping options, and technical selection assistance for the F3XD16-4F.

08 | Frequently Asked Questions

Q1. Can I replace an existing 24 V DC input module with this unit without changing field wiring?

A: Do not assume direct replacement is possible. The F3XD16-4F specifies a 12 V DC rated input and a 10.2–13.2 V DC operating range. Compare the original module's voltage requirements, field device outputs, common wiring, and controller compatibility before making any changes.

Q2. What should I check if an input remains OFF even when the field switch is closed?

A: Measure voltage at the module terminal while the switch is active. Check whether the signal meets the minimum ON voltage and current requirements, then inspect polarity, common wiring, terminal connections, and PLC input addressing. This sequence helps separate electrical faults from program-mapping errors.

Q3. How should I choose between the 62.5 μs, 250 μs, 1 ms, and 16 ms sampling settings?

A: Start with the shortest valid signal pulse that the application must recognize. Choose a sampling setting that supports that pulse duration while considering noise and signal stability. Test the actual field waveform and controller behavior rather than selecting the fastest setting automatically.

Q4. What information is most useful when ordering a replacement for a running production line?

A: Provide the complete module suffix, PLC model, existing wiring diagram, field signal voltage, and required input response. Also identify any interrupt-dependent logic. These details help verify electrical and system compatibility before the maintenance window begins.

Q5. If several input points show incorrect states at the same time, should I replace the entire module?

A: First inspect the shared common, external signal supply, terminal connections, and wiring polarity. Because the module groups eight points per common, a shared wiring issue may affect several channels together. Consider module replacement only after field-side and configuration checks fail to explain the symptoms.

Request a Quote for F3XD16-4F

Looking for the Yokogawa F3XD16-4F DC input module for maintenance, system expansion, or spare-parts planning? Send your required quantity, controller model, and field voltage details to Global PLC Spare HUB for a quotation and compatibility review.
