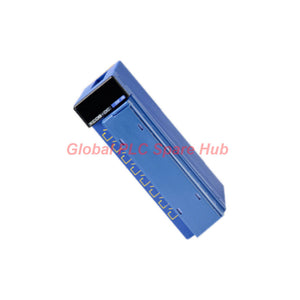

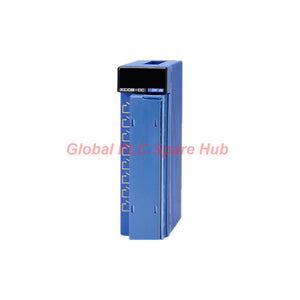

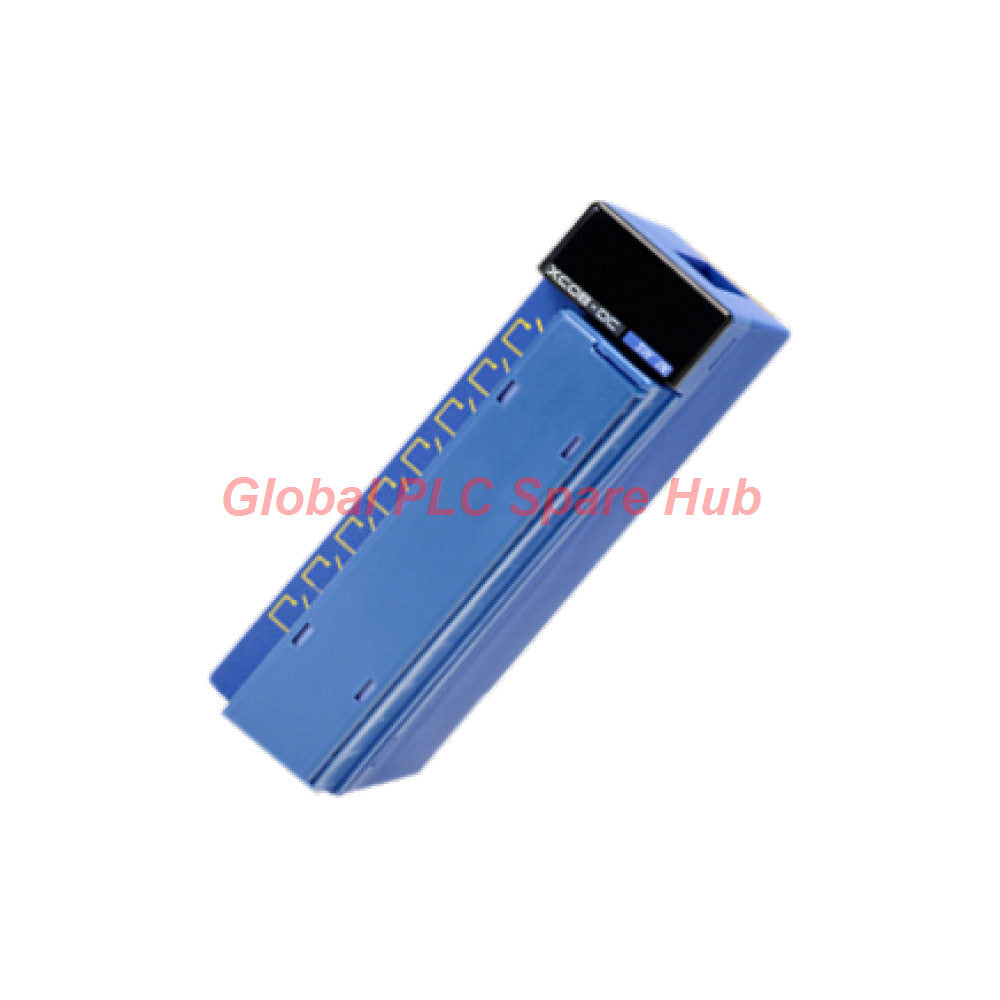

F3XA08-1N Yokogawa Electric 8-Channel AC Digital Input Module | FA-M3

  • Manufacturer: Yokogawa

  • Product No.: F3XA08-1N

  • Condition: In stock

  • Product Type: Digital Input Module

  • Product Origin: JP

  • Payment: T/T, Western Union

  • Weight: 130g

  • Shipping port: Xiamen

  • Warranty: 12 months

Selected quantity: 1
Request a quote

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Visa
PayPal
Mastercard
American Express

F3XA08-1N | AC Signal Acquisition for FA-M3 Controllers

The Yokogawa F3XA08-1N is an eight-point AC digital input module for compatible Yokogawa FA-M3 programmable controller systems. It receives 100–120 V AC field signals and converts their states into input information for controller logic.

Photocoupler isolation separates the input signal interface from the module's internal logic circuitry. Selectable input response times help engineers balance signal recognition speed and input stability.

The module supports applications that monitor AC-powered auxiliary contacts, relay outputs, and compatible field switching devices. Its screw-terminal connection provides a practical interface for control panel wiring and maintenance.

  • Manufacturer: Yokogawa Electric Corporation
  • Model: F3XA08-1N
  • Product series: FA-M3
  • Module category: AC digital input module
  • Input capacity: 8 points
  • Rated input voltage: 100–120 V AC, 50/60 Hz
  • Isolation method: Photocoupler isolation
  • Connection type: 10-point M3.5 screw terminal block

Technical Data | Electrical Input Characteristics

Parameter Specification
Catalog model F3XA08-1N
Controller family Yokogawa FA-M3
Input signal type AC voltage
Number of input points 8
Rated input voltage 100–120 V AC
Rated input frequency 50/60 Hz
Rated input current 5.4–6.5 mA per point at 100–120 V AC, 60 Hz
Operating voltage range 85–132 V AC, 50/60 Hz
ON threshold Minimum 80 V AC and 5 mA
OFF threshold Maximum 40 V AC and 1 mA
OFF-to-ON response Selectable: 15 ms maximum or 30 ms
ON-to-OFF response Selectable: 25 ms maximum or 40 ms
Simultaneous ON ratio Up to 100%
Isolation method Photocoupler isolation
Common configuration 8 points per common group
Interrupt function Selectable for individual input points
Internal current consumption 40 mA at 5 V DC
External connection 10-point terminal block with M3.5 screws
Weight Approximately 130 g

Signal Interpretation | ON, OFF and Response Timing

Correct input interpretation depends on the field voltage, input current, and selected response-time setting. Engineers should evaluate all three when integrating the module with relay contacts or AC-powered devices.

Input condition Specified threshold Engineering implication
Valid ON state At least 80 V AC and 5 mA Confirm the field device supplies sufficient voltage and current.
Valid OFF state At most 40 V AC and 1 mA Check for leakage current or residual voltage when the signal is OFF.
Intermediate region Between the stated ON and OFF limits Do not assume a guaranteed state without checking the manufacturer's specifications.
Fast input transition Selectable response settings Choose a suitable setting for the field signal and controller sequence.

Engineering note: The specified thresholds define electrical input conditions, not a safety-rated switching function. Use approved safety hardware for safety-critical interlocks.

Configuration and Wiring Considerations

  • Input grouping: The module specifies eight points per common group. Confirm the terminal diagram before wiring multiple field circuits.
  • Terminal connections: Use the designated M3.5 screw terminals and the manufacturer's recommended tightening procedure.
  • AC signal source: Verify that each field device matches the 100–120 V AC input requirements.
  • Isolation: Photocoupler isolation supports electrical separation between field signals and internal logic circuitry.
  • Interrupt configuration: Check CPU and program support before assigning interrupt-sensitive signals.
  • Input response: Select the documented timing option according to signal characteristics and control-cycle requirements.

Safety precaution: Isolate field power before handling terminals. Follow the applicable electrical safety procedures because these inputs operate at hazardous AC voltage levels.

Environmental Operating Limits

Environmental parameter Operating condition Storage condition
Ambient temperature 0°C to 55°C −20°C to 75°C
Relative humidity 10–90% RH, non-condensing 10–90% RH, non-condensing
Atmosphere Free from corrosive gases, flammable gases, and heavy dust Follow the manufacturer's storage requirements

Install the module inside a suitable control cabinet. Provide adequate ventilation and protect terminal connections from contamination and condensation.

Suitable Equipment and Industrial Applications

  • Industrial control panels: Acquire AC status signals from compatible field devices.
  • Motor control centers: Monitor auxiliary contacts from suitable starters and contactors.
  • Conveyor systems: Read AC switching signals used for sequence coordination and equipment status.
  • Pump stations: Monitor compatible relay outputs and auxiliary operating indications.
  • Packaging machinery: Collect machine-state signals for PLC sequence logic.
  • Process automation: Acquire discrete AC status signals from compatible field interfaces.
  • Equipment retrofits: Replace a matching input module after verifying terminal assignments and controller compatibility.

Field Diagnostics | Practical Fault Isolation

Observed symptom Potential cause Recommended check
Input does not turn ON Insufficient voltage, open wiring, or incorrect common connection Measure field voltage safely and verify the terminal diagram.
Input remains ON Residual voltage, wiring leakage, or an active field contact Check the field circuit and OFF-state voltage.
Input state fluctuates Unstable supply, loose terminals, or signal transitions near the threshold Inspect terminal connections and measure the signal under operating conditions.
PLC sequence reacts late Selected input response time or controller scan timing Review the input filter setting and program execution cycle.
Interrupt event is missed Incorrect interrupt assignment or unsupported program configuration Verify per-point interrupt settings and CPU program behavior.
Several points fail together Common wiring issue, field supply loss, or module-level fault Check the common group, supply distribution, and module diagnostics.

Field example: An AC contactor auxiliary signal may remain logically ON after the contact opens. Measure the OFF-state voltage and check for leakage before replacing the input module.

Diagnostic boundary: The module reports input states to the controller. Fault localization depends on PLC diagnostics, field measurements, wiring checks, and the application's control logic.

Global PLC Spare HUB's Insight

When commissioning AC input circuits, engineers should verify the actual voltage at the module terminals rather than relying only on the source device's nominal rating. Cable losses, leakage paths, and contact conditions can affect signal recognition.

Practical recommendation: For signals that change close to the input thresholds, inspect the source device and wiring before changing the response-time setting. A longer response time may reduce unwanted transitions, but it can also delay sequence recognition.

Replacement insight: Match the complete model number, input voltage class, terminal arrangement, common grouping, and CPU compatibility. An eight-point module with a different input type may not be a suitable replacement.

Five Professional FAQs

Q1: Can this module accept 24 V DC signals from modern proximity sensors?

No. This model specifies 100–120 V AC inputs. Use a compatible DC input module or an approved interface relay when connecting 24 V DC devices.

Q2: What should engineers do when the field voltage falls between the ON and OFF thresholds?

Do not assume a stable logical state in this region. Check the source voltage, leakage current, wiring, and field device condition against the manufacturer's input specifications.

Q3: How should I choose between the available response-time settings?

Use the faster setting only when the signal and application require it and the manual permits it. Longer response times may help with unstable transitions but can delay signal recognition.

Q4: Does the photocoupler isolation make the module suitable for safety interlocks?

No safety rating is established by the supplied specifications. Use certified safety components and an approved safety architecture for emergency stops and personnel-protection functions.

Q5: What information helps confirm a replacement module before purchase?

Provide the complete catalog number, controller model, field voltage, terminal wiring details, required input response, and application environment. These details help identify electrical and system compatibility issues before installation.

Packaging, Warranty and Shipping

  • Product: One Yokogawa F3XA08-1N AC digital input module, subject to the confirmed order configuration.
  • Accessories: Terminal accessories, cables, and other hardware require separate confirmation unless explicitly included in the quotation.
  • Warranty: 12-month seller warranty under the agreed terms.
  • Dispatch target: 24–48 hours after order confirmation, subject to stock availability and payment processing.
  • Shipping options: FedEx, UPS, and DHL, subject to destination and service availability.
  • Before ordering: Confirm the model, input voltage, quantity, destination, and delivery schedule.

Request a Quote | Global PLC Spare HUB

Contact Global PLC Spare HUB for pricing, availability, and delivery options for the Yokogawa F3XA08-1N FA-M3 AC input module.

Share your controller model and field signal requirements to help confirm compatibility. Our team can review the requested configuration before order placement.
