Emerson KJ3241X1-EA1 Terminal Block | Control Interface

Product Overview

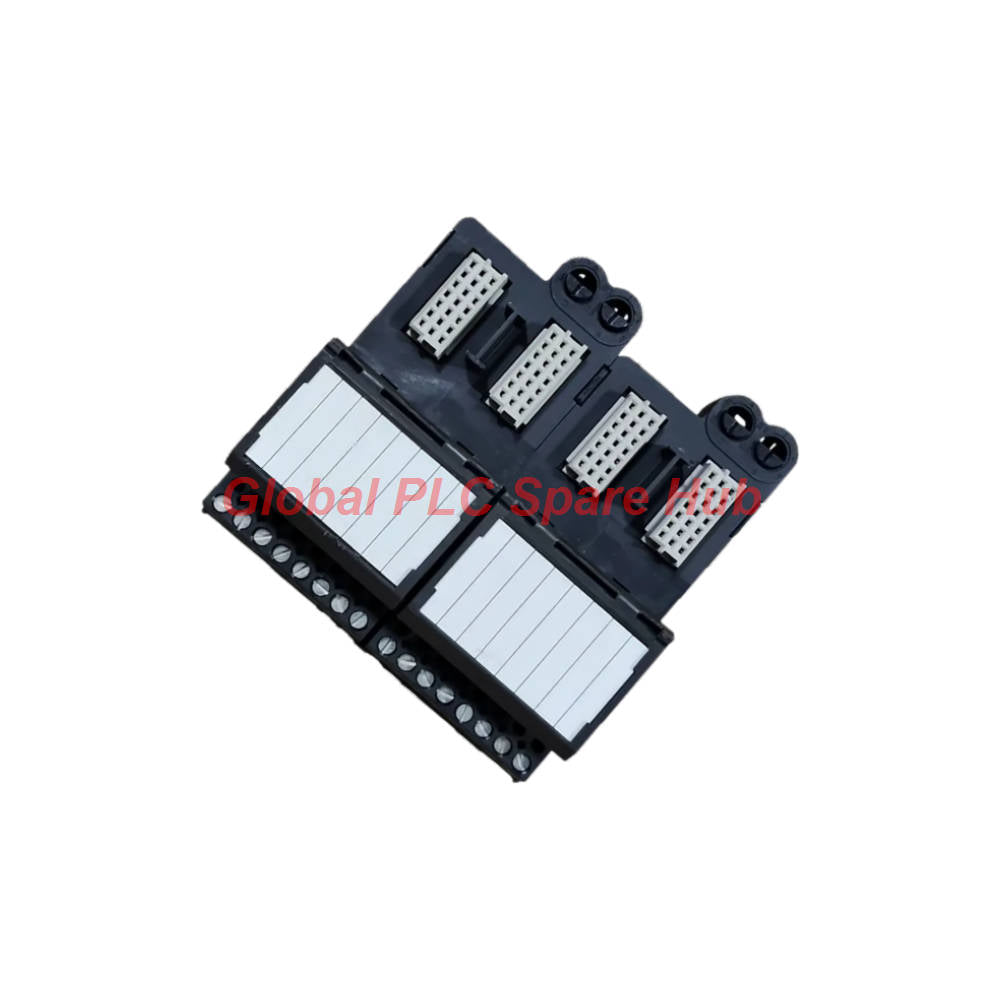

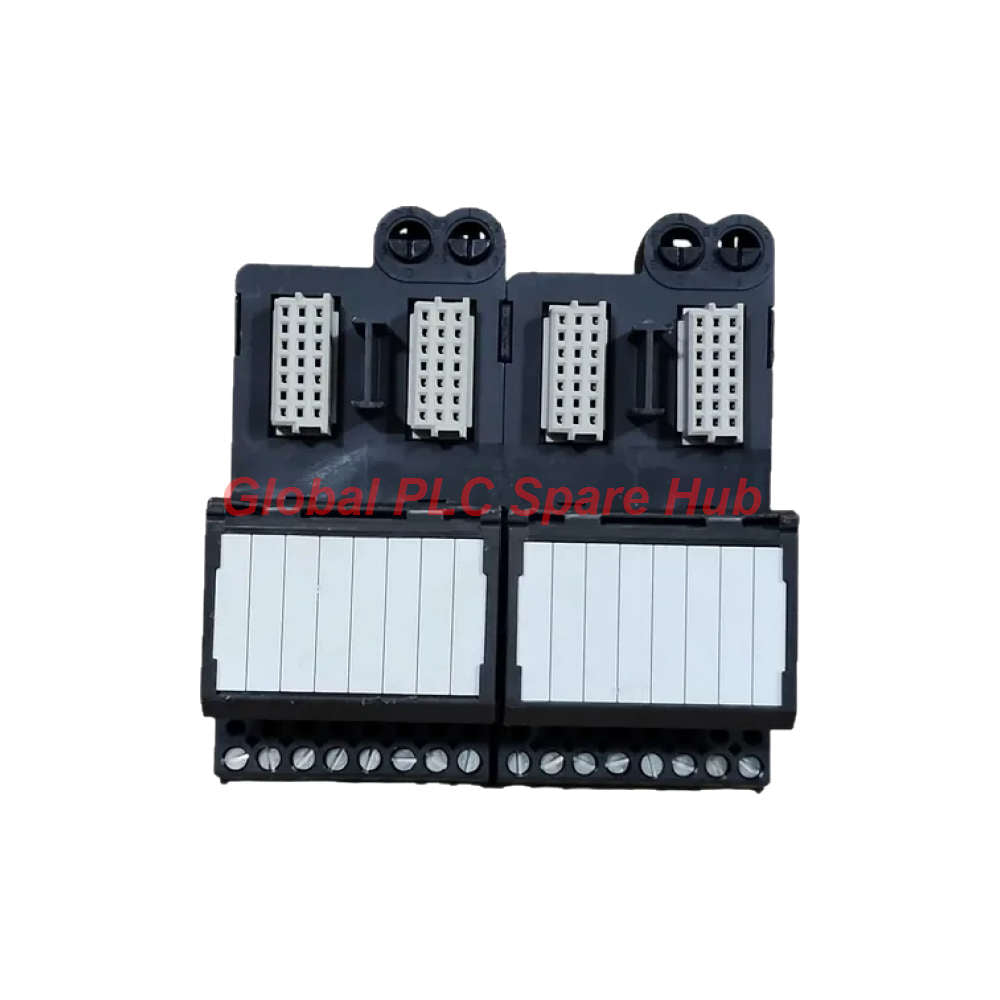

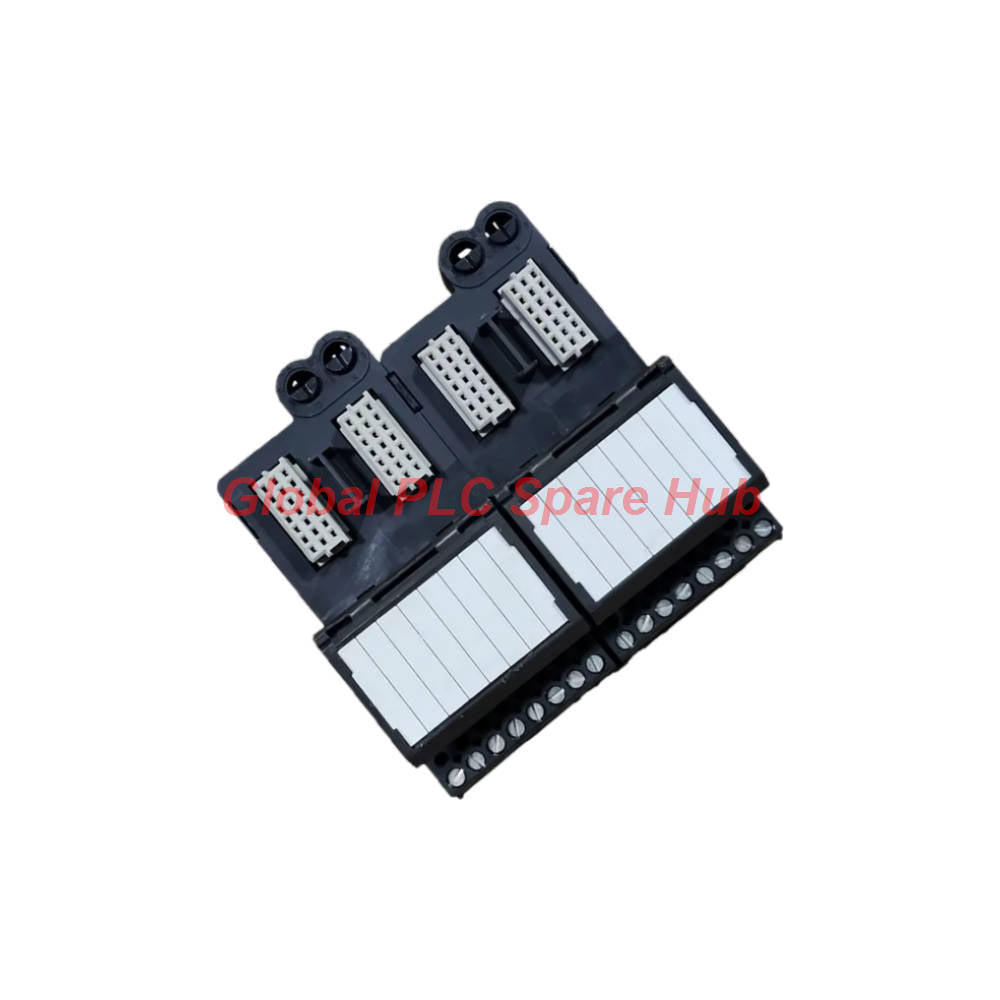

Emerson KJ3241X1-EA1 is a red interface terminal block designed for industrial automation system integration. It provides an interface connection point within compatible control system assemblies. Its electrical and environmental specifications support demanding industrial operating conditions.

The terminal block requires a 35 VDC input supply rated at 1 A. It operates across an ambient temperature range of -40°C to +70°C. Its environmental ratings address vibration, mechanical shock, humidity, and airborne contaminants.

Engineers should verify the terminal block's mating interface and system compatibility before installation. The supplied specifications do not identify its exact communication protocol or supported controller models.

Technical Specifications

Parameter	Specification
Brand	Emerson
Model	KJ3241X1-EA1
Product Type	Red Interface Terminal Block
Input Power Rating	35 VDC at 1 A
Operating Temperature	-40°C to +70°C
Relative Humidity	5% to 95%, non-condensing
Shock Resistance	10 g half-sine wave for 11 ms
Vibration Resistance	1 mm peak-to-peak from 2 to 13.2 Hz
Vibration Resistance, Higher Frequencies	0.7 g from 13.2 to 150 Hz
Airborne Contaminants	ISA-S71.04-1985, Class G3
Hot-Swap Capability	Not supported; do not remove or insert under energized conditions
User Calibration	Not required
User-Serviceable Parts	None specified; do not disassemble

Measurement and Performance Parameters

KJ3241X1-EA1 serves as an interface terminal block rather than a measurement instrument. The supplied documentation does not specify sensor measurement performance.

Parameter	Specification Status
Measurement Range	Not specified; confirm the connected system's signal requirements
Frequency Response	Not specified
Signal Sensitivity	Not specified
Linearity	Not specified
Resolution	Not specified
Electrical Input Rating	35 VDC at 1 A
Environmental Operating Range	-40°C to +70°C
EMC and Interference Immunity	No specific EMC performance figures provided
Contaminant Resistance	ISA-S71.04-1985, Class G3

Engineering note: Do not interpret the power rating as a measurement range. Confirm signal accuracy, bandwidth, and interference immunity against the complete system documentation.

Core Engineering Features

• Defined power requirements: The 35 VDC, 1 A rating establishes a clear electrical reference for installation planning.
• Wide temperature tolerance: The specified range supports installations exposed to substantial ambient temperature changes.
• Mechanical endurance: Published shock and vibration limits help engineers assess suitability for industrial equipment locations.
• Contaminant classification: The Class G3 rating provides an environmental reference for cabinet and enclosure planning.
• Low maintenance requirements: The unit requires no calibration and contains no user-serviceable parts.
• Hazardous-area certification: The listed approvals support evaluation for specified classified locations, subject to installation conditions.

Typical Applications

• Industrial control cabinets: Interface connection points in compatible automation assemblies.
• Process automation: Control system installations in chemical, petrochemical, and manufacturing facilities, where the complete assembly meets site requirements.
• Power and utility systems: Interface hardware in suitable industrial monitoring and control installations.
• Hazardous-area installations: Equipment assemblies operating in appropriately classified locations under the applicable certification conditions.
• Industrial maintenance projects: Replacement planning for an existing terminal block with a verified matching part number.

These applications describe potential installation contexts. They do not establish compatibility with any particular controller, I/O card, or communication network.

Installation Guide

1. Verify the part number. Confirm that the replacement matches KJ3241X1-EA1 and the equipment manufacturer's requirements.
2. Isolate system power. Follow site lockout and tagout procedures before removing or installing the unit.
3. Check the interface. Inspect the mating assembly, terminals, mounting arrangement, and applicable wiring diagram.
4. Inspect the environment. Confirm temperature, humidity, vibration, contamination, and hazardous-area suitability.
5. Install the unit. Follow the applicable manufacturer instructions for orientation, mounting, and electrical connections.
6. Verify wiring. Check conductor identification, termination security, and supply requirements before energizing the system.
7. Restore power safely. Follow the approved commissioning procedure and verify normal system operation.

Important: Never insert or remove this unit while system power remains energized. The supplied specifications explicitly prohibit energized insertion and removal.

Commissioning, Diagnostics, and Maintenance

The terminal block requires no calibration according to the supplied specifications. It also contains no user-serviceable parts. Do not disassemble the unit.

Maintenance personnel can use the following practical checks during planned shutdowns:

• Inspect the housing for cracks, deformation, contamination, or visible damage.
• Check accessible terminals and wiring for looseness, discoloration, or signs of overheating.
• Verify that the supply matches the specified 35 VDC rating and 1 A input rating.
• Review controller or I/O diagnostics when the connected system reports an interface fault.
• Compare wiring and terminal assignments against approved drawings before replacing components.

Diagnostic limitation: The supplied information does not identify onboard diagnostic indicators, event logs, or built-in fault monitoring. Use the connected control system's diagnostic facilities where available.

Field Experience: Global PLC Spare HUB's Insight

Field replacement work often involves more than matching a component's appearance. Engineers should confirm the complete part number, interface arrangement, electrical rating, and certification requirements.

Example 1: Unexpected interface failure

A control cabinet reports an abnormal I/O condition after maintenance. The engineer first checks supply voltage, wiring identification, and terminal seating. The engineer then reviews the associated controller diagnostics before replacing hardware. This sequence helps distinguish connection problems from upstream module faults.

Example 2: Replacement in a hazardous area

A maintenance team needs a replacement for an installation in a classified location. The team verifies the equipment marking, certificate conditions, enclosure requirements, and approved installation method. Matching the model number alone does not establish hazardous-area suitability.

Example 3: Intermittent faults in a vibrating cabinet

An intermittent connection appears during equipment operation. The engineer inspects wiring retention and mounting security during an isolated shutdown. The engineer also compares actual vibration conditions with the specified limits. This approach helps identify installation-related causes without assuming an internal electronic failure.

Global PLC Spare HUB's recommendation: Record the existing part number, terminal assignments, operating conditions, and associated module model before ordering. These details reduce compatibility risks and unnecessary commissioning delays.

System Compatibility

Emerson KJ3241X1-EA1 requires confirmation against the target system's hardware documentation. The supplied information does not establish a definitive controller family or supported I/O module list.

• Verify the exact part number and any applicable product revision.
• Confirm the mating connector, mounting arrangement, and terminal assignments.
• Check the required supply voltage and electrical loading.
• Review the system manual for approved hardware combinations.
• Confirm hazardous-area approval requirements for the complete installed assembly.

Contact our team with the existing module number and system model if you need compatibility verification before purchase.

Hazardous-Area Certifications

Certification or Marking	Reference
ATEX	FM18ATEX0076U
IECEx	IECEx FMG 18.0030U
UKEX	FM21UKEX0199U
North American Class I, Division 2	Groups A, B, C, D
North American Zone 2	Class I, Zone 2, AEx/Ex ec IIC T4 Gc
Additional North American Approval References	FM18US0277U; FM19CA0005U
European and International Protection Marking	II 3G Ex ec IIC Gc

Always check the current certificate documents and their specific conditions before installation. Certification applicability depends on the installation, equipment configuration, and jurisdiction.

Packaging and Shipping

• Product: Emerson KJ3241X1-EA1 Red Interface Terminal Block.
• Packaging: Protective packaging suitable for industrial electronic components.
• Included accessories: Not confirmed in the supplied product information. Confirm any required accessories before ordering.
• Shipping methods: FedEx, UPS, and DHL, subject to destination and service availability.
• Dispatch time: Typically 24–48 hours after order confirmation, subject to stock availability and payment verification.
• Order support: Contact us to confirm availability, shipping arrangements, and delivery estimates.

Warranty and After-Sales Support

We offer a 12-month warranty under our applicable sales terms. The warranty covers eligible product defects according to the agreed warranty conditions.

• Contact our team with the order number and product identification details if a problem occurs.
• Provide fault descriptions, installation conditions, and relevant diagnostic records when requesting support.
• Follow the return authorization process before sending any product back.
• Review the applicable warranty terms for coverage, exclusions, and return shipping responsibilities.

Frequently Asked Questions

Q1: What is the Emerson KJ3241X1-EA1?

A: It is a red interface terminal block for compatible industrial automation assemblies. Its specified input power rating is 35 VDC at 1 A.

Q2: Can I remove or install this terminal block while the system is running?

A: No. The supplied specifications prohibit insertion or removal while system power remains energized. Isolate power and follow approved site procedures first.

Q3: Does this product require calibration?

A: No. The supplied documentation states that calibration is not required. The unit also contains no user-serviceable parts.

Q4: Which controllers and I/O modules support this model?

A: The supplied specifications do not identify a definitive compatibility list. Confirm the mating interface, terminal assignments, and approved hardware combinations before ordering.

Q5: Is the KJ3241X1-EA1 suitable for hazardous areas?

A: The supplied information lists ATEX, IECEx, UKEX, and North American hazardous-location approvals. Verify certificate conditions and installation requirements for your specific location.

Q6: What should I check when the connected system reports an I/O fault?

A: Start by checking the supply, wiring, terminal seating, and associated module diagnostics. Isolate power before inspecting or changing connections. Do not assume the terminal block itself caused the fault.

Q7: Can I use the ambient temperature rating as the cabinet's required cooling specification?

A: No. The -40°C to +70°C range describes the specified ambient operating limits. Assess cabinet temperature, heat sources, airflow, and all other installed components separately.

Q8: What information should I provide when requesting a replacement?

A: Provide the full model number, existing system or module model, interface photographs, and application details. These details help our team assess compatibility and quotation requirements.

Q9: How quickly can you ship this product?

A: Our standard dispatch target is 24–48 hours after order confirmation, subject to stock availability and payment verification. FedEx, UPS, and DHL options depend on the destination.

Q10: Does the product include a 12-month warranty?

A: Yes. We offer a 12-month warranty under the applicable sales terms. Confirm coverage, exclusions, and return procedures with our sales team before ordering.

Q11: How can I reduce the risk of ordering an incompatible terminal block?

A: Compare the full part number and revision against the installed unit. Verify the mating interface and system documentation. Request a compatibility review if any identification details differ.

Q12: Does the terminal block provide independent fault diagnostics?

A: The supplied specifications do not confirm built-in diagnostics or status indicators. Check the associated controller and I/O module for available diagnostic information.

Request a Quote for Emerson KJ3241X1-EA1

Looking for the Emerson KJ3241X1-EA1 Red Interface Terminal Block for maintenance or system integration?

Contact Global PLC Spare HUB for pricing, stock confirmation, compatibility assistance, and shipping options. Include your required quantity, destination country, and existing system model to help us prepare an accurate quotation.
