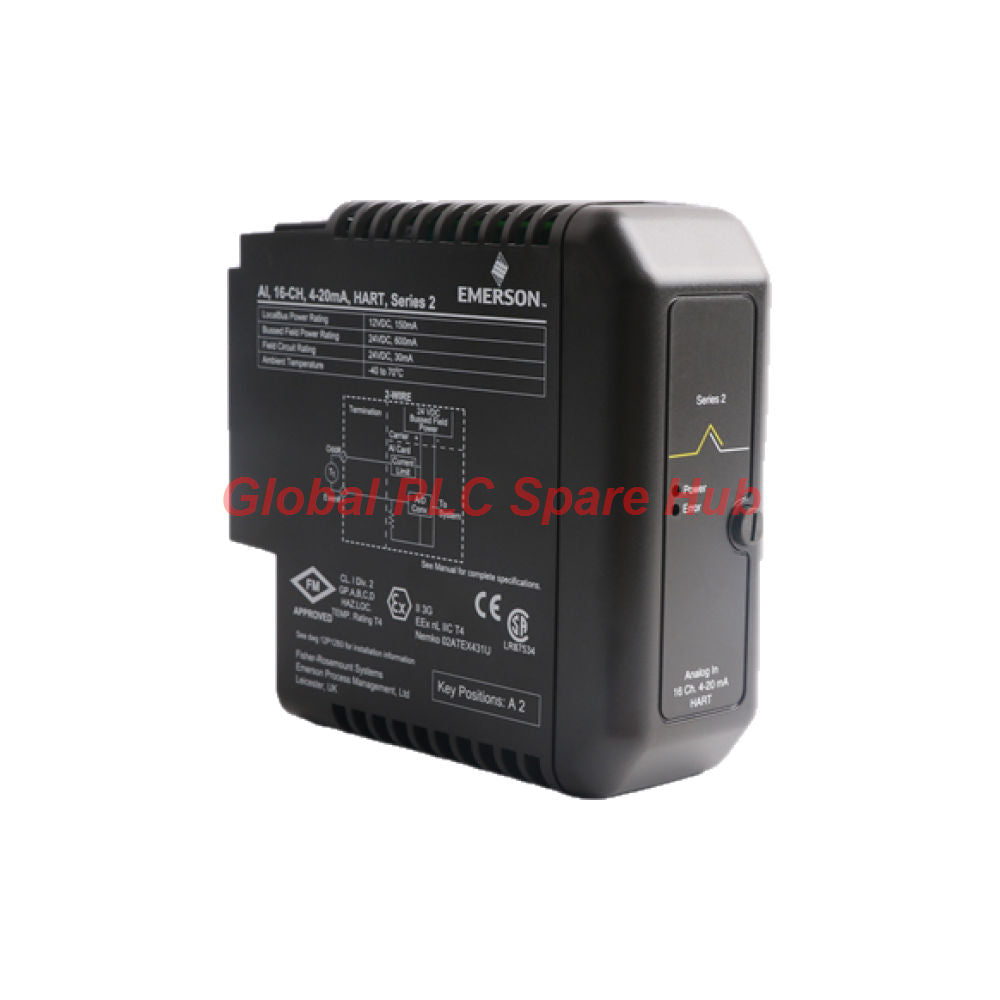

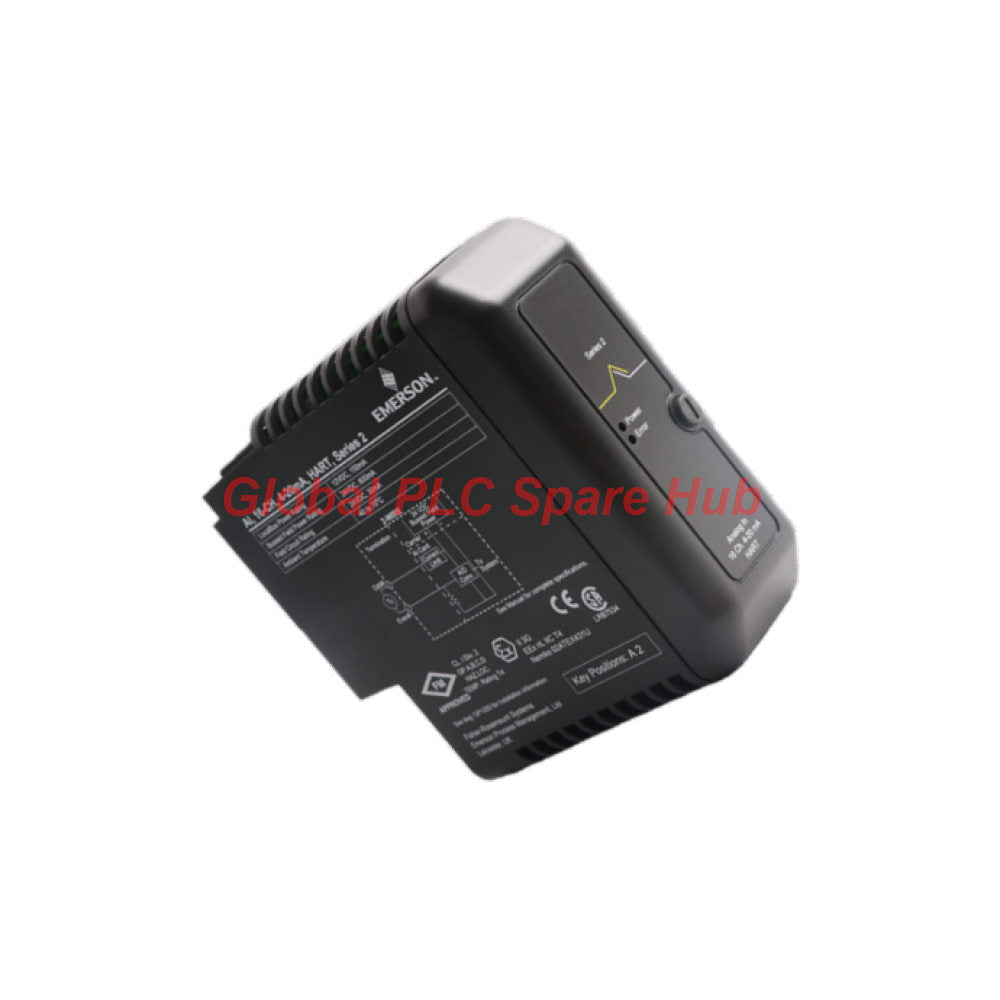

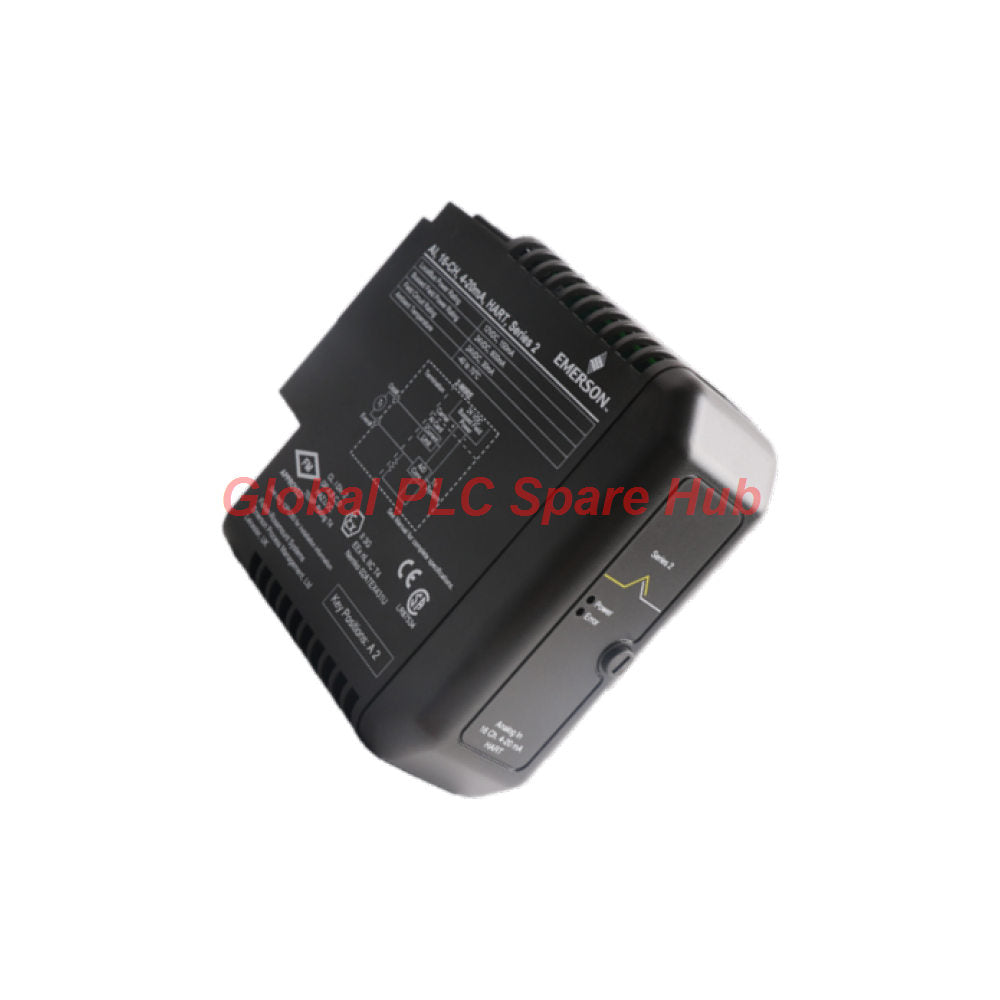

Emerson KJ3223X1-BA1 Series 2 AI 16-Channel 4-20mA Module

Product Introduction

Emerson KJ3223X1-BA1 is a DeltaV Series 2 Analog Input Card designed for reliable 2-wire current signal measurement.

This module provides 16-channel 4-20 mA analog input capability for industrial process control systems.

The card supports continuous field monitoring for pressure, flow, level, and temperature transmitters.

KJ3223X1-BA1 uses a compact I/O architecture for high-density signal acquisition.

It helps engineers reduce cabinet space while maintaining stable measurement performance.

Global PLC Spare HUB's Insight:

In field applications, this card often connects with 2-wire transmitters in chemical plants, power stations, and oil processing units.

For example, when a refinery upgrades old transmitter loops, engineers can replace multiple input modules with a higher-density KJ3223X1-BA1 Series 2 AI module.

Technical Specifications

Measurement Performance

• Measurement Range: 4-20 mA analog current input.
• Frequency Response: Optimized for industrial process monitoring signals.
• Sensitivity: Designed for stable transmitter current detection.
• Linearity: Maintains accurate analog conversion within DeltaV control architecture.
• Resolution: Suitable for continuous process variable monitoring.
• Noise Immunity: Supports reliable operation in industrial electrical environments.

Installation Guide

• Confirm the correct terminal block key position before installation.
• The terminal block must match the I/O card key setting.
• Remove field power before removing or connecting the module.
• Complete an I/O loop assessment for energy-limited field circuits.
• Install the module according to DeltaV carrier installation procedures.

Field Experience Example:

During maintenance shutdowns, engineers should verify field power isolation before replacing the card.

This prevents transmitter damage and avoids unexpected loop interruptions.

Commissioning and Maintenance

• No user calibration procedure is required.
• The module does not require periodic adjustment.
• The unit contains no user-serviceable components.
• Use system diagnostics to verify channel status after installation.
• Only one module should be removed with energized system power.

Global PLC Spare HUB Review:

Engineers usually check loop current, transmitter power, and DeltaV diagnostics during commissioning.

A stable 4-20 mA reading confirms correct field wiring and module operation.

Compatibility Information

• Emerson KJ3223X1-BA1 is designed for DeltaV Series 2 I/O systems.
• The module requires a compatible DeltaV carrier and terminal block.
• The terminal block key must match the installed I/O card.
• Use approved Emerson power supply solutions for energized removal conditions.

Diagnostic Capability

• Supports channel-level analog input monitoring.
• Helps identify transmitter loop faults.
• Assists engineers in checking signal stability.
• Supports troubleshooting of abnormal 4-20 mA readings.
• Provides reliable field signal acquisition for process control.

Typical diagnostic checks include:

• Verify transmitter output current.
• Check field wiring polarity.
• Confirm terminal block compatibility.
• Review DeltaV system alarms.

Typical Applications

• Oil and gas process control systems.
• Petrochemical production facilities.
• Power generation monitoring systems.
• Chemical processing plants.
• Water treatment automation systems.
• Continuous process measurement applications.

Safety and Certification Information

• Designed for industrial automation environments.
• Environmental performance follows ISA-S71.04 Class G3 requirements.
• Follow Emerson installation guidelines during operation.
• Observe field power isolation requirements before maintenance.

Packaging and Warranty

• Product: Emerson KJ3223X1-BA1 Analog Input Card.
• Packaging: Professional industrial protection packaging.
• Warranty: 12-month warranty included.
• Testing: Functional testing before delivery.

Shipping and Delivery

• Fast dispatch within 24-48 hours after order confirmation.
• International shipping available through DHL, FedEx, and UPS.
• Suitable for urgent automation maintenance projects.
• Global delivery support for industrial customers.

Selection Guide

• Select KJ3223X1-BA1 when your system requires 16-channel 4-20 mA input capability.
• Confirm DeltaV Series compatibility before purchase.
• Check terminal block key position requirements.
• Verify field power requirements for your application.
• Contact our technical team for model confirmation before ordering.

FAQ

Q: What type of signals does Emerson KJ3223X1-BA1 support?

A: It supports 2-wire 4-20 mA analog input signals from industrial transmitters.

Q: How many channels are available on this module?

A: The module provides 16 independent analog input channels.

Q: Can engineers remove this module while the system is running?

A: Removal is allowed only under specified power supply and safety conditions.

Q: Does KJ3223X1-BA1 require field calibration?

A: No. The module does not require user calibration after installation.

Q: What should be checked before replacing an existing AI card?

A: Engineers should confirm model compatibility, terminal block key position, and field power status.

Q: What field issue appears most often during replacement?

A: Incorrect terminal block matching and incomplete power isolation are common causes of commissioning problems.

Q: How can I select the correct Emerson analog input module?

A: Check the DeltaV series, signal type, channel quantity, and transmitter wiring method before selection.
