Emerson IC697BEM713 PLC Series 90-70 Bus Expansion Module

Emerson IC697BEM713 PLC Series 90-70 Bus Expansion Module

Manufacturer: GE Fanuc
Product No.: IC697BEM713
Condition： In stock
Product Type: Bus Transmitter Module
Product Origin: USA
Payment: T/T, Western Union
Weight: 400g
Shipping port: Xiamen
Warranty: 12 months

Quantity

Selected quantity: 1

Estimate delivery times: 12-26 days (International), 3-6 days (United States).

Return within 30 days of purchase. Duties & taxes are non-refundable.

Guaranteed Safe Checkout

Product Overview

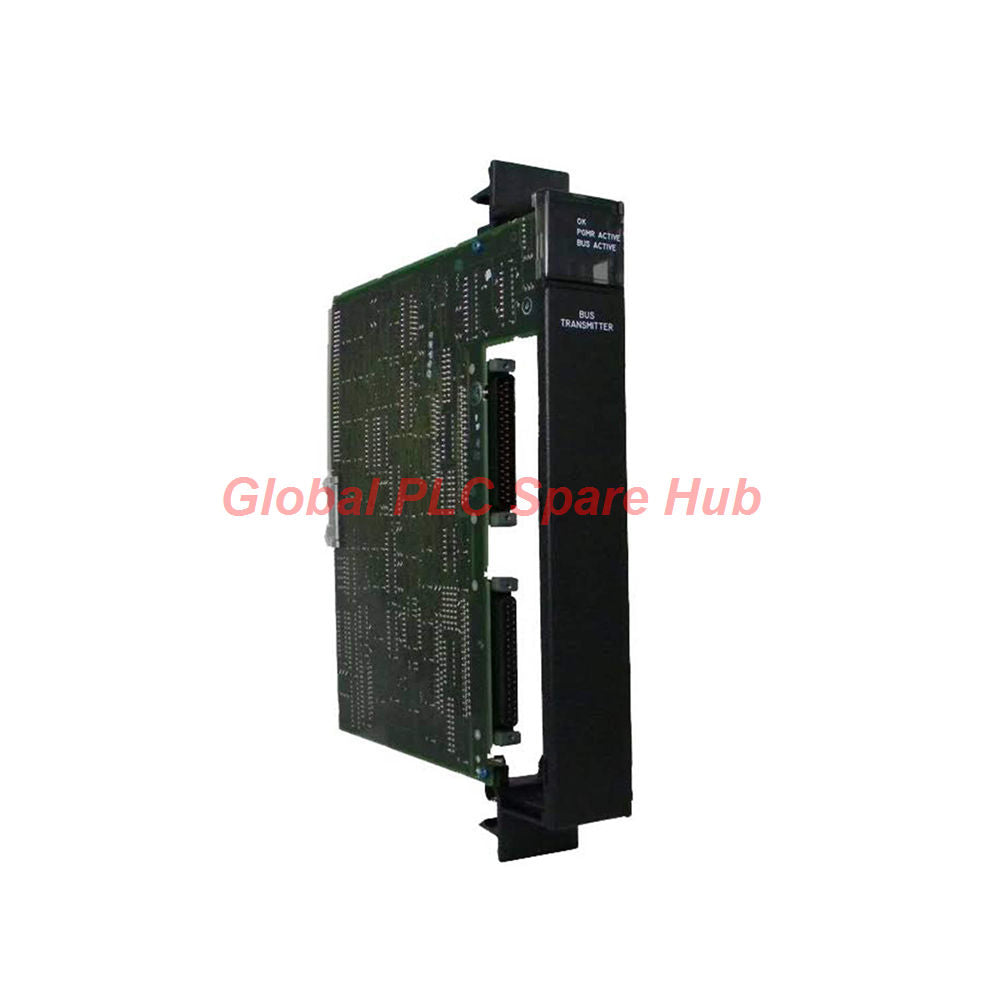

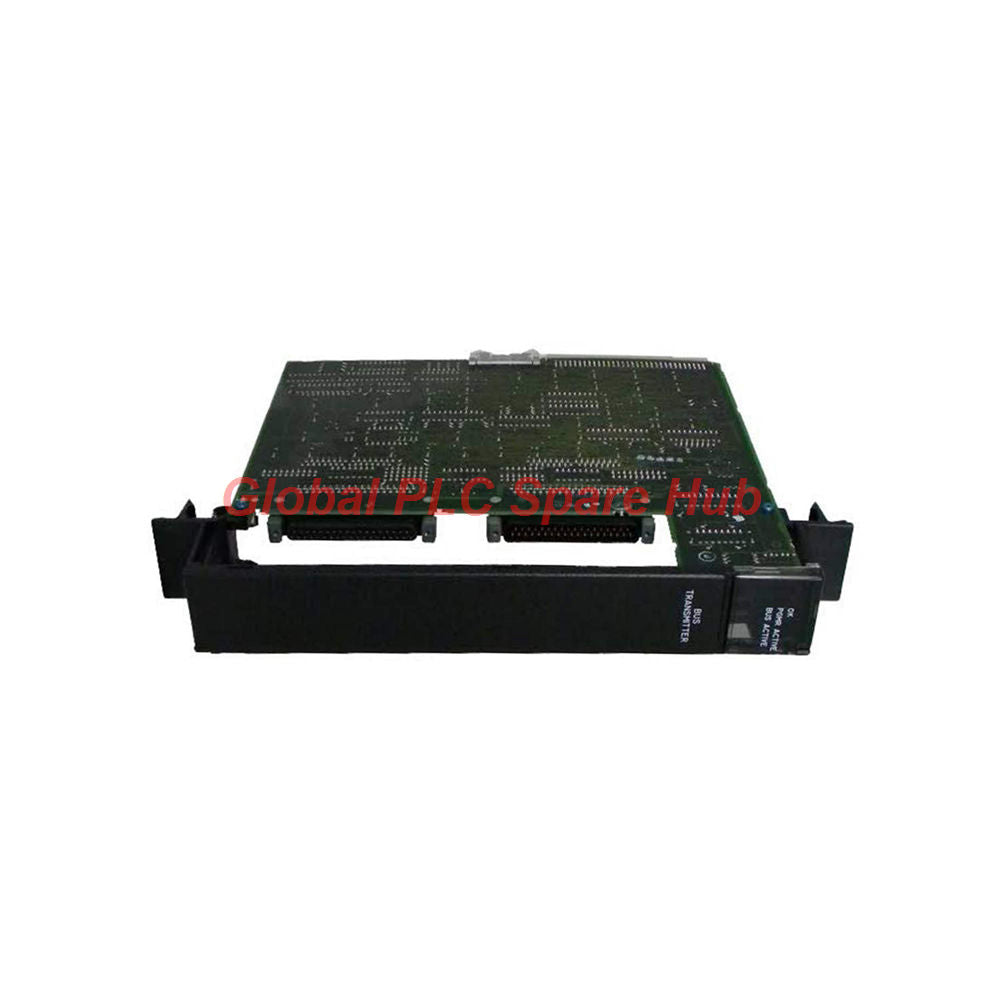

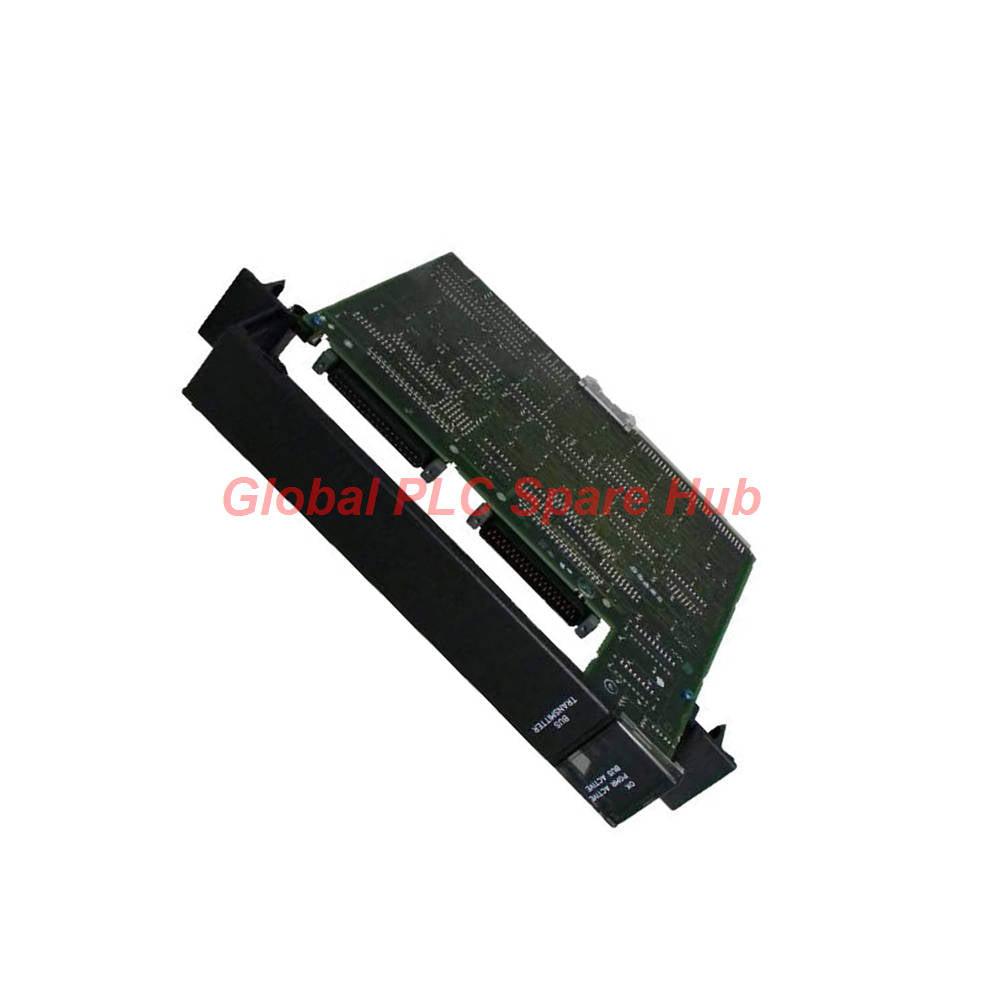

The GE Fanuc IC697BEM713 is a Series 90-70 Bus Transmitter Module designed for PLC rack expansion. It extends the local CPU bus and increases the available I/O capacity.

The module was developed by GE Fanuc and is now supported within the Emerson Automation control product ecosystem. It provides a reliable connection between the main PLC rack and remote expansion racks.

The IC697BEM713 supports up to seven IC697BEM711 Bus Receiver Modules. It uses a high-speed parallel bus structure for industrial control applications.

Global PLC Spare HUB's Insight: From field integration experience, engineers often select the IC697BEM713 when the main Series 90-70 PLC rack cannot provide enough I/O slots. A typical application includes extending a production line PLC system with additional analog, digital, and specialty modules without replacing the CPU rack.

Core Product Advantages

Local Bus Expansion: Extends the CPU rack to additional PLC expansion racks.
High-Speed Communication: Provides a 500 Kbytes/sec effective data rate.
Flexible Installation: Supports installation in most Series 90-70 rack slots.
Programming Support: Includes a dedicated parallel programmer interface.
Daisy-Chain Expansion: Connects multiple racks through Bus Receiver Modules.

Technical Specifications

Brand	GE Fanuc / Emerson Automation
Model Number	IC697BEM713
Series	Series 90-70
Module Type	Bus Transmitter Module
PLC Compatibility	IC697 Series PLC Systems
Slot Requirement	1 PLC rack slot
Power Supply	5 VDC from system backplane
Current Consumption	1.4 A
Communication Type	Non-isolated differential communication
Effective Data Rate	500 Kbytes/sec
Program Storage Time	Approximately 20-30 seconds for 16 Kbyte program
Programming Interface	1 parallel programmer port
Expansion Interface	1 expansion bus output port
Maximum Expansion Modules	Up to 7 IC697BEM711 Bus Receiver Modules
Maximum Expansion Distance	50 ft (15 m) maximum cable length
Status Indicators	OK, PGMR, Last Rack LEDs

Engineering Parameters and Environmental Capability

Measurement Range: Not applicable for digital bus communication hardware.
Frequency Response: Not applicable for PLC communication modules.
Resolution: Determined by connected I/O modules.
Signal Integrity: Differential communication improves industrial noise resistance.
Electrical Isolation: Non-isolated differential bus communication design.
Environmental Resistance: Designed for industrial control cabinet installation.
Interference Protection: Requires proper grounding and shielded expansion cables.

Installation Guide

Power off the PLC rack before installing the module.
Insert the IC697BEM713 into an available Series 90-70 slot.
Do not install the module in Slot 1 because this position is reserved for CPU modules.
Connect the programmer cable to the upper parallel interface.
Connect the expansion cable from the lower port to the first Bus Receiver Module.
Install IC697ACC702 terminating resistor on the final expansion rack.

Recommended Expansion Cable Configuration

Cable Model	Length
IC600WD005A	5 ft (1.5 m)
IC600WD010A	10 ft (3 m)
IC600WD025A	25 ft (7.5 m)
IC600WD050A	50 ft (15 m)

Commissioning and Maintenance Experience

During commissioning, engineers should verify all rack addresses before powering the system. Incorrect expansion cable installation can prevent the CPU from recognizing remote racks.

Global PLC Spare HUB Review: A common field issue occurs when the final expansion rack lacks the termination resistor. The PLC may show unstable rack communication or incomplete I/O detection. Installing the correct IC697ACC702 resistor usually restores stable operation.

Check the OK LED after CPU initialization.
Verify the PGMR LED during programming communication.
Confirm the Last Rack LED status after expansion startup.
Inspect cable shielding in high-noise industrial environments.

Compatibility Information

Compatible with GE Fanuc Series 90-70 PLC platforms.
Works with IC697BEM711 Bus Receiver Modules.
Supports Series 90-70 local bus expansion architecture.
Requires compatible PLC programming software for configuration.
Supports MS-DOS and Windows-based Series 90-70 programming environments.

Typical Application Scenarios

Manufacturing production line PLC expansion.
Process automation control cabinet upgrades.
Large machine control systems requiring additional I/O capacity.
Packaging and material handling automation systems.
Industrial monitoring systems using Series 90-70 architecture.

Diagnostic Capability

The OK LED indicates module initialization status.
The PGMR LED monitors programmer communication activity.
The Last Rack LED confirms expansion bus status.
Rack communication faults can be traced through cable checks and LED conditions.

Packaging and Warranty

Package Includes: 1 × GE Fanuc IC697BEM713 Bus Transmitter Module.
Professional protective packaging ensures safe transportation.
Warranty: 12 months quality assurance.
Shipping options include FedEx, UPS, and DHL.
Standard delivery preparation time is 24-48 hours after order confirmation.

Frequently Asked Questions

Q: What is the main function of the IC697BEM713?

A: The module expands Series 90-70 PLC capacity by connecting additional racks through Bus Receiver Modules.

Q: Can the IC697BEM713 replace a CPU module?

A: No. The module only provides bus expansion functions and requires an existing IC697 CPU system.

Q: Why does my PLC fail to detect expansion racks after installation?

A: Field experience shows missing termination resistors, incorrect cable wiring, and rack addressing errors are common causes.

Q: How many expansion racks can one IC697BEM713 support?

A: One transmitter module supports up to seven IC697BEM711 Bus Receiver Modules.

Q: What should engineers check before purchasing this module?

A: Confirm the PLC family, rack architecture, expansion distance, required receiver modules, and compatible programming environment.

Q: Is the IC697BEM713 suitable for high-noise industrial environments?

A: Yes, but proper grounding, shielding, and cable routing remain essential for stable communication.

Selection Guide

Choose IC697BEM713 when expanding a Series 90-70 PLC local bus system.
Use compatible IC697BEM711 modules for remote rack communication.
Verify total cable length does not exceed 50 ft.
Confirm available rack slots before system modification.

12-Month Comprehensive Warranty

Every part supplied by Global PLC Spare Hub is covered by a 12-month warranty from the date of invoice.

Coverage: Functional defects and hardware failures under normal operating conditions.
Commitment: We provide immediate repair, replacement, or a full refund for any verified defective components to minimize your operational downtime.

Returns & Exchange Policy

We offer a 30-day return policy to ensure you receive the exact part your system requires.

Eligibility: Returns are accepted for uninstalled items in their original, factory-sealed packaging.
RMA Process: Please contact our support team to obtain a Return Merchandise Authorization (RMA) number before shipping.
Fast Processing: Refunds or exchanges are processed within 3–5 business days after the returned item passes our technical inspection.

Need Technical Assistance?Not sure if this part is compatible with your system? [Consult our Engineers] before purchasing to ensure 100% compatibility.
