DTM10-202-A3-C1-G1-S1 ProvibTech DTM10 Series Distributed Transmitter Monitor

DTM10-202-A3-C1-G1-S1 Transmitter Monitor Overview

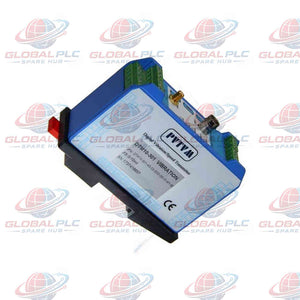

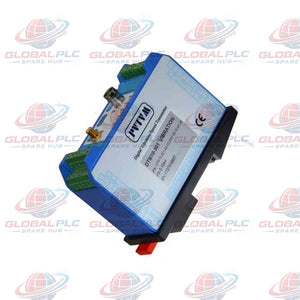

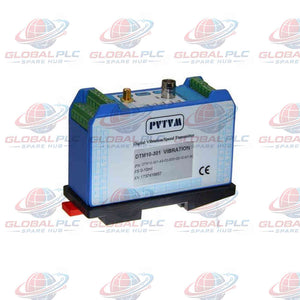

The DTM10-202-A3-C1-G1-S1 is a factory pre-configured axial position transmitter monitor from the renowned ProvibTech DTM10 series. This unit processes continuous shaft displacement data using an external driver and a high-range proximity probe. Built into a cast copper-free aluminum housing, it provides field-level signal processing for critical machinery monitoring loops.

This ProvibTech DTM10 architecture features redundant power supply terminals and dual 4-20mA continuous signal outputs. An integrated Modbus RTU interface over RS485 connects directly to plant DCS networks. Front-panel LEDs and BNC dynamic signal ports simplify on-site troubleshooting and periodic calibration routines on rotating equipment.

Configuration Breakdown: DTM10-202-A3-C1-G1-S1

• Base Series: DTM10 — Fully digital distributed transmitter monitor platform
• Function Type: 202 — Pre-configured for axial (thrust) position (external probe driver required)
• Full Scale Range (A Option): A3 — Range 12.0-0-12.0mm (0.5-0-0.5 inch), designed for TM0150 50mm probe
• Alarm Relays (C Option): C1 — No internal alarm relays configured
• Mounting Hardware (G Option): G1 — Standard flat plate mounting assembly
• Hazardous Approvals (S Option): S1 — CE, CSA Class I, Div.2, Groups A, B, C & D, T4; ATEX II 3G Ex nA II T4

Technical Specifications

Industry Applications & Diagnostic Capability

• Large Steam Turbine Thrust Bearing Monitoring: Detects axial rotor displacement to prevent catastrophic runner contact against casing wear rings.
• Multi-Stage Centrifugal Compressors: Tracks thrust collar position under varying load steps to safeguard internal balance pistons.
• High-Pressure Boiler Feed Pumps: Continuous position feedback prevents hydraulic balance disc failure during thermal transients.
• Hydroelectric Francis & Kaplan Turbines: Monitors vertical runner elevation changes caused by hydraulic thrust variation.
• Real-Time Dynamic Diagnostics: BNC buffered output feeds portable FFT analyzer networks without interrupting primary 4-20mA control loops to PLC/DCS controllers.

Packaging, Logistics & Warranty Terms

• Factory Package Content: Includes one new factory-sealed DTM10-202-A3-C1-G1-S1 module with mounting hardware.
• Quality Warranty Protection: Protected by a 12-month comprehensive warranty starting from dispatch date.
• Express Dispatch Schedule: Processed and shipped within 24 to 48 hours following order placement.
• Global Delivery Carrier Services: Express door-to-door air transit via FedEx, UPS, and DHL.

Global PLC Spare HUB's Insight

The DTM10-202-A3-C1-G1-S1 solves a common field issue in turbomachinery protection: long dynamic signal runs over 100 meters degrade high-frequency thrust data when using unbuffered field transmitters. The dual 4-20mA output architecture allows redundant signal routing to both a safety PLC and a local panel meter without splitting loop impedance. Meanwhile, the unbuffered 550Ω BNC output maintains clean raw voltage waveforms for diagnostic engineers running spectrum analysis during plant startups.

On a recent commissioning job involving a synthesis gas compressor, field technicians encountered intermittent false thrust alarms during motor start. Inspection revealed that the unisolated RS485 Modbus loop suffered ground potential differences between field cabinets. We resolved the interference by installing a ProvibTech DTM96 isolation module inline with the RS485 port of the DTM10-202-A3-C1-G1-S1. Isolating the communication bus stabilized the digital readings and prevented ground loops across the plant network.

Selection Guide

Follow these steps to confirm compatibility before purchasing this module:

• Probe Matching: Option A3 specifically requires a 50mm diameter target area using a TM0150 50mm eddy current probe system.
• Driver Requirement: The 202 variant relies on an external probe driver; it does not contain an internal driver oscillator circuit.
• Alarm Relay Option: Note that the C1 designation omits internal SPDT mechanical relays. If local trip contact outputs are needed, select option C2 or C3 instead.

Frequently Asked Questions

Q: How do I calibrate the zero offset on the DTM10-202-A3-C1-G1-S1 after mechanical installation?

A: Mechanically center the target rotor shaft. Use a TM0540 static calibrator or software utility to verify gap voltage at the buffered output terminals before locking down the probe housing.

Q: Can I connect the RS485 Modbus output directly to my DCS without additional galvanic isolation?

A: The RS485 port on this unit is non-isolated. If your field wiring runs across different grounding grids, install a DTM96 isolation module to avoid communication errors and noise pickup.

Q: What is the primary difference between the DTM10-202 thrust monitor and a standard DTM10 radial vibration module?

A: The 202 option processes low-frequency DC position shifts corresponding to shaft axial travel, whereas radial units evaluate AC peak-to-peak dynamic motion across higher frequency bands.

Q: How does the Trip-Multiply function work on this axial transmitter module during machine startup?

A: Shorting the Trip Multi pin to COM temporarily expands the alert threshold by a preset ratio. This prevents nuisance trips caused by transient thermal expansion during turbine warm-up cycles.

Q: Is an external power supply required for both power terminals on the DTM10-202-A3-C1-G1-S1?

A: A single 22-30VDC source works, but wiring dual redundant power feeds to both terminal sets ensures uninterrupted monitoring if one power bus fails.
