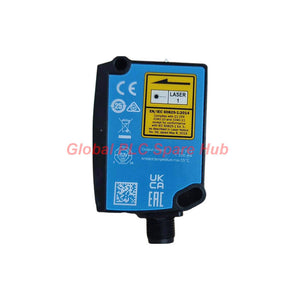

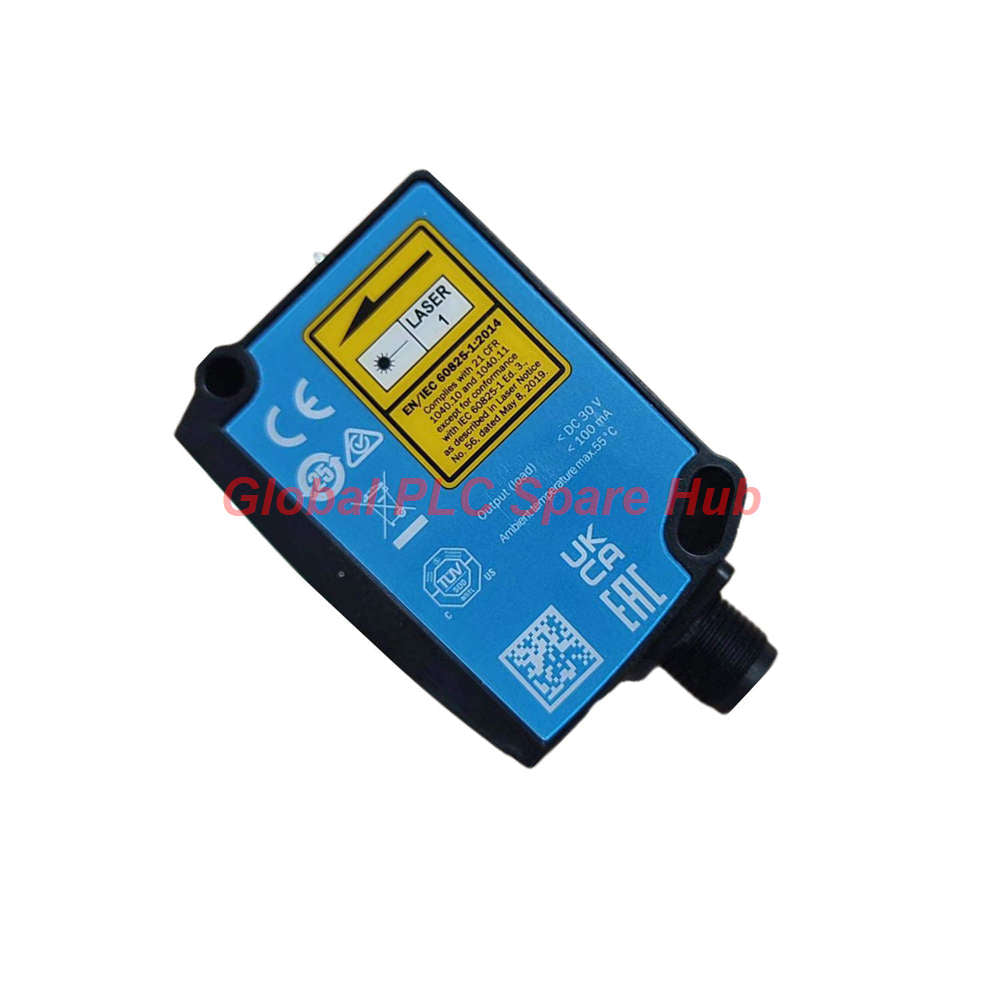

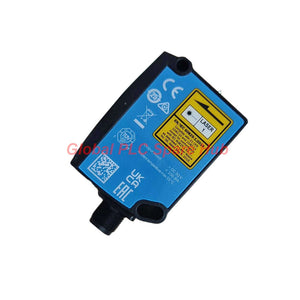

DT35-B15551 SICK Sensor Series Dx35 Time-of-Flight | Best Quote
Manufacturer: SICK
Product No.: DT35-B15551
Condition： In stock
Product Type: Measurement Sensor
Product Origin: DE
Payment: T/T, Western Union
Weight: 65g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Core Product Overview
The DT35-B15551 Dx35 time-of-flight sensor utilizes advanced HDDM technology to deliver precise distance measurement across short-to-medium ranges. Housed in a compact ABS/PC block style, this device suits space-constrained automation cells requiring reliable analog and digital switching outputs.
Global PLC Spare HUB's Insight
Deploying compact optical sensors in high-vibration factory zones often leads to threshold drift or false triggers if target remission factors fluctuate. In our field evaluations of the DT35-B15551, commissioning engineers successfully stabilized position control loops on fast-moving assembly shuttles by tuning the internal speed profile to "Super Slow" mode to filter out background noise. Utilizing the integrated IO-Link interface further streamlined remote parameter cloning during routine batch replacements.
Technical Parameters & Architecture
| Engineering Parameter | Operational Specification |
|---|---|
| Brand & Model | DT35-B15551 (Dx35 Series) |
| Detection Range | 0.05 m to 12 m (90% remission) | 3.1 m (6% remission) |
| Resolution & Repeatability | Resolution 100 µm | Repeatability ≥ 0.5 mm |
| Measurement Accuracy | Typical ± 10 mm |
| Response & Cycle Timing | Response time 4.5 ms to 192.5 ms | Switching freq up to 166 Hz |
| Emitted Beam & Laser Class | Visible red laser, Class 1 (IEC 60825-1) |
| Control Interfaces | IO-Link V1.1, Push-pull PNP/NPN, Analog (4-20mA / 0-10V) |
| Electrical Ratings | 12V to 30V DC supply, Power consumption ≤ 1.7 W |
| Enclosure & Physical Dimensions | IP65/IP67 rating, 32 mm x 58.67 mm x 42.7 mm, Weight 65 g |
Advanced Diagnostic Capabilities
The DT35-B15551 provides continuous operational feedback through its IO-Link communication layer. System controllers monitor device internal temperatures, laser readiness status, signal remission quality, and output switching cycles in real time to predict maintenance intervals before unexpected failures occur.
Target Equipment & Application Environments
Engineered for tight spaces and dynamic motion profiles, this Dx35 sensor integrates seamlessly into:
- Automated guided vehicles (AGVs) for collision avoidance and contour detection
- Packaging machinery for precise stack height and roll diameter measurement
- Electronics assembly lines for component presence verification
- Material handling sorting chutes for high-speed object distance profiling
Warranty & Global Logistics
Every DT35-B15551 unit is backed by a comprehensive 12-month quality warranty. We ensure rapid global dispatch within 24 to 48 hours using premier carriers including FedEx, UPS, and DHL.
Frequently Asked Questions & Expert Buying Guide
Q: How does target remission affect the maximum operational range of the DT35-B15551?
A: The maximum range reaches 12 meters with a 90% remission factor, but drops to 3.1 meters when targeting dark objects with a 6% remission factor.
Q: What is the main advantage of configuring the sensor via IO-Link during installation?
A: IO-Link allows engineers to remotely set custom switching windows, adjust analog output curves, and instantly restore parameters during device swaps without manual teach-in buttons.
Q: Why does the sensor require a warm-up time of up to 20 minutes?
A: The internal laser diode and electronic components require thermal stabilization to achieve maximum measurement accuracy and eliminate initial drift.
Q: How can I prevent false triggering caused by background interference in tight machine frames?
A: Use the IO-Link interface to select the Object Between Sensor and Background (ObSB) switching mode or adjust the speed profile to filter transient reflections.
Q: What should I consider when selecting a distance sensor for high-vibration conveyor systems?
A: Verify that the housing material and mechanical shock ratings match your environment; the DT35-B15551 features rugged ABS/PC construction built to withstand standard industrial vibration standards.
