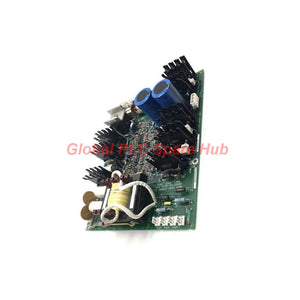

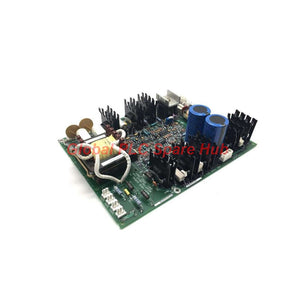

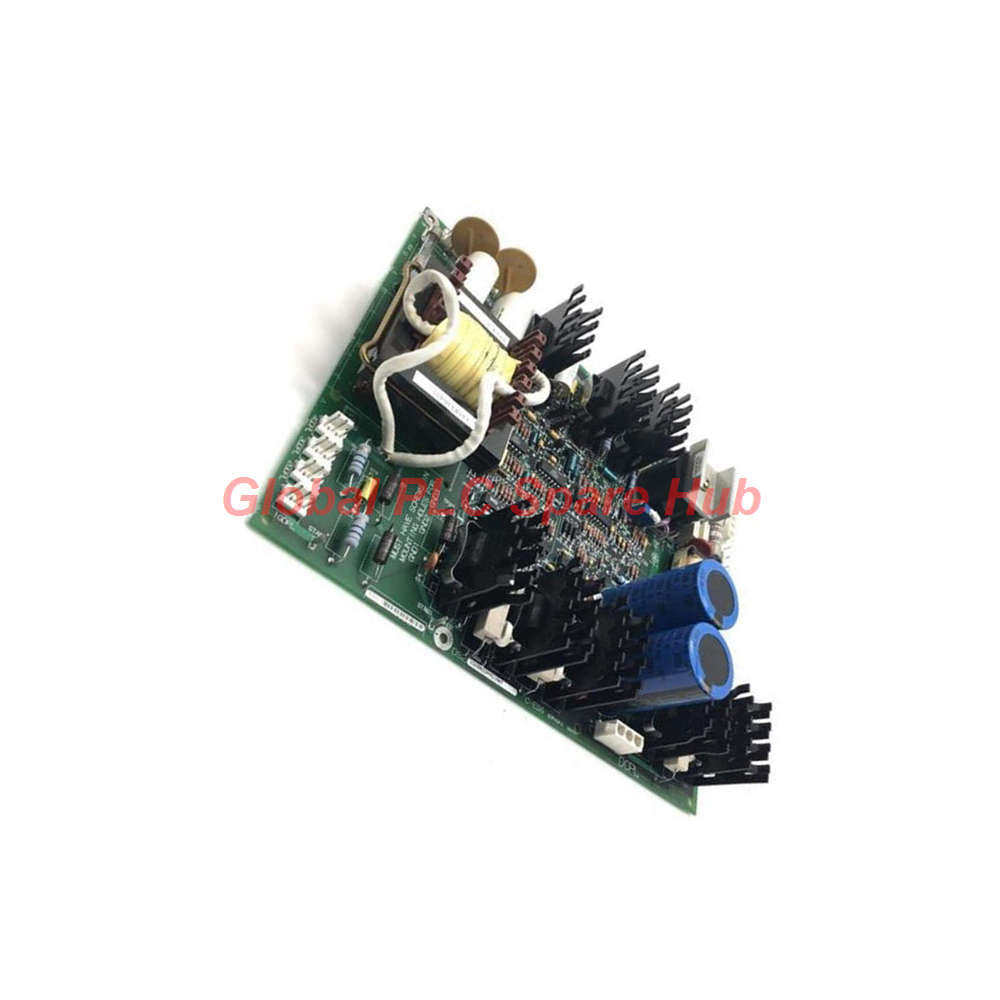

DS200GDPAG1AGD GE Mark V Gate Driver Power Supply

Precision Engineering: The DS200GDPAG1AGD Gate Driver Module

The DS200GDPAG1AGD is a sophisticated high-frequency power supply board specifically engineered for the GE Mark V Speedtronic control ecosystem. As a critical component within turbine drive assemblies, this 600-700W module excels in delivering stable power to complex drive and exciter configurations. Its design incorporates a 27 kHz inverter stage and advanced isolation circuitry, ensuring high-fidelity signal processing even in the presence of electrical noise within gas, steam, and wind turbine environments.

Technical Performance Metrics

• Model Number: DS200GDPAG1AGD
• Control System: GE Mark V Series
• Power Capacity: 600W – 700W (High-Frequency)
• Input Flexibility: AC (80-132 VAC) or DC (105-140 VDC)
• Architecture: Input rectifier, 27 kHz inverter, and integrated regulator
• Integrated Diagnostics: 4 LED and 2 neon status indicators
• Output Features: 120 VDC supply, 50 VAC transformer, and dedicated control power supply

Advanced Diagnostic & Protection Circuitry

The DS200GDPAG1AGD board features comprehensive protection logic designed to mitigate operational risks in the absence of a physical reset button. Key internal circuits include:

• Inverter & Regulator Overcurrent Protection: Prevents catastrophic failure during transient load spikes.
• P80 Bus Overvoltage Monitoring: Safeguards system integrity during utility supply instability.
• Control Voltage Undervoltage Detection: Ensures logic levels remain within spec to prevent erratic turbine behavior.
• CVOK Signal Logic: Provides real-time operational confirmation for seamless integration with the Mark V drive controller.

Global PLC Spare HUB's Insight

From our technical observation, the DS200GDPAG1AGD is a "passive-monitoring" critical asset. Because the board lacks a manual reset, field technicians must utilize the onboard LED/neon array to interpret diagnostic health. We recommend periodic inspection of the transformer and capacitor banks to prevent heat-soak degradation, which is the most common cause of premature failure in high-frequency power supplies.

Logistics & Operational Assurance

• Warranty: Protected by a comprehensive 12-month performance warranty.
• Expedited Fulfillment: 24-48 hour order processing and dispatch.
• Global Reach: Fast, secure shipping via FedEx, UPS, and DHL.

Professional FAQ and Selection Guide

How do I determine if my Mark V system requires this specific revision (AGD)?
The "AGD" revision denotes the latest functional iteration of the G1 series; always cross-reference your original GEI-100287 manual to ensure electrical compatibility with your specific drive cabinet configuration.

What is the best way to troubleshoot board status in the field?
Since there is no manual reset, prioritize monitoring the neon indicators; a loss of neon illumination typically indicates an input rectifier failure or a blown control power stage.

Can the board handle fluctuating input voltage?
Yes, the onboard isolated filter and regulator stage are specifically designed to suppress spikes within the 80-132 VAC and 105-140 VDC ranges.

Why are there no reset buttons on this module?
The design relies on "auto-recovery" protection logic. If a fault condition (like P80 Overvoltage) clears, the board will attempt to restart automatically—this is why proper wiring termination is vital to avoid power cycling loops.

Selection Strategy:
Always verify if you are replacing a non-A revision (e.g., G1 original). While physically similar, the AGD revision includes optimized protection circuit constants that significantly improve MTBF in aging turbine controllers.
