Buy DO814 ABB S800 16-Channel Digital Output Module

Product Overview

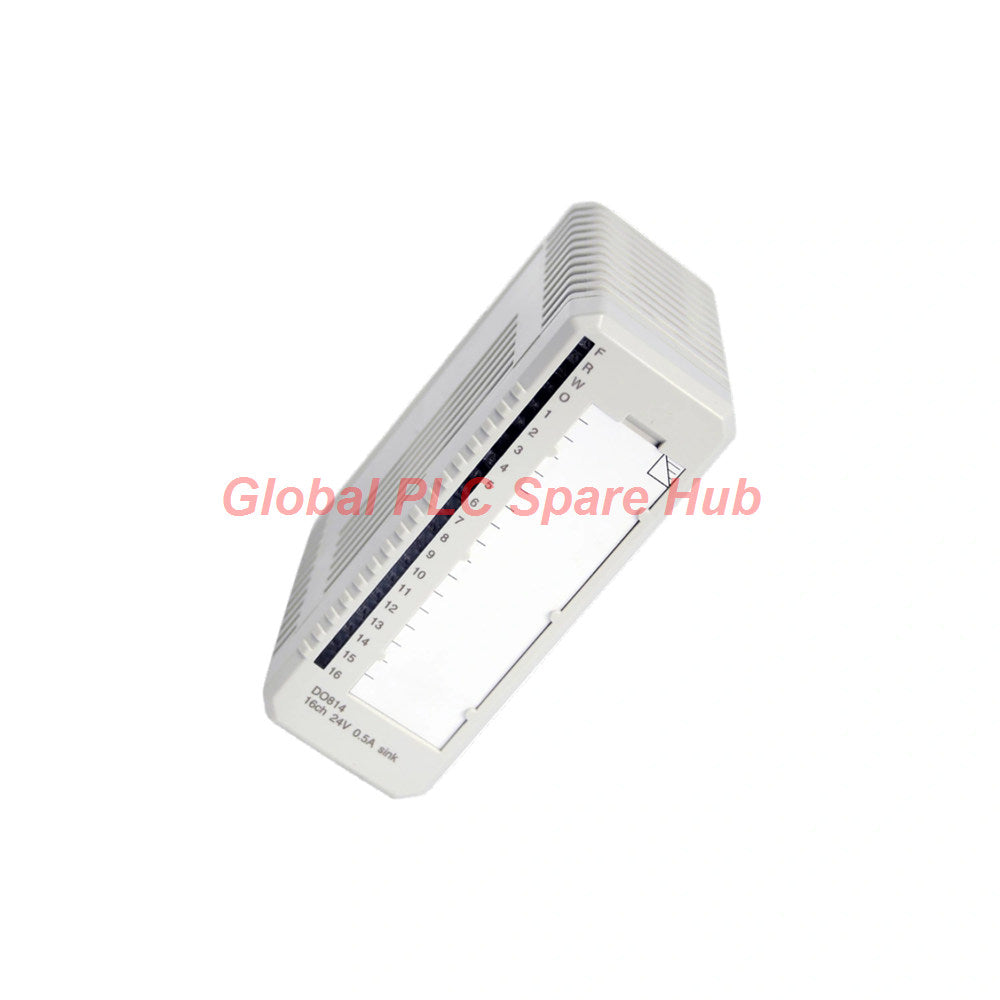

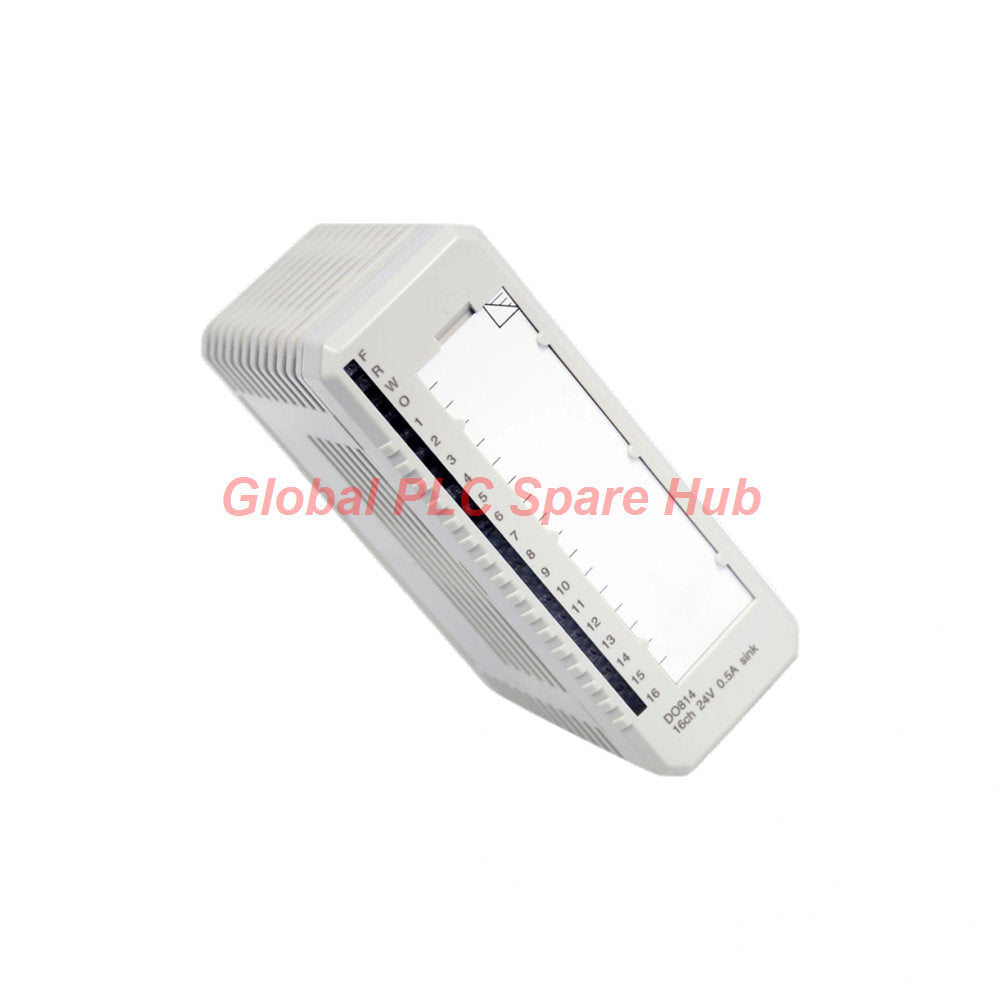

The DO814 is a high-performance 16-channel digital output module engineered by ABB within the S800 I/O series. This module delivers 24 VDC current-sinking outputs across two isolated groups, complete with individual process voltage supervision inputs. Global PLC Spare HUB's Insight highlights that utilizing built-in OSP (Output Set Point) logic ensures critical final control elements transition to safe, predetermined states instantly upon communication loss or controller fault detection.

Technical Specifications

• Brand / Manufacturer: ABB
• Series / Architecture: S800 I/O / Modular DIN-rail mounting
• Part Number / Article: DO814 (3BUR001455R1)
• Module Type: 16-Channel Digital Output (Current Sinking)
• Signal Range & Rating: 24 VDC (12-32 VDC operating), 0.5 A max continuous current per channel
• Electrical Isolation: Groupwise isolated from ground (50 V rated insulation, 500 VAC dielectric test)
• Power Dissipation & Draw: Typical 2.1 W; 80 mA current consumption from +5 V ModuleBus
• Physical Dimensions: 45 mm (W) x 119 mm (H) x 102 mm (D) [111 mm with connector]
• Weight: 0.18 kg (0.4 lbs)

Installation Guide

• MTU Alignment: Mount the DO814 module onto a compatible S800 I/O Module Termination Unit (such as TU810V1) with matching BE keying pins.
• Field Wiring Routing: Terminate field load cables up to 600 meters (656 yards) while keeping inductive load suppression diodes active across DC solenoids.
• DIN Rail Clearance: Ensure proper vertical spacing, noting that maximum ambient temperature drops to 40 °C (104 °F) when installed vertically in compact MTU arrangements.

Debugging and Maintenance Convenience

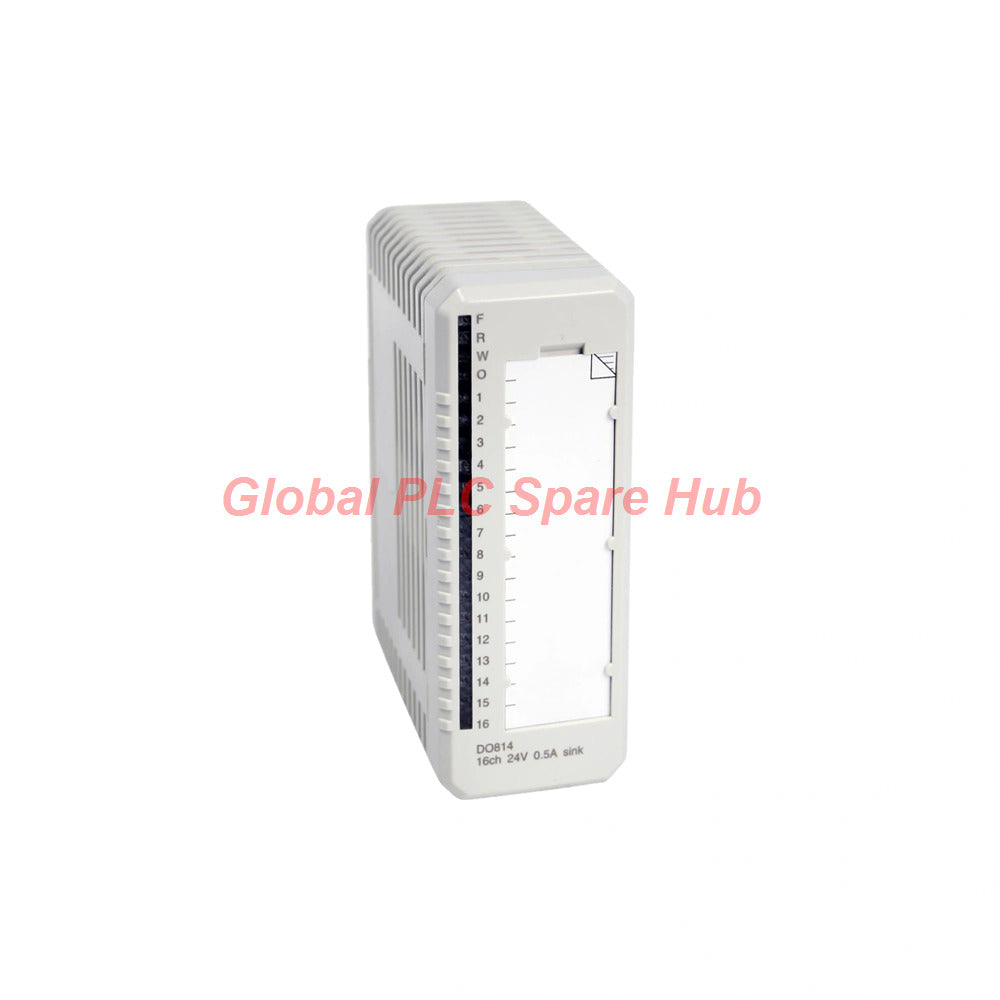

• Front LED Diagnostics: Monitor F (Fault), R (Run), W (Warning), O (OSP), and individual Channel 1-16 status LEDs for instant loop verification.
• Process Voltage Supervision: Review group-level voltage error signals via the ModuleBus if external field supply drops below operating thresholds.
• Hot-Swap Capability: Replace faulty modules safely without tools thanks to modular S800 architecture and mechanical keying protection.

Compatibility & Diagnostics

• System Compatibility: Fully compatible with ABB control platforms utilizing the S800 I/O bus architecture and standard MTU blocks.
• Diagnostic Capability: Generates automated channel and module error warnings for short-circuit conditions, over-temperature trips, and lost process supply voltages.
• Global PLC Spare HUB Review: Commissioning engineers note that the dual group-wise isolation barrier successfully blocks transient ground surges across sprawling remote instrumentation skids.

Typical Application Scenarios

• Distributed Control Systems (DCS): Interfacing high-density 24 VDC solenoid valves and relay actuators in petrochemical processing plants.
• Factory Automation Cells: Controlling high-speed inductive DC loads on automated packaging and assembly machinery.
• Marine Propulsion Control: Managing auxiliary digital outputs on shipboard automation panels meeting ABS, BV, DNV, and LR standards.

Certifications, Logistics, and Warranty

• Certifications: Complies with EN 61010-1, UL 61010-1, ATEX Zone 2, C1 Div 2 cULus, and marine safety standards.
• Logistics & Dispatch: Fast 24-48 hour dispatch window utilizing reliable international carriers including FedEx, UPS, and DHL.
• Warranty Terms: Protected by a full 12-month warranty from the original date of supply.
• Packing List: One DO814 digital output module and technical compliance sheet.

Frequently Asked Questions (FAQ)

Q: What triggers an OSP (Output Set Point) state on the DO814 module?

A: OSP activates automatically when the module detects a communication timeout with the controller, forcing outputs to a pre-configured safe state.

Q: Can the 16 output channels sink current from independent external power sources?

A: No, the 16 channels are divided into two isolated groups of eight, where each group shares a common process voltage supervision input and supply rail.

Q: Why are individual channel status LEDs flashing during normal operation?

A: Flashing or unlit LEDs typically indicate an open load wire, a short-circuit condition to ground, or an over-temperature thermal trip on that specific channel.

Q: What MTU backplane connector keying code is required for this module?

A: The module requires an MTU with Keying Code BE to ensure physical prevention of insertion into incorrect voltage terminal slots.

Q: Purchasing Guidance: How do I select the right MTU base for this module?

A: Choose standard terminal units like the TU810V1 or TU812 depending on whether you require screw or spring-clamp field wiring connections.
