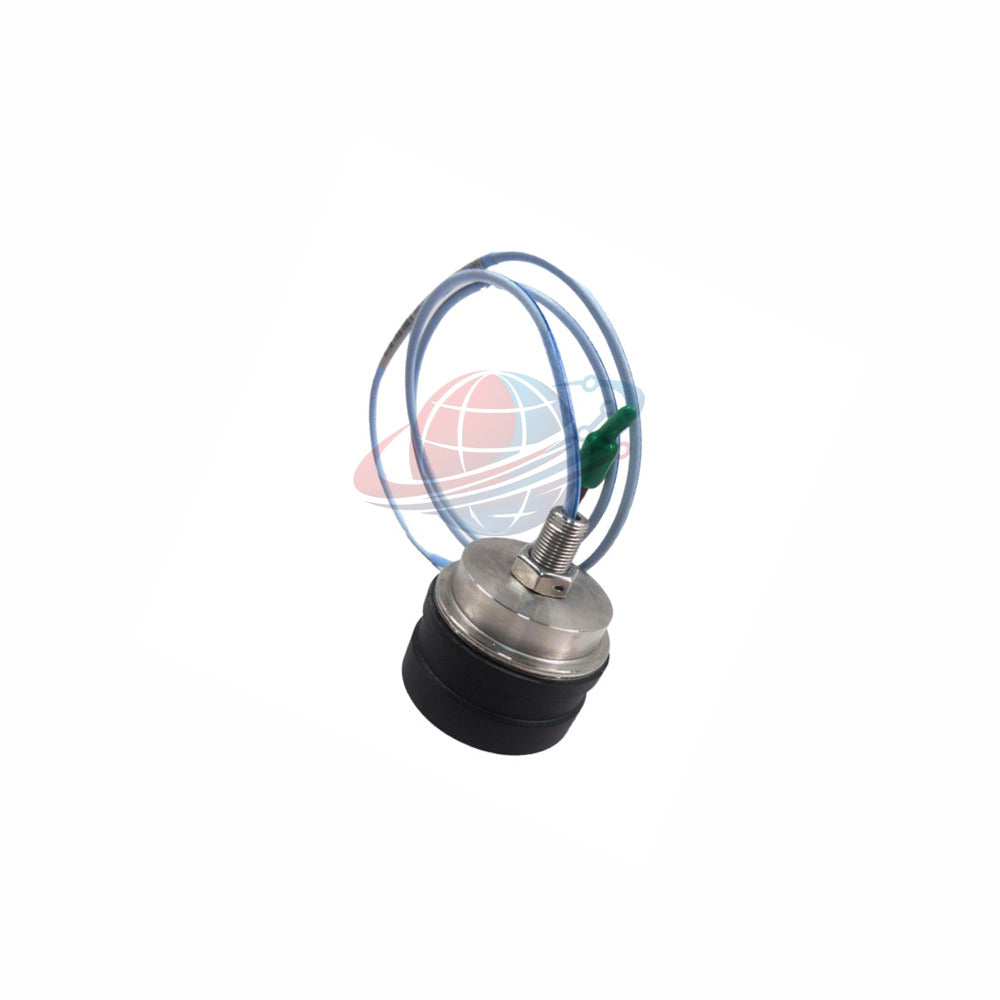

Buy 330876-02-50-00-05 Bently Nevada Proximity Probe 330876 Series
Manufacturer: Bently Nevada
Product No.: 330876-02-50-00-05
Condition： In stock
Product Type: Proximity Probe
Product Origin: USA
Payment: T/T, Western Union
Weight: 590g
Shipping port: Xiamen
Warranty: 12 months
Estimate delivery times: 12-26 days (International), 3-6 days (United States).
Return within 30 days of purchase. Duties & taxes are non-refundable.
Guaranteed Safe Checkout
Engineering Overview & Architecture
The 330876-02-50-00-05 represents a pinnacle engineering solution within the 3300 XL 50 mm series by Bently Nevada. Specifically engineered to conquer extreme environments characteristic of steam turbine drive-end (DE) positions, this industrial proximity transducer guarantees uncompromised metrological precision. Global PLC Spare HUB's Insight emphasizes that its dual front-and-rear sealing architecture effectively neutralizes moisture ingress vectors, safeguarding high-stakes turbomachinery against unforeseen catastrophic mechanical trips.
Configuration Breakdown & Model Suffix Tree
- Base Model: 330876 - 3300 XL 50 mm Proximity Probe
- Probe Case Type (-02): M14x1.5 metric external thread architecture with integrated locknut containing predrilled safety wire provisions.
- Total Length Option (-50): 5.0 meters (16.4 feet) engineered exclusively for pairing with designated 5-meter matched Proximitor sensors.
- Armor Option (-00): High-Temperature FluidLoc cable structure designed for severe chemical and thermal resistance.
- Agency Approval Option (-05): Multiple international hazardous area certifications pre-verified for global deployment.
Advanced Technical Specifications Matrix
| Technical Domain | Engineering Metric & Specification |
|---|---|
| Brand & Model Identifier | Bently Nevada 330876-02-50-00-05 |
| Core Transducer Family | 3300 XL 50 mm High-Temperature Series |
| Continuous Thermal Range | -35°C to +200°C (-31°F to +392°F) continuous operational envelope |
| Transient Thermal Endurance | Up to +250°C (+482°F) short-term threshold exposure for under 24 hours |
| DC Electrical Resistance | Center-to-coaxial conductor Probe measuring $7.6 \pm 0.8Ω at 5.0 m length |
| Physical Construction Materials | Polyphenylene Sulfide (PPS) probe tip combined with AISI 304 Stainless Steel (SST) casing |
| Cabling Specifications | 75 Ω triaxial perfluoroalkoxyethylene (PFA) insulated FluidLoc cable profile |
| Thread Engagement Parameters | M14x1.5 thread profile with a maximum engagement depth limit of 21 mm |
Diagnostic Capabilities & Industrial Applications
- Diagnostic Intelligence: Captures high-frequency axial rotor displacement, thermal growth shifts, and transient thrust-collar movements with ultra-low signal drift.
- Target Equipment: Heavy-duty steam turbine generator sets, high-capacity boiler feed pumps, and multi-stage axial compressors.
- Global PLC Spare HUB Review: Field deployment logs confirm that implementing this high-temperature variant eliminates thermal-induced false alarms common in high-pressure steam headers.
Logistics, Warranty & Fulfillment Infrastructure
- Fulfillment Carriers: Expedited international shipping serviced strictly via FedEx, UPS, and DHL.
- Dispatch Lead Time: Guaranteed dispatch window within 24 to 48 hours from verified order placement.
- Factory Quality Assurance: Covered by a robust 12-month factory replacement and performance warranty.
- Condition Guarantee: Supplied strictly as brand new, original factory-sealed stock with original packaging and hardware accessories.
Model Selection Guidance & Comparative Analysis
- Technical Recommendation: When planning plant maintenance schedules, always cross-reference your specific system loop capacitance. Ensure physical cable lengths match the calibrated Proximitor module configuration precisely.
- Alternative Configuration: Review technical variances against the [330876-03-90-01-00] when alternative thread profiles, extended reach metrics, or specialized armor classifications are required for your mechanical layout.
Engineering Frequently Asked Questions
Q: What engineering measure prevents steam migration through the probe assembly?
A: The architecture relies on an integrated dual front-and-rear mechanical seal system coupled with standard High-Temperature FluidLoc cabling to physically block moisture transport paths.
Q: Can this 5-meter variant operate with a standard 1-meter extension cable?
A: No, the 5.0-meter option is specifically calibrated to function as an independent, single-piece run directly interfacing with a matched 5-meter Proximitor sensor without intermediate extensions.
Q: How does the removable collar on the ClickLoc connector assist installation?
A: The removable collar design temporarily reduces the outer diameter profile of the connector assembly, enabling smooth routing through narrow machinery conduits and tight casing clearances.
Q: What precautions should be observed when handling the probe in sub-zero environments?
A: Avoid severe mechanical shock or bending of the PFA-insulated cable when ambient temperatures drop below operational baselines to prevent micro-fracturing in the outer insulation matrix.
Q: What is the fastest method to secure a purchase quotation for plant turnaround?
A: Submit your exact project Bill of Materials directly through our instant inquiry portal to lock in priority 24-48 hour fulfillment processing.
