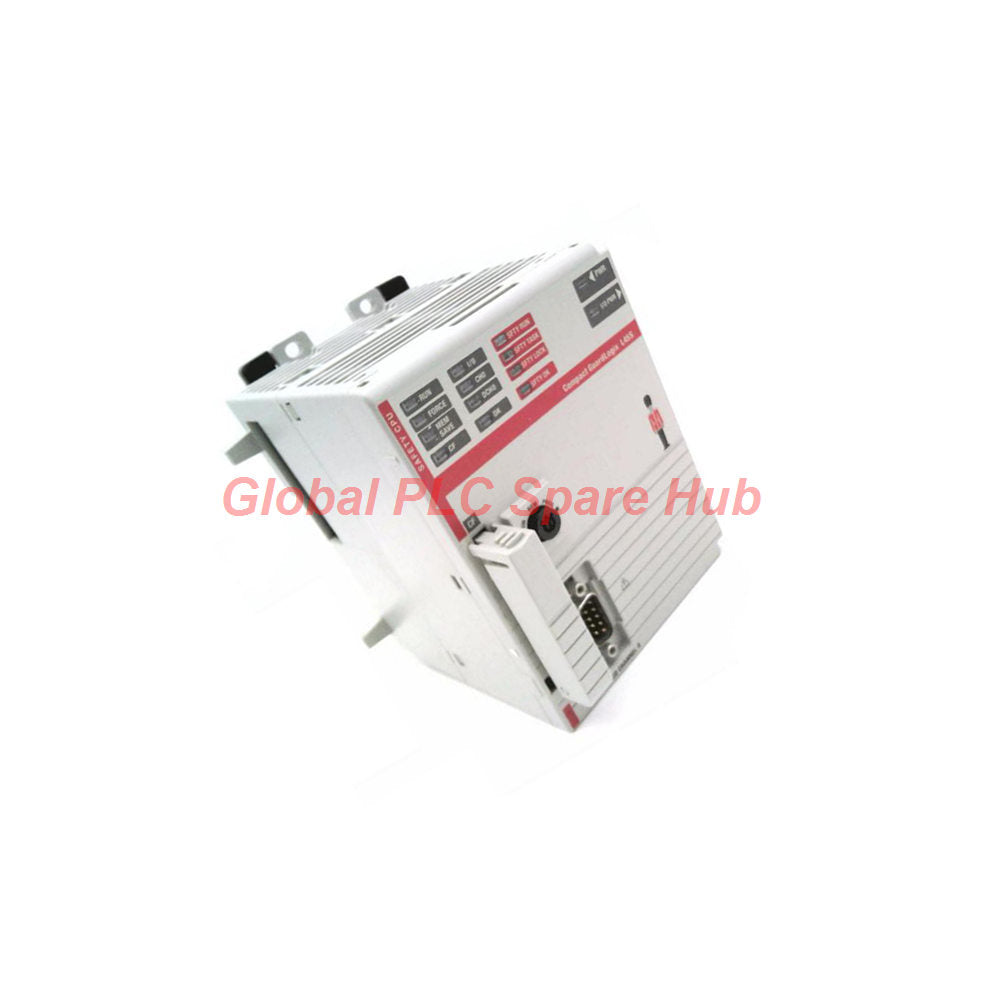

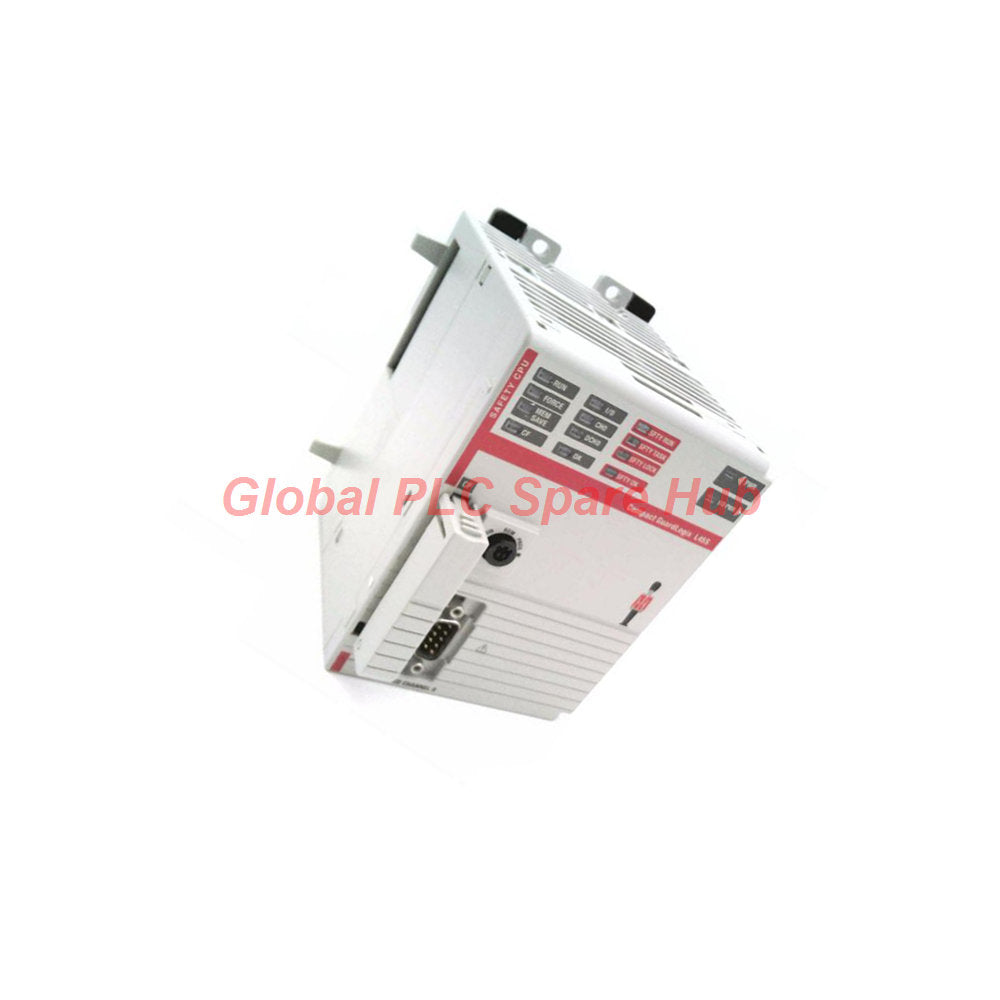

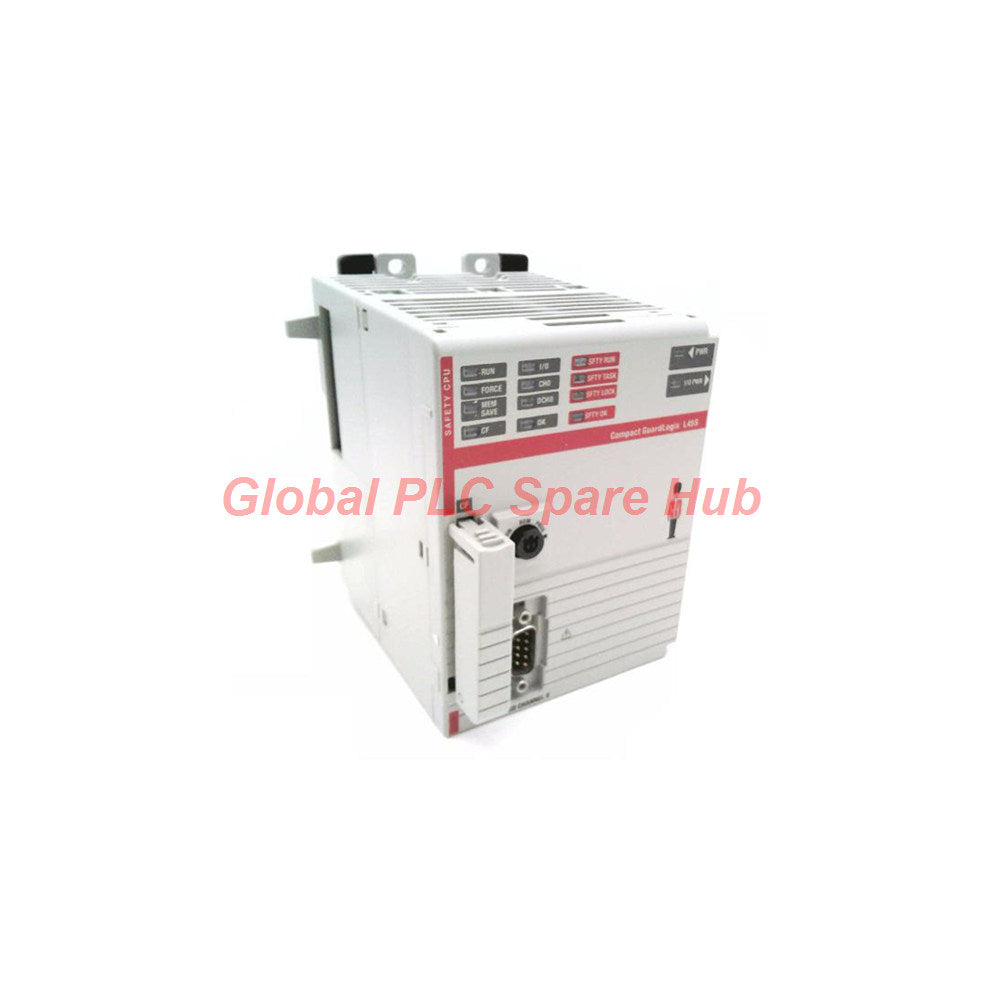

1768-L45S Allen-Bradley Compact GuardLogix Safety Controller

Overview

1768-L45S Allen-Bradley Compact GuardLogix 1768-L45S safety controller delivers integrated motion and dual-redundant logic handling for high-risk industrial safety cells. Built upon a robust 1oo2 architecture, this dual-processor unit achieves SIL 3 and PLe safety integrity while managing up to 3MB of standard application memory alongside 1MB of dedicated safety memory. Engineered for scalable machine safety, it supports distributed I/O network expansions and advanced communication modules without sacrificing processing speeds. Global PLC Spare HUB ensures rigorous quality fulfillment to support your critical safety infrastructure upgrades.

Core Technical Architecture & Performance Metrics

• Manufacturer & Brand: Rockwell Automation / Allen-Bradley
• Product Line & Model: Compact GuardLogix 1768-L45S
• Safety Integrity Rating: SIL 3, PLe, utilizing 1oo2 hardware safety architecture
• Processor Memory Allocation: 3 MB Standard User Memory and 1 MB Safety Memory
• Backplane Power & Current: 2.1 Amps current draw at 24 Volts DC
• Thermal & Power Load: 50.4 Watts power consumption; 9.5 Watts power dissipation
• Physical Dimensions & Mass: 131.6 x 90 x 121.8 mm (5.18 x 3.55 x 4.80 in.); Weight: 0.45 kg (15.9 oz)
• Environmental Resilience: Operating temperature range from 0 to 60 degrees Celsius; 5% to 95% non-condensing relative humidity

Scalability & System Integration Parameters

• Local I/O Capacity: Supports up to four (4) dedicated 1768 I/O modules on the primary bus
• Expansion Limits: Expandable up to thirty (30) 1769 Compact I/O modules across three (3) separate expansion banks
• Communication Support: Accommodates up to two (2) network interface cards including Ethernet/IP, ControlNet, and DeviceNet protocols
• Memory Storage Media: Utilizes a removable 1784-CF128 CompactFlash memory card for project safeguarding
• Programming Environment: Standard IEC-61131-3 languages for standard tasks; specialized relay ladder logic and safety instructions for safety routines

Mechanical Mounting & Operational Clearance

• Mounting Options: Panel mount or standard DIN rail installation capability
• Clearance Requirements: Minimum 105 mm (4.13 inches) top and bottom; 90 mm (3.54 inches) left and right side spacing
• Isolation Specifications: 30 Volts continuous functional insulation rating; tested against 500V DC for 6 seconds on isolated RS-232 ports
• Shock & Vibration Limits: Operating vibration tolerance of 5g at 10 to 500 Hz; 30g operating shock resilience

Diagnostic Capabilities & System Health Monitoring

• Integrated Status Feedback: Multi-color front panel diagnostic LEDs display controller mode, safety status, and fault conditions.
• Cross-Monitoring Diagnostics: Dual-processor architecture continuously cross-checks safety states to instantly trip outputs if logic discrepancy occurs.
• Communication Error Logging: Tracks packet integrity errors and node drops across distributed ControlNet and Ethernet/IP safety networks.
• Memory State Verification: Performs internal cyclic redundancy checks (CRC) on both standard and safety memory segments during boot routines.

Global PLC Spare HUB's Insight & Industrial Application Scope

• Engineering Experience: When commissioning dual-processor safety controllers, mismatched firmware versions between standard and safety tasks will prevent project validation. Always flash both internal task domains to matching revision tiers prior to downloading safety signatures.
• Target Application Scenarios: Automated robotic cells, heavy stamping presses, high-speed packaging lines, and hazardous chemical mixing skids requiring functional safety interlocks.
• Global Logistics: Fast, insured dispatch services handled via FedEx, UPS, and DHL to minimize costly plant downtime.
• Assurance Guarantee: Backed by a comprehensive 12-month replacement warranty for absolute operational peace of mind.

Frequently Asked Questions (FAQ)

• Why does the 1768-L45S controller require separate memory partitions for standard and safety tasks?
  Isolating memory prevents standard application loops or non-critical routine faults from corrupting safety-critical execution blocks, ensuring uncompromised SIL 3 compliance.
• Can I use standard 1769 I/O modules alongside safety I/O modules in the expansion banks?
  Yes, the controller allows mixed configurations of standard and safety-rated expansion I/O, provided they are correctly mapped within the Logix Designer safety configuration tree.
• What precautions are necessary when mounting the unit inside a sealed industrial enclosure?
  You must strictly observe the 105 mm top/bottom and 90 mm side clearance dimensions to maintain convective airflow, preventing internal temperatures from exceeding the 60°C upper limit.
• Global PLC Spare HUB's Buying Guide: How do I select the right CompactFlash card if a replacement is needed?
  Always procure an industrial-grade memory card rated for extended temperature ranges matching the exact storage size specified by Rockwell Automation to prevent write-error corruption during runtime logging.
• How should I troubleshoot a persistent safety signature mismatch error during system startup?
  Verify that all safety logic changes have been fully tested, verified, and locked with a matching safety checksum key, then clear any pending controller faults through the communication link.
